Camera Block - Hitachi DZ-MV380A(K) Service Manual

Disassembly and Reassembly > Disassembly

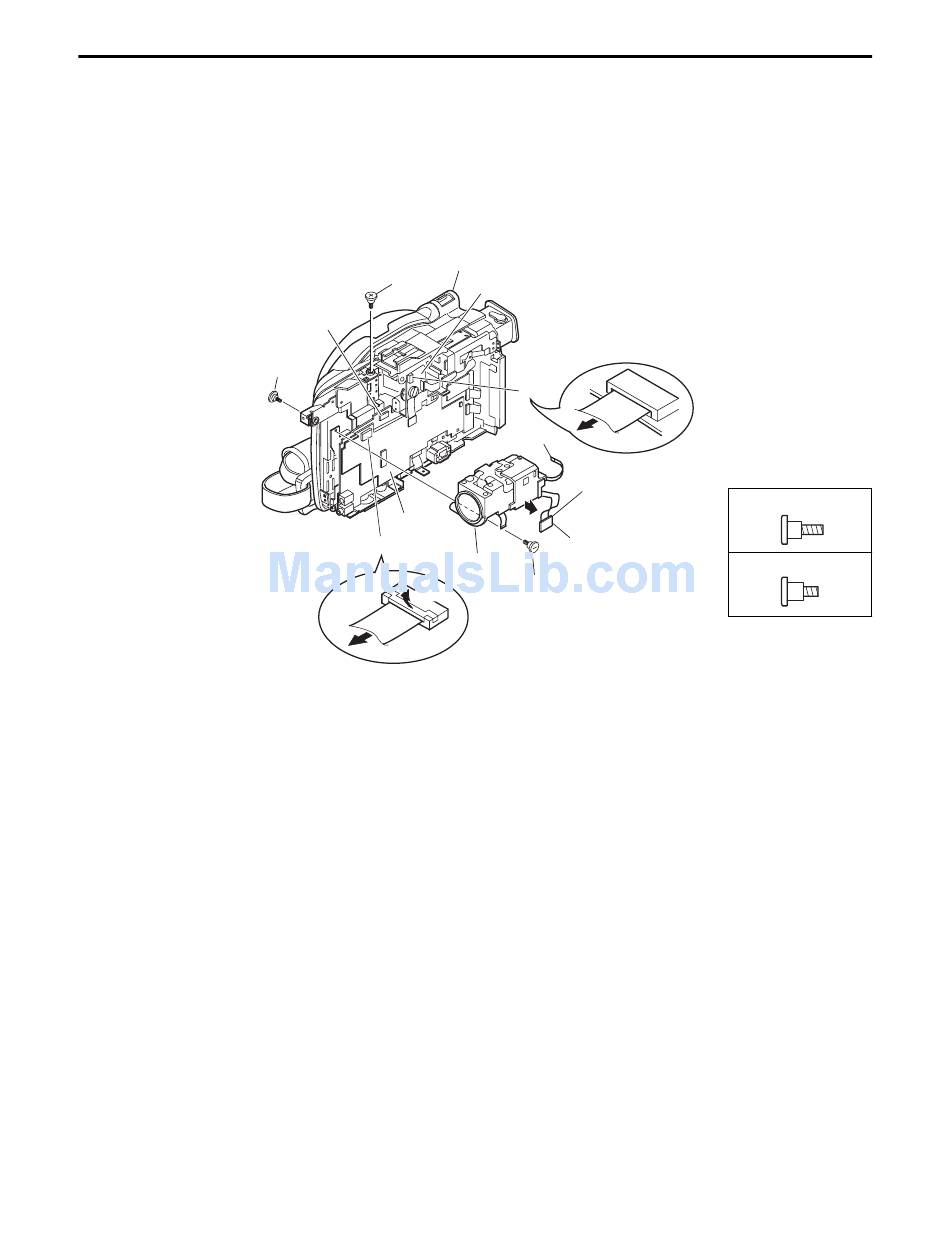

(12) Camera Block (Fig. 5-3-14)
1) Disconnect the SEN circuit board (b) from MAN circuit board (c) in the direction of the arrow.
2) Disconnect the flat cable from AEL circuit board (d).
3) Disconnect the GYR circuit board (e) from SHE circuit board (f).
4) Remove two screws [H].
5) Remove screw [J] and then remove the camera block (a) from R block (g).
(a) Camera Block
(b) SEN Circuit Board
(c) MAN Circuit Board
(d) AEL Circuit Board
(e) GYR Circuit Board
(f) SHE Circuit Board
(g) R Block
4 [H]
(c)
4 [H]
(d)
2
2-1
2-2
Fig. 5-3-14 Camera Block
(g)
(f)
3
(e)
1
1
(b)
(a)
5 [J]
5 - 12
[H] M1.7×4 (Silver)
[J] M1.6×2 (Silver)
