Audiovox GMRS672 Owner's Manual

General Mobile Radio Service (GMRS)
Model : GMRS672
Owner's Manual
TX RX
For Customer Service
Visit Our Website At
www.audiovox.com
Product Information, Photos,
FAQ's Owner's Manuals

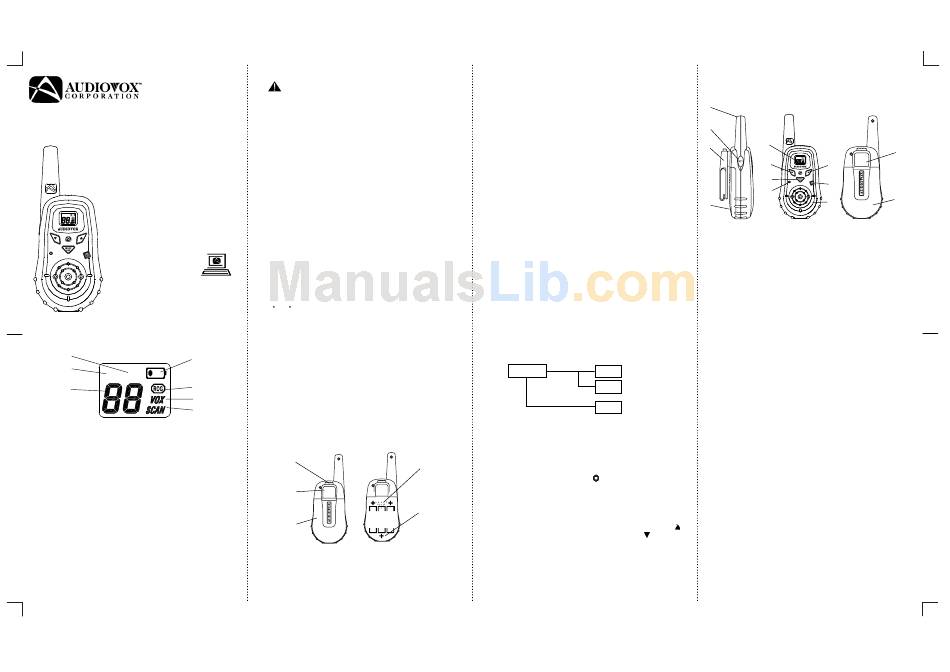

Model GMRS672 DISPLAY
1
4
TX RX
2
5
3
6
7
1. Busy Indicator: This icon appears when the unit is receiving a
transmission.
2. Transmit Indicator: Icon appears when the unit is in the transmit
mode (PTT button activated or VOX mode active).
3. Large Segment Display: Indicates the channel number in use.
4. Battery Level Indicator: Icon indicates the battery charge level.
5. Roger Beep Tone Indicator: This icon appears when the Roger Beep
tone is on, and disapppears when the tone is not in use.
6. Voice Activated Transmission (VOX) Indicator: This function allows
hands-free conversation. The icon appears when the VOX mode is
activated.
7. Scan Indicator: This function allows the user to scan a channel every
0.5 second to search for a valid signal.
Equipment and Accessories Supplied
1. Radio (2) GMRS672
2. Owner's Manual (1) 128-8033
3. Detachable Carry Clip GMRS6BCLIP
5
CAUTION
SAFETY INFORMATION
Your wireless hand-held portable transceiver contains a low power
transmitter. When the PTT button is pushed (or the VOX mode is enabled)
it sends out radio frequency (RF) signals. The device is authorized to operate
at a duty factor not to exceed 50%. In August 1996, the Federal
Communications Commissions (FCC) adopted RF exposure guidelines
with safety levels for hand-held wireless devices.
Important: To maintain compliance with the FCC' s RF exposure guidelines
hold the transmitter at least 1 inch (2.5 centimeters) from your
face and speak in a normal voice, with the antenna pointed up
and away. If you wear the handset on your body while using the
headset accessory, use only the Audiovox supplied carry clip
for this product and ensure that the antenna is at least 1 inch
(2.5 centimeters) from your body when transmitting. Use only
the supplied antenna. Do not use your transceiver with a
damaged antenna. Unauthorized antennas, modifications, or
attachments could damage the transmitter and may violate
FCC regulations.
Performance:
Your transceiver will only achieve its maximum operating range when
communicating with other transceivers across open and flat areas or
between elevated points. Normally occurring environmental factors such
as buildings, trees, terrain and weather, or interference from other radio or
electrical equipment, may have adverse effects on the transceiver's effective
range. These are not indicative of a fault condition.
Avoid placing the GMRS672 radio transceiver for prolonged periods
of time in direct sunlight or temperatures below -4 F (-20 C) or above
128-8033 140 F (60 C).
2
Powering the transceiver:
Your GMRS672 radio transceiver operates on three AAA Alkaline batteries.
Alkaline batteries will provide slightly better performance than rechargeable
batteries. Only Audiovox approved rechargeable batteries should be
recharged in the radio transceiver using the charging accessories. This
will ensure optimum performance for the GMRS672. Battery charging
time is typically 16-20 hours for full charge.
Installing the batteries:
Press down with the thumb at the embossed arrow, slide the battery cover
down and lift it away from the compartment. Insert three AAA batteries
(alternate positive ends (+) toward the top of the transceiver, starting left-to-
right).
RELEASE
BUTTON
BELT
CLIP
BATTERY
COVER
1. Using thumb, 2. Then lift cover at 3. Insert three AAA batteries
press down on bottom to open.
battery cover at Remove cover.
arrow and slide
cover down to
open.
6
WARNINGS:
Battery Care
Never attempt to charge alkaline or dry cell batteries, as batteries may
burst causing personal injury and damage to the product.
Battery Disposal
In general, if handled improperly, batteries pose a risk of fire or burns. Do
not disassemble, crush, puncture, short external contacts, or dispose of
the batteries in fire or water. Dispose of the batteries in a environmentally
safe manner and recycle whenever possible.
FCC WARNING
Replacement or substitution of transistors, diodes or other parts of a unique
nature, with parts other than those recommended by the manufacturer,
may cause a violation of the technical regulations of Part 15 of FCC Rules.
THIS DEVICE COMPLIES WITH PART 15 OF THE FCC RULES. OPERATION IS
SUBJECT TO THE FOLLOWING TWO CONDITIONS:
(1) THIS DEVICE MAY NOT CAUSE HARMFUL INTERFERENCE, AND
(2) THIS DEVICE MUST ACCEPT ANY INTERFERENCE RECEIVED, INCLUDING
INTERFERENCE THAT MAY CAUSE UNDESIRED OPERATION.
GMRS LICENSE:
USE OF THIS RADIO WITHIN THE UNITED STATES REQUIRES AN FCC
GMRS LICENSE. AN INDIVIDUAL 18 YEARS OF AGE OR OLDER, WHO IS
NOT A REPRESENTATAIVE OF A FOREIGN GOVERNMENT, IS ELIGIBLE
TO APPLY FOR A GMRS SYSTEM LICENSE. YOU WILL NEED TWO FORMS
FROM THE FCC: FCC FORM 159, AND FCC FORM 605 (MAIN FORM AND
SCHEDULE F). YOU CAN FIND THE FORMS ONLINE AT:
HTTP://WWW.FCC.GOV/FORMPAGE.HTML, OR CALL 1-800-418-3676.
GMRS672 OPERATIONAL MODES
Short Press
GMRS/FRS
(MODE)
Long Press
NOTE:
Refer to the appropriate section of this manual for detailed op-
erating instructions for each mode.
COVER
Controls:
ARROW
Power On-Off/SCAN Button (6)
Press and hold the PWR on/off button (
hear a confirming melody to indicate the unit is on. To turn the unit off, press
and hold the button for at least 2 seconds. When the unit is powered on,
press this button momentarily to enable or disable the scan mode; the scan
icon (SCAN) will appear when enabled.
POSITIVE
TERMINALS
Adjusting the Volume (10,11)
With the unit powered on, press the Up Channel/Volume button (
increase volume and the Down Channel/Volume button (
volume. The display will indicate the current volume level ( UL) followed by
the number (1-7).
(positive (+) end toward
the top begining at left
side and alternating
positive terminals as
shown).
Model GMRS672 (FCC License Required)
4
3
8
2
11
9
5
1
1. Battery Cover
2. Detachable Carry Clip
3. Push-To-Talk (PTT) and Func-
tion Confirmation Button
4. Antenna
5. Built-in Microphone
6. Power On/Off and SCAN
Button
3
Push To Talk (PTT) Button (3)
Pressing and holding this button will allow you to speak to any transceiver
that is set to the same channel as yours. Hold the transceiver approximately
CHANNEL
(1-22)
1 to 2 inches from your face as you speak into the built in microphone (5).
SELECT
After you have finished speaking, release the PTT Button to allow reception
ROGER (on or oF)
of incoming signals. It is not possible to transmit and receive at the same
BEEP
time. Whenever the button is pressed, the transmit signal icon ( TX ) will
appear in the upper left corner of the display. Releasing the button allows
(On/Off)
VOX
the unit to revert to standby mode. When receiving an incoming signal, the
RX icon will appear.
The PTT Button can also be used as a two-way call ringer. Pressing the
button twice quickly will call another party on the same channel. The transmit
icon ( TX ) will be displayed for 3 seconds and then disappear
Up Channel/Volume Button (10)
In the standby mode, pressing this button will increment the listening
volume. When in function edit mode this button will be used to adjust the
) for at least 2 seconds. You will
s
unit's settings.
Down Channel/Volume Button (11)
In the standby mode, pressing this button will decrement the listening
volume. When in function edit mode this button will be used to adjust the
unit's settings.
) to
MODE Button (9)
) to decrease
This button is used to select various feature settings in the GMRS and FRS
modes.
8
2
TX RX
(REF)
10
6
1
7
(REF)
7. Built-in Speaker
8. Liquid Crystal Display
(LCD)
9. MODE/ VOX Button
10. Up Channel/Volume Button
11. Down Channel/Volume
Button
4
.
9
