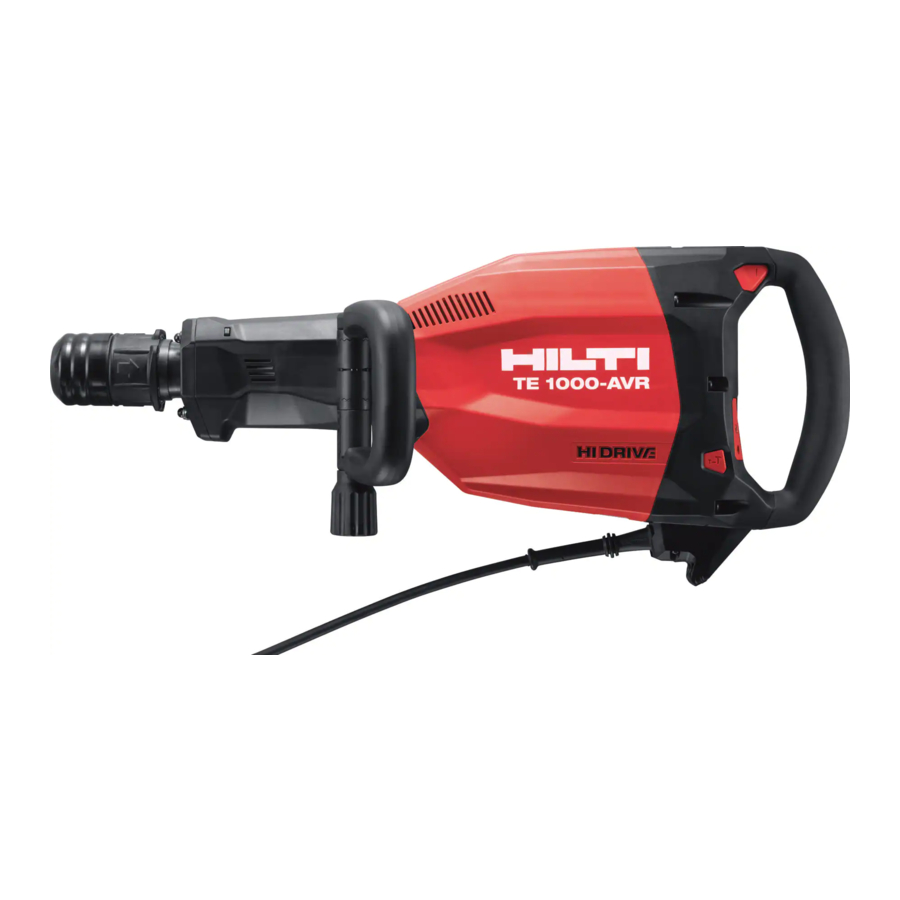

Hilti TE 1000-AVR Operating Instructions Manual
Hide thumbs
Also See for TE 1000-AVR:
- User manual ,
- Operating instructions manual (235 pages) ,
- Original operating instructions (188 pages)
Advertisement
Quick Links
Advertisement
Related Manuals for Hilti TE 1000-AVR
Summary of Contents for Hilti TE 1000-AVR
- Page 1 TE 1000-AVR English Printed: 24.01.2017 | Doc-Nr: PUB / 5165612 / 000 / 04...
- Page 2 Printed: 24.01.2017 | Doc-Nr: PUB / 5165612 / 000 / 04...
- Page 3 Protection class II (double-insulated) 1.4 Product information Hilti products are designed for professional use and may be operated, serviced and maintained only by trained, authorized personnel. This personnel must be informed of any particular hazards that may be encountered. The product and its ancillary equipment can present hazards if used incorrectly by untrained personnel or if used not in accordance with the intended use.
- Page 4 Product information Breaker TE 1000AVR Generation Serial no. 2 Safety 2.1 General power tool safety warnings WARNING Read all safety warnings and all instructions. Failure to follow the warnings and instructions may result in electric shock, fire and/or serious injury. Save all warnings and instructions for future reference.
- Page 5 ▶ Do not use the power tool if the switch does not turn it on and off. Any power tool that cannot be controlled with the switch is dangerous and must be repaired. ▶ Disconnect the plug from the power source and/or the battery pack from the power tool before making any adjustments, changing accessories, or storing power tools.
- Page 6 ▶ Dirty or dusty power tools that have been used frequently for work on conductive materials should be checked at regular intervals at a Hilti Service Center. Dust (especially dust from conductive materials) or dampness adhering to the surface of the power tool may, under unfavorable conditions, lead to electric shock.
- Page 7 3 Description 3.1 Product overview English Printed: 24.01.2017 | Doc-Nr: PUB / 5165612 / 000 / 04...
- Page 8 The voltage provided by the electric supply is too high. Note Bring the product to Hilti Service in good time. This will help to ensure that it’s always ready for use. 3.7 Items supplied Breaker, side handle, operating instructions. You can find other system products approved for your product at your local Hilti Center or online at: www.hilti.com.
-
Page 9: Operation
TE 1000AVR Weight 27.6 lb (12.5 kg) Single impact energy 26 J 5 Operation 5.1 Preparations at the workplace CAUTION Risk of injury! Inadvertent starting of the product. ▶ Unplug the supply cord before making adjustments to the power tool or before changing accessories. - Page 10 2. Push the accessory tool into the chuck as far as it will go, turning it and applying light pressure until it engages with an audible click. ◁ The product is ready for use. Note Use only the recommended grease supplied by Hilti. Use of unsuitable grease may cause damage to the product. 5.1.4 Removing the accessory tool WARNING Risk of injury! The accessory tool gets hot during use and may also have sharp edges.
- Page 11 1. Pull the chuck back. 2. Remove the accessory tool. 5.2 Types of work Warning! Risk of damage! ▶ Operation of the direction of rotation and/or function selector switch while the tool is running may result in damage to the tool. ▶...
- Page 12 1. Plug the supply cord into the power outlet. 2. Bring the chisel into contact with the workpiece about 80 -100 mm (3¹⁄₈" - 4") from its edge. 3. Begin with the chisel positioned at an angle of 70° to 80° to the concrete surface, with the tip of the chisel pointing toward the edge of the workpiece.
-
Page 13: Troubleshooting
▶ Clean the dust shield on the chuck with a dry, clean cloth at regular intervals. ▶ Clean the sealing lip by wiping it carefully and then grease it again lightly with Hilti grease. ▶ It is essential that the dust shield is replaced if the sealing lip is damaged. - Page 14 Most of the materials from which Hilti tools and appliances are manufactured can be recycled. The materials must be correctly separated before they can be recycled. In many countries, your old tools, machines or appliances can be returned to Hilti for recycling. Ask Hilti Service or your Hilti representative for further information.
- Page 15 Printed: 24.01.2017 | Doc-Nr: PUB / 5165612 / 000 / 04...
- Page 16 Hilti = registered trademark of Hilti Corp., Schaan 20170112 Printed: 24.01.2017 | Doc-Nr: PUB / 5165612 / 000 / 04...
