Surface Testing PCE-GM 60
OPERATION MANUAL
Advertisement
Table of Contents
Related Manuals for PCE Instruments PCE-GM 60
Summary of Contents for PCE Instruments PCE-GM 60

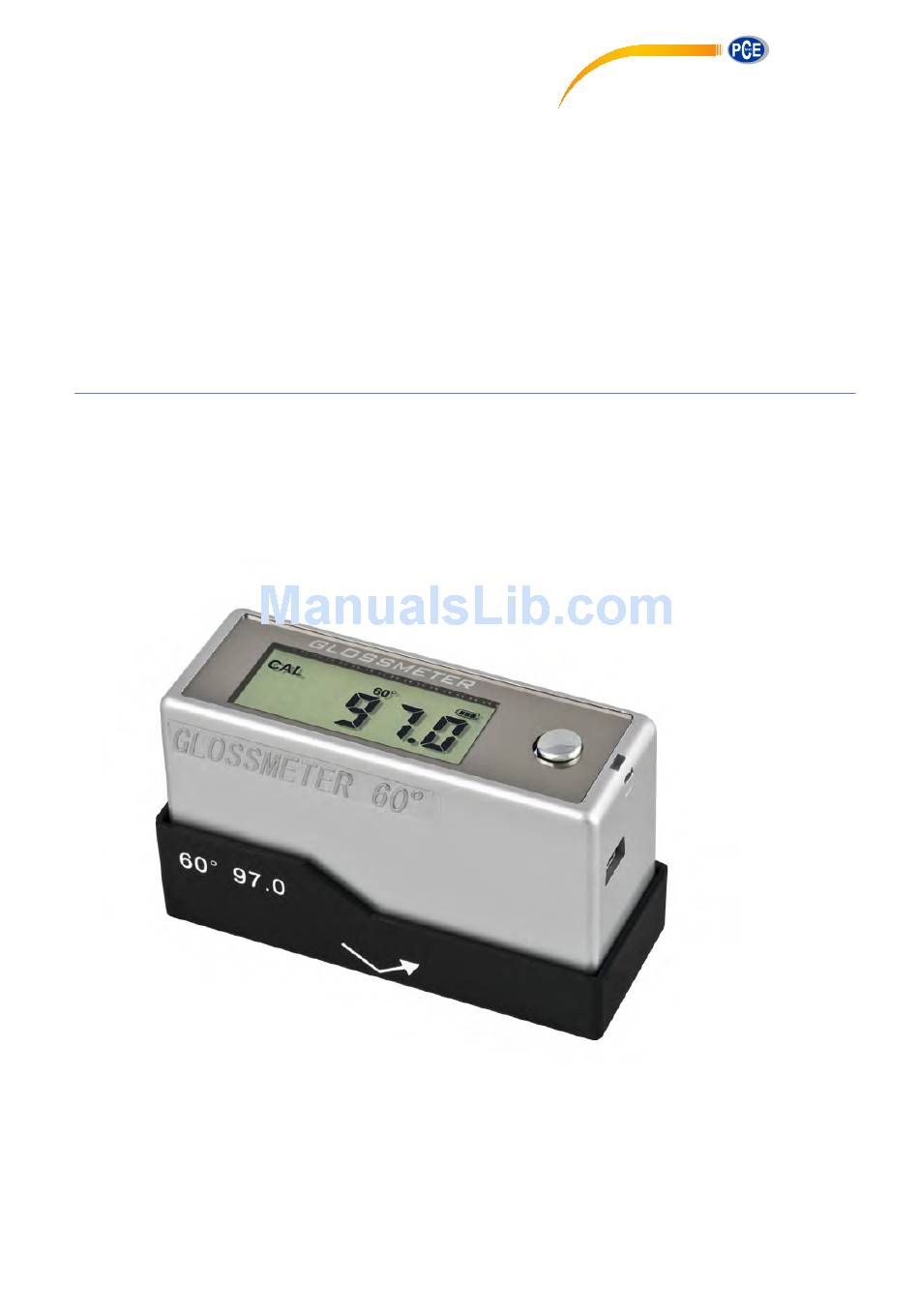

- Page 1 Hampshire / Southampton United Kingdom, SO31 4RF From outside US: +1 From outside UK: +44 Tel: (561) 320-9162 Tel: (0) 2380 98703 0 Fax: (561) 320-9176 Fax: (0) 2380 98703 9 info@pce-americas.com info@pce-instruments.com www.pce-instruments.com/english www.pce-instruments.com Surface Testing PCE-GM 60 OPERATION MANUAL...
-
Page 2: Table Of Contents
CONTENTS Description of System ...................... 2 Safety instructions ......................2 General information ......................2 Power supply and changing battery ................3 Overview.......................... 4 Getting started from calibration ..................5 Testing ..........................6 Statistic ..........................7 Standards ......................... 8 Parameter ........................8 Interface .......................... -
Page 3: Description Of System

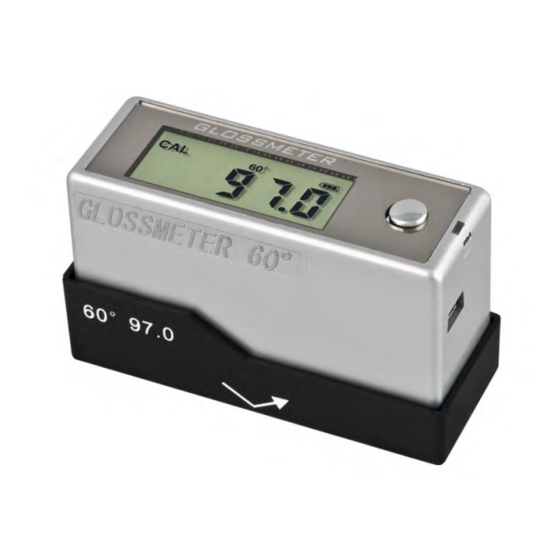

1. Description of System The gloss meter PCE-GM 60 can be used to determine the gloss level of paints, coatings, plastics, ceramics and metal surfaces. 2. Safety instructions If you use the unit properly, there are no hazards to fear. -
Page 4: Power Supply And Changing Battery
4. Power supply and changing battery Before putting the unit in operating, read the operating instructions and pay attention to operation the safety instructions and general instructions in Section. Unpack the device and check to make certain all pieces have been included with delivery. The device runs on one 1.5v AAA(LR03) alkaline battery(LR03). -
Page 5: Overview
5. Overview 1 Display window 2 Multifunctional button 3 String position 4 PC communication interface 5 The holder 6 Standard board 1-Calibration 2-Test 3-Statistic 4-Geometry 5-Battery 6-Standard deviation 7-Average 8-Error 9-Measure value... -
Page 6: Getting Started From Calibration
6. Getting started from calibration ←Turning on： Short press the button. ←Short press the button, the unit will enter the cal. mode if it’s in the holder. ←Press the button, the unit will calibrate to 97.0 Gu (60°) automatically. Turning off： 1. -
Page 7: Testing
7. Testing ←Short press the button, the unit will enter the test mode if it’s not in the holder. ← Press the button, it shows the test value. -
Page 8: Statistic
8. Statistic Long press button（over 2 second）, the unit will enter stat. mode（Display “N0”） ： The number of measurements is 10 maximum(from N1-N0). You can decide how much times you want to calculate. For instance，you want to calculate 5 points statistical. Test your sample for 5 times at the different position. -
Page 9: Standards
9. Standards ISO2813 Paints and varnishes -- Determination of secular gloss of non-metallic paint films at 20 degrees, 60 degrees and 85 degrees. ASTM D 523 Standard Test Method for Secular Gloss. DIN 67530 The reflect meter as an aid in evaluating gloss on level paint and plastic surfaces. -
Page 10: Interface
Interface This unit can communicate with PC by RS232. You can also connect PC USB port by USB Adapter. After connected, you can transfer data and generate report by “My Gloss”. Please refer the software manual in disc for detail information. Errors and warning messages Calibrate error: For clean excessive dirt and dust, use ethanol or cleaning alcohol.
