Zykronix ZIP10-KSC User Manual

Ip zip1x series door access control voip interface
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual

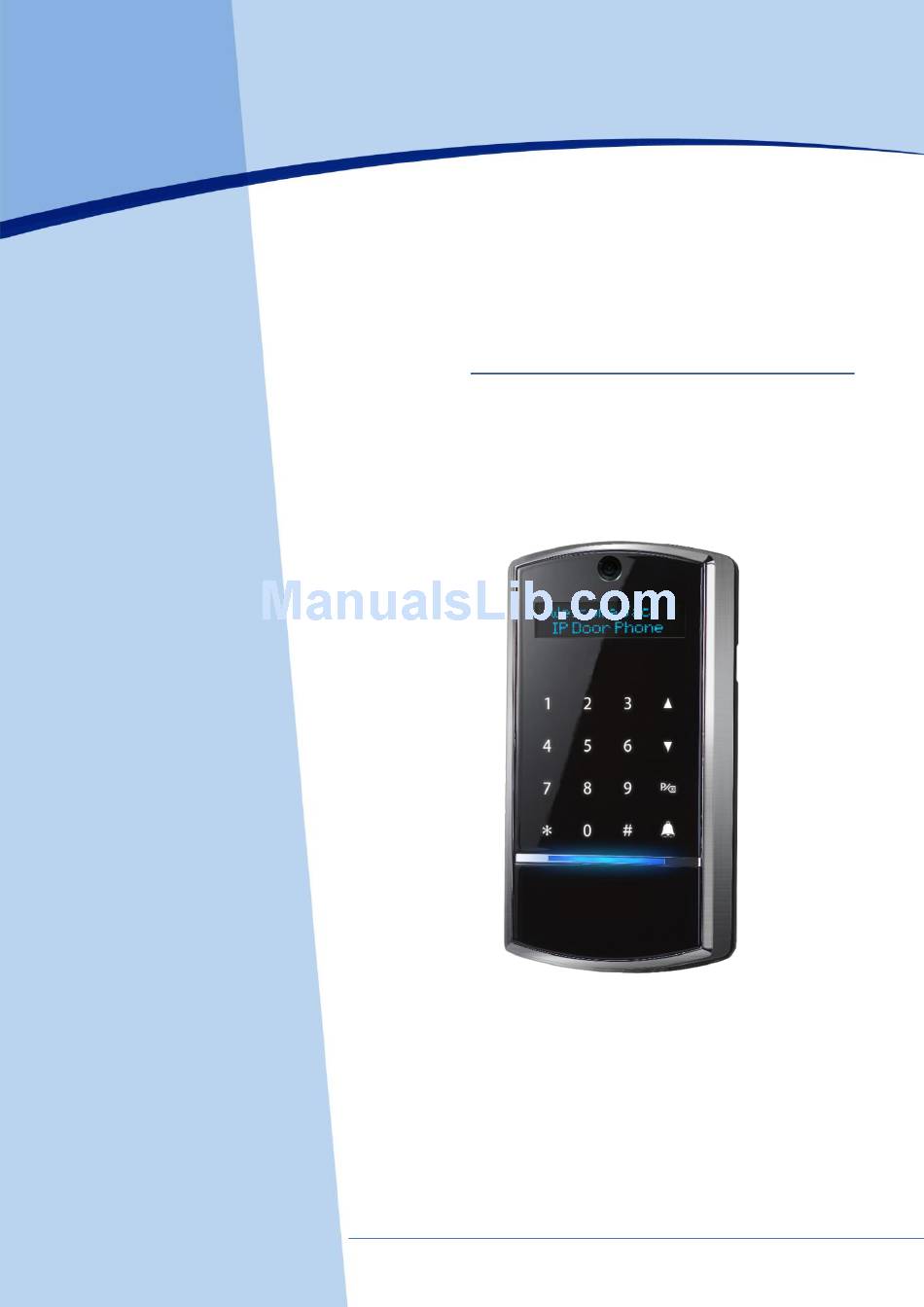

User Manual

Installation and Programming
Door Access Control
VoIP Interface
IP Door Phones
IP ZIP1X Series
www.Zykronix.com

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the ZIP10-KSC and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Zykronix ZIP10-KSC

  • Page 1: User Manual

    User Manual Installation and Programming Door Access Control VoIP Interface IP Door Phones IP ZIP1X Series www.Zykronix.com...
  • Page 2 Notification Notification is hereby given that Zykronix International Inc. reserves the right to modify, change, update or revise this document from time to time as required without the prior obligation to notify any person, company or organization. Further, Zykronix International Inc. makes no warranty or representation, either express or implied, with respect to merchantability, or fitness of its products for a particular purpose.

  • Page 3: Table Of Contents

    Door Access Codes ........................... 28 7.6.3 Sensor ............................... 29 7.6.3.1 Sensor Door Status Control ......................30 7.6.4 LED Display Settings ..........................32 System Parameters ............................33 7.7.1 Volumes ..............................33 7.7.2 NTP and Time (System Time Configuration) .................... 33 7.7.3 Camera ..............................35 www.Zykronix.com...
  • Page 4 Door Opening from IP Extension by Using the Extension’s Door Opening Code ......... 51 Setting the Maximum Conversation Time ...................... 52 Case Opening Alarm ............................. 53 8.10 Door Opening Report in the Syslog Server ....................53 Technical Specification ............................56 www.Zykronix.com...

  • Page 5: Introduction

    Model Nomenclature: ZIP10-KC/SB ZIP10 – This is the ZIP10 Series Model K/S – Model Number – “K” Keypad / “S” Single Call Button S – Piezo Faceplate B - Acrylic Faceplate C - Camera ZIP10-KSC ZIP10-KS ZIP10-SSC ZIP10-SS www.Zykronix.com...

  • Page 6: List Of Available Models

    IP Door Phone, Piezo Single Button ZIP10-KBC IP Door Phone, Touch Keypad, Integrated Internal Video Camera ZIP10-KB IP Door Phone, Touch Keypad ZIP10-SBC IP Door Phone, Touch Single Button, Integrated Internal Video Camera ZIP10-SB IP Door Phone, Touch Single Button www.Zykronix.com...

  • Page 7: Product Overview

    2 Product Overview Zykronix IP ZIP10-x Door Phones are smart, surface mounted access control devices connected to an IP network allowing door entry control and monitoring. They are designed for both indoor and outdoor use and are constructed in an aluminum case with piezo or touch keypads.

  • Page 8: Ip Door Phone Package Content

    2. 5VDC Power Supply shall be connected to IP Door Phone in accordance with the required polarity. 3. The External Power Supply does not include in standard ZIP10-x package. 4. The 5 VDC source is connected to the unit via a terminal block. Observe polarity on the PCB where the terminal block is located. www.Zykronix.com...

  • Page 9: Ip Door Phone Front Panel

    Figure 4-1 The IP Door Phone Unit Front Panel  ▲▼ – scroll a speed dial directory.  – enter the programming mode or use as a “Backspace”  – dial predefined day/night extensions and hang up a call. www.Zykronix.com...

  • Page 10: Ip Door Phone Main Functionality

    The unit opens doors from local extension or remote conversation party.  The unit opens doors using External Switch buttons.  The unit management is handled by Web Management interface. Figure 5-1the unit schematic setup. Remote IP Extensions Remote IP Extensions Figure 5-1 The IP Door Unit Schematic Setup www.Zykronix.com...

  • Page 11: Installation

    Place the rubber mat on the wall and then the rear metal cover using provided wall screws. (See Figure 6-1) 4. Figure 6-1Make all required connections. 5. Put Door Phone unit on the base latch mechanism, close the case and lock with provided screw. www.Zykronix.com...
  • Page 12 Figure 6-1 Door Phone Wall Installation www.Zykronix.com...

  • Page 13: Connections

    Closed/Jumperd center Pin (2) + ’NO’- (1) means the ‘Normally open’ relays status in powered mode. Closed/Jumperd center Pin (2) + ’NC’ - (3) means the ‘Normally Close’ relays status in powered mode. Relay 1 works in Normally Open mode only. www.Zykronix.com...
  • Page 14 Relay 1 and Relay 2 Normally Open and Normally Close status jumper. Closed Central Pin (2) + ’NO’- (1) pin means the ‘Normally open’ mode. Closed Central Pin (2) + ’NC’ - (3) pin means the ‘Normally Close’ mode Note: Relay 2 works in Normally Open (NO) mode only www.Zykronix.com...
  • Page 15 It is recommended to use an Ethernet cable that comes without the strain relief boot. You can remove the boot if your cable comes with one. Figure 6-3 shows the IP Door Phone connections with External Switch button, which is connected to SEN 1 (‘Sensor 1’) socket. www.Zykronix.com...

  • Page 16: Reset Device To Factory Default Configuration

    LED Display can show the message “Destination not set “if Day or Night destinations not specified and case is open LED Display Shows ’Set to default’ message if a case is closed  Power off the device.  Put the switch back to “NORMAL” position  Power on the device www.Zykronix.com...
  • Page 17 Figure 6-4 Factory Default Settings Switch SW2 www.Zykronix.com...

  • Page 18: Programming

    Password characters: Up to 19 Digits: 0-9, Aa-Zz, no space allowed 4. Also IP Door phone IP address could be seen on the unit’s LED display (keypad models only). Dial: P/ + 1 + Web Access Administrator password + # www.Zykronix.com...

  • Page 19: Home Screen

    Set device to factory default configuration Restart: restart the unit Change the Administrator Web-Login credentials Syslog Server Settings Ping test to the unit Save updated configuration and restart the unit Save & Reboot Figure 7-2 The IP Door Phone Web-Management Application Main Screen www.Zykronix.com...
  • Page 20 Installed firmware release identification code Firmware’s release date Software Version Date MAC Address IP Door Phone MAC Address IP Address IP Door Phone IP address Telephone Number Associated SIP extension number Status Shows the associated SIP extension registration status in IP PBX www.Zykronix.com...

  • Page 21: Network Parameters

    TCP/IP network. IPv4 format shall be used: XXX.XXX.XXX.XXX DNS Server (Primary, Secondary): The local DNS servers IP address. IPv4 format shall be used: XXX.XXX.XXX.XXX Note: Strongly recommended to specify at least one DNS Server in Static Network configuration mode. www.Zykronix.com...

  • Page 22: Network -> Https Activation

    Enable ‘Apply Now’ button Applies updated configuration. Note: The unit LAN configuration shall be completed and saved before the HTTPS activation is set. WEB access URL to Door phone management page can require ‘https://’ prefix when HTTPS function activated www.Zykronix.com...

  • Page 23: Network / Nat Traversal

    The STUN server allows IP clients to find out their public address required for IP connection. TEXT Field allows to type the used STUN Server URL or IP address STUN Port Specifies the STUN server connection listening port number www.Zykronix.com...

  • Page 24: Auto Provision

    ‘Update Now’ button – initiates the Auto-provisioning procedure immediately Note: Allowed to use only original file provided by IP Door Phone manufacturer Auto-provisioning procedure supports only files with specific File Name. Contact with Support Center in order to specify the ZIP10 File Names Convention. www.Zykronix.com...

  • Page 25: Sip Parameters

    9 digits only in Ipv4 format XXX.XXX.XXX.XXX. Alternatively allowed to specify Proxy Server by its DNS name. Status Shows the associated SIP extension registration status in IP PBX 7.3.2 SIP / Port Settings Figure 7-8 SIP Port Settings Screen www.Zykronix.com...

  • Page 26: Sip Audio Codecs

    This screen specifies Audio codecs which used in SIP protocol codec’s priority. Available following codecs:  PCMU – G.711µ-low  PCMA – G.711 a-low  Speex 32 / 16 / 8 KHz   G.722  G.729 7.3.4 SIP Video Codecs Figure 7-10 SIP Video Codecs Screen www.Zykronix.com...

  • Page 27: Sip Advanced Settings

    RFC 2833  SIP INFO (Default)  Inband DTMF Media Encryption Enables / Disables the SIP traffic media encryption by using SRTP protocol capabilities. Note: Parameter not activated in default settings Session Timer Available Options:  Disable  Enable (Default) www.Zykronix.com...

  • Page 28: Telephony

    Specifies the time interval for incoming call when IP Door phone not answered. The call will be forward to another destination when parameter expires. Specifies the ‘No Answer’ case call forward destination No Answer Forward Destination ‘Apply’ button Screen requires using ‘Apply’ button for to update parameters in the unit www.Zykronix.com...

  • Page 29: Day And Night Settings

    For Peer-to-Peer calls enter the destination in format: (where ‘5060’ the actual SIP signaling port sip:XXX.XXX.XXX.XXX:5060 number) Specifies the ‘Ring’ button destination number for the ‘Night’ operational Night Time destination mode For Peer-to-Peer calls enter the destination in format: sip:XXX.XXX.XXX.XXX:5060 www.Zykronix.com...

  • Page 30: Speed Dial And System Subscribers Table

    The destination telephony number which associated with the SPD code and will be dialed in ‘Day’ operational mode For Peer-to-Peer calls enter the destination in format: sip:XXX.XXX.XXX.XXX: NNNN, where, – destination peer IP address in IPv4 format XXX.XXX.XXX.XXX NNNN – SIP Signaling port number, ‘5060’ in default settings www.Zykronix.com...

  • Page 31: Door Functions

    IP Door phone calls to Day / Night destination in case if specified time expired and door did not return to its IDLE/Standby mode. www.Zykronix.com...

  • Page 32: Door Access Codes

    Save & Reboot unit Dial Door opening prefix and follow the door opening code: for example: If a Code prefix selected as ‘*’ and door opening code is ‘4321’, so need to dial *4321 in order to open a door. www.Zykronix.com...

  • Page 33: Sensor

    The Door ‘Status Sensor’ provides an option to control the doors open/close status and activates alarm calls when door does not return to its IDLE mode during specific time interval The ‘External Switch Button’ provides an option to open a door manually. See Figure 6-2 www.Zykronix.com...

  • Page 34: Sensor Door Status Control

    The ‘Normally Open’ sensor type means that sensor provides the loop disconnection status via its pins in default mode. Figure 7-18 Normally Open Sensor The ‘Normally Close’ sensor type means that sensor provides the short-connection status via its pins in default mode. Figure 7-19 Normally Close Sensor www.Zykronix.com...
  • Page 35 Open a door and leave door opened during time interval, which is longer than ‘Door Opened Timeout’ configured parameter value. Note: Check the Sensor provides ‘Connection’ status via its pins when door is open.  IP Door Phone calls to Day/Night destination www.Zykronix.com...

  • Page 36: Led Display Settings

    Specifies the specific Language support Message Line X ( from 1 to 8) The LED Display message text. LED Display divides messages by pairs and shows & scrolls simultaneously 2 lines. Note: Feature required Save & Reboot action for activation. www.Zykronix.com...

  • Page 37: System Parameters

    NTP and Time (System Time Configuration) Figure 7-23 Figure 7-24 System Real Time Configuration Screen Parameter Description NTP Active Available options  Disable  Enable This parameter enables / disables the internal real-time clock auto updating by using the NTP protocol www.Zykronix.com...
  • Page 38 ‘Set Date and Time’ button This button applies ‘Date and Time Settings’ tableupdates to the unit ‘Apply’ button Screen settings require to be applied in order to take effect. Note: Feature requires Save & Reboot action to be accepted www.Zykronix.com...

  • Page 39: Camera

    Resolution Allows to select the internal video camera resolution mode: Normal: 640 x 480 High: 720p Note: The destination SIP client shall support the selected video resolution mode Feature configuration requires ‘Save & Reboot’ action in order be accepted. www.Zykronix.com...

  • Page 40: Administration Parameters

    Screen Opens where shown the Configuration file storage directory and your (Administrator’s) PC’s IP Address  Go to IP Door Phone Web Management screen / Admin / Save Config File screen  Type Administrator’s PC’s IP Address where tftpd32 software runs to ‘TFTP Server IP’ field www.Zykronix.com...

  • Page 41: Restore Configuration

    Press ‘Apply Now’ button  tftpd32 software screen indicates the Configuration file transfer status  When operation is done the ‘config.cfg’ file can be found in storage directory 7.7.2 Restore Configuration Figure 7-26 IP Door Phone Restore Configuration Screen www.Zykronix.com...

  • Page 42: Firmware Update

    Note: The firmware updating procedure is available by using TFTP and FTP protocols. Only original IP Door phone’s firmware can be used for the Firmware update procedure. Please contact Zykronix support in order to get the original firmware file. Parameter Description The ZIP10X Software file name including the file’s extension suffix.
  • Page 43 ( where: XX – the firmware version ; N – the firmware edition number )  Launch tftpd64 server utility and draw attention on ‘Server Interface’ field where must be shown IP address of PC where tftpd64 server runs www.Zykronix.com...
  • Page 44 Note: The ZIP10 front panel LED Display shows ‘Rebooting’ message during firmware updating procedure  Wait until ZIP10 will finish the firmware updating; restart the unit and returns to its IDLE mode Note: Do not disconnect the ZIP10-X power during firmware updating procedure. Power failing on this stage destroys the unit. www.Zykronix.com...

  • Page 45: Firmware Local Update

    Use ‘Choose File’ button in ‘ Checksum File’ line in order to find and select the IP Door Phone firmware checksum file. The ZIP10 Firmware file name; ‘ ‘ where XXXNN – firmware ip-394X-wXXXNN.tar.gz.sum release number + edition number.  Click ‘Apply Now’ button in order to initiate the Firmware update procedure Figure 7-29 Firmware ‘Update Local’ Screen www.Zykronix.com...

  • Page 46: Set To Default

    After click on ‘Apply Now’ button all previously configured parameters will be reset to factory values 7.7.6 Restart / Cold Reset Figure 7-31 Cold Reset Screen This screen allows remote cold restart the IP Door Phone Parameter Description ‘Restart’ button This button initializes the IP Door Phone Cold Reset. www.Zykronix.com...

  • Page 47: Web-Management Credentials

    Type new password in ‘New Password’ field  Confirm New Password by typing the New Password in ‘Confirm’ field  Click ‘Save’ button to complete Note: The Web login password can be assigned with up to 15 characters: 0-9, Aa-Zz, no space allowed www.Zykronix.com...

  • Page 48: Change Web User Login Credentials

    This screen allows specifying the external ‘Syslog’ server IP address in order to stream the ‘syslog’ directly to server, where it can be stored. Figure 7-34 Syslog Server Settings Screen Note: Save & Reboot action required in order to save screen configuration www.Zykronix.com...
  • Page 49 Console (Debug) - For debugging purpose, it also displays the message to a terminal (must be connected to ZIP10 RS-232). See User’s Operation Chapter 8.10 in order to get the Door Opening report to external syslog server. www.Zykronix.com...

  • Page 50: Ping Test

    To initiate the Ping test:  Type the remote IP Door phone IP address or its DNS name in ‘IP or Domain Name’ and press ‘Ping’ button  After some seconds, Ping results will be shown on the screen. www.Zykronix.com...

  • Page 51: User Operations

    This specific operation is available in Keypad units only  Door will be opened during the ‘Door Opening Time’ interval. (See Chapter 7.5.1) Note: The ‘Door Opening Time’ interval can be configured via appropriate WEB-GUI Screen (See also Chapter 7.5.1) The default Door opening time is seconds www.Zykronix.com...

  • Page 52: Door Opening By Using The External Switch Button

    Standby mode. The IP Door phone can operate in ‘Day’ and ‘Night’ scheduling modes. The Operator destination number can be specified for each mode separately via WEB Management interface (See Chapter 7.4.2). The number will be dialed when pressing button. www.Zykronix.com...

  • Page 53: Call To The Day / Night Operator

     Enter destination IP address in format sip:XXX.XXX.XXX.XXX:NNNN in Day/Night Time Destination fields as shown in following image, where: Parameter Description XXX.XXX.XXX.XXX The destination IP address NNNN SIP protocol signaling port, 5060 in default Figure 8-2 Peer-to-Peer Call Configuration www.Zykronix.com...

  • Page 54: Direct Call To Destination Number

    ‘No Answer Forward Destination’ - the number which will be dialed in case if a Day or Night mode did not answer during specific time interval  ‘Description’ – short up to 30 characters System subscriber destination’s description, which will be indicated on the front panel LED Display. www.Zykronix.com...

  • Page 55: Speed Dialing By Using The Spd Code

    Call to destination as described in Chapters: 8.2, 0, 8.5, 8.6  Wait till destination answers.  Destination extension can dial the ‘Extension Door Opening code’ during conversation in order to open a door.  The call will be disconnected after door opening procedure is complete. www.Zykronix.com...

  • Page 56: Setting The Maximum Conversation Time

    Door phone will disconnect the call. (See Chapter 7.4.1) Note: 1. The default Maximum conversation duration time is 1 minute 2. The Maximum conversation time interval can be configured via the Web-management interface ‘Telephony Parameters ‘screen (See Chapter 7.4.1) www.Zykronix.com...

  • Page 57: Case Opening Alarm

    The “SysLog” messages filtering functionality requires the ZIP10-x IP Door phone and external “SysLog” server configuration. Note: The ‘SysLog Watcher’ SysLog server application shown as an example below. To configure ZIP10-x IP Door Phone to generate Door Opening/Tempering “sysLog” messages:  Go to Admin / SysLog Server Settings and select Log Level‘3=Info’ www.Zykronix.com...
  • Page 58 Type PC where runs “Syslog” server application in ‘Syslog Server IP Address’ field  The rest of selections are default and shown on Figure 8-5.  Click ‘Save’ button and follow Save& Reboot option from Navigation menu  Go to ‘Syslog watcher’ syslog server and Click ‘Filter’ button in top Menu www.Zykronix.com...
  • Page 59 Check ‘Message’ option and type in Message filtering box: “Door Open Code”  Click ‘Apply button From this moment only filtered messages which includes door opening codes will be printed in Syslog server Figure 8-7 Syslog Server Screen with Filtered Messages www.Zykronix.com...

  • Page 60: Technical Specification

    Outdoor Unit: …………….182 L x 94 W x 36 H (mm) Weight Indoor Unit : ..... ……550g (net) Indoor Unit Mini Housing: 282.4g (net) Outdoor Unit:……………..700g (net) Outdoor: -20ºC to +50ºC/4ºF to 122ºF Operating Temperature Indoor: 0ºC to +35ºC/32ºF to 95ºF www.Zykronix.com...
  • Page 61 www.Zykronix.com...
