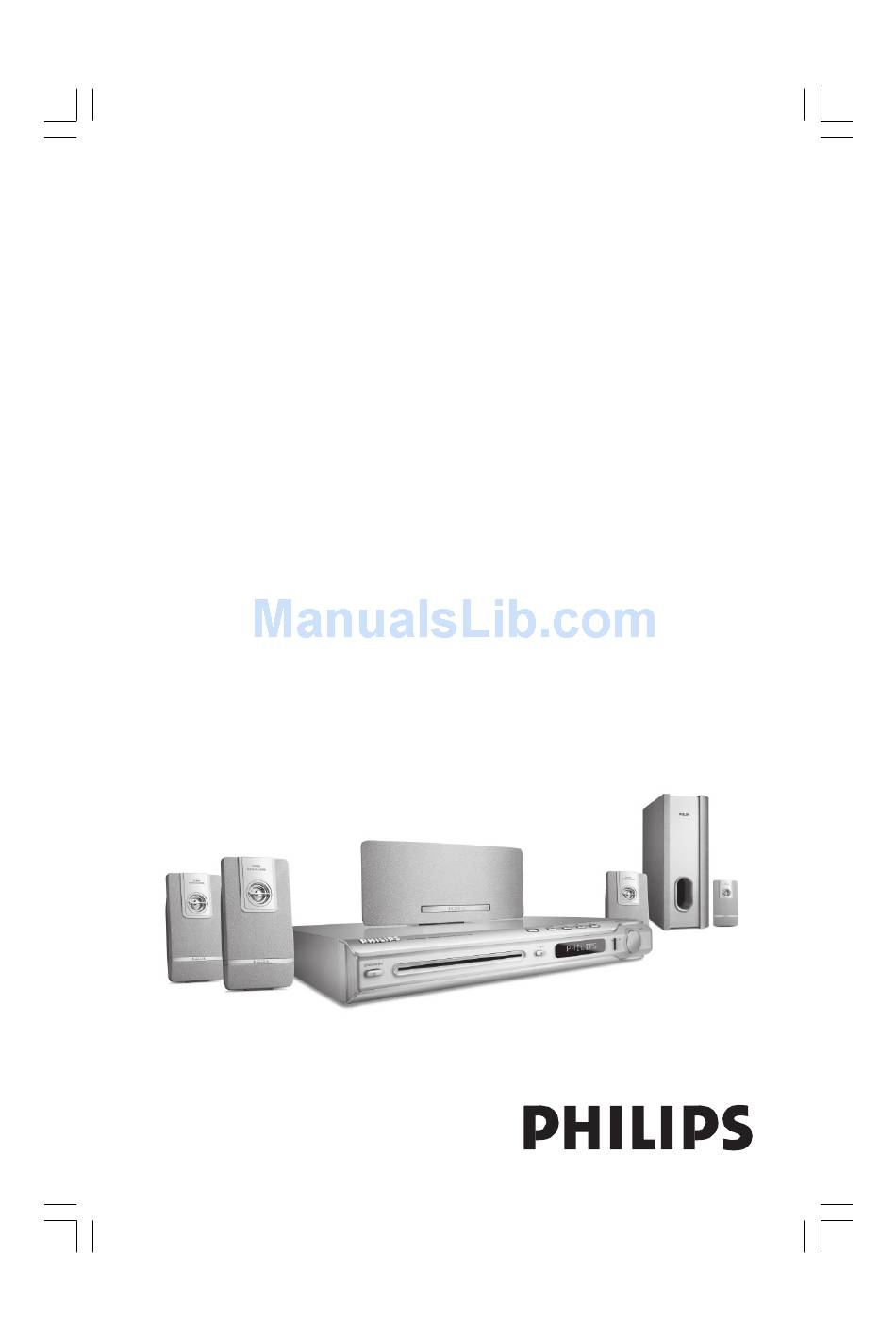

DVD HOME THEATER SYSTEM
HTS5000W
User manual
Thank you for choosing Philips.
Need help fast?
Read your Quick-Use Guide and/or User Manual first for quick
tips that make using your Philips product more enjoyable.
If you have read your instructions and still need assistance,
you may access our online help at www.philips.com/support
1
001-051-hts5x-01-Eng50
1
17/05/05, 1:17 PM
3139 115 23842
Advertisement
Table of Contents
Related Manuals for Philips HTS5000W
Summary of Contents for Philips HTS5000W
- Page 1 Need help fast? Read your Quick-Use Guide and/or User Manual first for quick tips that make using your Philips product more enjoyable. If you have read your instructions and still need assistance, you may access our online help at www.philips.com/support...
-
Page 2: How To Connect Plug
See Copyright Act 1956 and The Performer’s Protection Acts 1958 to 1972. 001-051-hts5x-01-Eng50 Italia DICHIARAZIONE DI CONFORMITA’ Si dichiara che l’apparecchio HTS5000W, Philips risponde alle prescrizioni dell’art. 2 comma 1 del D.M. 28 Agosto 1995 n. 548. Fatto a Eindhoven Philips Consumer Electronics... - Page 3 Advarsel: Usynlig laserstråling ved åbning når sikkerhedsafbrydere er ude af funktion. Undgå utsættelse for stråling. Bemærk: Netafbryderen er sekundært indkoblet og ofbryder ikke strømmen fra nettet. Den indbyggede netdel er derfor tilsluttet til lysnettet så længe netstikket sidder i stikkontakten. Klass 1 laseraparat Varning! Om apparaten används på...
-
Page 4: Español
EMC directive and low-voltage directive. 001-051-hts5x-01-Eng50 English Hereby, Philips Consumer Electronics, B. U. Peripherals & Accessories, declares that this product is in compliance with the essential requirements and other relevant provisions of Directive 1999/5/EC. Français Par la présente, Philips Consumer Electronics, B. U. -
Page 5: Language Code
Abkhazian 6566 Afar 6565 Afrikaans 6570 Amharic 6577 Arabic 6582 Armenian 7289 Assamese 6583 Avestan 6569 Aymara 6589 Azerhaijani 6590 Bahasa Melayu 7783 Bashkir 6665 Belarusian 6669 Bengali 6678 Bihari 6672 Bislama 6673 Bokmål, Norwegian 7866 Bosanski 6683 Brezhoneg 6682 Bulgarian 6671 Burmese... -
Page 6: Table Of Contents
Contents Language Code General Information Supplied accessories ... 8 Cleaning discs ... 8 Setup ... 8 Basic Connections Step 1: Placing the speakers and subwoofer ... 9 Step 2: Connecting the speakers and subwoofer ... 10 Step 3: Connecting wire-less rear speakers ... - Page 7 Playback Playing pictures or audio files from USB flash drive or USB memory card reader ..29 Compatibility of USB device ... 29 Playing an MP3/Windows Media™ Audio/ JPEG/MPEG-4 media ... 30 Playing MP3 music and JPEG picture simultaneously ... 30 Playing a picture disc (slide show) ...
-
Page 8: General Information
General Information Supplied accessories Scart cable (black) FM wire antenna MW loop antenna Remote control and two batteries (12nc: 3139 258 70142) Wireless receiver Table stand for wireless receiver 001-051-hts5x-01-Eng50 Cleaning discs To clean a disc, use a micro fibre cleaning cloth and wipe the disc from the center to the edge in a straight line. -
Page 9: Basic Connections
Step 1: Placing the speakers and subwoofer SUBWOOFER CENTER FRONT L REAR L For best possible surround sound, all the speakers (except subwoofer) should be placed at the same distance from the listening position. Place the front left and right speakers at equal distances from the TV and at an angle of approximately 45 degrees from the listening position. -
Page 10: Step 3: Connecting Wire-Less Rear Speakers
Basic Connections Step 3: Connecting wire-less rear speakers Rear Right Rear Left Wireless Receiver Speaker Speaker (see next page for REAR R REAR L complete setup) The rear speakers are equipped with the wire-less receiver that receives audio signals from the DVD system. The wire- less rear speakers provide a surround sound entertainment experience without the scattered wires. -
Page 11: Step 4: Wireless Receiver System
Step 4: Wireless Receiver system Built-in Wireless transmitter WIRELESS REAR SPEAKER ANTENNA WIRELESS REAR SPEAKER ANTENNA Turn on the DVD system and playback a disc. Select the same transmission frequency channel for both the wireless transmitter and receiver. On the wireless transmitter: Press and hold SOUND button on the remote until the best frequency that obtains optimal reception. -
Page 12: Step 5: Connecting To Tv
Basic Connections Step 5: Connecting to TV IMPORTANT! – You only need to make one video connection from the following options, depending on the capabilities of your TV. – Connect the DVD system directly to the TV. – Proceed to page 20 for setting up the TV once you have completed the connections. -
Page 13: Step 6: Connecting To A Progressive
Step 6: Connecting to a Progressive Scan TV (optional) IMPORTANT! – The progressive scan video quality is only possible when using Y Pb Pr and a progressive scan TV is required. – DO NOT connect both SCART and Y Pb Pr to a TV, it may affect the picture quality. -
Page 14: Step 8: Connecting The Power Cord
Basic Connections Step 8: Connecting the power cord DVD system After everything is connected properly, plug the AC power cord into the power outlet. The red Eco Power LED on the DVD system will light up. Never make or change any connections with the power switched on. -
Page 15: Connections To External Devices
Connections to External Devices Connecting a VCR or Cable/Satellite Box VCR or Cable/ Satellite Box DVD System Viewing and listening to the playback Connect the VCR or Cable/Satellite Box to the TV as shown. Connect the DVD system’s AUX IN (R/L) sockets to the AUDIO OUT sockets on the VCR or cable/satellite box. -
Page 16: Connecting A Usb Flash Drive Or Usb Memory Card Reader
Connections to External Devices Connecting a USB flash drive or USB memory card reader Using USB port You can only view the contents of the USB flash drive or USB memory card reader through this DVD system. Editing the data and recording to a DVD+R/+RW are not possible. -
Page 17: Remote Control
SETUP – DISC: enters or exits system setup menu. SLEEP – Sets the sleep timer function. TV VOL +- – Adjusts TV volume (Philips TV only). SURR – Selects multichannel surround or stereo mode. SCAN – Plays the first few seconds of each track/ chapter within a disc. - Page 18 Remote Control (continued) Numeric Keypad (0-9) – DISC: enters a track/title number. – TUNER: enters the preset radio station number. DISC MENU – DISC: enters or exits disc contents menu. For VCD, selects various preview function. DISPLAY – DISC: displays the current status or disc information.
-
Page 19: Main Unit
STANDBY ON (B) – Switches to Eco Power standby mode, or turns on the system. Disc slot EJECT 0 – Ejects the disc. ECO POWER indicator – Lights up when in Eco Power standby mode. – Point the remote control towards this sensor. -
Page 20: Getting Started
Getting Started Step 1: Inserting batteries into the remote control Open the battery compartment. Insert two batteries type R06 or AA, following the indications (+-) inside the compartment. Close the cover. CAUTION! – Remove batteries if they are exhausted or if the remote control is not to be used for a long time. -
Page 21: Setting Up Progressive Scan Feature (For Progressive Scan Tv Only)
Setting up Progressive Scan feature (for Progressive Scan TV only) The progressive scan display twice the number of frames per seconds than interlaced scanning (ordinary normal TV system). With nearly double the number of lines, progressive scan offers higher picture resolution and quality. IMPORTANT! Before enabling the progressive scan feature, you must ensure :... -
Page 22: Selecting The Matching Colour System
Getting Started (continued) Selecting the matching colour system The colour system of the DVD system, DVD and TV should match. Only then will it be possible to play a DVD on this system. Before changing the TV system, determine the colour system of your TV. In disc mode, press SETUP. -
Page 23: Step 4: Setting Language Preferences
Step 4: Setting language preferences You can select your preferred language settings so that this DVD system will automatically switch to the language for you whenever you load a disc. If the language selected is not available on the disc, the disc’s default language will be used instead. -
Page 24: Disc Operations
Disc Operations IMPORTANT! – If the inhibit icon (ø or X) appears on the TV screen when a button is pressed, it means the function is not available on the current disc or at the current time. – DVD discs and players are designed with regional restrictions. -
Page 25: Auto Eco Power Standby Mode
Auto Eco Power standby mode This is a power-saving feature, the system will automatically switch to Eco Power standby mode if you do not press any buttons within 30 minutes after a disc has stopped playing. Basic playback controls Pausing playback During playback, press 2;... -
Page 26: Other Operations For Video Playback (Dvd/Vcd/Svcd)
Disc Operations (continued) Other operations for video playback (DVD/VCD/SVCD) DISC MENU DISPLAY AUDIO SUBTITLE Using the Disc Menu A menu may appear on the TV screen once you load in the disc, depending on the disc format. To select a playback feature or item Use 1 2 3 4 keys or numeric keypad (0-9) on the remote, then press OK to start playback. -
Page 27: Advancing By Frame
Advancing by frame During playback, press Å on the remote. ➜ Play will pause and sound will be muted. Press Å repeatedly to view the next picture frame. To resume normal playback, press PLAY B. Resuming playback from the last stopped point This DVD system able to resume disc playback from its last stopped point (only... -
Page 28: Preview Function (Vcd Only)
Disc Operations (continued) Preview Function (VCD only) Press DISC MENU. Use 34 keys to highlight { Track Digest }, { Disc Interval } or { Track Interval }. Press OK to open one option. Select Digest Type: Track Digest Disc Interval Track Interval { Track Digest } This function will minimise the picture of... -
Page 29: Playback
Playing pictures or audio files from USB flash drive or USB memory card reader This DVD system able to access and view the data (JPEG, MP3 or Windows Media™ Audio) in the USB flash drive or USB memory card reader. The USB function can only be activated in DISC mode. -
Page 30: Playing An Mp3/Windows Media™ Audio/Jpeg/Mpeg-4 Media
Playback (continued) Playing an MP3/Windows Media™ Audio/JPEG/MPEG-4 media This DVD system can playback Windows Media™ Audio, MP3, JPEG, VCD & SVCD files on a personally recorded CD-R/RW disc, commercial CD or USB device. For USB device, only Windows Media™ Audio, MP3 and JPEG data can be access. IMPORTANT! You have to turn on your TV and set to the correct Video In channel. -
Page 31: Playing A Picture Disc (Slide Show)
Playing a picture disc (slide show) IMPORTANT! You have to turn on your TV and set to the correct Video In channel. (See page 20 “Setting the TV”). Load a Picture disc (Kodak Picture CD, JPEG). ➜ For a Kodak disc, the slide show will begin automatically. -
Page 32: Playing A Super Audio Cd (Sacd)
Playback (continued) Playing a Super Audio CD (SACD) There are three types of SACD discs : single layer, double layer or hybrid discs. The hybrid disc contains both Super Audio CD and standard audio CD layers, only the SACD layer can be played back on this DVD system. -
Page 33: Dvd Setup Menu Options
This DVD system setup is carried out via the TV, enabling you to customise the DVD system to suit your particular requirements. Accessing General Setup Page Press DISC and followed by SETUP on the remote. Use 1 2 keys to select ‘General Setup Page’. -
Page 34: Programming Disc Tracks (Not For Picture Cd/Mp3/Sacd)
DVD Setup Menu Options Programming disc tracks (not for Picture CD/MP3/SACD) You can play the contents of the disc in the order you want by programming the playing order of the tracks. Up to 20 tracks can be stored. Press PROG on the remote. In ‘General Setup Page’, use 34 keys to highlight { Program }, then press 2 to select { Input Menu }. -
Page 35: Screen Saver - Turning On/Off
To return to the previous menu, press 1. To remove the menu, press SETUP. 001-051-hts5x-01-Eng50 (continued) ® DivX VOD registration code Philips provide you the DivX ® (Video On Demand) registration code that allows you to rent and purchase videos using the DivX ®... -
Page 36: Accessing Audio Setup Page
DVD Setup Menu Options Accessing Audio Setup Page Press DISC and followed by SETUP on the remote. Use 1 2 keys to select ‘Audio Setup Page’. Press OK to confirm. Audio Setup Page Speakers Volume Speakers Delay Night Mode CD Upsampling Speakers Volume/Speakers Delay These menus contain speaker setup options that allow you to adjust the... -
Page 37: Accessing Video Setup Page
DVD Setup Menu Options Accessing Video Setup Page Press DISC and followed by SETUP on the remote. Use 1 2 keys to select ‘Video Setup Page’. Press OK to confirm. Video Setup Page TV Type TV Display Progressive Picture Setting Component TV Type This menu contains the options for... -
Page 38: Picture Setting
DVD Setup Menu Options Picture Setting This DVD system provides three predefined sets of picture colour settings and one personal setting which you can define yourself. In ‘Video Setup Page’, use 34 keys to highlight { Picture Setting }, then press { Standard } Select this for original colour setting. -
Page 39: Accessing Preference Setup Page
DVD Setup Menu Options Accessing Preference Setup Page Press Ç twice to stop playback (if any), then press SETUP. Use 1 2 keys to select the ‘Preference Page’. Press OK to confirm. Preference Page Audio Subtitle Disc Menu Parental MP3/JPEG Nav Password DivX Subtitle Default... -
Page 40: Pbc (Playback Control)
DVD Setup Menu Options Rating explanations 1Kid Safe – 2 G – General Audience; recommended as acceptable for viewers of all ages. 3 PG – Parental Guidance suggested. 4 PG13 – Material is unsuitable for children under the age of 13. 5 PGR –... -
Page 41: Changing The Password
DVD Setup Menu Options Changing the Password The same password is used for both Parental Control and Disc Lock. Enter your six-digit password to play a prohibited disc or if prompted for a password. The default password is 136900. In ‘Preference Page’, use 34 keys to highlight { Password }, then press 2 to select { Change }. -
Page 42: Tuner Operations
Tuner Operations IMPORTANT! Make sure the FM and MW antennas are connected. Tuning to radio stations Press TUNER on the remote (or press SOURCE control at the front panel) to select “FM” or “MW”. Press 3 / 4 briefly on the remote. ➜... -
Page 43: Automatic Presetting
Automatic presetting Use automatic presetting to store or reinstall all the preset radio stations. FM / MW DVD system’s display panel Press TUNER on the remote to select “FM” or “MW”. Press and hold PROG to start auto programming. ➜ All the former presets will be overwritten. -
Page 44: Sound And Volume Controls
Sound and Volume Controls Individual speakers volume adjustment You can adjust the delay times (centre, rear speakers and subwoofer only) and volume level for individual speakers. These adjustments let you optimise the sound according to your surroundings and setup. IMPORTANT! Press SURR button on the remote to select Multi-channel surround mode before adjusting the speaker... -
Page 45: Selecting Surround Sound
Sound and Volume Controls Selecting surround sound Press SURR on the remote to select : MULTI-CHANNEL or STEREO. ➜ The availability of the various surround sound modes depends on the number of speakers used and the sound available on the disc. ➜... -
Page 46: Other Functions
Other Functions Setting the Sleep timer The sleep timer enables the system to switch to Eco Power standby mode automatically at a preset time. Press SLEEP on the remote repeatedly until it reaches the desired preset turn-off time. ➜ The selections are as follows (time in minutes): 15 ™... -
Page 47: Specifications
AMPLIFIER SECTION Output power 500 W RMS - Front 75 W RMS / channel - Rear 75 W RMS / channel - Centre 100 W RMS - Subwoofer 100W RMS Frequency Response 120 Hz – 20 kHz / –3 dB Signal-to-Noise Ratio >... -
Page 48: Troubleshooting
Cannot activate some features such as Angles, Subtitles, or multi-language Audio. Not able to select some Items in the setup/system menu. Need Help? Visit us at www.philips.com/support 001-051-hts5x-01-Eng50 Solution – Check if the AC power cord is properly connected. –... - Page 49 The contents of the USB flash drive cannot be read Slow operations of the USB flash drive Wireless interference Need Help? Visit us at www.philips.com/support 001-051-hts5x-01-Eng50 Troubleshooting Solution – Insert a readable disc with the playback side facing down. The DVD+R/CD-R must be finalised.
-
Page 50: Glossary
Glossary Analogue: Sound that has not been turned into numbers. Analogue sound varies, while digital sound has specific numerical values. These sockets send audio through two channels, the left and right. Aspect ratio: The ratio of vertical and horizontal sizes of a displayed image. The horizontal vs. vertical ratio of conventional TVs. - Page 51 Glossary (continued) Plug and Play: First time power up to the Tuner mode, the system will prompt the user to proceed with the automatic installation of radio stations by simply pressing the PLAY button on the main unit. Progressive Scan: It displays all the horizontal lines of a picture at one time, as a signal frame.
