Summary of Contents for Arista ARP-2215AP-G00

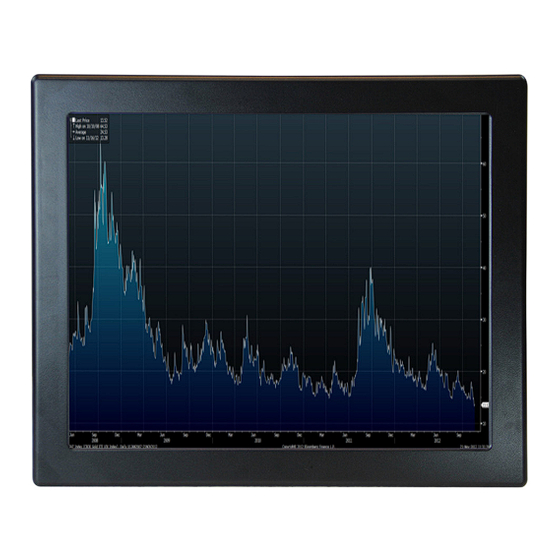

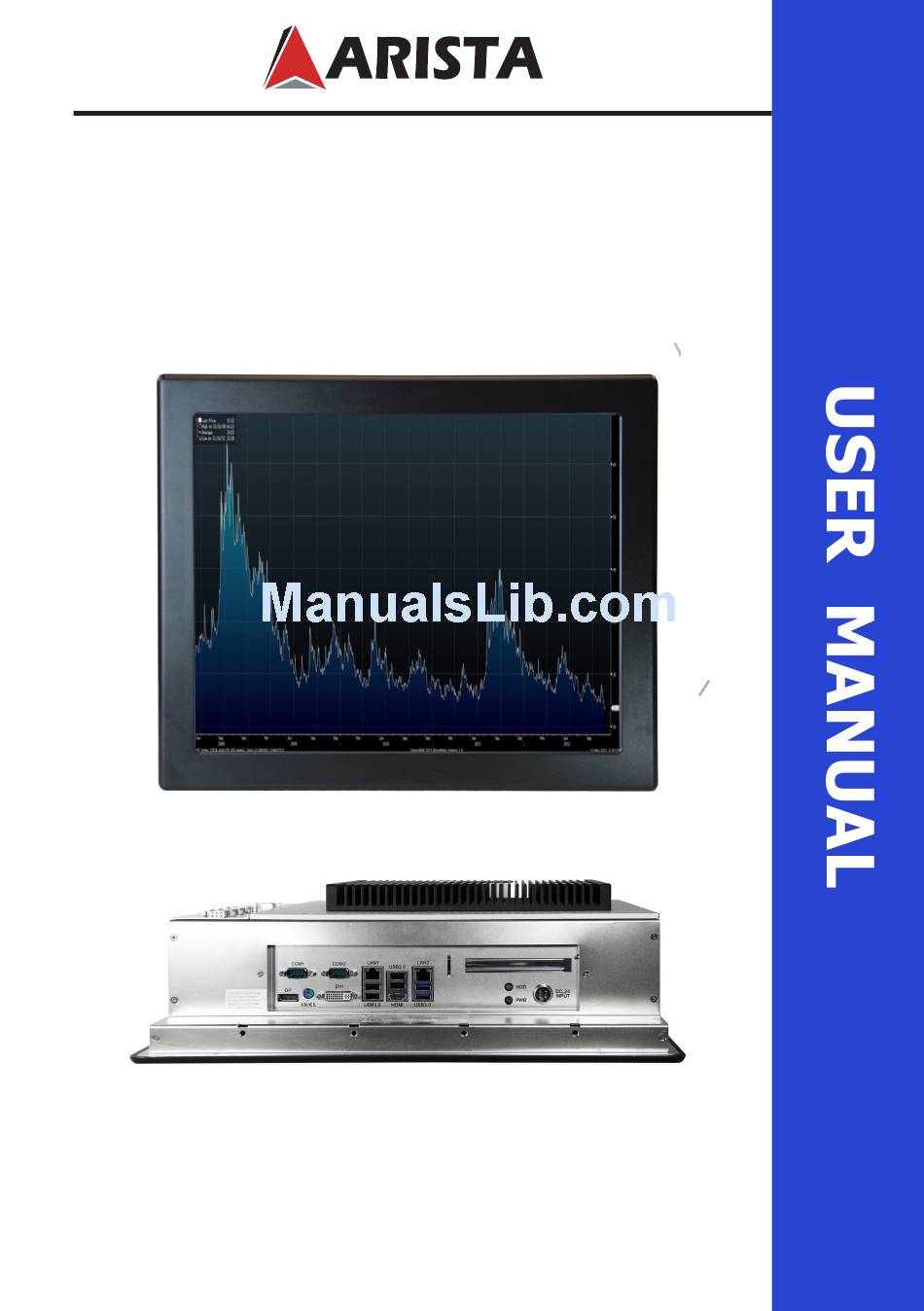

- Page 1 Talk to us. We listen. ARP-2200AP-G00 Series Industrial Touch Panel Computer ARP-2215AP-G00 ARP-2217AP-G00 ARP-2219AP-G00 ARP-2221AP-G00...
-
Page 2: Product Safety Precautions
Product safety precautions Read all of the instructions and save this manual for later use. Follow all warnings and instructions on the product. • Relative humidity: 25%~80% • Storage temperature: -20 C to 60 C(-4F to 140F) • Operation temperature: 0~50 C(32F to 122F) •... -
Page 3: Table Of Contents
Contents Contents Product safety precautions ....................2 Contents ..........................3 Chapter 1 Welcome ......................4 Features............................4 Product specifications ........................5 Unpacking ............................6 Chapter 2 Basics.........................7 Product overview.......................7 Physical dimensions ........................11 Chapter 3 Connections ....................15 Pins in the Serial port (COM1/COM2)..................16 Pins in the DVI port........................17 Pins in the DC-IN power connector....................18 Mounting the computer....................19 Connecting to a display....................21... -
Page 4: Chapter 1 Welcome
Features • Compact design, easy to use, supports hot-plug. • Use high quality aluminum alloy casting. • 15”,17” ,19” , 21.5” color TFT LCD display, color supports up to 8 bits per color, total 16.7 million colors. • Faster in running, lower in power consumption. • Socket G2(rPGA988B) for Intel®... -
Page 5: Product Specifications
Product specifications... -
Page 6: Unpacking
Ordering information Unpacking The unit is shipped with items listed below,inspect them carefully to make sure there is no t ures damage and all the items are available with your shipment. ARP-2200AP-G00 Series touch panel computer DIN-Rail AC/DC power supply x1 AC power cable x1 DC power cable x1 Mounting bolts and screws... -
Page 7: Chapter 2 Basics
Chapter 2 Basics Product overview ARP-2200AP-G00 Series Touch Panel Computer Side Side Front Rear Bottom... - Page 9 1. COM1 port 8. HDD/Power indicator 2. COM2 port 9. USB3.0 ports 3. RJ45 LAN Port(LAN1) 10. HDMI Port 4. USB2.0 ports 11. USB2.0 ports 5. RJ45 LAN Port (LAN2) 12. DVI connector 6. DVI port, COM port(Optional) 13. PS2 keyboard/mouse connector 7.
- Page 10 Power button connector USB Ports COM3~COM6 ports CD/DVD ROM Drive Slot...
-
Page 11: Physical Dimensions
Physical dimension The diagrams below show the physical and specific dimensions of the ARP-2200AP-G00 Series touch panel computer. For ARP-2215AP-G00 353.3mm 13.91" 343.7mm 13.53" 140.0mm 5.51" 107.4mm 111.2mm 4.23" 4.38" 368.6mm 14.51" 194.3mm 7.65" 231.6mm 9.12" 299.8mm 11.80" 276.8mm 10.90" 18.7mm 0.73" 24.7mm 0.97" 68.9mm 261.6mm 2.71" 10.30" 343.7mm 13.53"... - Page 12 For ARP-2217AP-G00 377.2mm 14.85" 138.1mm 5.44" 113.1mm 144.9mm 4.45" 5.71" 403.4mm 119.9mm 15.88" 4.72" 269.3mm 10.61" 338.8mm 312.6mm 194.3mm 13.34" 12.31" 7.65" 38.0mm 1.50" 89.5mm 3.52" 261.6 10.30" 353.3mm 13.91" 386.7mm 15.23"...
- Page 13 For ARP-2219AP-G00 145.0mm 5.71" 452.1mm 17.80" 120.0mm 4.73" 58.1mm 2.29" 299.7mm 252.4mm 11.80" 370.8mm 9.94" 14.60" 344.9mm 13.58" 89.5mm 3.52" 113.1mm 4.46" 91.9mm 3.62" 82.3mm 261.6mm 3.24" 10.30" 426.2mm 16.78"...
- Page 14 7.65" 12.15" 31.2mm 90.5mm 1.23" 3.56" 9.6mm 501.0mm 0.38" 19.72" L(Overall Length) W(Overall Width) H(Overall Height) Cutout Size ARP-2215AP-G00 14.51”/368.6mm 11.80”/299.8mm 5.51”/140.0mm 13.75 x 11.10 inch 349.3 x 281.9 mm ARP-2217AP-G00 15.88”/403.4mm 13.34”/338.8mm 5.71”/144.9mm 15.07 x 12.51 inch 382.8 x 317.8 mm ARP-2219AP-G00 17.80”/452.1mm...
-
Page 15: Chapter 3 Connections
Chapter 3 Connections This section describes the connections/connectors available on the ARP-2200AP-G00 Series touch panel computer. Connectors are located at the bottom of ARP-2200AP-G00 Series touch panel computer. -
Page 16: Pins In The Serial Port (Com1/Com2)
Pins in the serial port (COM1/COM2) 1 2 3 4 5 6 7 8 9 Pin NO. RS-232 mode RS-422 mode RS-485 mode RTX- RTX+ +5V/+12V/RI# +5V/+12V/RI# +5V/+12V/RI#... -
Page 17: Pins In The Dvi Port
Pins in the DVI port 1 2 3 4 5 6 7 12 13 14 15 16 10 11 19 20 21 22 23 24 27 28 Pin NO. Pin Assignment Description RXD2- T.M.D.S Data 2- RXD2+ T.M.D.S Data 2+ T.M.D.S Data 2 Shield No connection No connection... -
Page 18: Pins In The Dc-In Power Connector
Pins in the DC-IN power connector Pin NO. Definition... -
Page 19: Mounting The Computer
Mounting the computer Panel mounting The ARP-2200AP-G00 Series touch panel computer can be placed on a shelf, table, or mounted onto a wall or board. To mount it onto a wall or board, you will require the mounting bolts and screws found in the accessory box. Please follow the steps shown in the diagram below: Step1. - Page 20 Step3. Tighten the "M4" sized mounting screws into the wall and board through the mounting bolts and mounting holes and make sure the ARP-2200AP-G00 Series touch panel computer is correctly and securely seated onto the board or wall.
-
Page 21: Connecting To A Display
Connecting to a display 1. Connecting to a display through DVI port • Connect one end of the DVI cable to the DVI port of the ARP-2200AP-G00 Series touch panel computer. Connect the other end of the DVI cable to the DVI port of a display. ARP-2200AP-G00 Display DVI port... -
Page 22: Connecting To Keyboard Or Mouse
3. Connecting to a display through Display port • Connect one end of the display cable to the DP port of the ARP-2200AP-G00 Series touch panel computer. Connect the other end of the display cable to the DP port of a display. -
Page 23: Connecting To Network
PS2 keyboard jack PS2 mouse jack ARP-2200AP-G00 Mouse Keyboard Figure 2 Connecting to network • Connect one end of the RJ45 LAN cable to the LAN port of the ARP-2200AP-G00 Series touch panel computer. Connect the other end of the RJ45 LAN cable to the LAN port of a modem. -
Page 24: Connecting The Power Supply
Connecting the power supply Follow the steps below to connect the power supply. • Connect one end of the 150W DIN-Rail AC/DC power supply to the DC-in(24V) power connector of the ARP-2200AP-G00 Series touch panel computer. Connect the other end of 150W DIN-Rail AC/DC power supply to an AC outlet. ARP-2200AP-G00 AC outlet AC power cable... - Page 25 The AC to DC 24V power supply provided with the ARP-2200AP-G00 Series touch panel computer does not have environmental protection. In order to meet a degree of protection, the power supply has to be installed in a specific IP rating enclosure. Step1 Step2 Step3 Industrial Enclosure Screws DIN-rail Power supply In order to correctly install the power supply, the specific dimensions for the power supply are indicated in the diagram below. 150W DIN-rail power supply Side View Top View...
-
Page 26: Installing Memory Module/Expansion Card
Installing memory module/expansion card Before you install the memory module or expansion card, please follow the instructions below to open the bottom cover of the ARP-2200AP-G00 Series touch panel computer. 1. As shown in the figure below, remove the screws on the sides of the bottom cover. - Page 27 Step 1. Unlock a DIMM slot by pressing the retaining clips outward. Step 2. Align a DIMM on the slot such that the notch on the DIMM matches the break on the slot. Note The DIMM only fits in one correct orientation. It will cause permanent damage to the motherboard and the DIMM if you force the DIMM into the slot at incorrect orientation.
- Page 28 Installing expansion card The MINI-PCIE slot supports PCIE cards such as a Wi-Fi LAN card, mSATA SSD, SCSI card, USB card, and other cards that comply with PCIE specifications. PCIE x16 slot is used for PCI Express x16 lane width graphics cards. Step 1. Before installing the expansion card, please make sure that the power supply is switched off and the power cord is unplugged.
-
Page 29: Adjustment On Touch Screen
Adjustment on touch screen Installing calibration software Install the calibration software follow the 3. Restart the computer to finish the several steps as below: installing. 1. Double click the “setup” to start to install the calibration software. 2. Click “next” to continue, and go ahead 4. Now the shortcuts of “USB Controller” following the dialog window. - Page 30 Video alignment or calibration 1. If the mouse cursor doesn’t appear at 3. Use the point of something such as the the position of touch, double click the pen to calibrate the four points of the “USB Controller“ on the desktop to open display.
-
Page 31: Chapter 4 Bios Setup
Chapter 4 BIOS Setup Introduction This section explains how to use the UEFI SETUP UTILITY to configure your system. The UEFI chip on the motherboard stores the UEFI SETUP UTILITY. You may run the UEFI SETUP UTILITY when you start up the computer. Please press <F2> or <Del> during the Power-On-Self-Test (POST) to enter the UEFI SETUP UTILITY, otherawise, POST will continue with its test routines. - Page 32 Navigation Keys Use < > key or < > key to choose among the selections on the menu bar, and use < > key or < > key to move the cursor up or down to select items, then press <Enter> to get into the sub screen. You can also use the mouse to click your required item.
-
Page 33: M A I N M E N
Main Menu When you enter the UEFI SETUP UTILITY, the Main screen will appear and display the system overview. System Information This item shows the current system information, including Processor type, processor speed, Cache size etc.. System Date Use this item to specify the system date. Manually enter the day, month and year. System Time Use this item to specify the system time. -
Page 34: Advanced Menu
Advanced Menu In this section, you may set the configurations for the following items: CPU Configuration, North Bridge Configuration, South Bridge Configuration, Storage Configuration, Intel(R) Rapid Start Technology, Intel(R) Smart Connect Technology, AMT Configuration, Super IO Configuration, ACPI Configuration and USB Configuration. - Page 35 CPU Configuration Scroll to this item and press <Enter> to view the following screen: CPU Ratio Use this to change the ratio value of this motherboard. Intel SpeedStep Technology Intel SpeedStep technology is Intel’s new power saving technolo-gy. Processors can switch between multiple frequencies and volt-age points to enable power saving.
- Page 36 Short Duration Power Limit Use this to configure short duration power limit in watts. Primary Plane Current Limit Use this to configure the maximum instantaneous current allowed for the primary plane. Secondary Plane Current Limit Use this to configure the maximum instantaneous current allowed for the secondary plane. Intel Hyper Threading Technology To enable this feature, a computer system with an Intel proces¬sor that supports Hyper-Threading technology and an operating system that includes optimization for this technology, such as Microsoft®...
- Page 37 North Bridge Configuration Scroll to this item and press <Enter> to view the following screen: Primary Graphics Adapter This allows you to select [Onboard] or [PCI Express] as the pri¬mary graphics adapter. The default value is [PCI Express]. VT-d Use this to enable/disable Intel(R) Virtualization Technology for the Directed I/O. PCIE1 Link Speed This allows you to select PCIE1 Link Speed.
- Page 38 LCD Panel Type Select the LCD panel used by the internal graphics device. LCD Panel Resolution Select the LCD panel resolution. Backlight Control Use this to configure Backlight Control settings. Panel Color Depth Select LFP Panel Color Depth. Panel Backlight Brightness Adjust Panel Backlight Brightness Level.
- Page 39 South Bridge Configuration Scroll to this item and press <Enter> to view the following screen: Onboard HD Audio Select [Auto], [Enabled] or [Disabled] for the onboard HD Audio feature. If you select [Auto], the onboard HD Audio will be dis¬abled when a PCI Sound Card is plugged. Front Panel Select [Auto] or [Disabled] for the onboard HD Audio Front Panel.
- Page 40 Storage Configuration Scroll to this item and press <Enter> to view the following screen: SATA Controller(s) Use this to enable or disable the SATA Controllers. SATA Mode Selection Use this to select the SATA mode for SATA3_0, SATA3_1, SATA2_2 and SATA2_3 ports. Configuration options: [IDE Mode], [AHCI Mode] and [RAID Mode].
- Page 41 Intel(R) Rapid Start Technology Scroll to this item and press <Enter> to view the following screen: Intel(R) Rapid Start Technology Use this to enable or disable Intel(R) Rapid Start Technology. Intel(R) Rapid Start Technology is a new zero power hibernation mode which allows users to resume in just 5-6 seconds. The de-fault is [Disabled].
- Page 42 Intel(R) Smart Connect Technology Scroll to this item and press <Enter> to view the following screen: Intel(R) Smart Connect Technology Use this to enable or disable Intel(R) Smart Connect Technology. Intel(R) Smart Connect Technology keeps your e-mail and social networks, such as Twitter, Facebook, etc. updated automatically while the computer is in sleep mode.
- Page 43 AMT Configuration Scroll to this item and press <Enter> to view the following screen: Intel AMT Use this to enable or disable Intel(R) Active Management Tech-nology. BIOS Hotkey Pressed Use this to enable or disable BIOS Hotkey Pressed. MEBx Selection Screen Use this to enable or disable MEBx selection screen.
- Page 44 AMT Wait Timer Set timer to wait before sending ASF_GET_BOOT_OPTIONS. Disable ME Use this to set ME to Soft Temporary disabled. Use this to enable or disable Alert Specification Format. Activate Remote Assistance Process Use this to enable or disable trigger CIRA boot. USB Configure Use this to enable or disable USB Configure.
- Page 45 Super IO Configuration Scroll to this item and press <Enter> to view the following screen: COM1~COM6 Configuration Use these to set parameters of COM1~COM6. LPT1 Port Configuration Use this set parameters of the onboard parallel port. WDT Timeout Reset This allows users to enable/disable the Watch Dog Timer timeout to reset system. The default value is [Disabled].
- Page 46 ACPI Configuration Scroll to this item and press <Enter> to view the following screen: Suspend to RAM Use this to select whether to auto-detect or disable Suspend-to-RAM. Select [Auto] to enable if the OS supports it. Check Ready Bit Use this to enable or disable Check Ready Bit. ACPI HPET Table Use this to enable or disable the ACPI HPET Table.
- Page 47 Ring-In Power On Use this to enable or disable the Ring-In signals to turn on the system from power-soft-off mode. RTC Alarm Power On Use this to enable or disable the RTC (Real Time Clock) to power on the system. USB Keyboard/Remote Power On Use this to enable or disable the USB Keyboard/Remote to power on the system.
- Page 48 USB Configuration Scroll to this item and press <Enter> to view the following screen: USB 2.0 Controller Use this to enable or disable the USB 2.0 controller. USB 3.0 Controller Use this to enable or disable the USB 3.0 controller. Legacy USB Support Use this to select legacy support for USB devices.
-
Page 49: H/W Monitor Menu
H/W Monitor Menu In this section, it allows you to monitor the status of the hardware on your system, including the parameters of the CPU temperature, motherboard temperature, CPU fan speed, chassis fan speed, and the critical voltage. CHA_FAN1 Setting This allows you to set the chassis fan 1 speed. -
Page 50: Boot Menu
Boot Menu In this section, it will display the available devices on your system for you to configure the boot settings and the boot priority Setup Prompt Timeout This shows the number of seconds to wait for the setup activation key. 65535(0xFFFF) means indefinite waiting. -
Page 51: Security Menu
Security Menu The Security Menu allows you to set Administrator and User password. If ONLY the Administrator’s password is set, then this only limits access to setup and is only asked for when entering Setup. If ONLY the user’s password is set, then this is a power on password and must be entered to boot or enter Setup. -
Page 52: E X I T M E N
Exit Menu The Exit Menu allows you to save the changes that you have made in the Setup Utility and exit the Setup Utility. Save Changes and Exit When you select this option, the following message, “Save configuration changes and exit setup?” will pop out. -
Page 53: Chapter 5 Appendix
Chapter 5 Appendix Care and Maintenance Regular maintenance of the ARP-2200AP-G00 Series touch panel computer can help prevent damage or downtime. Service should only be performed by qualified and authorized personnel. Make sure your touch panel computer is powered down and unplugged before removing the cover or working on internal components. • Keep the ARP-2200AP-G00 Series touch panel computer in a dry, clean space. -
Page 54: Product Limited Warranty
North America region. 1) Limited Warranty Coverage • If a product does not work properly because of a defect in materials or workmanship, Arista Corporation will, for the length of a period of three years, starting with the date of the original purchase (invoice date), at its discretion, either repair your product with new or refurbished parts, or replace it with a new or refurbished product. - Page 55 Any damages will be assessed and the cost of repair or refurbishment will be deducted from the credit issued. No Credit DOA: No credit will be given to the customer for DOA products received by Arista beyond 30 calendar days after the invoice date. No credit will be given to all non-cancellable,...
- Page 56 • In cases of transportation damage, the customer is responsible for filing any and all claims with the shipping carrier. • To avoid any potential risk that an RMA product is lost or damaged while in transit to Arista, it is recommended that the customer insures and declares the full value of the RMA product.
- Page 57 Products will not be accepted by Arista Corporation if not accompanied by a valid RMA number, which must be clearly marked on the outside of the package. Arista reserves the rights to return any RMA product received that does not comply with the information given on the original Return Material Authorization (RMA) request, such as: • Invalid RMA number...
-
Page 58: Disposal And Recycling Information
Disposal and Recycling Information Your ARP-2200AP-G00 Series touch panel computer must be disposed of properly according to local laws and regulations. When your computer reaches the end of its life cycle, contact your local authorities to know about recycling options. This symbol on the product or in the manual means that your electrical or electric equipment should be disposed at the end of its life-cycle separately from your household waste. - Page 59 Talk to us. We listen. Arista Corporation 40675 Encyclopedia Circle, Fremont, CA 94538 U.S.A. Tel: (510) 226-1800 Fax: (510) 226-1890 http://www.goarista.com...
