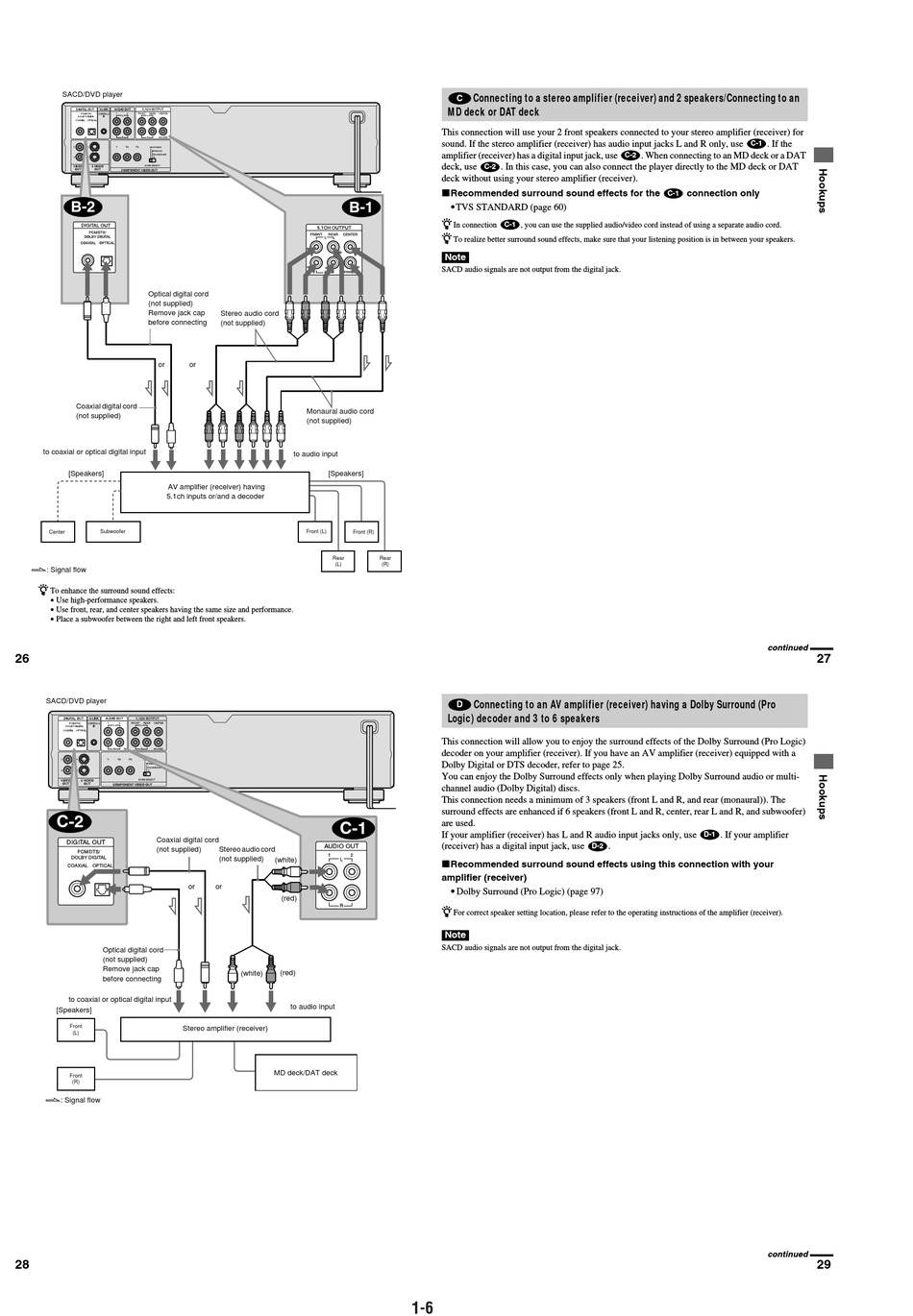

SACD/DVD player
B-2
B-1
Optical digital cord
(not supplied)
Remove jack cap
Stereo audio cord
before connecting
(not supplied)
or
or
Coaxial digital cord
Monaural audio cord
(not supplied)
(not supplied)
to coaxial or optical digital input
to audio input
[Speakers]
[Speakers]
AV amplifier (receiver) having
5.1ch inputs or/and a decoder
Subwoofer
Front (L)
Center
Front (R)
Rear
Rear
(L)
(R)
l: Signal flow
z
To enhance the surround sound effects:
• Use high-performance speakers.
• Use front, rear, and center speakers having the same size and performance.
• Place a subwoofer between the right and left front speakers.
26
SACD/DVD player
C-2
C-1
Coaxial digital cord
Stereo audio cord
(not supplied)
(not supplied)
(white)
or
or
(red)
Optical digital cord
(not supplied)
Remove jack cap
(white)
(red)
before connecting
to coaxial or optical digital input
to audio input
[Speakers]
Front
Stereo amplifier (receiver)
(L)
MD deck/DAT deck
Front
(R)
l: Signal flow
28
Connecting to a stereo amplifier (receiver) and 2 speakers/Connecting to an
C
MD deck or DAT deck
This connection will use your 2 front speakers connected to your stereo amplifier (receiver) for
sound. If the stereo amplifier (receiver) has audio input jacks L and R only, use
. If the
C-1
amplifier (receiver) has a digital input jack, use
. When connecting to an MD deck or a DAT
C-2
deck, use
. In this case, you can also connect the player directly to the MD deck or DAT
C-2
deck without using your stereo amplifier (receiver).
xRecommended surround sound effects for the
connection only
C-1
•TVS STANDARD (page 60)
z
C-1
In connection
, you can use the supplied audio/video cord instead of using a separate audio cord.
z
To realize better surround sound effects, make sure that your listening position is in between your speakers.
Note
SACD audio signals are not output from the digital jack.
continued
27
Connecting to an AV amplifier (receiver) having a Dolby Surround (Pro
D
Logic) decoder and 3 to 6 speakers
This connection will allow you to enjoy the surround effects of the Dolby Surround (Pro Logic)
decoder on your amplifier (receiver). If you have an AV amplifier (receiver) equipped with a
Dolby Digital or DTS decoder, refer to page 25.
You can enjoy the Dolby Surround effects only when playing Dolby Surround audio or multi-
channel audio (Dolby Digital) discs.
This connection needs a minimum of 3 speakers (front L and R, and rear (monaural)). The
surround effects are enhanced if 6 speakers (front L and R, center, rear L and R, and subwoofer)
are used.
If your amplifier (receiver) has L and R audio input jacks only, use
. If your amplifier
D-1
(receiver) has a digital input jack, use
.
D-2
xRecommended surround sound effects using this connection with your
amplifier (receiver)
• Dolby Surround (Pro Logic) (page 97)
z
For correct speaker setting location, please refer to the operating instructions of the amplifier (receiver).
Note
SACD audio signals are not output from the digital jack.
continued
29
1-6
