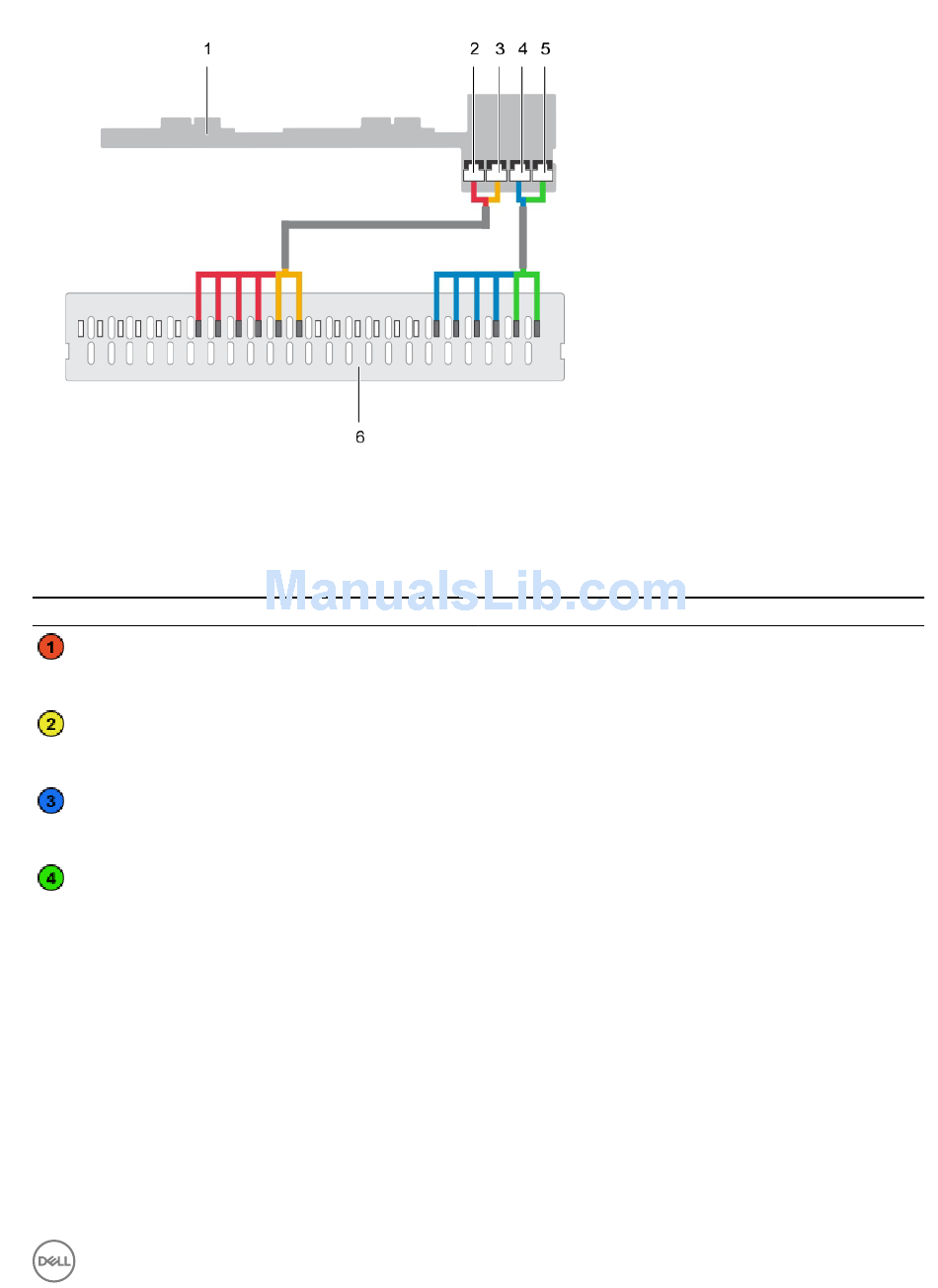

Figure 110. Cable routing−bottom midplane to hard drive backplane for 24 x2.5-inch hard drive configuration
1. bottom midplane
3. Mini-SAS connector for system board 2
5. Mini-SAS connector for system board 4
Table 34. Cable routing−bottom midplane to backplane for 24 x2.5-inch hard drive configuration
Item Cable
Hard drive backplane cable
Hard drive backplane cable
Hard drive backplane cable
Hard drive backplane cable
2. Mini-SAS connector for system board 2
4. Mini-SAS connector for system board 4
6. backplane
From (bottom midplane)
Mini-SAS connector for system
board 2 (hard drive 1, 2, 3 and
4) (J1)
Mini-SAS connector for system
board 2 (hard drive 5 and 6)
(J2)
Mini-SAS connector for system
board 4 (hard drive 1, 2, 3 and
4) (J3)
Mini-SAS connector for system
board 4 (hard drive 5 and 6)
(J4)
To (backplane)
SATA2 hard drive connectors 1
to 4 for system board 2 (from
right to left)
SATA2 hard drive connectors 5
to 6 for system board 2 (from
right to left)
SATA2 hard drive connectors 1
to 4 for system board 4 (from
right to left)
SATA2 hard drive connectors 5
to 6 for system board 4 (from
right to left)
