Unpack the Box

1.
2.
The console box contains components for mounting the console on different
bike models. Most current bikes use the flat mount bracket (2).

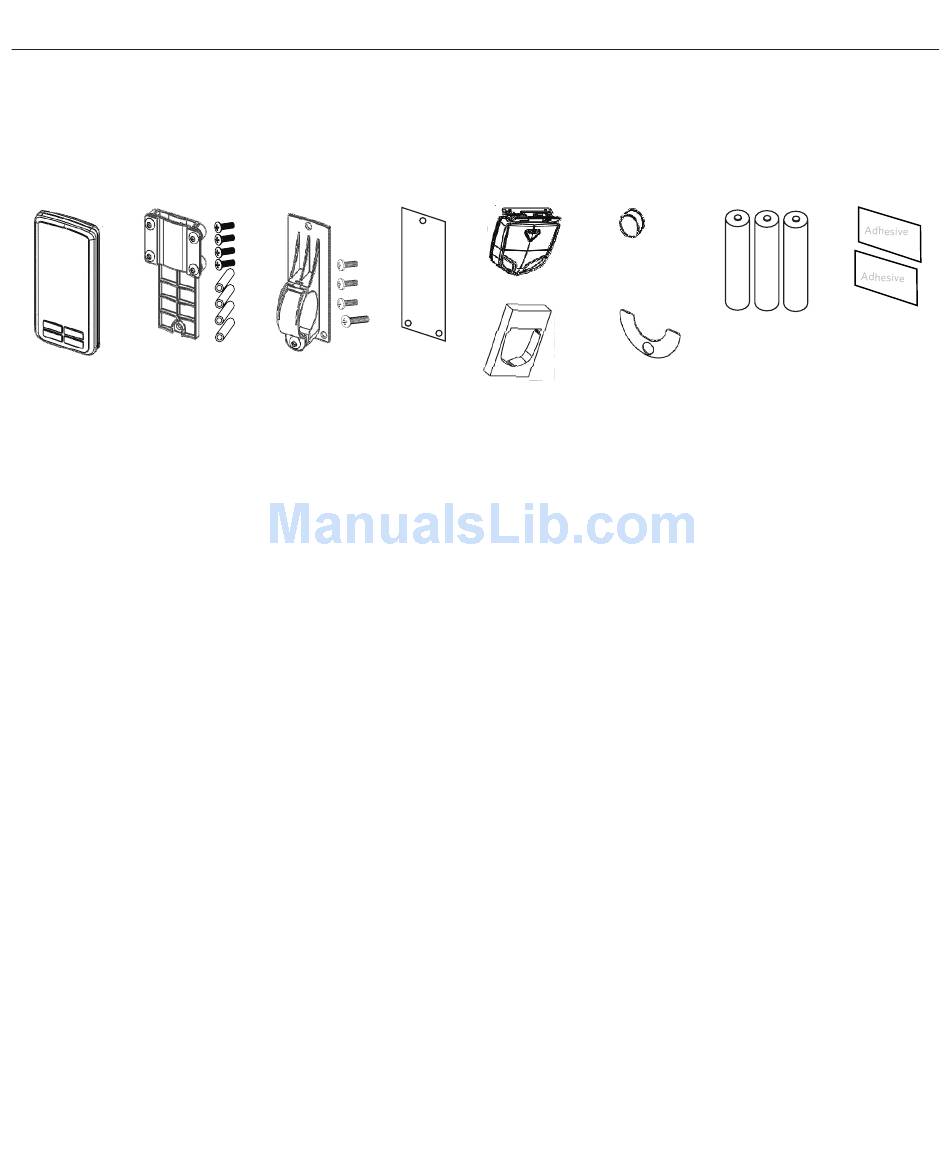

Each console ships with the following parts:
1. Console
2. Flat mount bracket (includes four screws and four spacers)
3. Ring mount bracket (includes four screws)
4. Rubber gasket inlay
5. Cadence sensor
6. Cadence sensor foam holder
7. Magnet
8. Adhesive magnet-holding shim
9. AAA batteries (three) for console
10. Double-stick adhesive pads for sensor mounting
Required Tools
•
Phillips head screwdriver
•
Hex key (5 mm)
Batteries Required
•
Console: three AAA batteries (included)
•
Cadence sensor: one CR2032 lithium coin cell battery (included)
SPIN N IN G® ST U DIO CO N SO L E OWN ER S M AN UAL
4.
3.
7.
5.
8.
6.
10.
9.
