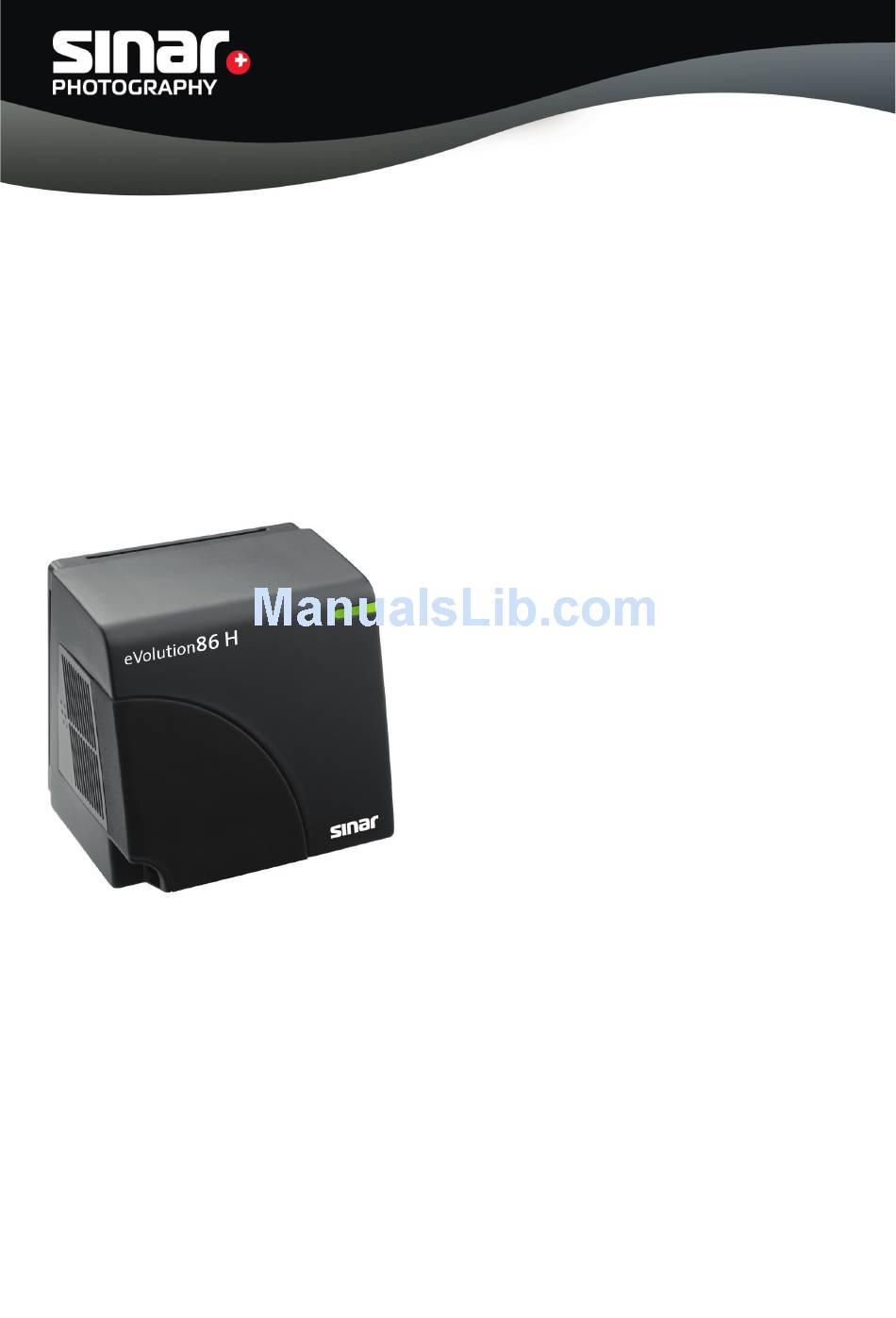

Page 1: Operating Instructions
Sinarback eVolution75 H / 86 H Operating Instructions Sinar Photography AG - Farbhofstrasse 21 - 8048 Zürich/Switzerland 13.10.10 - Seite 1 Phone +41 (0)44 217 80 30 - Fax +41 (0)44 217 80 50 - contact@ sinar.ch - www.sinar.ch... -
Page 2: Table Of Contents
3.2 Attaching the Sinar p3 View Camera 4. Sinarback eVolution Connections 5. Activating the Capture Software 6. Cleaning the Sensor 7. Technical Data Sinar Photography AG - Farbhofstrasse 21 - 8048 Zürich/Switzerland 13.10.10 - Seite 2 Phone +41 (0)44 217 80 30 - Fax +41 (0)44 217 80 50 - contact@ sinar.ch - www.sinar.ch... -
Page 3: Scope Of Delivery
FireWire Cable 1394 B Cable 4.5 m (551.63.055) 1x Set of Cleaning Cloths with Cleaning Liquids (551.33.090) 1x CD with Capture Software 1x CD with CCD Reference File 1x Gray Card Sinar Photography AG - Farbhofstrasse 21 - 8048 Zürich/Switzerland 13.10.10 - Seite 3 Phone +41 (0)44 217 80 30 - Fax +41 (0)44 217 80 50 - contact@ sinar.ch - www.sinar.ch... -
Page 4: General
2.1. Fundamentals The CaptureShop Software provides access to the camera and is responsible for data management. With CaptureShop you open, view and process the images in order to file them or to export them to an image manipulation program (such as Photoshop). This software is included free of charge with the product. Upgrades can also be downloaded free of charge from the Sinar homepage (www.sinar.ch). Power Supply The supply of power to the Sinarback eVolution75 H / 86 H takes place via the FireWire interface. Sinar Photography AG - Farbhofstrasse 21 - 8048 Zürich/Switzerland 13.10.10 - Seite 4 Phone +41 (0)44 217 80 30 - Fax +41 (0)44 217 80 50 - contact@ sinar.ch - www.sinar.ch... -
Page 5: Adaptions
Attach the Sinar Adapter Plate to the Sinarback by fi rst inserting all four screws lightly and then gradually tightening them a little at a time, alternating working on each screw diagonally from each other until all of them are fastened securely. C. When the Sinarback is to be stored after being used, please use the protective CCD cover that is supplied with the Sinarback. D. Attach the Sinarback to the camera. Sinar Photography AG - Farbhofstrasse 21 - 8048 Zürich/Switzerland 13.10.10 - Seite 5 Phone +41 (0)44 217 80 30 - Fax +41 (0)44 217 80 50 - contact@ sinar.ch - www.sinar.ch... - Page 6 E. Attach the desired lens to the front standard of the camera and verify that the bellows has been assembled correctly, so that the image data can be transmitted properly from the Sinarback to the software. Sinar Photography AG - Farbhofstrasse 21 - 8048 Zürich/Switzerland 13.10.10 - Seite 6 Phone +41 (0)44 217 80 30 - Fax +41 (0)44 217 80 50 - contact@ sinar.ch - www.sinar.ch...
- Page 7 By pressing the shutter release that is located on the Adapter Plate for Sinar p3. This shutter release has two pressure points: The first pressure point activates the exposure metering on the camera. The second pressure point triggers the exposure. Storage When the Sinarback is not mounted on the camera, we strongly recommend that the CCD Protective Cover is always be attached to the Sinarback to protect it and the CCD sensor from dirt and physical damage. Sinar Photography AG - Farbhofstrasse 21 - 8048 Zürich/Switzerland 13.10.10 - Seite 7 Phone +41 (0)44 217 80 30 - Fax +41 (0)44 217 80 50 - contact@ sinar.ch - www.sinar.ch...
-
Page 8: Sinarback Evolution Connections
FireWire IEEE 1394B Connection You can connect the Sinarback eVolution directly to the computer. In this operating mode, the image data files are stored directly on the hard disk of your computer. The Sinarback eVolution is equipped with a FireWire interface, which is located on the left bottom of the back. Use the FireWire cable supplied with it to connect the Sinarback eVolution to your computer. FireWire IEEE 1394B Connection Sinar Photography AG - Farbhofstrasse 21 - 8048 Zürich/Switzerland 13.10.10 - Seite 8 Phone +41 (0)44 217 80 30 - Fax +41 (0)44 217 80 50 - contact@ sinar.ch - www.sinar.ch... - Page 9 ATTENTION: Please store this CD in a safe place, because it constitutes the original Reference Data CD. Sinar Photography AG - Farbhofstrasse 21 - 8048 Zürich/Switzerland 13.10.10 - Seite 9 Phone +41 (0)44 217 80 30 - Fax +41 (0)44 217 80 50 - contact@ sinar.ch - www.sinar.ch...
-
Page 10: Cleaning The Sensor
• The surfaces of optical elements should never be touched with bare fingers. Fingerprints are very difficult to remove and they may leave lasting blemishes behind. • The combination of dust and humidity results in a sticky film of dirt that clouds the surfaces. The air we breathe out always contains humidity. • If dust is removed by blowing on it, the humidity of the warm breath condenses on the cooler sur- faces in the form of miniscule droplets. If a surface is accidentally breathed upon, it should be wiped clean very carefully while it is still humid. • Wiping a dry surface intensively with a dry cleaning cloth will cause electrostatic charges to build up, whose discharge may destroy sensitive electronic components. Sinar Photography AG - Farbhofstrasse 21 - 8048 Zürich/Switzerland 13.10.10 - Seite 10 Phone +41 (0)44 217 80 30 - Fax +41 (0)44 217 80 50 - contact@ sinar.ch - www.sinar.ch... - Page 11 • A visible difference between a cleaned and an untreated area after a partial cleaning of a surface indicates the presence of a large soiled area that will require an overall cleaning of the complete sur- face. In such cases, the entire surface should be wiped in only one direction (not back and forth), and in uninterrupted, continuous strokes across the whole surface. The cleaning cloth should be folded after each wiping procedure in such a way that the used portion will not be in use. • Wiping motions across protruding or sharp edges, which would occur when the area to be cleaned is framed by a raised edge, must be avoided at all times. In that situation, first wipe the surface along the edge and then wipe it just to the edge, but not across it. Sinar Photography AG - Farbhofstrasse 21 - 8048 Zürich/Switzerland 13.10.10 - Seite 11 Phone +41 (0)44 217 80 30 - Fax +41 (0)44 217 80 50 - contact@ sinar.ch - www.sinar.ch...
- Page 12 • Never let the cleaning fluid drip directly on the surface to be cleaned, always apply it to the cleaning cloth first. • After the wet-cleaning with a non-volatile (slowly-drying) cleaning fluid and a clean, dry cleaning cloth, carefully wipe the surface dry from the center to the edges (not back and forth) in order to avoid residual drying marks. • If drying residues are still visible after the first cleaning procedure, the procedure should be repea- ted carefully with a fresh cleaning cloth. If repeated cleaning efforts do not yield the desired results, the cleanliness of the cleaning cloths and the cleaning fluids should be examined. Sinar Photography AG - Farbhofstrasse 21 - 8048 Zürich/Switzerland 13.10.10 - Seite 12 Phone +41 (0)44 217 80 30 - Fax +41 (0)44 217 80 50 - contact@ sinar.ch - www.sinar.ch...
-
Page 13: Technical Data
• Camera adaptations: Sinar p3/p2/p/x view cameras, Sinar Hy6, Sinar m, Sinarcam 2 Contax 645 AF, Fuji GX 680 I, II, III / Hasselblad V, H1, H2 / Mamiya RZ 67/Pro II, RB 67, 645 AFD, AFD II, 645 Super, Pro, Pro TL / Rolleiflex 6001, 6003, 6008, 6008 Integral, 6008 Integral 2, 6008 AF / Non-Sinar 4x5” view cameras via Graflock Adapter • Computer requirements: Apple Macintosh G5 or Core Duo with ≥1.8 GHz, OS 10.6.4 or higher, 2GB RAM, IEEE 1394b interface Sinar Photography AG - Farbhofstrasse 21 - 8048 Zürich/Switzerland 13.10.10 - Seite 13 Phone +41 (0)44 217 80 30 - Fax +41 (0)44 217 80 50 - contact@ sinar.ch - www.sinar.ch... - Page 14 • Camera adaptations: Sinar p3/p2/p/x view cameras, Sinar Hy6, Sinar m, Sinarcam 2 Contax 645 AF, Fuji GX 680 I, II, III / Hasselblad V, H1, H2 / Mamiya RZ 67/Pro II, RB 67, 645 AFD, AFD II, 645 Super, Pro, Pro TL / Rolleiflex 6001, 6003, 6008, 6008 Integral, 6008 Integral 2, 6008 AF / Non-Sinar 4x5” view cameras via Graflock Adapter • Computer requirements: Apple Macintosh G5 or Core Duo with ≥1.8 GHz, OS 10.6.4 or higher, 2GB RAM, IEEE 1394b interface Sinar Photography AG - Farbhofstrasse 21 - 8048 Zürich/Switzerland 13.10.10 - Seite 14 Phone +41 (0)44 217 80 30 - Fax +41 (0)44 217 80 50 - contact@ sinar.ch - www.sinar.ch...
