ABB ODPSE230C Installation And Operating Instructions page 2

Introduction
ODPSE230C is used to provide power supply for motorized switches and breakers by using two lines, Line I and Line II.
Features
• Protects the motor operator against over and undervoltage
• No need for external supply voltage
• Isolation provided between line I and II
Status indication
A green LED light for Line I and Line II indicates that voltage is between specified range. In case of anomaly LEDs are
switched OFF. Specified voltage range is 80% - 120 % x rated AC voltage.

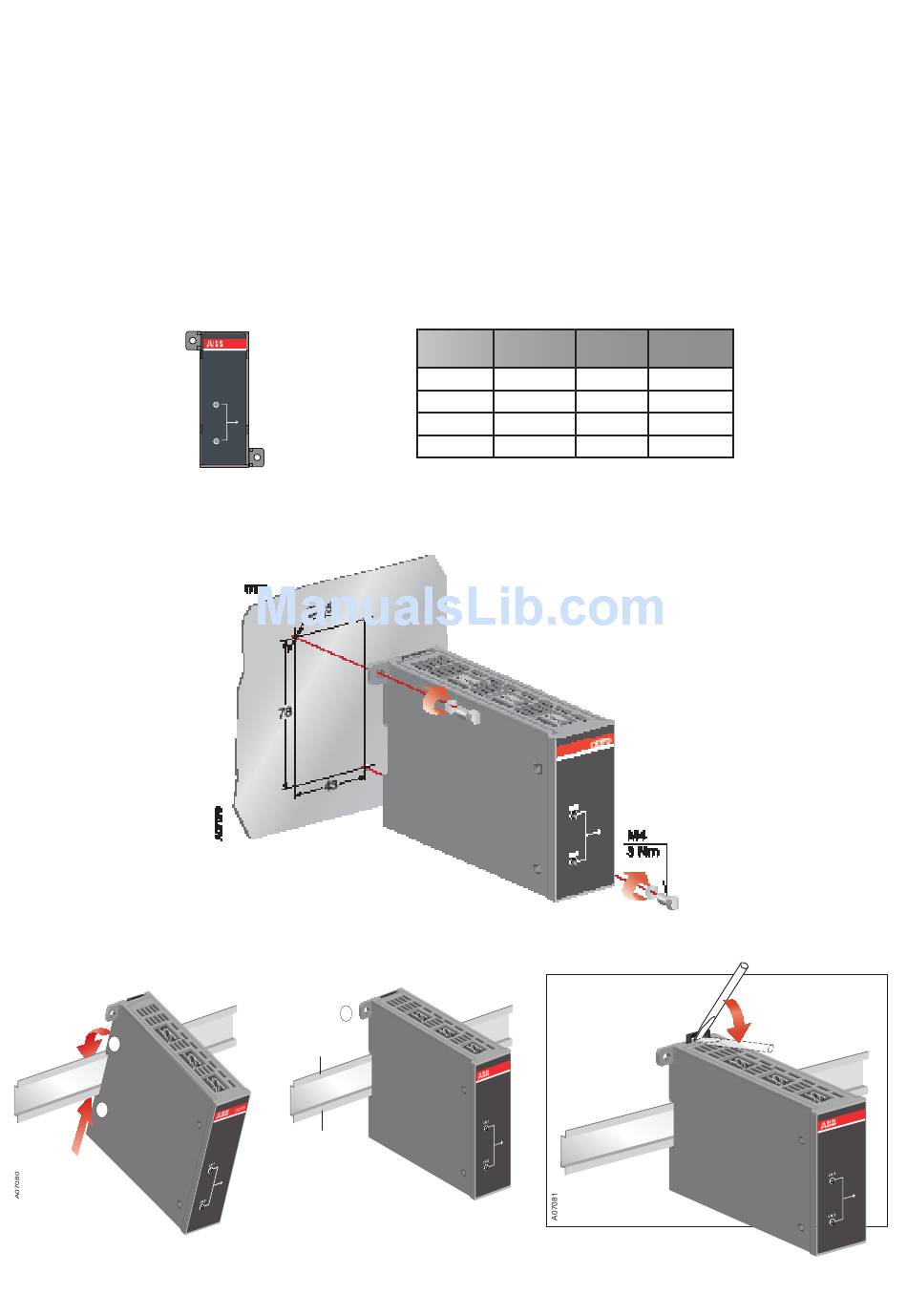

Picture 1 Front panel
Installation
2
1
Picture 3 DIN-rail mounting of ODPS
ODPS
LN1
LN2
Picture 2 Drilling hole distances/Screw mounting
3
35Êmm
ENÊ50022
LINE I LINE II Output
OK NOT OK LINE I
NOT OK OK LINE II
NOT OK NOT OK None
OK OK LINE I
Table 1 Status indication of ODPS
Remove
S
O D P
LEDs
LINE I
LINE II
None
LINE I + II
S
O D P
