Gigaset S675 IP Installation Manual

Gigaset S675 IP Installation Manual

Hide thumbs Also See for S675 IP:
Table of Contents

Advertisement

Quick Links

Download this manual See also: User Manual
Simple
S675 IP
step-by-step
installation

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the S675 IP and is the answer not in the manual?

Questions and answers

Related Manuals for Gigaset S675 IP

Summary of Contents for Gigaset S675 IP

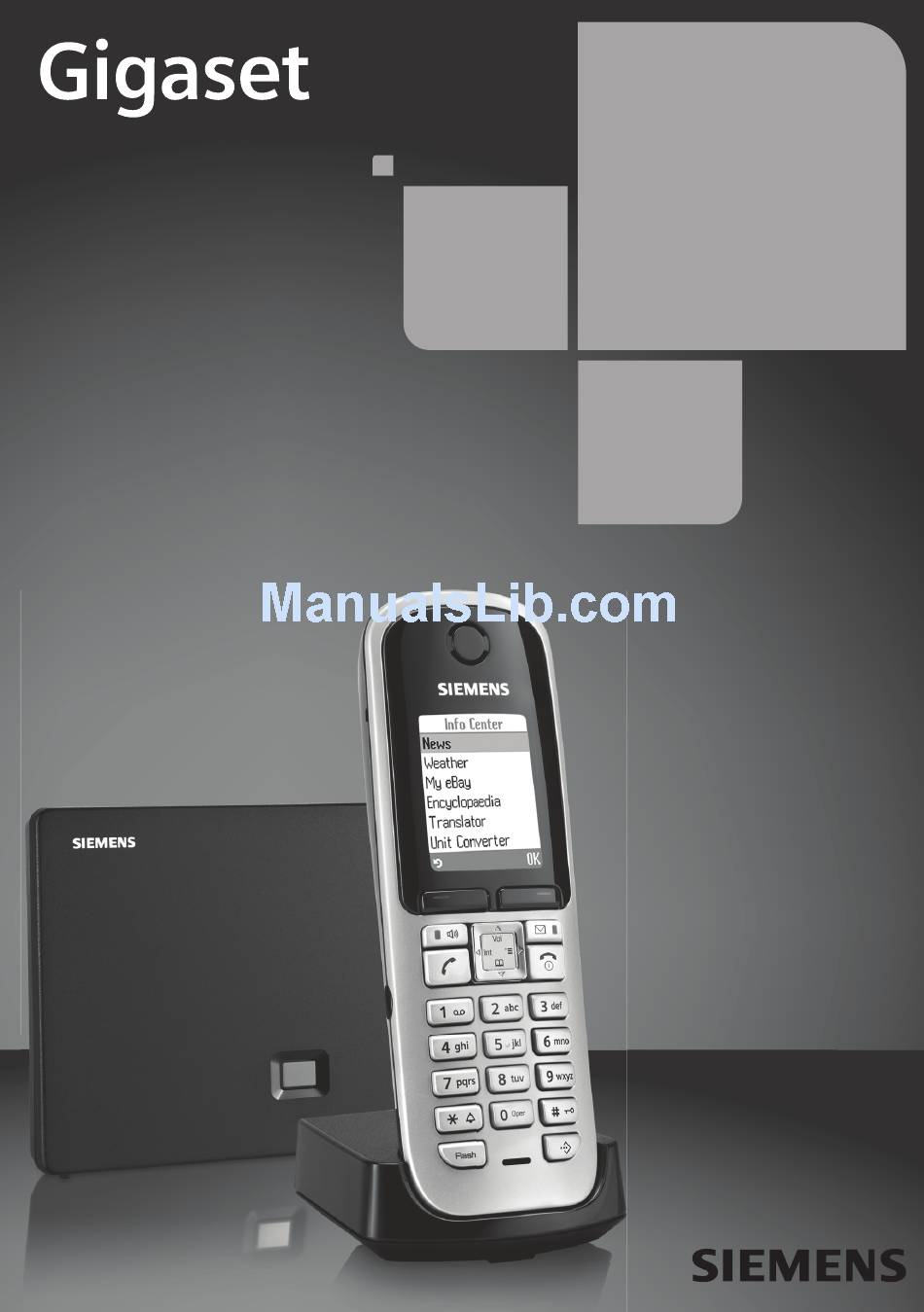

  • Page 1 Simple S675 IP step-by-step installation...

  • Page 2: Safety Precautions

    Protect your Gigaset from moisture, dust, corrosive liquids, and vapors. > If you give your Gigaset to someone else, make sure you also give them the user guide. > Please remove faulty base stations from use or have them repaired by our Service Center, as they could interfere with other wireless services.
  • Page 3 Safety precautions Power Outage: In the event of a power outage, your cordless telephone will not operate. The cordless tele- phone requires electricity for operation. You should have a telephone that does not require electricity available for use during power outages. VoIP service may not work during a power outage, or when the Internet connection fails or becomes overloaded.

  • Page 4: Package Contents

    Power adapter for connecting the charging cradle to a power outlet Belt clip for the handset CD with the user guide for your Gigaset. If the firmware for your base station is updated, the user guide will also be updated and made available for download on the Internet at www.gigaset.com.

  • Page 5: Keys And Functions On The Handset

    Keys and functions on the handset Display keys: Start a function that is displayed on the left or right of the bottom display line Handsfree key: Switch between earpiece and handsfree mode (key lights up) Talk key: Answering a call After entering number: start dialing via VoIP/fixed line network (press and hold/press briefly) Control key: Open menu (press right);...

  • Page 6: Connection Overview

    To connect the base station to the Internet, first connect the base station to the router (connection via router and modem or via router with integrated modem) PC in LAN (optional) – for advanced configuration of the Gigaset S675 IP base station...

  • Page 7: Preparing The Handset

    Preparing the handset Inserting the supplied batteries and closing the battery cover > Check the polarity when inserting the batteries (see symbols in or on the battery compartment). > Only use the recommended rechargeable batteries. Once the batteries have been inserted, the handset switches on automatically.

  • Page 8: Connecting The Base Station

    Connecting the base station Connecting the phone cord and power cable to the base station Insert the phone cord connector into the telephone jack at the rear of the base station. Insert the power cable of the power adapter into the power port connec- tor at the rear of the base station.

  • Page 9: Connecting The Base Station With The Router (Internet)

    Connecting the base station Connecting the base station with the router (Internet) Connect one side of the Ethernet cable into the LAN port on the side of the base station. Insert the other side of the Ethernet cable into a open LAN port on your router.

  • Page 10: Entering Your Name In The Gigaset.net Directory

    VoIP service provided by Gigaset Communications GmbH, which you can use to make free calls to other Gigaset VoIP users. The first time you open the Gigaset.net directory, complete the following steps and an entry will be created in the Gigaset.net directory for you: >...
  • Page 11 Gigaset.net directory entry Testing your VoIP connection You can test the Gigaset.net connection to the Internet by calling the Gigaset.net echo serv- ice: > Enter one of the following phone numbers: 12341#9 (English) 12342#9 (Dutch) 12343#9 (Italian) 12344#9 (French) 12345#9 (German) 12346#9 (Spanish) >...

  • Page 12: Saving Voip Access Data

    Launch the Web browser on your PC. > Enter the URL http://www.Gigaset-config.com in the address field of the Web browser and press the Return key. You are connected to your base station's Web configurator. You will find a description of this in the user guide on the enclosed CD.

  • Page 13: Starting The Connection Assistant, Entering The Pin

    Saving VoIP access data If "Update firmware?" is shown in the display, updated firmware is already available for your phone. Press the right-hand Display key §Yes§. The new firmware will be loaded. This takes approx. 3 minutes. The Message key will now flash again.
  • Page 14 Saving VoIP access data Selecting a provider and loading provider data on the base station Select Provider Select Country Provider 1 Germany Provider 2 England Provider 3 France Provider 4 Netherlands, the Provider 5 Provider 6 Ý Ý > > Select your provider with the Control Select your country with the Control (press down arrow).

  • Page 15: Entering Voip Account Data

    Saving VoIP access data Entering VoIP account data Connection Assist. Connection Assist. Authent. Password: User Name : Ý Ý > > Using the Number keys, enter the Using the Number keys, enter the authentication password that you authentication name (user identifica- received from your provider.

  • Page 16: Completing And Testing Voip Settings

    Saving VoIP access data Completing and testing VoIP settings The handset switches to idle status. The idle display status is displayed. Ð Ã > Test whether your VoIP data is complete and has been stored in the phone correctly. INT 1 Making a VoIP call: Enter a number using the handset keypad and press and hold the Talk key c.

  • Page 17: Making Calls

    Making calls/using Answering Machine Making calls > Enter a phone number using your handset's Number keys. Please note that, even with local calls, you may need to dial the area code for calls via VoIP (provider-dependent). Briefly press the Talk key c if you want to make a call via the fixed line network. >...

  • Page 18: Info Center

    The info services listed in the picture above are only given as examples. Info Services content will vary depending on country, provider, and network. > Visit the Gigaset.net homepage www.gigaset.net to compile your personal info services. In the user guide on the enclosed CD you will find more information.

  • Page 19: Service (Customer Care)

    Service (Customer Care) Customer Care Warranty for Cordless Products To obtain Customer Care Warranty service, product operation information, or for problem resolution, call: Toll Free: 1-866-247-8758 7:00 a.m. – 7:00 p.m. EST Monday-Saturday excluding holidays (English) 7:00 a.m. - 12:00 p.m. (noon) EST Monday-Saturday (French) This telephone system equipment has been tested and found to comply with the limits for Class B digital device, pursuant to Part 15 of the FCC Rules.
