Summary of Contents for Mellanox Technologies SN2100

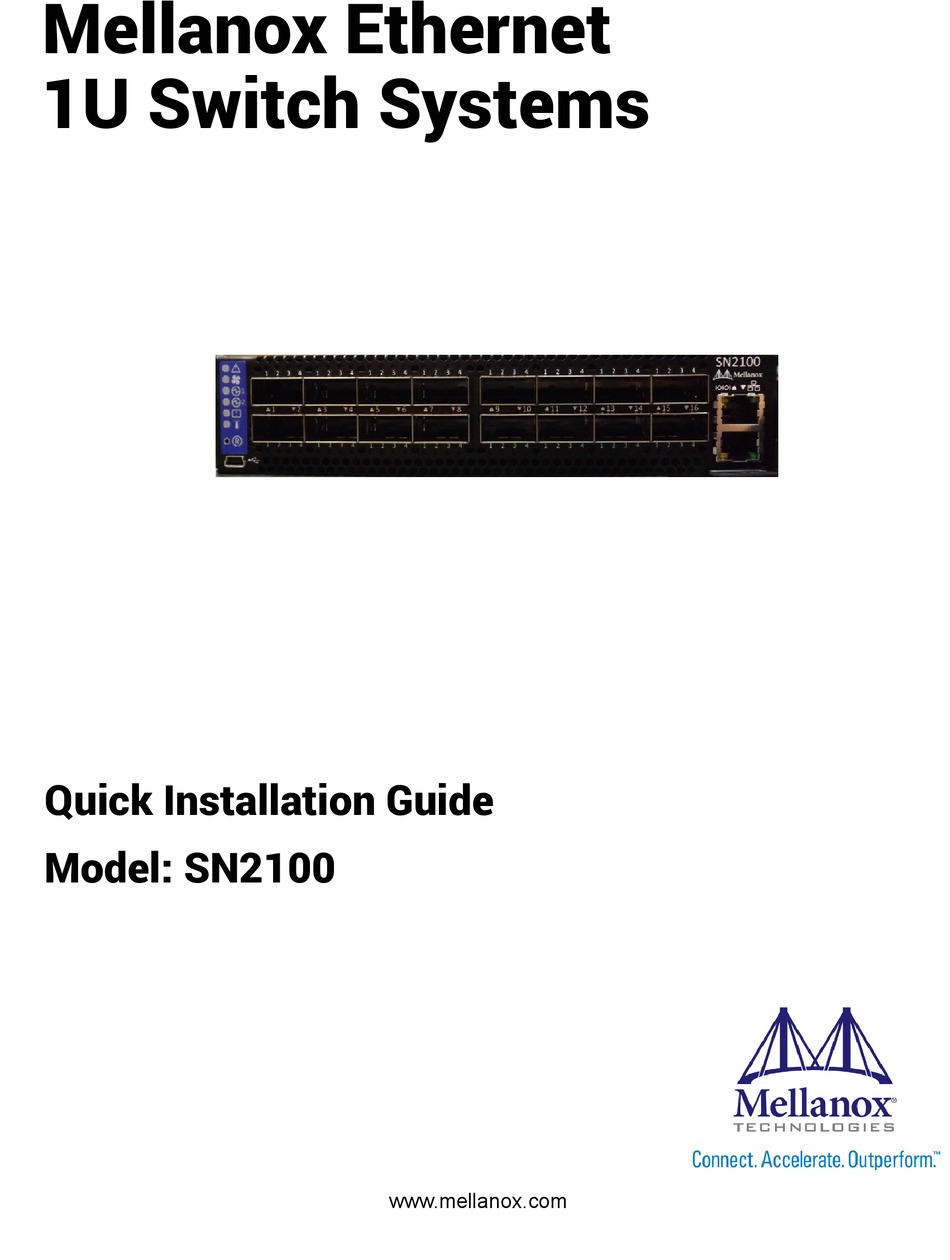

- Page 1 Mellanox Ethernet 1U Switch Systems Quick Installation Guide Model: SN2100 www.mellanox.com...
-
Page 2: Package Contents
The following items are not included in the package, and can be pur- chased separately: • Rack installation kit for SN2100 series short depth 1U switches, allows installation of one or two switches side-by-side into standard depth racks (23.6"-31.5" / 600-800mm) •... - Page 3 Package Contents...
-
Page 7: Led Assignments
Connector (Front) Side FRU (Rear) Side * It may take up to five minutes to turn on the system. If the System Status LED shows red after five minutes, unplug the system and contact your Mellanox representative. LED Assignments... - Page 8 Configuration 1. Connect the host PC to the Console (RJ-45) port. 2. Configure a serial terminal program. Parameter Settings Baud rate 115200 Data bits Stop bits Parity None Flow control None 3. Log in: Username Password MLNX-OS admin admin ONIE cumulus CumulusLinux! (case sensitive) Cumulus Linux...
