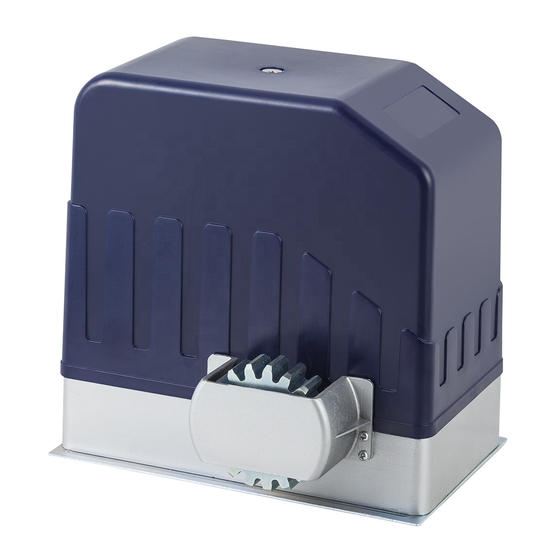

Summary of Contents for Aleko Lockmaster DKC400UY

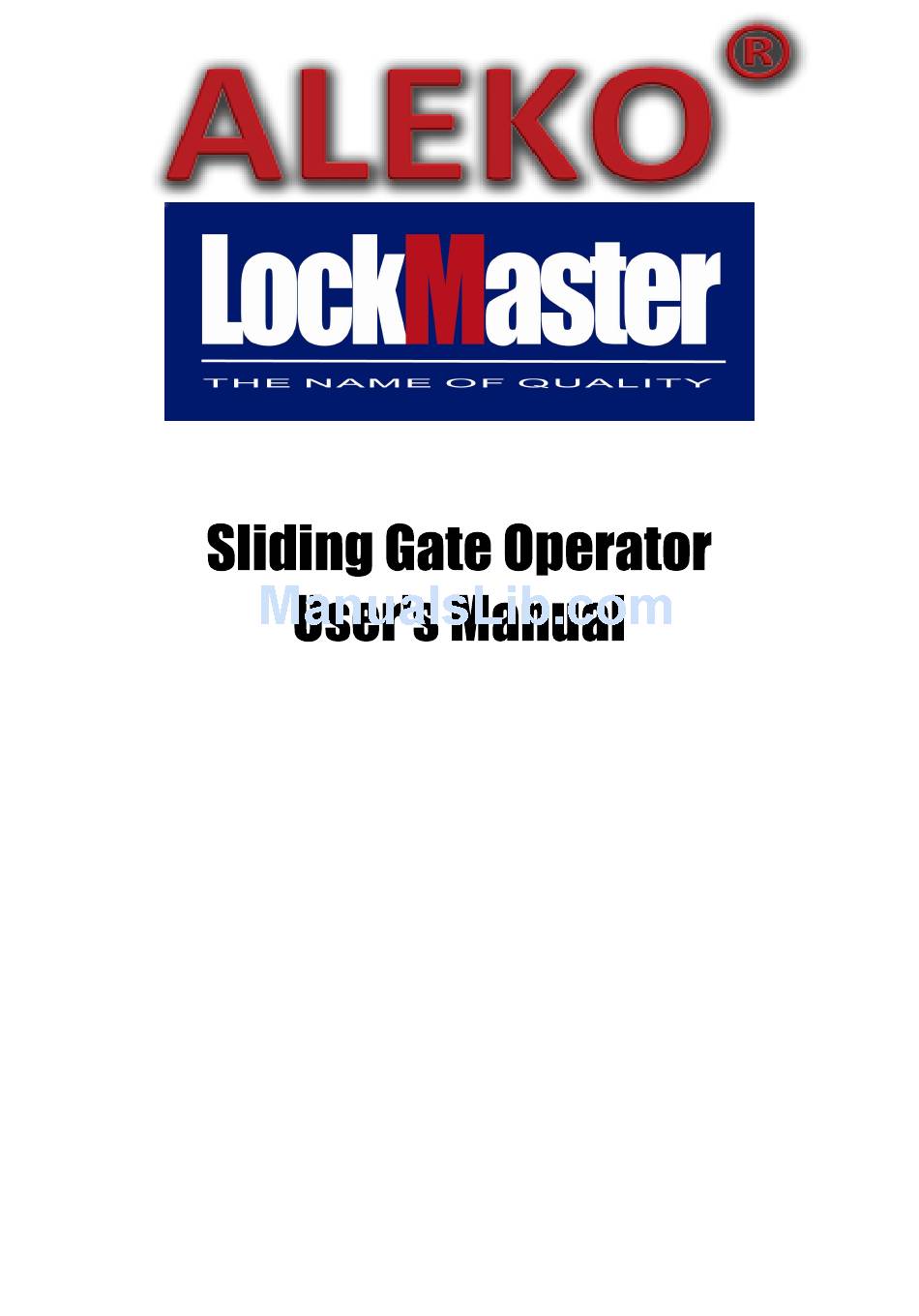

- Page 1 Lockmaster DKC400UY Lockmaster DKC400U Aleko AR-1450 www.Gatemotors.com Support@Gatemotors.com Tel:305-809-6301...
-
Page 2: Table Of Contents
ALEKO AR1450 SLIDING GATE OPERATOR USER’S MANUAL OUTLINE 1. Important safety information …………………………3 2. Main features ………………………………………3 3. Main technical parameters …………………………3 4. Working principle and main structure ………………4 5. Installation and adjustment …………………………4 6. Connecting …………………………………………7 7. Control ……………………………………………10 8. - Page 3 AR-1450...
- Page 4 AR-1450 MODEL: COMPONENT COMPONENT MFR’S PART NO. QUANTITY DESCRIPTION MANUFACTURER ALEKO Cover tr3cov1 ALEKO Set Phillips screw tr3sps2 ALEKO ½ h.p. Motor tr3mot3 ALEKO Limit magnets tr3lm4 ALEKO Control board tr3c/b5 ALEKO Capacitor tr3cap6 ALEKO Gear racks 2.3 ft. tr3gr7...
- Page 5 Residential Sliding Gate AR-1450 Operator Tools you will need During assembly and installation of your opener, the instructions will call for the use of various tools shown below. Other tools may be required as needed for the installation of the concrete pad and electrical connection. Table 3 Required Tools for Installation Screwdriver Tape Measure...
-
Page 6: Important Safety Information
ALEKO AR-1450 SLIDING GATE OPERATOR USER’S MANUAL 1. Important safety information Carefully read and follow all safety precaution and warnings before attempting to install and use this operator, incorrect installation can lead to severe injury. The gate operator should be installed by a qualified technician; otherwise, serious personal injury or property damage may occur. -
Page 7: Working Principle And Main Structure
ALEKO AR-1450 SLIDING GATE OPERATOR USER’S MANUAL Limit switch Magnetic limit switch Remote control operating range Remote control mode Single-button Auto-close time 0-44 sec. Working time 90 sec. Noise ≤62dB Environmental temperature -10ºC~+55ºC 4. Working principle and main structure The device is composed of a single-phase motor, worm and worm gear. The main shaft of the motor rotates the worm with the clutch engaged, the worm rotates the worm gear and output gear, which pushes the rack attached to the sliding gate, thus moving the gate. - Page 8 ALEKO AR-1450 SLIDING GATE OPERATOR USER’S MANUAL Conduit In order to protect the wires, use PVC conduit for control wires, conduit must be set into the concrete when it is poured. Wires within the conduit shall be located or protected so that no damage can result from contact with any rough or sharp part.
- Page 9 ALEKO AR-1450 SLIDING GATE OPERATOR USER’S MANUAL Fig.3 Magnets for limit switch To ensure safety, it is recommended to install limit devices at both ends of the gate to prevent the gate from sliding out of the rails. The rails must be installed horizontally.
-
Page 10: Control
Setting of the Control Board 1. DIP Switches The DIP switches are used to set the limit switch of the opener to be NO or NC, auto close time of the gate opener and fast change the open/close direction which is determined by the position of the gate opener installed. - Page 11 DIP Switch #5: Direction of gate opening.* (* Direction from the inside of the property where the opener is installed.) DIP Switch #5: OFF – Opens to the right. DIP Switch #5: ON – Opens to the left. Note: If opening is to the left, the Limit Switch wires on the control board (yellow & red) need to be reversed.
- Page 12 DIP Switch #6: (NOT USED) DIP Switch #7–#8: Remote Control Button (yellow & blue) Setting DIP Switch #7: ON – Yellow Button is Working OFF – Yellow Button is Not Working DIP Switch #8: ON – Blue Button is Working OFF –Blue Button is Not Working 2.
- Page 13 Test the reversing sensitivity For the sake of safety, it is very important to test the reversing sensitivity as soon as the control board set is finished. The reversing sensitivity adjustment is inverse correlation with stall force adjustment in potentiometer 1 and potentiometer 2.
- Page 14 AR1450 Residential Sliding Gate Operator Optional Equipment Installation Procedures Green Brown Black Blue Brown Black White...
-
Page 15: Check
ALEKO AR1450 SLIDING GATE OPENER 11. Trouble Shooting The wire connector terminal block Check wire connector terminal block make becomes loose. sure it is plugged in terminal block 10 (X8). Check limit switch wire connector terminal The limit switch wire connector terminal block make sure it is plugged in terminal Motor only runs in one direction. - Page 16 Gate1Access LLC. P.O. box 121776 Clermont Fl. 34712 sales@Gatemotors.com www.Gatemotors.com 2011-2012 Aleko & Lockmaster All Rights Reserved...
