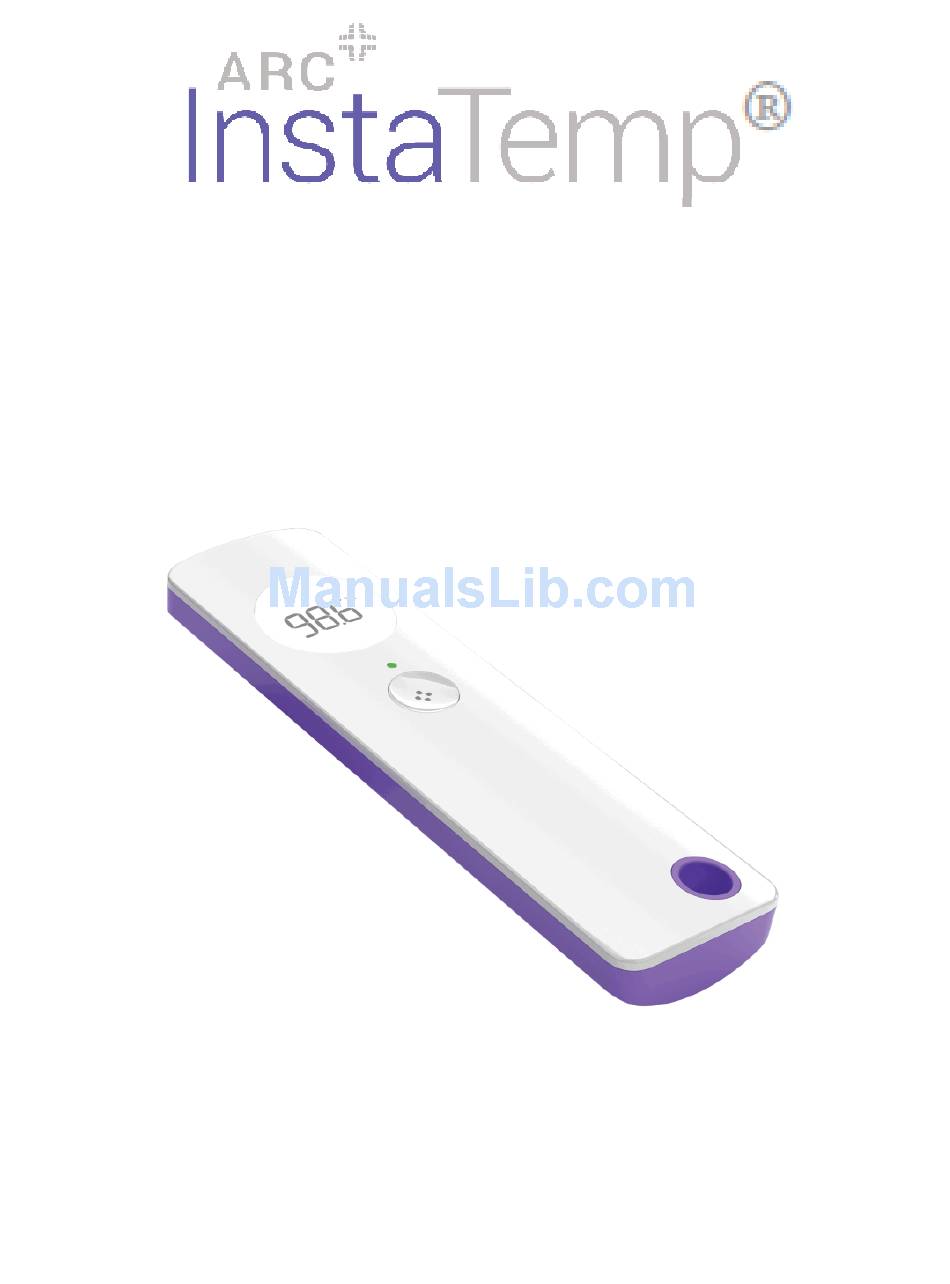

- Page 1 Non-Touch Th ermometer User Manual ARC Devices Ltd. Copyright ARC Devices Ltd. 2016...
- Page 2 Welcome to your new state of the art ARC InstaTemp digital infrared non-touch thermometer! Th e ARC InstaTemp is a digital non-touch thermometer that measures and displays human body temperature. Th is device is intended for use by responsible adults at home.
-
Page 3: Getting To Know
GETTING TO KNOW Th e ARC InstaTemp ARC InstaTemp Infrared Sensor Backlit LCD Display Screen Remove protective label prior to use. Temperature Range Indicator Light Activation Button Internal non- removable, non-replaceable, batteries are included... - Page 4 GETTING TO KNOW Th e ARC InstaTemp™ Features Quick and accurate body temperature measurement LCD screen with backlight for ease of use in the dark Temperature shown in either Fahrenheit (° F) or Celsius (° C) Th e temperature reading will...
-
Page 5: Operation
OPERATION CHANGING ºF TO ºC ARC InstaTemp is set to Fahrenheit by default. To change to Celsius, follow these simple steps: Press and release the activation button to get a reading. Once the reading appears on screen in Fahrenheit, press and release the activation button again —the reading will automatically change to Celsius. -
Page 6: Temperature Reading
In these instances, wait 20 minutes before taking a temperature reading Do not touch the lens of the sensor. It is the most delicate part of the ARC InstaTemp™... - Page 7 0.5” - 1.25” (1-3cm) Point and Click Hold the ARC InstaTemp in position, and press and release the activation button once. Hold the thermometer in position until the display is illuminated and a temperature reading is displayed on the screen.
- Page 8 OPERATION TAKING A TEMPERATURE Th e temperature reading will be displayed for 4 seconds. Temperature Range Indicator System Th e temperature range indicator will be green, orange or red depending on the temperature measurement detected. See the tables on the following page for details of the temperature ranges.
- Page 9 OPERATION UNDERSTANDING THE TEMPERATURE RANGE FAHRENHEIT (˚F) CELSIUS (˚C) Temperature Range >109.1°F >42.8°C Temp in ˚F ≥100.50F - ≤109.10F Temp in ˚C ≥38.00C - ≤42.80C Temp in ˚F ≥99.00F - <100.50F Temp in ˚C ≥37.20C - <38.00C Temp in ˚F ≥96.70F - <99.00F Temp in ˚C ≥36.00C - <37.20C...
- Page 10 OPERATION TEMPERATURE OUTSIDE MEASUREMENT RANGE Reading The LCD will display . This indicates that the temperature which the thermometer has measured is outside the device’s measurement range (i.e. >109.1°F/ >42.8°C). Above 109.1º F / 42.8˚ C Reading The LCD will display .
- Page 11 An Error message indicates an internal problem with the thermometer. If an Error message is displayed, please contact ARC Devices or your distributor. Contact info on the fi nal page of this document.
- Page 12 OPERATION OTHER SCREEN INDICATIONS Indication Meaning This indicates an invalid reading. This is due to incorrect usage, such as: • trying to measure a temperature when the ambient temperature is outside the operating temperature range. • temperature measurement failed due to too much movement by the operator or patient.
- Page 13 CARRYING & STORAGE (If accessory is included) To insert the ARC InstaTemp into the neoprene carrying case: Pull the hood of the case back. Remove the device by holding it on its sides, and slide it into the case, such that the LCD screen is slightly visible.
- Page 14 Because it is magnetic, the wall mount can also be attached to any metal surface. Th e internal magnet also keeps the ARC InstaTemp gently attached to the wall mount.
- Page 15 • Th e ARC InstaTemp and the person must remain in a stable climate for at least 20 minutes before a reading can be taken. Do not measure the person’s temperature immediately aft er he/she has been exposed to really cold or hot climates, or has drunk a hot or cold drink.
- Page 16 50-104°F (10-40°C) range aft er waiting at least 20 minutes. Do not subject the ARC InstaTemp to temperatures above 104°F (40°C) or below 45°F (7°C). • Do not use outside or close to a heat or cooling source.
- Page 17 To clean the device please use a standard IPA wipe. CLEANING Do not touch the lens of the sensor. It is the most delicate part of the ARC InstaTemp thermometer and must be protected from dirt and damage.
- Page 18 CLEANING Do not immerse the ARC InstaTemp in water or other liquids. It is not water resistant. Take care not to scratch the lens of the sensor, the display or the housing. Never use aggressive cleaning agents. Clean the thermometer using an...
- Page 19 DISPOSAL Th is symbol means that according to local laws and regulations your product should be disposed of separately from household waste. Please note this product contains batteries and magnets and therefore must be disposed of according to local laws and regulations. Do not dispose of this product in a fi re as batteries may explode when exposed to excessive heat.
-
Page 20: Icon Identification
ICON IDENTIFICATION Th is instruction manual belongs to this device. It contains important information about starting up and operation of the thermometer. Read the instruction manual carefully as non-observance of these instructions can result in serious injury or damage to the device. Caution: consult section titled ‘Understanding the Temperature Range Indicator System’... -
Page 21: Technical Specification
TECHNICAL SPECIFICATION Name and Model ARC InstaTemp CF1-0196 Display System Digital display (LCD) with backlight Temperature Range 89.5–109.1°F (32.0–42.8°C). displayed outside this range, “---“ is displayed for an indeterminate reading or use of the device outside its ambient temperature range Operating Temperature Operational in 50-104°F (10-40°C) environment. - Page 22 <1 second from press of scan button Measurement Display Time 4 sec ± 0.5 seconds before automatic shutdown Automatic Switch Off Aft er the display period is complete, the ARC InstaTemp™ will automatically shutdown to conserve measurement lifetime Power Supply Contains (2) AAAA Alkaline Batteries –...
-
Page 23: Warranty
Th is product is not warranted when used in a professional environment. In no event shall ARC Devices be liable for any special, incidental, indirect or consequential damages in connection with the purchase or use of this product or costs over the original cost of the product. - Page 24 Contact ARC Devices Manufactured and Distributed by: ARC Devices USA, Inc. 1200 N. Federal Hwy, Ste 207, Boca Raton, FL 33432 Phone: + 1 561-282-6074 info@instatemp.com www.instatemp.com EU Authorized Representative Emergo Europe Molenstraat 15 2513 BH Th e Hague Th e Netherlands...
