Options Tab - Toshiba B-452-R Printer Driver Operating Manual

3.4

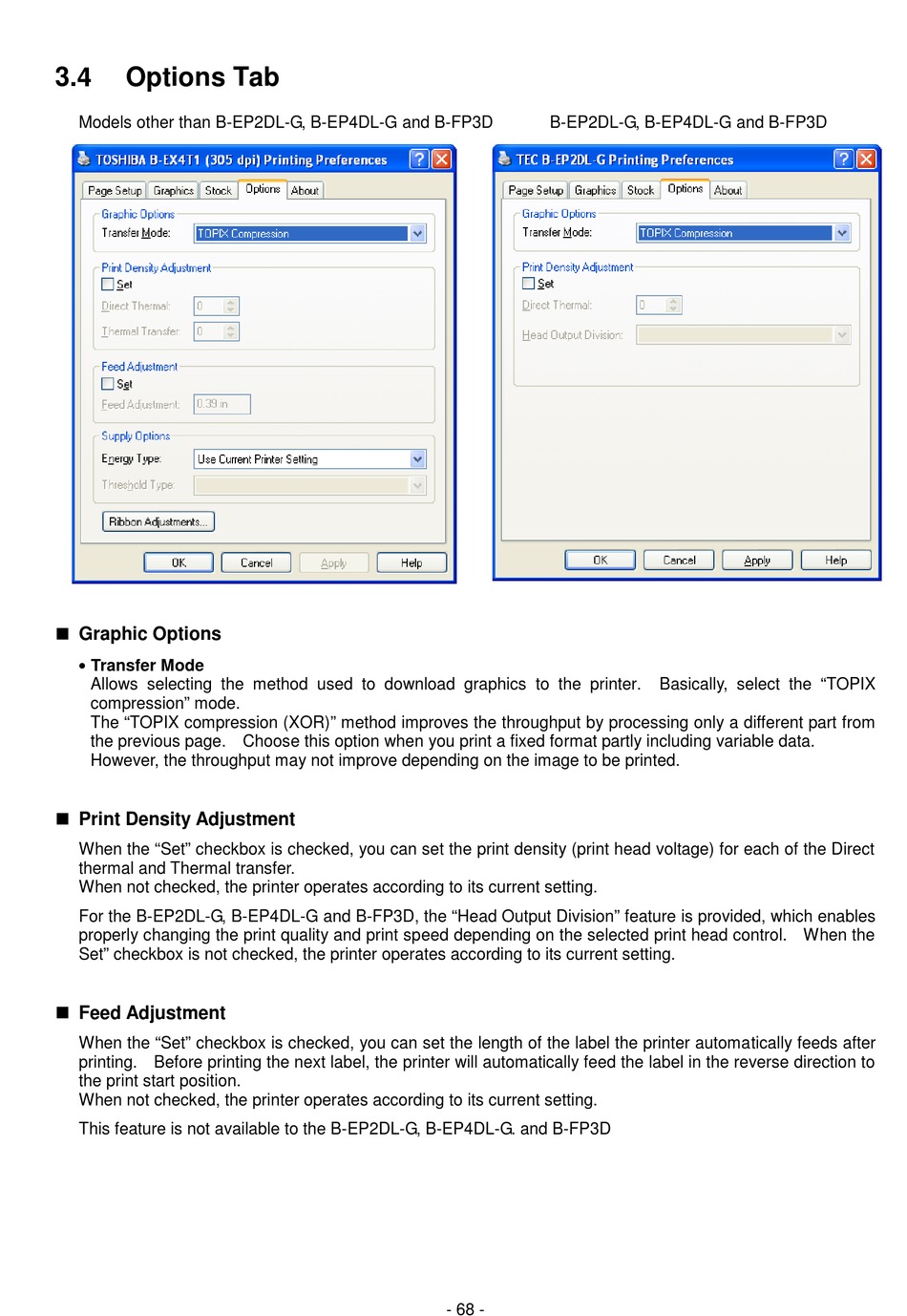

Options Tab

Models other than B-EP2DL-G, B-EP4DL-G and B-FP3D
 Graphic Options
 Transfer Mode
Allows selecting the method used to download graphics to the printer.
compression" mode.
The "TOPIX compression (XOR)" method improves the throughput by processing only a different part from
the previous page. Choose this option when you print a fixed format partly including variable data.
However, the throughput may not improve depending on the image to be printed.
 Print Density Adjustment
When the "Set" checkbox is checked, you can set the print density (print head voltage) for each of the Direct
thermal and Thermal transfer.
When not checked, the printer operates according to its current setting.
For the B-EP2DL-G, B-EP4DL-G and B-FP3D, the "Head Output Division" feature is provided, which enables
properly changing the print quality and print speed depending on the selected print head control. When the
Set" checkbox is not checked, the printer operates according to its current setting.
 Feed Adjustment
When the "Set" checkbox is checked, you can set the length of the label the printer automatically feeds after
printing. Before printing the next label, the printer will automatically feed the label in the reverse direction to
the print start position.
When not checked, the printer operates according to its current setting.
This feature is not available to the B-EP2DL-G, B-EP4DL-G. and B-FP3D
B-EP2DL-G, B-EP4DL-G and B-FP3D
- 68 -
Basically, select the "TOPIX
