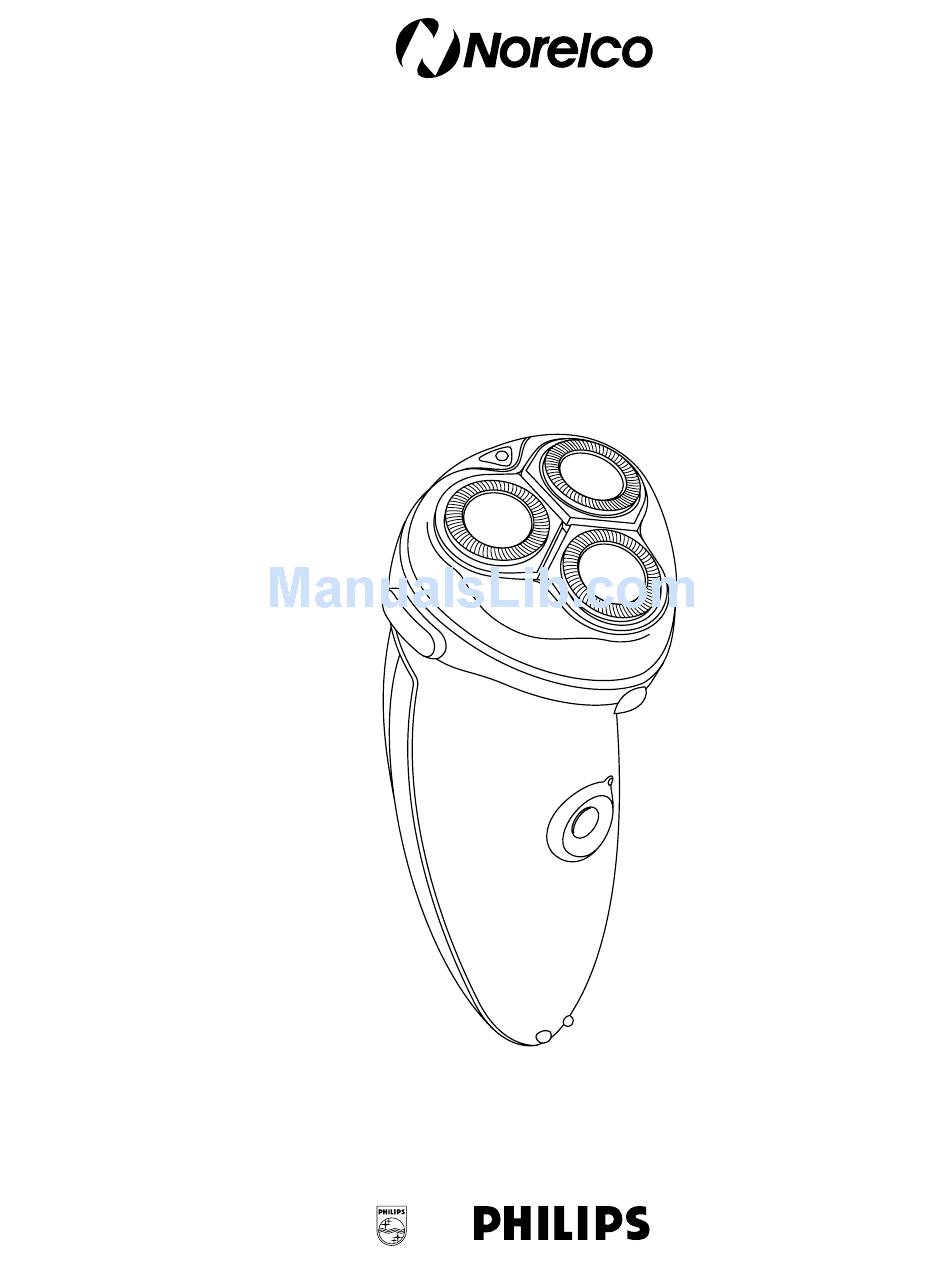

- Page 1 Advantage Rechargeable Cordless Razor 5616X With Nivea for Men Shaving Lotion Instructions for use If you need help, answers or service, please call us at 1-800-243-3050...
-
Page 2: Important Safeguards
Close supervision is necessary when this razor is used by, on, or near children or the disabled. Use this razor for its intended household use as described in this manual. Do not use attachments not recommended by Philips Electronics North America Corporation. -
Page 3: Product Assistance
Product Assistance Never operate this razor/charging base if it has a damaged cord or plug, if it is not working properly, if it has been dropped or damaged, or if charging base has been dropped into water. Return the razor or stand to an Authorized Norelco Service Location for examination and repair. - Page 4 IMPORTANT Invest two weeks for the shave of a lifetime! The Norelco Advantage Razor with the patented ® Lift and Cut System is unlike any other shaving system you’ve ever tried.The unique application of Nivea for Men shaving lotion over the razor heads and face as you shave sets your beard up to give you a close, comfortable shave while leaving your face feeling cool and refreshed.
-
Page 5: Important Battery Disposal Information
Important Battery Disposal Information A full charge will give up to 36 minutes of shaving time. • Razor must be placed in the charging base before plugging cord into outlet. • IMPORTANT:To insure optimum battery per- formance, razor should be run until battery completely discharges twice a year. -
Page 6: Day Money-Back Guarantee
Send dated sales slip, your complete name and address as indicated below, and the razor, prepaid to: Norelco Consumer Products Company A Division of Philips Electronics North America Corporation P.O. Box 1116 Skokie, IL 60076 Please allow 4-6 weeks for delivery of check. - Page 7 Features • Nivea for Men Shaving Lotion Applicator • Contour Shaving System • Easy -To-Clean Razor Head Assembly • Stainless Steel Razor Heads • Applicator Activator Buttons • Individually Floating Heads • Razor Head Release Button • Charging Indicator Light / Low Battery Indicator •...
- Page 8 • Hair Chamber captures shaven hair • Rechargeable Cordless - Shaves without a cord • Lotion Cartridge Compartment Cover • Dual Voltage Charging Base • Dual Voltage Selector 100-120V 220-240V NOTE: The Voltage Selector on your Charging Base makes it possible to charge/recharge the razor on either 110-120V AC or 220-240V AC.
- Page 9 Voltage 100-120V 220-240V To (Re)Charge In North America, Central America and South America, the most common voltage is between 110V and 130V AC. Set Voltage Selector to 100- 120V setting. When traveling to other countries, common voltage may range to 240V AC. Set Voltage Selector to 220-240V setting.
-
Page 10: Inserting Lotion Cartridge
Inserting Lotion Cartridge Replacing Used Cartridge FIRST USE 1 Take one cartridge from the box. 2 Remove the supplied connector out of the little bag. Push it into the plastic cap of cartridge until you hear it “click” into place (Fig. 3). 3 Slide the back cover of razor down to remove from razor (Fig. - Page 11 Shaving 5 Slide the new cartridge, with connector in place, into razor. 6 Slide the back cover of razor back into position until it snaps shut. Use only Norelco Advantage Nivea for Men Shaving Lotion Cartridges, Model HQ150, with your Norelco Advantage Razor. 1 Remove Protective Razor Head Cap.
- Page 12 Click-On Trimmer you will not be using your razor for an extended period of time, it is recommended that you remove the cartridge and clean the razor following maintenance instructions before storing. To Connect Trimmer 1 Switch the razor OFF. 2 Clean the razor and razor head assembly by running under hot water before installing Trimmer.
-
Page 13: Maintenance Instructions
Maintenance Instructions To Clean Trimmer 1 Brush the outside of Trimmer after every use. 2 Lubricate Trimmer teeth twice a year with Norelco Razor Lubricant, model AL80, or one drop of mineral oil. 3 The Trimmer may be flipped open to clean the inside (Fig. - Page 14 When Replacing Cartridge 1 Slide back cover off razor. Remove empty cartridge from razor cover and pull out the connector. Insert the connector into a new cartridge.The connector is secured when you hear it click into place. 2 Rinse out razor cartridge compartment with hot water.
- Page 15 6 Cutter should be held with cutters facing up and brushed in an upward motion (Fig. 14). Clean razor comb with long bristles of brush in a circular motion. 7 For consistently close and comfortable shaves, razor heads should be cleaned and lubricated every 4 weeks.
- Page 16 Replacement Heads And Razor Accessories HQ156 Advantage Replacement Heads: The self-sharpening rotary blades in your Norelco razor are precision-made to give closer shaves. When they finally do need replacing, specify only Norelco brand replacement cutters and combs, model HQ156. DO NOT USE shaver sharpeners as this will damage your blades and lifters and will adversely affect the shaving performance.
-
Page 17: Full Two Year Warranty
Damage occurring during ship- ment is not covered by this warranty. NOTE: No other warranty, written or oral, is authorized by Philips Electronics North America Corporation. This warranty gives you specific legal rights, and you may also have other rights which vary from state to state.
