Summary of Contents for Norelco 4401

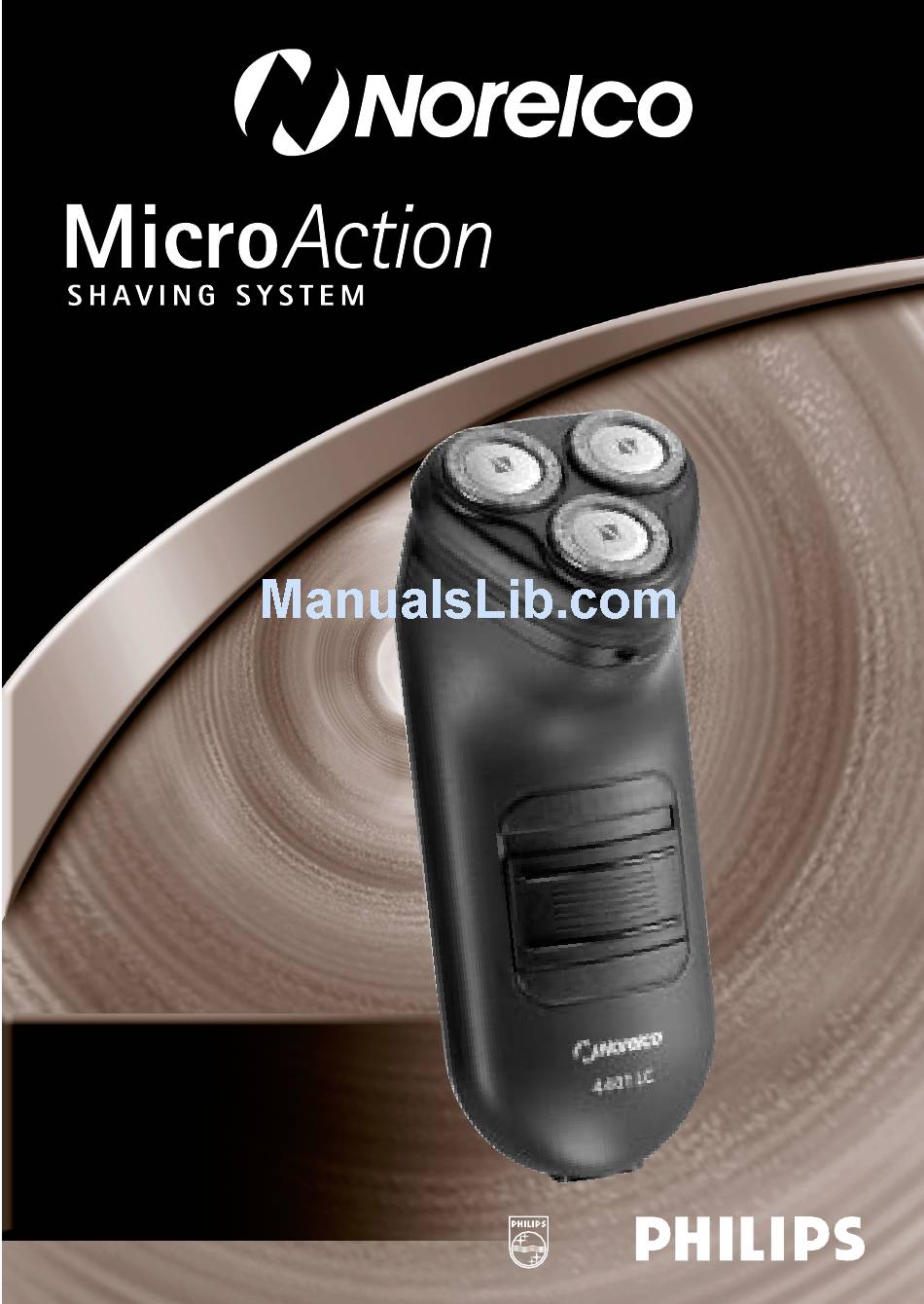

- Page 1 4401/02/03/04/ 06/12/13/14/ 15/16/17LC Corded Razor...
-
Page 2: Important Safety Instructions
2. Use this razor for its intended household use as described in this manual. Do not use attachments not recommended by Philips Electronics North America Corporation. 3. Never operate this razor if it has a damaged cord or plug, if it is not working properly, if it has been dropped or damaged, or dropped into water. - Page 3 8. Always attach plug to razor first, then to outlet. Be certain that plug is inserted firmly into razor, up to mark indicated on plug.To disconnect, turn razor off then remove plug from outlet. 9. To prevent possible damage to the cord, do not wrap cord around the razor.
-
Page 4: Day Money-Back Guarantee
Send dated sales slip, your complete name and address as indicated below, and the razor, prepaid to: Norelco Consumer Products Company A Division of Philips Electronics North America Corporation P.O. Box 1116 Skokie, IL 60076 Please allow 4-6 weeks for delivery of check. (Please Print) -
Page 5: Table Of Contents
TABLE OF CONTENTS FEATURES PUT IT TO THE TEST & SHAVING TIPS HOW TO SHAVE WITH AN ELECTRIC RAZOR TRIMMING CLEANING ASSISTANCE ACCESSORIES WARRANTY 2 - 3 5 - 8 Back Cover... -
Page 6: Features
FEATURES Micro Action Shaving System Razor Head Assembly Protective Razor Head Cap Hair Chamber captures shaven hair Sliding ON/OFF Switch How the Norelco Shaving System Makes Close Comfortable: Groove channels beard Lifter raises hair closer to cutting system Lift and Cut ®... - Page 7 Pop-Up Trimmer Mono Voltage (110V AC) Cleaning Brush Travel/Storage Pouch (model 4401LC only) Corded-Shaves with a cord Full 2-Year Warranty...
-
Page 8: Put It To The Test & Shaving Tips
PUT IT TO THE TEST & SHAVING TIPS 21 Day Trial and Conversion Process. It is a fact that your skin and beard need time to adjust to a new shaving system. Use your new razor exclusively for 3 weeks to fully enjoy the closeness of a Norelco shave.* At first you may not get as close a shave as you expect, or your face may even become slightly irritated.This is... -
Page 9: Trimming
Put the protective razor head cap on the razor to protect razor heads. Replace your Norelco Micro Action razor heads (model # HQ4) once a year for optimal shaving results. TRIMMING To groom sideburns and moustache: Turn razor ON. Push up Trimmer Slide Switch. Hold Trimmer as shown and move in downward strokes with gentle pressure. - Page 10 Brush the inside of housing and Razor Head Assembly. Replace the Razor Head Assembly back on razor. Every Two Months: Razor Heads Turn razor OFF and disconnect from outlet. Remove Razor Head Assembly off housing unit. Brush the inside of the housing. Turn Razor Head Assembly over so that the underside is exposed.
- Page 11 Separate the cutter from the comb. Only brush the cutter in an upward motion. Use the short bristled side of the brush. Brush the slots of the razor head. For optimum performance, razor cutters and combs should be cleaned in a degreasing liquid (e.g. Norelco Razor Cleaner or alcohol) and lubricated with Norelco Razor Lubricant, model AL80, or one drop of mineral oil (in the center of the head).
- Page 12 After Each Use:Trimmer Turn razor OFF. Push Trimmer Slide Switch up to pop-up Trimmer. Clean Trimmer with the brush every time you use it. Lubricate the Trimmer teeth with Norelco Razor Lubricant (model AL80), or with one drop of mineral oil every 6 months.
-
Page 13: Assistance
ASSISTANCE For assistance or the Authorized Norelco Service Location nearest you, call toll free: 1-800-243-3050 or visit our website: www.norelco.com Authorized Norelco Service Location information is available 24 hours a day, 7 days a week. ACCESSORIES Replacement Heads • Model HQ4 - For maximum razor performance, replace your Norelco Micro Action razor heads once a year. - Page 16 Damage occurring during shipment is not covered by this warranty. NOTE: No other warranty, written or oral, is authorized by Philips Electronics North America Corporation. This warranty gives you specific legal rights, and you may also have other rights which vary from state to state.
