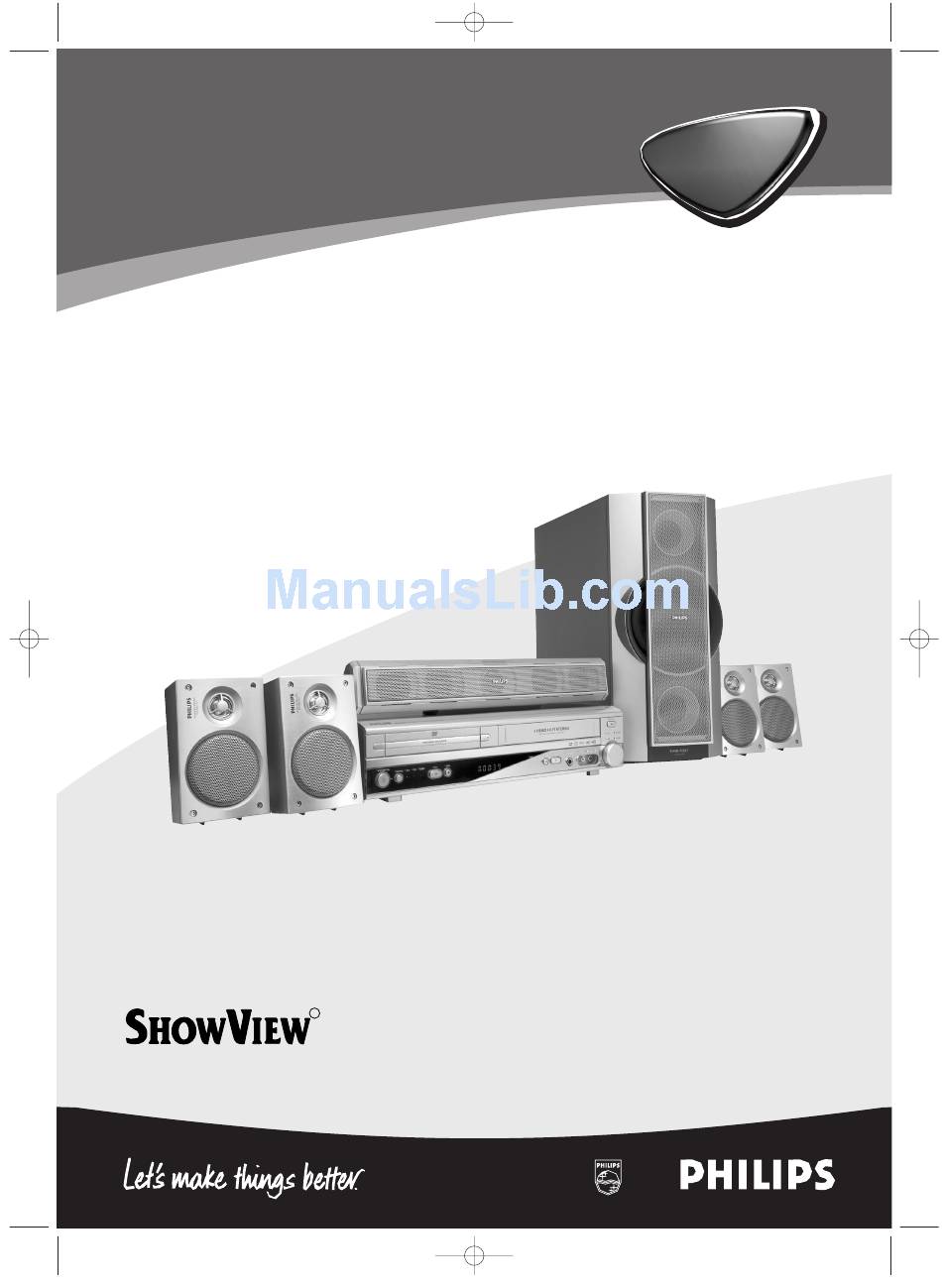

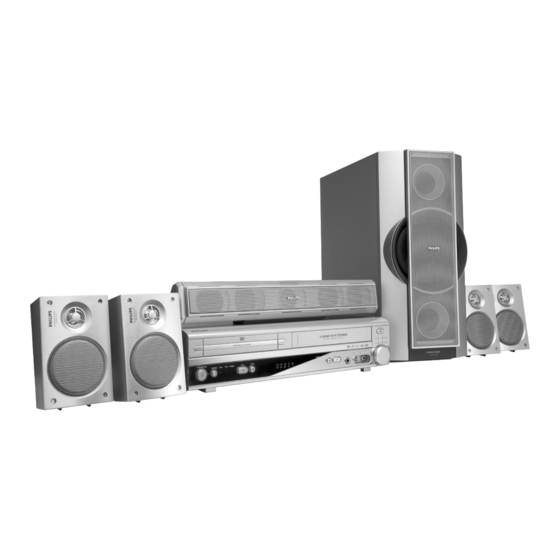

- Page 1 E9017FD_EN.qx3 03.8.6 10:13 AM Page 1 Digital Video Disc Player MX5100VR MX5100VR Video Cassette Recorder FM/MW Radio Tuner...
-
Page 2: General Information
(e.g., select and repeat tracks) cannot be per- formed unless the function is cancelled temporarily (refer to page 16). Page 2 Thank you for purchasing this Philips System.This Owner’s Manual explains the basic operation of this System. Environmental Information All unnecessary packaging has been omitted. -
Page 3: Table Of Contents
E9017FD_EN.qx3 03.8.6 10:13 AM General Information Environmental Information..... 2 Supplied Accessories ......2 Safety Information. -
Page 4: Functional Overview
E9017FD_EN.qx3 03.8.6 10:13 AM Functional Overview Front Panel OPEN CLOSE STANDBY-ON DIRECT SOURCE TUNER DUBBING PLAY STOP TIMER 1. Disc Tray (DVD) insert a disc here 2. OPEN/CLOSE A button (DVD) to open/close the disc tray 3. Cassette Compartment (VCR) insert a tape here 4. -
Page 5: Rear Panel
E9017FD_EN.qx3 03.8.6 10:13 AM Rear Panel (DECODER) DVD/VCR AV1(TV) RF OUT AERIAL TV ANTENNA (75Ω) DIGITAL AUDIO OUT COAXIAL S-VIDEO SPEAKER (4Ω) 1. AV1 (TV) jack connect SCART cable to a TV 2. AV2 (DECODER) jack (VCR only) connect SCART cable from another DVD/VCR, camcoder or an audio/video source 3. -
Page 6: Setting Up Your System
E9017FD_EN.qx3 03.8.6 10:13 AM Functional Overview 24. { B K L (left/right/up/down) select an item in the menu { B to choose a preset radio station (TUNER) 25. OK acknowledge menu selection (DVD) 26. TUNER press to put the System in TUNER mode and before using the remote control for TUNER features 27. -
Page 7: Connecting To Optional Equipment (For Dvd Features)
E9017FD_EN.qx3 03.8.6 10:13 AM If your TV is not equipped with a SCART input, you can select the following connection: If your TV has a S-Video input connector, 1 Connect the antenna or cable to the AERIAL of your System. 2 Connect the S-Video out on the System to the S-Video in on the TV. -
Page 8: Setting Up Surround Sound
• Do not spill water or put anything wet on the remote con- trol. Playable Video Cassette Tapes Philips Consume Electronics recommends that only video cas- sette tapes that have the VHS mark and High Quality (HQ) sys- tem is compatible with this System.This... -
Page 9: Automatic Channel Setup
E9017FD_EN.qx3 03.8.6 10:13 AM Automatic Channel Setup You can programme the tuner to scan only the channels that you can receive in your area. 1 Turn on the TV and select the video out channel on your TV. 2 Press VCR, then DISC/VCR MENU. 3 Press K/L to select TUNER SET UP, then press B. -
Page 10: Sorting And Clearing Tv Channels Manually
E9017FD_EN.qx3 03.8.6 10:13 AM Setting Up your System Sorting and clearing TV channels manually After you have performed the automatic channel search you may not agree with the sequence in which the individual TV channels have been allocated to the programme positions (pro- gramme numbers) of the System.You can use this function to individually sort the TV channels already saved or to delete unwanted TV channels or those with poor reception. -
Page 11: Vcr Playback
System stops the playback. DIGITAL STUDIO PICTURE CONTROL Philips has developed a system which produces the best possible playback quality. For old and often-used video cassettes, this sys- tem reduces interference. For new or high quality cassettes, it emphasises the details. -
Page 12: Vcr Manual Recording
E9017FD_EN.qx3 03.8.6 10:13 AM VCR Manual Recording General information Use 'Manual Recording' to make a spontaneous recording (for example, a programme currently being shown). If you want to start and stop a recording manually, read the section 'Recording without automatic switch-off'. Read the section 'Direct Record' if you want to record a programme currently being shown. -
Page 13: Direct Dubbing
E9017FD_EN.qx3 03.8.6 10:13 AM VCR Manual Recording Direct dubbing Follow the steps below to copy a DVD or video disc to a videotape.This will be possible only if the DVD is not copy protected. 1 Put a videotape in the cassette compartment. Make sure the tape’s record tab is intact and the tape is long enough to record the disc. -
Page 14: Programming A Recording (Without The Show View System)
E9017FD_EN.qx3 03.8.6 10:13 AM Programming a Recording (TIMER) 5 The decoded data appears after confirmation.You can go back to change the data. Select the corresponding input field using B or CLEAR. Change the data with numerical key pads. 6 When all inputs are correct, press DISPLAY/STATUS/EXIT.The programming information is stored in a Timer block. -
Page 15: Other Functions
E9017FD_EN.qx3 03.8.6 10:13 AM Switching the status display off or on Along with the on screen menu, the status display also displays information on the current operating status (counter, playback, recording,TV channel, etc.) on the TV screen.You can switch off the information about the operating status so that the sta- tus display is not recorded when copying videocassettes. -
Page 16: Playing A Disc
E9017FD_EN.qx3 03.8.6 10:13 AM Playing a Disc Basic Playback DVD-V Getting Started Turn on the power of the TV, amplifier and any other compo- nents which are connected to the DVD system. Make sure the TV and audio receiver (commercially available) are set to the correct channel. -
Page 17: Zoom
E9017FD_EN.qx3 03.8.6 10:13 AM Zoom DVD-V The Zoom function allows you to enlarge the video image and to pan through the enlarged image. 1 Press ZOOM during playback. • Playback will continue. 2 Press ZOOM repeatedly to select the required zoom factor: x2, x4 or OFF. -
Page 18: Program
E9017FD_EN.qx3 03.8.6 10:13 AM Playing a Disc Program You may determine the order in which tracks will play. 1 In stop mode press MODE/SYSTEM. • The PROGRAM screen will appear. 2 Press to select a track, then press OK. • Press CLEAR to erase the most recently entered pro- gram. -
Page 19: Subtitle Language
E9017FD_EN.qx3 03.8.6 10:13 AM Subtitle Language DVD-V The DVD system allows you to select a language for subtitle during DVD disc (if available) playback. 1 Press DVD, then SUBTITLE during playback. 2 Press SUBTITLE repeatedly to select your desired subtitle lan- guage. -
Page 20: Dvd Setup
E9017FD_EN.qx3 03.8.6 10:13 AM DVD Setup Audio Setting Choose the appropriate Audio settings for your equipment as it only affect during the playback of DVD discs of the DVD sys- tem. 1 Press SYSTEM MENU/PROG in STOP mode. 2 Press B to select CUSTOM, then press OK. •... -
Page 21: Display Setting
E9017FD_EN.qx3 03.8.6 10:13 AM Display Setting DVD-V Use markers to memorise your favourite places on a disc. 1 Press SYSTEM MENU/PROG in STOP mode. 2 Press B to select CUSTOM, then press OK. • CUSTOM mode will appear. 3 Press s or B to select DISPLAY, then OK to confirm. 4 Press K or L to select the below items, then press OK. -
Page 22: Fm/Mw Radio
Cleaning the disc lens • After prolonged use, dirt or dust may accumulate at the disc lens.To ensure good playback quality, clean the disc lens with Philips CD Lens Cleaner or any commercially available cleaner. Follow the instructions supplied with the cleaner. -
Page 23: Specifications
E9017FD_EN.qx3 03.8.6 10:13 AM VCR Video Heads Four heads - Hi-Fi Antenna VHF/UHF - 75 ohm external antenna terminal DVD Color System Amplifier Output power (rms, 4 ohms, 1 kHz, 10% Total Harmonic Distortion) 360W total - Front 75W/channel - Center 75W - Rear (Surround) 75W/channel - Subwoofer 75W FTC(Federal Trade Commission) - Page 24 20052 Monza - Milano ITALY Phone: 800 820026 PHILIPS MÁRKASZERVIZ Kinizsi U 30 - 36 Budapest 1092 HUNGARY Phone: (01)-2164428 Meet Philips at the Internet http://www.philips.com PHILIPS PORTUGUESA, S.A. Consumer Information Center Rua Dr. António Loureiro Borge, nr.5 Arquiparque, Miraflores P-2795 L-A-VEHLA PORTUGAL...
