Pcb Pictures - LG LTCS24223B /04 Service Manual

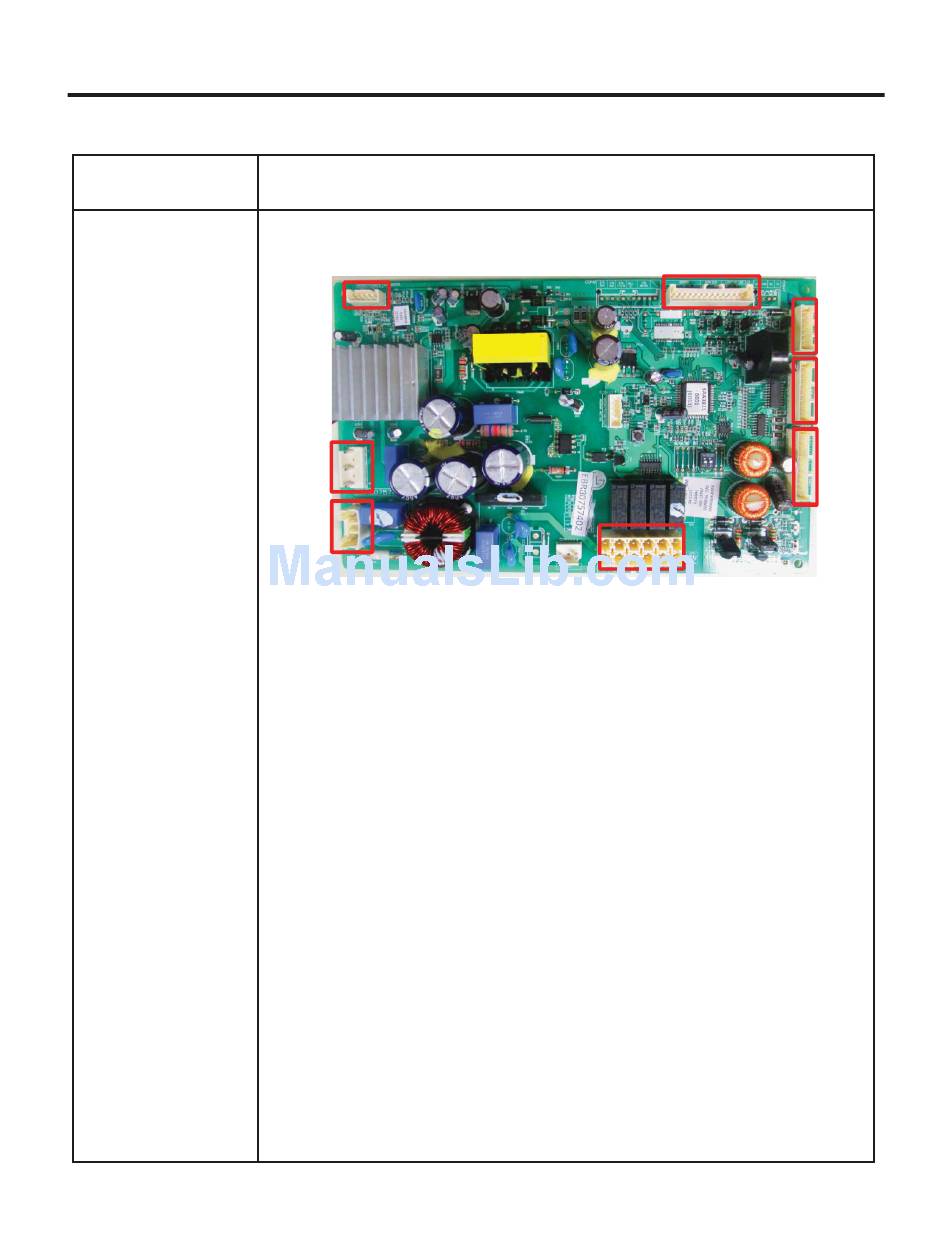

1-1. MAIN PCB
Part Name
MAIN PCB
P/N: EBR807574**
CON202
110V
CON201
CON1
NOTES
- CON 1 : Power Supply
- CON 2 : AC Load
- CON 5 : C-FAN,F-FAN, Hygiene(Optional), V-LED(Optional)
- CON 6 : Tactile Display or Inner Display PCB
- CON 8 : Sensors, LED Lightning and door switch.
- CON 10,CON 202 : Programming Port
- CON 11: Dispenser Switch, Smart Buzzer(Optional) and Dispenser LED(Optional)
- CON102 : OLP
Optional Connectors
- CON 7 : Touch Display PCB
- CON 9: Ice Maker twisting
CON2
- 37 -
CON8
CON11
CON6
CON5
