Service Manual
Dear customer
Thank you for purchasing this product.
For optimum performance and safety, please read these instructions carefully.
Before connecting, operating or adjusting this product, please read the instructions completely.
Please keep this manual for future reference.
Note: "EB" on the packaging indicates the United Kingdom.
Trademark of the DVB Digital Video Broadcasting Project
Declaration of Conformity, No. 6263, 12th December 2008
This DVD Recorder is for viewing and recording free to view channels only, not Pay TV or encrypted channels.
This unit does not have a terrestrial tuner.
Region management information
DVD-Video
The unit plays DVD-Video marked with labels containing the region number "2" or "ALL".
Web Site: http://www.panasonic-europe.com
EB
Operating Instructions
DVD Recorder

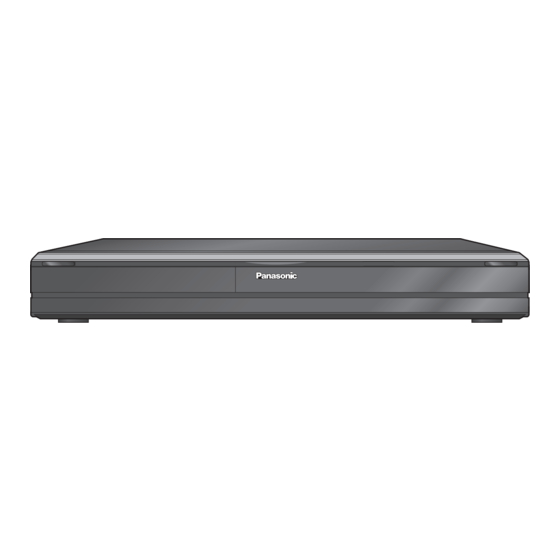

DMR-XS350EB
Model No.
Example:
2
2
3
ALL
4
RQT9431-1B

Advertisement
Table of Contents
Related Manuals for Panasonic DIGA DMR-XS350EB
Summary of Contents for Panasonic DIGA DMR-XS350EB
-
Page 1: Operating Instructions
Trademark of the DVB Digital Video Broadcasting Project Declaration of Conformity, No. 6263, 12th December 2008 This DVD Recorder is for viewing and recording free to view channels only, not Pay TV or encrypted channels. This unit does not have a terrestrial tuner. -
Page 2: Features
HD tuners built-in Receives freesat - free digital satellite broadcasts in the UK This DVD Recorder has two freesat tuners built-in. freesat is a brand new free digital TV service which broadcasts via satellite so you can receive TV, radio, interactive TV. -
Page 3: Accessories
Accessories Please check and identify the supplied accessories. Use numbers indicated in parentheses when asking for replacement parts. (Product numbers correct as of April 2009. These may be subject to change.) 1 Remote control (N2QAYB000339) 2 Batteries for remote control (R6 Size) Sales and Support Information Customer Care Centre... -
Page 4: Table Of Contents
Table of Contents Getting started Getting Started Features........2 Accessories . - Page 5 Music Music Playing music ........75 Playing MP3 fi les ........75 Playing music CD.
-
Page 6: Hdd (Hard Disk Drive) Handling Care
HDD (Hard disk drive) Handling Care The HDD is a high precision recording instrument and because of its long recording capability and high speed operation it is a very special device that is easily suscept ble to damage. As a basic rule, save important content to a disc as backup. ■... -
Page 7: Remote Control Information/Unit Care
• A disc copied and edited with this unit is played in a DVD Recorder or computer disc drive manufactured by another A disc copied and edited with this unit is played in a DVD Recorder or computer disc drive manufactured by another company. -
Page 8: Location Of Parts/Controls
Location of Parts/Controls Remote Control PAGE SKIP PLAY/x13 PROG/CHECK RQT9431 Turn the unit on or off ... (➔ 13) Select drive [HDD, DVD or SD]..(➔ 26, 68) Select channels and title numbers etc./Enter numbers or characters (The character buttons may be used when operating VIERA CAST contents.) To delete unwanted recorded titles, timer programmes, still pictures or music ... -
Page 9: The Unit's Display
The Unit’s Display HDDSDVD SD card slot indicator Linked timer recordings with external equipment indicator ... (➔ 62) USB port indicator Copying indicator Disc indicator This indicator lights up when a disc is inserted. Drive (HDD, DVD or SD) indicator Select “DVD”... -
Page 10: Basic Connection
Basic Connection This recorder requires 2 signal feeds from a satellite dish to be able to record 2 different channels at the same time. Please consult with your Panasonic dealer for details of dish installation. • Connect both satellite terminals (DISH IN 1 and DISH IN 2) to the satellite dish when you want to record 2 programmes simultaneously or view TV during recording. - Page 11 When your television has a digital satellite tuner To household AC IN mains socket This unit Connect only after all other connections are complete. After completing the connections, proceed to the TV Tuning (➔ 13). • Refer to page 116 if “U50”, “U50 1” or “U50 2” appears on the unit’s display. HDMI features •...
-
Page 12: When Your Television Does Not Have An Hdmi Input Terminal
Basic Connection When your Television does not have an HDMI input terminal In this setting, you cannot enjoy HDTV in HD picture quality. The resolution will be 576i/480i. To household AC IN mains socket This unit Connect only after all other connections are complete. After completing the connections, proceed to the TV Tuning (➔... -
Page 13: Auto Set Up (Freesat)
Auto Set Up (freesat) Search and store TV programmes automatically. These steps are not necessary if the setup has been completed by your local dealer or freesat registered dealer. Preparation: • Turn on the television (and connected equipment) and select the video input terminal that this unit is connected to. - Page 14 Auto Set Up (freesat) Repeat step to enter PIN again to confirm. Owner ID-Data Entry NAME HOUSE NO POSTCODE Select Change PIN – The Owner ID-Data Entry screen appears. – Make a note of PIN in case you forget it. Enter your NAME.
- Page 15 To check the signal condition (➔ 96, Signal Condition) To tune in other satellite channels (➔ 16, Tuning in Other Satellite Services) To hide unwanted channels (➔ 96, freesat Channel List) To change PIN (➔ 104, Owner ID) To correct the character Press the “Red”...
-
Page 16: Tuning In Other Satellite Services
Tuning in Other Satellite Services You can also view or record other free channels (Astra 2 at 28.5 degree east) or free channels from other satellites that you can receive in your area. This setup is not required if you are only viewing or recording from freesat channels. Search and store TV programmes of the other satellite service automatically. -
Page 17: Auto Setup
w , q to select the channel type. – You can select the channel type from the followings. • All : All channels including TV, Radio, Data, etc. will be searched. • • Radio to start the Auto Setup – Go to step when you select “All”... -
Page 18: Hdd And Disc Information
HDD and Disc Information This unit can record to HDD and copy to the following recording media. Internal Recordings can only be made to HDD in DR mode first, with the same quality as broadcasted, then they can be copied to discs. Instant record It can only record to HDD by pressing [ * REC]. -
Page 19: Recording And Copying Programmes
Recording and copying programmes This unit can record standard or high definition programmes from its built-in satellite tuners onto HDD with the same quality picture and sound as they are broadcasted. All subtitles and multi audio are recorded (selectable during playback). All recordings are first made to HDD in DR mode only. -
Page 20: Hdd And Disc Handling
HDD and Disc Handling HDD and discs you can use for recording and play ( : Possible, –: Imposs ble) Disc type Standard symbol Data that can be recorded and played Quality in which video is recorded Recording mode in which video is recorded Rewritable Timer recording Recording copy-restricted programmes on... - Page 21 – Copy in standard definition quality (XP, SP, LP, EP, FR mode) is possible. can be played back only on equipment compatible with These discs recorded with this unit or with another Panasonic DVD Recorder may be DVD-R DL DVD-RW...
-
Page 22: Play-Only Discs
CD, CVD, SVCD, SACD, MV-Disc, PD, Video CD, etc. RQT9431 Standard symbol High quality movie and music discs DVD-V DVD-RW video recorded on another DVD recorder • By formatting (➔ 93) the disc, you can copy onto it in DVD-Video format. -RW(VR) •... -
Page 23: Usb Memory And Card Handling
USB Memory and Card Handling USB memories you can use on this unit USB memories can only be used for playback or copy to HDD or discs. USB memories which are defined as USB mass storage class, and digital cameras that use PTP protocol: –... -
Page 24: Watching Television (Freesat)
Watching Television (freesat) Selecting a channel with TV Guide Refer to “TV Guide system (freesat)” (➔ 43) for detailed information. This unit can receive and record digital satellite channels. Preparation: Turn on the television and select the video input terminal that this unit is connected to. -
Page 25: Watching Television Of The Other Satellite Service
Watching Television of the Other Satellite Service To view or record free channels from other satellite services. There are no programme guides for these channels. Only the channel list is available. Selecting a channel with the channel list This unit can receive and record digital satellite channels. Preparation: Turn on the television and select the video input terminal that this unit is connected to. -
Page 26: Playback
Playback Refer to “Advanced Playback” (➔ 45 to 47) for detailed information. HDD RAM -R -R DL -RW(V) +R +R DL +RW DVD-V -RW(VR) Preparation: Turn on the television and select the video input terminal that this unit is connected to. to turn the unit on. -
Page 27: Recording Television Programmes Hdd
Recording Television Programmes Refer to “Important Notes for Recording” (➔ 33 to 34) and “Advanced Recording” (➔ 35 to 38) for detailed information on recording. This operation will only record to HDD in DR mode. Preparation: Turn on the television and select the video input terminal that this unit is connected to. -
Page 28: Timer Recording Using The Tv Guide
Timer Recording Using the TV Guide (freesat) Various function with freesat This unit has a function that enables timer recordings to be controlled by the signal sent from the broadcaster. “Guide Link”, “Series recording” (➔ 40), and “Split Programme” are available. “Guide Link”... -
Page 29: Recording The Itv Hd, Etc. Programme
e , r to select “Single Timer Rec.”, then – If “Series Timer Rec.” can be selected on the Selection Screen, refer to “Series recording” (➔ 40) e.g., Selection Screen WED 19/08/2009 13 30 View M llions Single Timer Rec. Series Timer Rec. -
Page 30: Copying Titles
Copying Titles RAM -R -R DL -RW(V) +R +R DL +RW Preparation: • Turn on the television and select the video input terminal that this unit is connected to. • If the disc is protected, release protection (➔ 92). to turn the unit on. OPEN/CLOSE to open the tray –... - Page 31 Register titles for copy. – If you are going to copy the registered list without making any change to it , press [ r ] twice (➔ step Press [ e , r ] to select “Create List”, then press [ q ]. Copy Cancel All Destination Capacity: 4343MB...
-
Page 32: Deleting Titles
Deleting Titles You can delete unnecessary titles. In order to save HDD capacity, it is recommended that you delete the original titles (in DR mode) after converting them to other recording modes using “DR File Conversion” (➔ 53). Preparation: • Turn on the television and select the video input terminal that this unit is connected to. -
Page 33: Important Notes For Recording
Important Notes for Recording Recording to HDD Recording or timer recording is performed in DR mode using this unit’s tuner. Recording or timer recording from external equipment is performed in XP, SP, LP, EP or FR mode. Recording to discs RAM -R -RW(V) +R +RW Recording on the discs is performed using “Recording via AV3 input”... - Page 34 Important Notes for Recording 16:9 image such as wide When “Recording Format for DVD” (➔ 98) in the Setup menu is “Video format” broadcasting – Record from external equipment. – Copy from the fi nalised disc (DVD-Video) to the HDD. When copying to When converting the recording mode from DR mode to HG, HX, HE, HL, XP, SP, LP, EP, FR modes It will be recorded in accordance to the setting of “Aspect for Recording”...
-
Page 35: Advanced Recording
Advanced Recording Recording modes This explains about recording and copying. Recording modes that can be selected differ depending on the recording methods and discs. Recording mode Features Record with the same quality of the broadcast Quality that can Quality same as be recorded broadcasted (HD quality and SD... -
Page 36: Programmes Simultaneous Recording
Advanced Recording ■ FR (Flexible Recording Mode) You can set FR (Flexible Recording) mode when copying or recording from external equipment. The unit automatically selects a recording rate between XP and EP (8 Hours) that will enable the recordings to fi t in the remaining disc space with the best possible recording quality. For example with a 90 minute recording to an unused DVD-RAM, the picture quality is adjusted to between “XP”... -
Page 37: Specifying The Recording Time
Specifying the Recording Time This operation will only record from the tuner to HDD in DR mode. This function allows specifying the length of recording time up to 4 hours. During recording on the main unit repeatedly until the desired time is reached. –... -
Page 38: Operation During Recording
Advanced Recording Operation during Recording To check the recording programme Press [STATUS e.g., while 2 programmes simultaneous recording Recording programme displayed on the TV screen REC1 108 BBC HD Recording programme not displayed on the TV screen 002 BBC TV REC2 To display the recording programme on the TV screen It is necessary to display the recording programme onto the TV... -
Page 39: Advanced Timer Recording Hdd
Advanced Timer Recording Manual timer recordings This operation will only record from the tuner to HDD in DR mode. Preparation: • Turn on the television and select the video input terminal that this unit is connected to. • Confirm that the clock on the unit’s display is set to the correct time. -
Page 40: Series Recording
Advanced Timer Recording Series recording This operation will only record to HDD in DR mode. You can record all the episodes of a series by setting just one timer recording using the TV Guide system. a few times and select “freesat”, then –... -
Page 41: To Cancel A Timer Recording In Progress
To cancel a timer recording in progress Select the programme you want to cancel in advance when you record 2 programmes simultaneously. While the unit is on – Confirmation screen appears. w to select “Yes”, then Notes Recording stops and the timer programme is deleted. (Daily, weekly and series timer programmes remain and timer recording will start from the next time the timer recording is set.) Auto Renewal Recording... -
Page 42: To Deactivate Timer Programme (E.g. To Interrupt A Daily Or Weekly Timer Programming)
Advanced Timer Recording Tips • You can enter up to 32 programmes a month in advance. (Each daily, weekly or series timer recording is counted as one programme.) To exit the timer recording list Press [PROG/CHECK]. Notes • Recording may fail if there are changes to the station’s programming. •... -
Page 43: Tv Guide System (Freesat)
TV Guide system (freesat) What is the TV Guide system? The TV Guide system gives you an overview of digital satellite television and radio programmes up to 7 days in advance. For many of these programmes, you can select additional information provided by the stations. You can search the programme preview according to various topics such as sport, films etc., according to categories such as TV or radio. -
Page 44: Selecting The Programme From The Desired Channel Genre Or Programme Type
TV Guide system (freesat) Selecting the programme from the desired channel genre or programme type This function lets you display a TV Guide list sorted by genre (e.g. All Channels, Radio) or programme type (e.g. Movies, Sport). a few times to select “freesat”, then All Channels Entertainment... -
Page 45: Advanced Playback
Advanced Playback Selecting Titles to Play You can easily select and play recorded programmes by using DIRECT NAVIGATOR. HDD RAM -R -R DL -RW(V) +R +R DL +RW -RW(VR) While stopped DIRECT NAVIGATOR G rouped Titles Time Remaining 45:54 DR Rec time 0:00(DR) Not v ewed... -
Page 46: Search
Advanced Playback To play grouped titles Press [ e , r ] to select the group, then press [OK]. Press [ e , r ] to select the title, then press [OK]. Play the titles continuously (Grouped Playback) While the Grouped Titles screen is displayed, Press [ e , r ] to select the group and press [ q ] (PLAY). -
Page 47: Frame-By-Frame Viewing
Frame-by-Frame Viewing Except DivX While paused – Each press shows the next or previous frame. – Press and hold to advance or reverse frame-by- frame in succession. – Press [ q ] (PLAY) to restart normal playback. Notes • allows Frame-by-Frame in the forward direction only. AVCHD •... -
Page 48: Playback Of The High Defi Nition Video (Avchd) And Playlists
Playback of the High Definition Video (AVCHD) and playlists Playback of the High Definition Video (AVCHD) AVCHD It is possible to playback the high definition video (AVCHD) recorded on the Panasonic’s video camera, etc. on the disc or SD card. Insert a disc or SD card. -
Page 49: Playing Divx
Playing DivX Playing DivX video contents -R -R DL CD USB DivX is a digital video format created by DivX, Inc. This is ® an official DivX Certified device that plays DivX video. You can play DivX video contents recorded with a computer onto DVD-R, DVD-R DL, CD-R/CD-RW and USB memory. -
Page 50: Regarding Divx Vod Content
Playing DivX Regarding DivX VOD content ABOUT DIVX VIDEO-ON-DEMAND: This DivX Certified device must be registered in order to play DivX ® Video-on-Demand (VOD) content. First generate the DivX VOD registration code for your device and submit it during the registration process. [Important: DivX VOD content is protected by a DivX DRM (Digital Rights Management) system that restricts playback to registered DivX Certified devices. -
Page 51: Titles−Editing
Titles−Editing HDD RAM -R -R DL -RW(V) +R +R DL (You can not edit finalised discs.) -RW(VR) Only “Properties” is possible. You can edit titles on the DIRECT NAVIGATOR screen: deleting unwanted parts of titles such as commercials, changing Thumbnail, dividing and deleting titles, etc. Accessing the Title View Preparation: •... -
Page 52: Partial Delete
Titles−Editing Set up Protection/Cancel Protection HDD RAM +R +R DL +RW Use to prevent accidental erasure of titles. Perform steps − of “Accessing the Title View” (➔ 51). Press [ e , r ] to select “Set up Protection” or “Cancel Protection”, then press [OK]. - Page 53 Press [ q ] (PLAY) and [h] to set the point you want to use as the thumbnail. – For quicker editing (➔ below, Tips) Press [ e , r ] to select “Change”, then press [OK]. – To change the thumbnail: Perform steps −...
-
Page 54: Create/Playback/Edit Of The Chapter
Create/Playback/Edit of the Chapter HDD RAM Creating/Playback/Editing is possible. -R -R DL -RW(V) -RW(VR) +R +R DL +RW Only playback of chapter is possible. Regarding Chapters Programmes are recorded as a single title consisting of one chapter. Title Start HDD RAM You can divide a title into multiple chapters. -
Page 55: Copying Titles
Copying Titles There are following copying methods. Copy Title Playing Copy the playing title on the HDD to the disc. (➔ 58) Make a copying list and then copy. Copy You can set the unit to copy titles in the way you want. (➔ 59) Copy AVCHD High defi... -
Page 56: Copy Speed
Copying Titles Copy speed Copy with shorter time than the recorded time of the Features title with same quality (recording mode). Are chapters maintained? Are thumbnails maintained? Recording and Playing while Copying Position of the chapter might shift slightly. It will not maintain the exceeded amount if it exceeds the maximum chapter numbers on a disc. : Approx. -
Page 57: Frequently Asked Questions
Frequently Asked Questions When is high speed copy not possible? When copying titles in high speed mode to high speed recording compatible discs -R -R DL -RW(V) +R +R DL +RW When copying to disc in normal speed mode When stopping the copy during copy Is it possible to copy to the disc, SD card, or USB memory after copying HD video (AVCHD format) to the HDD? -
Page 58: Copy Title Playing
Copying Titles Copy Title Playing Copy the playing title on the HDD to the disc. • It will start copying from the beginning of the title regardless of the playing position. → RAM -R -R DL -RW(V) +R +R DL +RW Playback the title to copy. -
Page 59: Copying Using The Copying List-Copy
Copying using the copying list —Copy ↔ RAM +RW → -RW(VR) → -R -R DL -RW(V) +R +R DL You can order titles as desired for copy to disc. Press [FUNCTION MENU]. Press [ e , r ] to select “Copy”, then press [OK]. FUNCT ON MENU Time Rema n ng 30 00 DR... - Page 60 Copying Titles Cancel all registered copying setting and lists After performing steps − (➔ 59) Press [ e , r ] to select “Cancel All”, then press [OK]. Press [ w ] to select “Yes”, then press [OK]. • The settings and lists may be cancelled in the following situations.
-
Page 61: Copying A Fi Nalised Dvd-R, Dvd-R Dl, Dvd-Rw (Dvd-Video Format), +R And +R Dl
Copying a finalised DVD-R, DVD-R DL, DVD-RW (DVD-Video format), +R and +R → DVD-V You can copy the content of finalised DVD-R, DVD-R DL, DVD-RW (DVD-Video format), +R, and +R DL to the HDD and re-edit the content copied to the HDD. While playing a disc, the content being played is copied to the HDD according to the set time. -
Page 62: Recording From A Satellite Or Cable Receiver
Recording from a Satellite or Cable Receiver Manual Recording Preparation: • Connect a satellite or cable receiver to this unit’s input terminals (➔ 109). • When the output signal from the external equipment is NTSC, change the “TV System” to “NTSC”... -
Page 63: Recording From An External Device
Recording from an External Device This unit S VIDEO DV IN DV cable (IEEE 1394, 4-pin) S Video cable Other video equipment Connect to Audio/Video output terminals. The S VIDEO terminal achieves a more vivid picture than the VIDEO terminal. •... -
Page 64: Recording From A Dv Camcorder
Recording from an External Device Recording from a DV Camcorder HDD RAM -R -RW(V) +R +RW Preparation: • Turn on this unit. • If you record to a disc, insert a disc (➔ 118). • If the disc is protected, release protection (➔ 92). •... -
Page 65: Recording Via Av3 Input
Recording via AV3 Input RAM -R -RW(V) +R +RW It is possible to record to disc from equipment connected to the AV3 input terminals. Recording mode is FR mode. Preparation: • Press [DRIVE SELECT] to select the DVD drive. • When the output signal from the external equipment is NTSC, change “TV System”... -
Page 66: Copying Hd Video (Avchd Format)
Copying HD Video (AVCHD format) It is possible to copy the HD video (AVCHD format) recorded on the Panasonic’s video camera, etc. to the HDD. From an SD card or Discs (Disc) AVCHD (SD card) AVCHD Insert a disc or card. e.g., SD Card Play Video ( AVCHD ) -
Page 67: Copying Sd Video (Mpeg2 Format)
Copying SD Video (MPEG2 format) It is possible to copy the SD video (MPEG2 format) recorded on the Panasonic’s video camera, etc. to the HDD or disc. From an SD card HDD RAM (All the recordings on the same date become a title.) DVD-RAM Insert a card. -
Page 68: Still Pictures
Playing still pictures HDD RAM -R -R DL CD USB SD You can play still pictures recorded with a computer onto a DVD-R, DVD-R DL, CD-R/CD-RW, USB memory and SD card. You cannot play still pictures while recording or copying. Preparation Insert a disc, USB memory or SD RAM -R -R DL CD USB SD... -
Page 69: Useful Functions During Still Picture Play
Useful functions during still picture play Start You can display still pictures one by one at a constant interval. After performing steps Slideshow 1 Press [ e , r , w , q ] to select the album of “Album View” or the date of “Pictures by Date”. 2 Press [ q ] (PLAY). -
Page 70: Editing Still Pictures
Editing still pictures Editing still pictures (JPEG) HDD RAM SD Editing can be done in units of pictures, albums, or dates. You cannot edit still pictures recorded on DVD-R, DVD-R DL, CD-R/ CD-RW and USB memory. Preparation: • Press [DRIVE SELECT] to select the drive. •... -
Page 71: Still Pictures Operation
Still pictures operation Copy to Album HDD RAM Copy to New Album HDD RAM Copy to DVD-RAM Copy to HDD Change Date HDD RAM (Pictures by Date only) Enter Album Name HDD RAM (Album View only) Set up Protection Cancel Protection HDD RAM SD [Album View and Picture (JPEG) View only] Delete... -
Page 72: Copying Still Pictures
Copying still pictures HDD RAM USB SD Pictures copied from SD card and USB memory will be categorised according to the shooting date. Pictures without shooting date will be categorised using the creation date. You cannot copy pictures recorded to DVD-R, DVD-R DL, CD-R/ CD-RW or USB memory. - Page 73 ■Select the units to register Press [ e , r ] to select “Create List”, then press [ q ]. Press [ e , r ] to select “New Item”, then press [OK]. Destination Capacity: 4343MB New Item By Picture ( Date ) Title Press [ e , r ] to select the item, then press [OK].
-
Page 74: Deleting Still Pictures
Deleting still pictures Once deleted, the recorded contents are lost and cannot be restored. Make certain before proceeding. HDD RAM SD Preparation: • Press [DRIVE SELECT] to select the drive. • Release protection (disc, cartridge RAM SD ➔ 92, card ➔ 23). While stopped e , r to select “Delete”, then HDD RAM... -
Page 75: Playing Music
Playing music Playing MP3 files -R -R DL CD USB You can play MP3 fi les recorded with a computer onto a DVD-R, DVD-R DL, CD-R/CD-RW and USB memory. • You cannot play MP3 files on the USB memory while recording. While stopped Insert a disc or USB memory. -
Page 76: Playing Music Recorded On Hdd
Playing music Playing music recorded on HDD Copying music to HDD (➔ 80) Preparation: • Press [DRIVE SELECT] to select the HDD drive. While stopped When “MUSIC” is not selected, press the “Yellow” button to select “MUSIC”. DIRECT NAVIGATOR Music Menu Total Tracks 53 VIDEO Artists... -
Page 77: Useful Functions During Music Play
Useful functions during music play HDD -R -R DL CD USB Operations during play Stop Press [ g ]. Pause Press [ h ]. Press [ h ] again or [ q ] (PLAY) to restart play. Search Press [ t ] or [ y ]. Press [ q ](PLAY) to restart play. -
Page 78: Editing Music/Playlist
Editing music/playlist Editing music Preparation: • Press [DRIVE SELECT] to select the HDD drive. While stopped When “MUSIC” is not selected, press the “Yellow” button to select “MUSIC”. – When doing “Delete All Tracks”, “Clear My Favourites” or “Clear Frequently Played” (➔ go to step DIRECT NAVIGATOR Music Menu Total Tracks 53 VIDEO... -
Page 79: Register Track To Playlist
Register track to Playlist You can register your favourite albums and tracks into 10 preset playlists. • Name of the playlist can be changed. (➔ right) • New playlist cannot be added. • Up to 999 tracks can be registered to each playlist. Preparation: •... -
Page 80: Copying Music To Hdd
Copying music to HDD You can store the two formats of music data in this unit’s HDD. Music CD (CD-DA) When inserting music CDs, this unit makes access to the internal Gracenote Database to obtain title information. ® The album name, track name and artist name are assigned automatically allowing you find the track easily when playing back. -
Page 81: Deleting Music
Deleting music Once deleted, the recorded contents are lost and cannot be restored. Make certain before proceeding. While stopped e , r to select “Delete”, then When “MUSIC” is not selected, press the “Yellow” button to select “MUSIC”. DELETE Navigator Music Menu MUSIC Total Tracks 53... -
Page 82: Entering Text
Entering Text You can give names to recorded titles, etc. When viewing the Enter Title Name screen, etc. e.g., Entering a title name for a title on Name fi eld : shows the text you have entered Enter Title Name Top Menu Preview Delete <... -
Page 83: Enjoying Viera Cast
Enjoying VIERA CAST You can access a selection of Internet services from the Home screen with VIERA CAST, for example YouTube, Picasa Web Albums. (Current as of February 2009) • VIERA CAST requires a broadband Internet connection. Dial-up Internet connections cannot be used. Preparation: •... -
Page 84: Linked Operations With The Tv (Viera Link "Hdavi Control™"/Q Link)
For details, refer to your television’s operating instructions or consult your dealer. • Q Link (registered trademark of Panasonic) • DATA LOGIC (registered trademark of Metz) • Easy Link (registered trademark of Philips) • Megalogic (registered trademark of Grundig) • SMARTLINK (registered trademark of Sony) Notes •... -
Page 85: Easy Control Only With Viera Remote Control
Easy control only with VIERA remote control If you connect this unit to the TV that supports “HDAVI Control 2” or later with an HDMI cable, you can enjoy using more convenient functions. You can operate this unit using the following buttons on the TV remote control. -
Page 86: Setting On-Screen Display
Setting On-Screen Display Accessing the On-Screen Display When playing discs (except for JPEG discs), you can display and set the options including disc audio, subtitle, image quality, sound effect, Repeat Play, etc. In addition, when receiving the multi-channel broadcast, you can change the audio settings. -
Page 87: Play Menu
Play Menu Repeat Play This function works only when the elapsed play time is displayed. Select the item for repeat play. Depending on the disc, the items that can be selected will differ. Select “Off” to cancel. Picture Menu Mode Select the picture quality mode during play. -
Page 88: Information Messages
Information Messages Digital Satellite Channel Information You can display the information about programmes (programme name, broadcast time, etc.). With the unit stopped to show the screen information. When the digital satellite channel information is being displayed, – Press [STATUS ] again and detailed information will be displayed (only when “For info press Digital satellite channel information... -
Page 89: Status Messages
Showing the Digital TEXT (MHEG) When “TXT” appears in digital satellite channel information to show the Digital TEXT. – Press again to hide. Notes • During recording the Digital TEXT function is not possible. • The Digital TEXT function depends on respective stations. •... -
Page 90: Convenient Functions
Convenient Functions FUNCTION MENU display By using the FUNCTION MENU display you may access the main functions quickly and easily. Functions displayed depend on the selected drive or type of disc. FUNCT ON MENU T me Remaining 22 30 DR Playback Recording Delete... -
Page 91: To Pause The Tv Programme You Are Watching-Pause Live Tv
To pause the TV programme you are watching—Pause Live TV You can pause the TV programme you are watching using this unit’s tuner and resume later by temporarily saving it on the HDD. This is useful when you have to briefly stop watching TV to run an errand. -
Page 92: Disc And Card Management
Disc and Card Management You can manage discs through formatting, finalising and other operations. Accessing the Management Menus Preparation: • Release protection (disc, cartridge ➔ right, card SD RAM ➔ 23). • Insert a disc and card. With the unit stopped Press [DRIVE SELECT] to select the DVD or SD drive. - Page 93 Deleting All Titles You can delete all titles on the disc at once. Important: Once deleted, contents cannot be recovered. Perform preparation steps − of “Accessing the Management Menus” (➔ 92). Press [ e , r ] to select “Delete all titles”, then press [OK].
-
Page 94: Create Top Menu
Disc and Card Management Selecting the background style—Top Menu -R -R DL -RW(V) +R +R DL +RW The background selected here will be displayed as the DVD- Video top menu after finalising or Create Top Menu ( Perform preparation steps −... -
Page 95: Setup Menu
Setup Menu You can change the unit’s settings using Setup menu. Accessing the Setup Menu With the unit stopped Press [FUNCTION MENU]. Press [ e , r ] to select “Others”, then press [OK]. FUNCT ON MENU Time Remaining 30 00 DR Playback Ext Link Standby Recording... -
Page 96: Manual Tuning
Channel Settings freesat Channel List You can set channel list of freesat. 1 Press [ e , r ] to select “freesat Channel List”, then press [OK]. freesat Channel List 115 ITV3 116 ITV3+1 117 ITV4 118 ITV4+1 120 Channel 4 121 Channel 4+1 122 E4 Select... -
Page 97: Child Lock
Signal Strength The display for signal strength is grey. “0” means signal strength 0%, “10” means signal strength 100%. • If the signal is too strong, the display will change from grey to red. Reduce the signal amplification at your satellite dish. •... -
Page 98: Hdd/Disc Settings
HDD/Disc Settings Others (➔ 95, Accessing the Setup Menu) All factory default settings are indicated with “Underlined” text. HDD/Disc e , r select “HDD/Disc” ➔ HDD/Disc Settings for Playback Access Settings for Recording HDD Management RETURN Settings for Playback Press [OK] to show the following settings. Soundtrack [English] [German] [French] [Italian] [Spanish] [Original] [Other... -
Page 99: Picture And Sound Settings
Picture and Sound Settings Others (➔ 95, Accessing the Setup Menu) All factory default settings are indicated with “Underlined” text. Picture e , r select “Picture” ➔ Picture Still Mode Automatic Seamless Play NTSC Video Output PAL60 RETURN Still Mode Select the type of picture shown when you pause play. -
Page 100: Digital Audio Output
Picture and Sound Settings Digital Audio Output Change the settings when you have connected equipment through the unit’s DIGITAL AUDIO OUT terminal (➔ 111). Press [OK] to show the following settings. PCM Down Conversion Select how to output audio with a sampling frequency of 96 kHz. Signals are converted to 48 kHz despite the above settings if the signals have a sampling frequency of over 96 kHz, or the disc has copy protection. -
Page 101: Display And Connection Settings
Display and Connection Settings Others (➔ 95, Accessing the Setup Menu) All factory default settings are indicated with “Underlined” text. Display e , r select “Display” ➔ Display On-Screen Messages 5 sec. Unit’s Display Bright Screen Saver Teletext FASTEXT RETURN On-Screen Messages Choose the approximate time until the digital satellite channel information screen (➔... -
Page 102: Hdmi Connection
Display and Connection Settings Tips To change the setting without using the menu (PAL ↔ NTSC) While stopped, press and hold [ g ] and [ ; OPEN/CLOSE] on the main unit simultaneously for about 5 seconds. Notes • This unit cannot record NTSC signals to discs that already have PAL signal recordings. -
Page 103: Network Settings
Network Settings Others (➔ 95, Accessing the Setup Menu) All factory default settings are indicated with “Underlined” text. Network Settings e , r select “Network Settings” ➔ Network Settings IP Address/DNS Settings Access Proxy Server Settings Network Service RETURN IP Address/DNS Settings (➔ 106) •... -
Page 104: System Settings
System Settings Others (➔ 95, Accessing the Setup Menu) All factory default settings are indicated with “Underlined” text. Others e , r select “Others” ➔ Others Automatic Standby 4 hours Remote Control DVD 1 Clock Owner ID PIN Entry Power Save System Update DivX Registration Initialize... -
Page 105: Other Settings
25 / 26 / 27 / 60 / 61 NORDMENDE OLEVIA ONWA 30 / 39 / 70 ORION PEONY 49 / 69 PHILCO 41 / 48 / 64 PHILIPS 05 / 06 / 46 PHONOLA PIONEER 37 / 38 PROVIEW RADIOLA SABA SALORA SAMSUNG... -
Page 106: Network Settings
Network Settings These settings are used when you will connect this unit to a network. The connection to the Internet may take time or the internet may not be connected depending on the connection environment. It is recommended that you use a broadband connection. -
Page 107: Setting The Proxy Server
Setting the proxy server In most cases, default settings can normally be used without making any changes. Please use this setting when instructed to by your Internet provider. • Set the proxy server only after the connection test is completed properly. Press [FUNCTION MENU]. -
Page 108: Software Update
Software Update Software of this unit can be updated automatically by following method. • From broadcasts • From Internet [network connection and setting is required. 106, 112)] ➔ Update of the software is done when it is in standby mode. Once the new software is found, it will start the download of the software, and then update. -
Page 109: Additional Connections
Additional Connections • Before connection, turn off the mains for all connected equipment and read the appropriate operating instructions. Adding a VCR: Connecting to a Television and a Video Cassette Recorder RF coaxial cable 21-pin Scart cable HDMI cable RF IN You can enjoy HDMI IN high-quality... -
Page 110: Using An Audio/Video Cable (Not Included)
Additional Connections • You can connect this unit to a TV using the audio/video (AV) cable, S Video cable or component video cables instead of the 21- pin Scart cable (➔ 10, 11, 12, 109). Using an Audio/Video Cable (not included) Using Component Video Cables (not included) The COMPONENT VIDEO OUT terminals on this unit can be used for either interlace or progressive output (➔... -
Page 111: Using An Audio Cable (Not Included) For Better Sound
You can improve sound quality by connecting this unit to an amplifier or system component using the audio cable or the digital audio cable (optical/coaxial). Using an Audio Cable (not included) for Better Sound Use this connection to play sound through speakers connected to an amplifier or system component. -
Page 112: Network Connection
Additional Connections Network connection Following function will be available when this unit is connected to the network. This document is assuming that you already have a broadband connection. This connection is not necessary if following functions are not to be used. The unit is connected to the internet when the following functions are used, which may generate communication charges depending on your internet provider. -
Page 113: Operations That Can Be Performed Simultaneously
Operations that can be performed simultaneously Operations that can be performed while recording or copying a title ( : Possible, –: Impossible) While recording to HDD (in DR mode) While recording from external equipment to HDD (in XP, SP, LP, EP and FR mode) While recording from DV input While copying in normal speed mode While copying in high speed mode... -
Page 114: Frequently Asked Questions
Frequently Asked Questions Setup How can I enjoy High Quality Video up-converted to 1080p? What equipment is necessary to play multi-channel surround sound? Can the headphones and speakers be directly connected to the unit? The television has a Scart terminal and component video input terminal. - Page 115 Recording Can I record from a commercially • Most commercially sold video cassette, DVD are copy protected; therefore, purchased video cassette, DVD? recording is usually not possible. Can the disc recorded on the unit • Refer to “Play on other players” in “HDD and Disc Handling”. be played on other equipment? Can I high speed copy to a disc? •...
-
Page 116: Messages
Messages On the Unit’s Display (“ ” stands for a service number.) (“ ” stands for a number.) EXT-L FINISH GUIDE HARD ERR NoERAS NoREAD NoWRIT PLEASE WAIT PROG FULL REMOVE START SW-DL UNFORMAT UNSUPPORT (“ ” stands for a number.) U50 1 U50 2 X HOLD... -
Page 117: When Removing A Recorded Disc
On the TV Authorisation Error. • Cannot finish recording completely. • • • Cannot playback. • TV system is different from the setting. To playback, please change the TV System in Setup. Cannot record to the disc. • Unable to format. Cannot play on this unit. -
Page 118: Media (Disc/Usb Memory/Sd Card) Handling
Media (Disc/USB Memory/SD Card) Handling Inserting Discs Press [ ; OPEN/CLOSE] to open the tray. – Insert a disc. Cartridge disc Insert label-up. Insert label-up with the arrow facing in. Press [ ; OPEN/CLOSE] to close the tray. Notes • When using 8 cm DVD-RAM or 8 cm DVD-R, remove the disc from the cartridge. -
Page 119: Troubleshooting Guide
Troubleshooting Guide When Other Panasonic Products Respond to this Remote Control Use this function to synchronize the codes for the remote control and the main unit when there are other Panasonic products close to your unit. With the unit stopped Press [FUNCTION MENU]. - Page 120 Troubleshooting Guide Power General Issues No power. The unit does not turn on pressing [ ^ ]. The unit switches to standby mode. The unit is turned in standby automatically. This unit turns off when the TV input is switched. Displays General Issues The display is dim.
- Page 121 Operation General Issues Cannot operate the TV with the • Change the manufacturer code on the remote control. unit’s remote control. • It may be necessary to set the code on the remote control again after changing the batteries. Cannot operate the disc. •...
-
Page 122: General Issues Viera Link
Troubleshooting Guide Digital satellite broadcast General Issues freesat Auto Setup cannot be done completely. freesat channels cannot be received. TV reception worsens after connecting the unit. Picture regularly breaks up on some channels, “No Signal” message is displayed. Picture very infrequently breaks up on some or all channels. - Page 123 Picture General Issues The images from the unit do not • Make sure the connections are pushed in firmly. appear on the TV. Picture is distorted. • Try connecting an alternative cable. • Make sure recorder is connected to an appropriate AV input of the TV. Make sure the TV’s input setting (e.g., HDMI 1) is correct.
- Page 124 Troubleshooting Guide Sound General Issues No sound. Low volume. Distorted sound. Cannot hear the desired audio type. Cannot switch audio. General Issues The contents of the USB memory cannot be read. USB memory cannot be operated. RQT9431 • Check the connections and the “Digital Audio Output” settings. Check the input mode on the amplifier if you have connected one.
- Page 125 • You may be able to copy a “One time only recording” title that was recorded to DVD-RAM using a different Panasonic DVD Recorder to this unit’s HDD, but play is not possible due to copyright protection. •...
- Page 126 Troubleshooting Guide Recording / Timer Recording / Copying / External input Recording Issues Timer recording does not work properly. Cannot record 2 programmes simultaneously. The recording lacks the beginning or ending part of the programme although the timer recording was set on TV Guide.
- Page 127 Recording / Timer Recording / Copying / External input (Continued) Recording Issues Stripe-shaped black noise is • An external playback device is interfering with the TV because the device is recorded. too close to the TV. Move the device away from the TV. The programme name and the •...
-
Page 128: Hdd And Discs
Troubleshooting Guide Editing Issues HDD and Discs Cannot edit. Cannot format. Cannot create chapters. Cannot mark the start point or the end point during “Partial Delete” operation. Cannot delete chapters. The available recording time doesn’t increase even after deleting titles on the disc. Cannot create a playlist. - Page 129 Other Issues Network I can’t connect to the network. • Has the LAN cable come unplugged? Check that the LAN cable is properly connected. • Have you plugged in a modular cable for use with a telephone into the LAN terminal on this unit? Connect with a straight LAN cable.
-
Page 130: Specifi Cations
Specifications Recording system DVD-RAM: DVD Video Recording format DVD-R DL (Dual Layer): DVD-Video format Recordable discs DVD-RAM: 2-3X SPEED (Ver. 2.1), 2-5X SPEED (Ver. 2.2) DVD-R (SL): 1X SPEED (Ver. 2.0), 1-4X SPEED (Ver. 2.0), 1-8X SPEED (Ver. 2.0), 1-16X SPEED (Ver. 2.1) DVD-R (DL): 2-4X SPEED (Ver. - Page 131 SD Card Slot: SD Memory Card slot: 1 pc Compatible media: SD Memory Card Format: FAT12, FAT16 (In case of SD Memory Card) FAT32 (In case of SDHC Memory Card) Data that can be played: JPEG,SD (Standard Defi nition)-Video HD (High Defi nition)-Video USB device USB standard: Format:...
-
Page 132: Structure Of Folders Displayed By This Unit
Specifications ■ Structure of folders displayed by this unit You can play MP3 and still pictures (JPEG) on this unit by making folders as shown below. However depending on the method of writing data (writing software), play may not be in the order you numbered the folders. -
Page 133: Copyright, Etc
Copyright, etc. Manufactured under license from Dolby Laboratories. Dolby and the double-D symbol are trademarks of Do by Laboratories. Manufactured under license under U.S. Patent #’s: 5,451,942; 5,956,674; 5,974,380; 5,978,762; 6,487,535 & other U.S. and worldwide patents issued & pending. DTS and DTS Digital Surround are registered trademarks and the DTS logos and Symbol are trademarks of DTS, Inc. -
Page 134: Glossary
Glossary AVCHD AVCHD is a new format (standard) for high defi nition video cameras that can be used to record and play high-resolution HD images. Bitstream This is the digital form of multi-channel audio data (e.g., 5.1 channel) before it is decoded into its various channels. Decoder A decoder restores the coded audio signals on discs to normal. - Page 135 LAN (Local Area Network) A group of linked devices in a company, school or home. Indicates the boundaries of a particular network. LPCM (Linear PCM) These are uncompressed digital signals, similar to those found on CDs. MPEG2 (Moving Picture Experts Group) A standard for effi...
-
Page 136: Safety Precautions
Safety precautions Placement Set the unit up on an even surface away from direct sunlight, high temperatures, high humidity, and excessive vibration. These conditions can damage the cabinet and other components, thereby shortening the unit’s service life. Do not place heavy items on the unit. Voltage Do not use high voltage power sources. - Page 137 Information for Users on Collection and Disposal of Old Equipment and used Batteries These symbols on the products, packaging, and/ or accompanying documents mean that used electrical and electronic products and batteries should not be mixed with general household waste. For proper treatment, recovery and recycling of old products and used batteries, please take them to applicable collection points, in...
-
