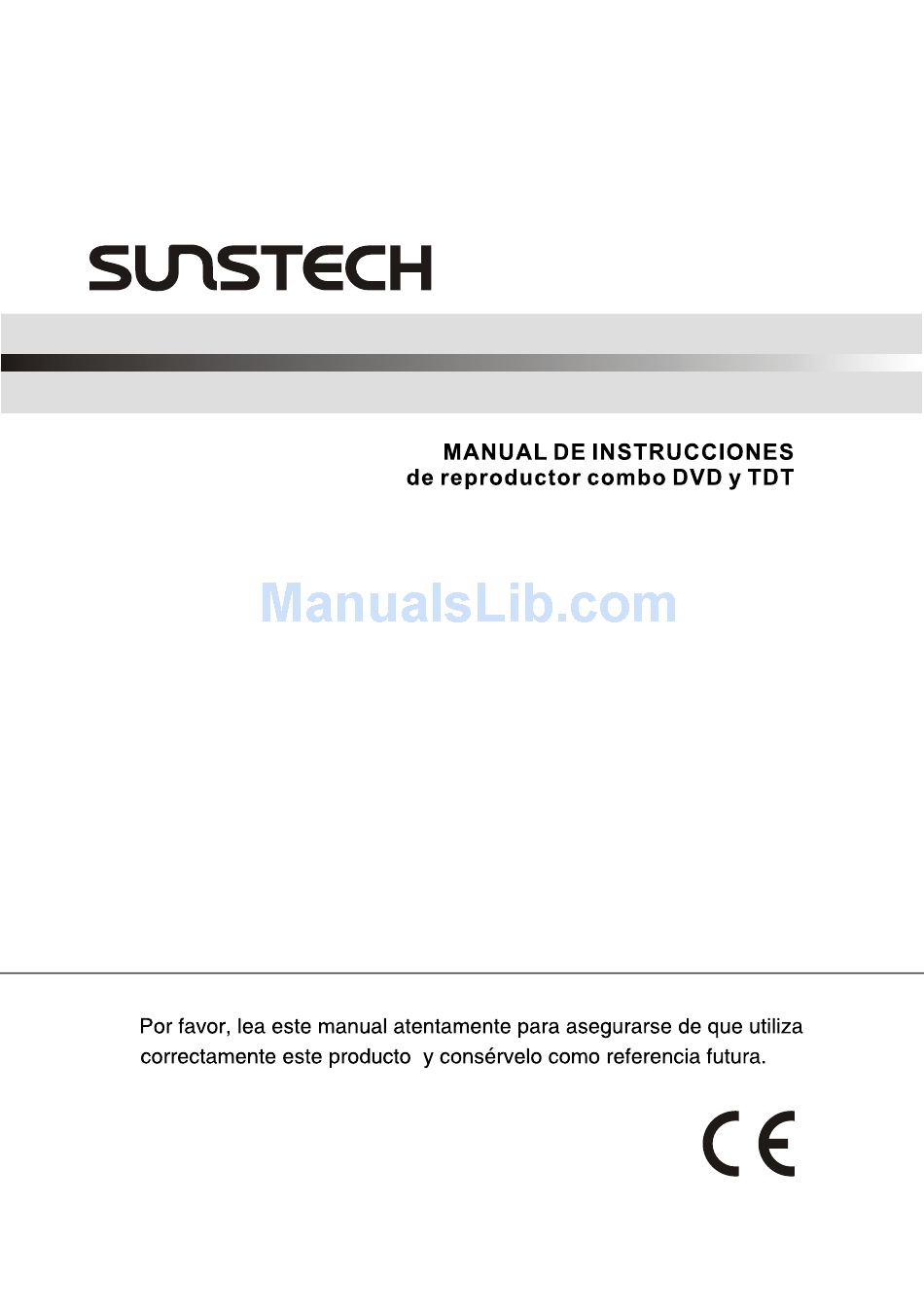

  • Page 1 DX-T700...
  • Page 8 MPEG4 files on discs Multi-angle Dolby Digital Subtitle choices Audio choices KODAK picture CD 16:9 LB TV Aspect Ratio modes MP3 files on CD-R/CD-RW DVD video Parental Lock R RESTRICTED...
  • Page 16 DB5113...
  • Page 17 Message Do you want to start Auto Search ? Cancel...
  • Page 19 Audio Channel Channel Sound Mode Audio PID:102...
  • Page 20 TV Program List Program Name Ideal World UKTV Br tldeas The HITS 16:00-16:30 Good Food Bites 16:30-17:00 2004/11/19 16:17 Gardens Unplugged...
  • Page 21 DVD-ROM Drive...

  • Page 47: User Manual

    User Manual DVD\DVB-T COMBO PLAYER DX-T700 Please read this User Manual carefully to ensure proper use of this product and keep this manual for future reference.
  • Page 48 Forward The machine has two major functions. It can act as a set-top box for receiving DVB-T broadcasts. It can also act as an DVD player.

  • Page 49: Table Of Contents

    Table of Contents Table of Contents-------------------------------------------------------------------------------------------------- 1 Important Safety Instructions----------------------------------------------------------------------------------- 2 Caution-------------------------------------------------------------------------------------------------------------- 5 Features------------------------------------------------------------------------------------------------------------- 6 Front panel and Rear pane illustration------------------------------------------------------------------------- 7 Connecting to a TV Set------------------------------------------------------------------------------------------- 8 Connecting to AV Amplifier with 2 Channel Analog Audio Input---------------------------------------- 9 Connecting to an AV Amplifier with Digital Audio Input----------------------------------------------------- 10 U S B - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 1 1 LED screen--------------------------------------------------------------------------------------------------------- 12 Remote Control----------------------------------------------------------------------------------------- ---------- 13...

  • Page 50: Important Safety Instructions

    Important Safety Instructions 1. The apparatus shall not be exposed to dripping or Splashing and that no objects filled with liquids, such as Vases, shall be placed the apparatus. 2. The mains plug is used as the disconnect device, the disconnect device shall remain readily operable. 3.

  • Page 53: Caution

    Caution...

  • Page 54: Features

    Features Full compatibility with MPEG4,DVD, CD, MP3, Kodak Picture CD, CD-R and CD-RW (f i na l i ze d) Screensaver M u l t i p l e p l a y b a c k m o d e s : P r o g r a m , Search Coaxial digital audio output S-video, composite video and component (Y, Pb, Pr) video outputs Disc formats supported by this player:...

  • Page 55: Front Panel And Rear Pane Illustration

    Front panel and Rear pane illustration Front panel 1 POWER 5 OPEN/CLOSE BUTTON 2 CABIN DOOR 6 PLAY/PAUSE BUTTON 3 LED SCREEN 7 STOP BUTTON 4 SENSOR 8 USB PORT Rear panel 1 MAINS CABLE 6 S-VIDEO output jack 2 RF IN 7 Component Video output (Y, Pb, Pr) 3 RF LOOP THROUGH 8 Digital Audio COAXIAL output jack...

  • Page 56: Connecting To A Tv Set

    Connecting to a TV Set TV Aerial Notes: There are four ways of connecting the player s A V o utput to th e T V s et: 1. S-Video cable and CVBS Video cable[ set the (S-Video) to (Video)]. 2.

  • Page 57: Connecting To Av Amplifier With 2 Channel Analog Audio Input

    Connecting to an AV Amplifier with 2 Channel Analog Audio Input Notes: 1. Set the TV to the AV input connected to the DVD player. 2. Set the Amplifier to the AV input connected to the DVD player.

  • Page 58: Connecting To An Av Amplifier With Digital Audio Input

    Connecting to an AV Amplifier with Digital Audio Input Notes: 1. Select the Coaxial digital audio output. 2. Set the player's Audio out to Raw or PCM mode . 3. Set the digital Amplifier to the AV input connected to the DVD player.
  • Page 59 USB interface This unit have a USB jack, when you want to play the USB DISC, you can insert a USB DISC or a MP3 Player with USB Interface to play the MP3 music or and JPEG files or other files. Press the <SOURCE> button to choose USB mode. All the function is the same to play a disc.

  • Page 60: Led Screen

    LED screen LED screen DVD DISC DVD DISC PLAY PLAY PAUSE PAUSE DISC PLAY DISC PLAY PLAY TIME PLAY TIME MP3 DISC MP3 DISC REPEAT REPEAT DOLBY DIGITAL DOLBY DIGITAL Note: In DVB mode,channel number and time(HOUR:MINUTE) will be displayed in area...

  • Page 61: Remote Control

    Remote Control OPEN/CLOSE POWER MUTE 0-10+ NUMBER KEY TITLE/TTX MENU INFO FAVORITE PAUSE GOTO SETUP VOL+/ VOL- MOVE( STOP SOURCE PLAY RETURN ENTER SUBTITLE PROGRAM TV/RADIO LANGUAGE NEXT REPEAT PREV VIDEO ZOOM SLOW ANGLE Note: 1. Please note that reference numbers for the remote are described beginning on page 15 to 20 of this manual. 2.
  • Page 62 Using the remote control Insert batteries 1. Open the cover. Point the remote control at the remote sensor. (The pictures below are for reference only.) 2. Insert batteries. Make sure to match the "+" and "-" of the batteries with the marks inside the battery compartment. 3.

  • Page 63: Remote Control Introduction

    Remote control Introduction Remote Control Buttons: 1. POWER Software Power On/Off Press <POWER> button, turn on the machine if the machine is off, and turn it off if it is already on. 2. MUTE Press <MUTE> button will mute the audio, and display " "...
  • Page 64 7. VOL+/- In DVD mode and DVB mode, Pressing <VOL+> button increases the volume, pressing <VOL-> button decreases the volume. A volume bar will be displayed on the screen. 8. STOP Press <STOP> button to hold playback during playback. Press <PLAY >to reseume playback from the point you pressed STOP. Press <STOP>...
  • Page 65 18. ZOOM Press <ZOOM> multiple times to enlarge (X1, X2, 4X) the display, in that order. The OSD will display the current zoom mode. In ZOOM mode, you can press <UP>, <DOWN>and <LEFT>, <RIGHT> button to move the pictures station. 19.
  • Page 66 25. EPG In the DVB mode, Press the <EPG> button to display the electronic program guide again press <RIGHT> button to display more detail. As below: TV Program List Program Name Ideal World UKTV Br tldeas The HITS 16:00-16:30 Good Food Bites 16:30-17:00 2004/11/19 16:17 Gardens Unplugged...
  • Page 67 29. UP/DOWN/LEFT/RIGHT Used to navigate menus. When not in a menu, there are also DVB specific uses for each button. In the DVB mode, Pressing <UP>/<DOWN> button will go the next/ previous channel, in the list of all channels. 30. SOURCE P ress the<...
  • Page 68 35.PROGRAM In DVD mode , Press the <PROGRAM> button to display the PROGRAM options. As below: NOTE: The <PROGRAM> button has no effect in DVB mode. 36. LANGUAGE In DVD mode, pressing <LANGUAGE> will change between different Audio languages, if playing DVD or AVI media. This button has no effect for VCD/CD/MP3/ WMA/JPG media.

  • Page 69: The Setup Menu System

    The setup menu system---DVD PART NOTE: In the DVD setup and System setting options. If you press <SETUP> into the DVD setup and System setting option when playing disc, the some options has no effect. 1. General Steps of setup menu In the DVD mode, Press the <STOP>...
  • Page 70 2). AUDIO Highlight the AUDIO option, and press the Arrow buttons to choose the audio language you prefer. Press <ENTER> to confirm. If the disc you are playing has that language available, it will output the language. 3). SUBTITLE Highlight the SUBTITLE option, and press the Arrow buttons to choose the subtitle language you prefer.
  • Page 71 B. DVD Setup-Audio Setup Press <DOWN> arrow button to highlight the Audio Setup option on the screen In the DVD setup-Audio Setup ,you can setup the Digital Out, Analog Out, Downmix, Center, Rear. Press <UP>, <DOWN> and <LEFT>, <RIGHT> arrow buttons to highlight the icon of the desired page, then press the <DOWN>...
  • Page 72 3). DOWNMIX There are two modes, one is LO/RO, one is LT/RT. C. DVD Setup-Custom Setup Press the <Down> arrow button to highlight the Custom Setup option on the screen In the DVD setup-Custom Setup ,you can setup the Parental Ctrl, Angle Mark. Press the <UP>, <DOWN>...
  • Page 73 1). PARENTAL CTRL Parental Ctrl:1,2:G,3:G,4:PG13,5,6:R,7:NC17,8 the eight levels. The first level discs are open to people of ever age and eight level only suitable for the adult. If you want to change the parental ctrl setting, enter the user s a ge c ontrol i tem a nd t hen e nter f our digital password.
  • Page 74 D. DVD Setup-Exit Press the <DOWN> arrow button to highlight the <EXIT> option on the screen In the DVD Setup-Exit ,Choose the Exit option to return the DVD main Setup. 2. DVD Mode of System Setting Press the <SETUP> button, the DVD main setup menu appears the screen, then press the <DOWN>...
  • Page 75 1. OSD LANGUAGE Highlight the OSD LANGUAGE option, and press the Arrow buttons to choose the OSD language you prefer. Press <ENTER> to confirm, and it will display OSD in that language. B. System setting Menu-Display Setup Press the <DOWN> arrow button to highlight the Setup option on the screen In the System Setting Menu-Display Setup ,you can setup the TV Standard, Display Type, Video Output, Brightness, Contrast option.
  • Page 76 2).Display TYPE According to the Display type, you can choose 4:3PS,4:3LB or 16:9 . 3).VIDEO OUTPUT According to the output jack of TV set, you can choose CVBS+S-VIDEO, CVBS+RGB , CVBS+YUV, YUV+ P-SCAN. 4).BRIGHTNESS According to the Brightness, you can choose Normal, Bright or soft . CONTRAST Use the <UP>...
  • Page 77 C. System setting Menu-Preference Press the Down arrow button to highlight the Preference option on the screen In the System Setting Menu-Preference Setup, you can setup the UI Style, Change PIN, Default Type, and Default options. Press the <UP>, <DOWN> and <LEFT>, <RIGHT>...
  • Page 78 3). Default Type In the Default Type options, you can choose the DVD MODE, DVB MODE, USB MODE, User Select MODE, Last operation Type MODE. NOTE: In the Default Type, If you choose the DVB MODE. That next power on the PLAYER will direct enter DVB MODE, no again display the SOURCE list.
  • Page 79 3. Game options Press the <SETUP> button, the DVD main setup menu appears the screen, then press the <DOWN> button to highlight the Game option. A. Press the <UP> and <DOWN> button move on the DVD setup and press <ENTER> button to confirm the Main Menu-Game option, appear the screen.

  • Page 80: Mp3 Playback

    MP3 Playback When a Mp3 disc is loaded, the screen will display as follows: Current directory name Current MP3/JPEG file name. If a JPEG file is playing, the name should have a JPEG extension. Press to select the file when the cursor appears in the file window. Press select to play the current file select by the cursor.

  • Page 81: Kodak Picture Cd Playback

    Kodak picture CD Playback General function: You can set sideshow transition modes for any pictures. Press PAUSE to stop playing. Press to see the previous or next picture. Press PLAY to continue sideshow transitions. Press STOP to return to root menu. IMAGE ROTATION Press the DIRECTION button ( )to rotation the image as you prefer.

  • Page 82: The Setup Menu System

    The setup menu system---DVB PART 1. First Time Installation After all the connections have been made properly, switch on your TV. Make sure the receiver is connected to the mains and press <POWER> to switch the receiver on. If you are using the receiver for the first time, a First Time Installation menu will be displayed to guide you through the initial setup.
  • Page 83 D. Wait to complete the scanning. In case you want to stop the scanning, press the <RETURN> button. The channels already found will still be stored. E. When finished, all active channels found will be stored automatically. The last found channel will be played. 2.
  • Page 84 1).TV Program Press the <RIGHT> button to highlight the TV Program, Then press the <ENTER> button to enter the TV program options, appear the screen. All active channels are listed in the Program List, allowing you to make your own favorite channel group, move, delete channels.
  • Page 85 Deleting a Channel a. Select the channel which you like to delete and go to the Del column. b. Press <ENTER> button and an X symbol will be displayed. Repeat this step in the channel to be deleted. c. Press <SETUP> or <RETURN> button and the marked channel will be deleted.
  • Page 86 B. Press the Up and Down button move on the DVB Menu-Program Search option appear the screen. In the DVB Menu-Program Search, you can setup the Automatic Search, Manual Search options 1).Automatic Search. Choose the Automatic Search options, This operation same the First Time Installation.
  • Page 87 C. Parental Control This feature allows you to prevent children or unauthorized people from watching channels. 1). Enter Main Menu > Parental Control. First, you will need to enter PIN as prompted to use the parental control menu. (The default PIN is 6666.) 2).
  • Page 88 Caution: If you are using a normal passive antenna, make sure to set this setting to OFF . 2).Country In the Country options, you can choose a kinds of the Countries. As: England Germany, Italy, France, Spain etc. 3).Language Press the <DOWN> button to highlight the Language options, then Press the <ENTER>...
  • Page 89 4).GMT usage: Allows you to enable/disable Greenwich Mean Time (GMT) usage. If you know the GMT time zone of your location, set GMT usage to ON and select an appropriate time zone. If you prefer to set the time manually, select OFF in GMT usage item and then manually select the date and time.
  • Page 90 This feature allows the receiver to automatically switch on and tune to a pre-specified channel for a pre-set length of time. Up to10 tasks can be scheduled. a. In the Schedule pane, use the <UP / DOWN> key to select a task and use <RIGHT / LEFT >...

  • Page 91: Troubleshooting

    Troubleshooting I f you have any questions, please consult the troubleshooting guide below. NO PICTURE OR SOUND BAD DISC DISPLAYED Ensure the power button is on. Ensure the disc is not warped, damaged or deformed. Ensure the power outlet is operational. Ensure the disc is not badly stained or damaged.

  • Page 92: Specifications

    Specifications Power requirements: 100-240V~ 50/60Hz Power consumption: 20W Video standard: NTSC/PAL/AUTO Unit Weight: 1.8kg Video out Video out: 1.0V(p-p)/75 , sync, negative polarity, RCA pin jack x 1 S-video output connector(separate Y C signal output connector): Y output: 1.0V(p-p)/75 , sync, negative polarity C output: 0.286V(p-p)/75 Audio out 2 channel out: RCA pin jackx2...
