Summary of Contents for Genie TMZ-50/30

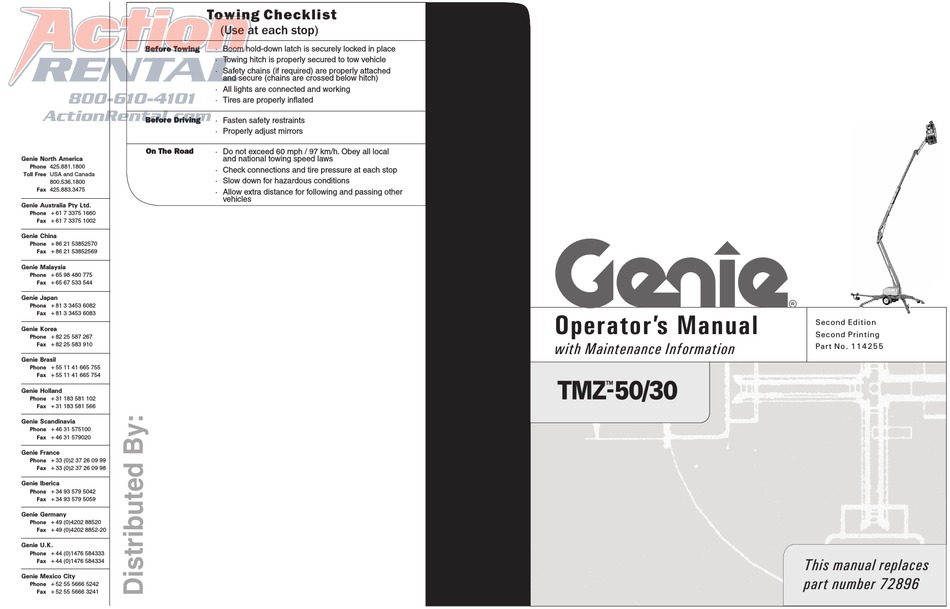

Page 1 USA and Canada · Slow down for hazardous conditions 800.536.1800 425.883.3475 · Allow extra distance for following and passing other vehicles Genie Australia Pty Ltd. Phone + 61 7 3375 1660 Fax + 61 7 3375 1002 Genie China Phone +...
Page 2: Table Of Contents
Only trained and authorized personnel shall be permitted to operate this machine. This manual should be considered a permanent part of your machine and should remain with the machine at all times. If you have any questions, call Genie Industries. Contents Page Safety ................ 1 Controls ..............
Page 3: Safety
5 Only use the machine as it was intended. You read, understand and obey: Manufacturer's instructions and safety rules—safety and operator's manuals and machine decals employer's safety rules and worksite regulations applicable governmental regulations You are properly trained to safely operate the machine. Part No. 114255 Genie TMZ-50/30...
Page 4 Do not set the machine up on a or sag, and beware of strong or gusty winds. surface where it cannot be leveled using only the leveling jacks. Do not use chocks, blocks or shims of any kind to level the machine. Genie TMZ-50/30 Part No. 114255...
Page 5 Do not alter or disable machine components that in any way affect safety and stability. Do not replace items critical to machine stability with items of different weight or specification. Part No. 114255 Genie TMZ-50/30...
Page 6 Do not operate a boom in the path of any crane unless the controls of the crane have been locked out and/or precautions have been taken to prevent any potential collision. No stunt driving or horseplay while operating the machine. Genie TMZ-50/30 Part No. 114255...
Page 7 Do not exceed 60 mph / 97 km/h. Obey all local and national towing speed laws. Be sure to chock the wheels of the trailer when parking on a hill. Part No. 114255 Genie TMZ-50/30...
Page 8 All Be aware of crushing hazards when grasping the personnel must be removed from the platform platform guard rail. before attempting to free the platform using the ground controls. Genie TMZ-50/30 Part No. 114255...
Page 9 Observe and use the color-coded direction arrows on the platform controls for drive and steer functions. Limit travel speed according to the condition of the ground surface, congestion, slope, location of personnel, and any other factors which may cause collision. Part No. 114255 Genie TMZ-50/30...
Page 10 Lifting Hazard charging cycle. Do not contact the battery terminals or the cable Use the appropriate number of people and proper clamps with tools that may cause sparks. lifting techniques when lifting batteries. Genie TMZ-50/30 Part No. 114255...
Page 11 Second Edition • Second Printing 800-610-4101 ActionRental.com SAFETY RULES Decal Legend Genie product decals use symbols, color coding and signal words to identify the following: Safety alert symbol—used to alert personnel to potential personal injury hazards. Obey all safety messages that follow this symbol to avoid possible injury or death.
Page 12: Controls
Choke 7 Platform level down button function is activated by pushing 16 Secondary boom down 8 Engine power indicator light engine start button and slow 9 Battery power indicator light function speed select button Genie TMZ-50/30 Part No. 114255...
Page 13 5 Engine start button 14 Jib boom up/down toggle 6 Choke button 7 Battery charge indicator Gasoline models: Choke function is activated by pushing engine start 8 Boom function speed controller button. 9 Turntable rotate left/right toggle switch Part No. 114255 Genie TMZ-50/30...
Page 14 Gasoline models with LED 17 Function enable/speed select diagnostic readout: Choke 10 Battery charge level indicator buttons function is activated by pushing lights engine start button and slow 18 Turntable rotate right button function speed select button Genie TMZ-50/30 Part No. 114255...
Page 15 5 Power select toggle switch 12 Platform level up/down toggle Gasoline models: Choke 6 Engine start button 13 Jib boom up/down toggle function is activated by pushing 7 Outrigger button engine start button. 14 Secondary boom up/down Part No. 114255 Genie TMZ-50/30...
Page 16 4 Proportional control handle for drive and steer functions 5 Drive and steer controller 5 Outrigger(s) retract enable button 6 Horn button 6 Horn button 7 Drive function enable button 8 Retract outrigger(s) enable button Genie TMZ-50/30 Part No. 114255...
Page 17: Pre-Operation Inspection
Scheduled maintenance inspections shall be performed by qualified service technicians, according to the manufacturer's specifications and the requirements listed in the responsibilities manual. Part No. 114255 Genie TMZ-50/30...
Page 18 Check the hydraulic oil level in the Tires and wheels surge brake. Check for leaks. Trailer lights and reflectors After you complete your inspection, be sure that all compartment covers are in place and latched. Genie TMZ-50/30 Part No. 114255...
Page 19: Maintenance
Indicates that tools will be required to perform this procedure. Indicates that new parts will be required to perform this procedure. Part No. 114255 Genie TMZ-50/30...
Page 20 Temperature below 60°F / 15.5°C (synthetic) 5W-30 -10°F to 90° / -23°C to 32°C 10W-40 Temperature above -4°F / 34°C 15W-40 Engine oil should have properties of API classification CD, CE, CF or CG grades. Units ship with 10W-40 SG/CC Genie TMZ-50/30 Part No. 114255...
Page 21 2 Check each wheel for damage, bends and cracks. Result: Replace the wheel if any damage is found. 3 Check each tire with an air pressure gauge and add air as needed. 4 Check the torque of each lug nut. Part No. 114255 Genie TMZ-50/30...
Page 22: Function Tests
Instructions section. technician, according to the manufacturer's specifications. After repairs are completed, the operator must perform a pre-operation inspection and function tests again before putting the machine into service. Genie TMZ-50/30 Part No. 114255...
Page 23 The interlock display light should flash. 12 Start the engine (if equipped). 13 Push and hold an outrigger button and push and hold the retract outrigger button to raise one outrigger until the corresponding interlock display light turns off. Part No. 114255 Genie TMZ-50/30...
Page 24 28 Press and hold a function enable/speed select Note: The machine level indicator light on the drive button. control panel should be on. 29 Activate each boom function button. Result: All boom functions should operate through a full cycle. Genie TMZ-50/30 Part No. 114255...
Page 25 Result: The alarm, located in the 13 Push and hold an outrigger button and push platform, should sound after 1 second. and hold the retract outrigger button to raise one outrigger until the corresponding interlock display light turns off. Part No. 114255 Genie TMZ-50/30...
Page 26 35 Before raising the platform, lower the outriggers and adjust to level the machine and raise the wheels slightly off the ground. Note: The machine level indicator light on the drive control panel should be on. Genie TMZ-50/30 Part No. 114255...
Page 27: Workplace Inspection
It is the operator's responsibility to read and remember the workplace hazards, then watch for and avoid them while moving, setting up and operating the machine. Part No. 114255 Genie TMZ-50/30...
Page 28: Operating Instructions
That means every new operator should perform a pre- operation inspection, function tests, and a workplace inspection before using the machine. Genie TMZ-50/30 Part No. 114255...
Page 29 2 Be sure both ground and platform control red Emergency Stop buttons are pulled out to the on position. Models with optional drive system: Also pull out the red Emergency Stop button on the drive control panel. Part No. 114255 Genie TMZ-50/30...
Page 30 3 Models with batteries: Be sure that the batteries are connected before operating the machine. Models with engines: Start the engine. battery power engine power DC /IC DC / IC 5 Push the engine start button. Genie TMZ-50/30 Part No. 114255...
Page 31 Auxiliary power mode is intended for short term use. DC Models - Manual Lowering All boom functions can be operated with the hand pump located under the function manifold side cover. 1 Select a function and corresponding valve. Part No. 114255 Genie TMZ-50/30...
Page 32 Transport control panel should be on. (not attached to a tow vehicle) Use the parking brake to control the speed of the machine when pushing a machine that is not attached to a tow vehicle. Genie TMZ-50/30 Part No. 114255...
Page 33 When passing other vehicles, be sure to leave enough room for the extra length of the trailer. You will need to go much farther beyond the passed vehicle before you can return to your lane. Avoid jerky or sudden movements when turning. Part No. 114255 Genie TMZ-50/30...
Page 34 10 Operate the material lifting hook from the ground with the platform controls. The key switch should be turned to the platform control position. 11 Reverse the above process to install the platform and return the machine to a personnel lifting configuration. Genie TMZ-50/30 Part No. 114255...
Page 35 4 Charge the battery. indicated on the charger. 5 Check the battery acid level when the charging Use only Genie authorized battery and charger. cycle is complete. Replenish with distilled water to the bottom of the fill tube. Do not overfill.
Page 36: Decals
Use the pictures on the next page to verify that all 59625 Platform Control Panel decals are legible and in place. Below is a 62698 Cosmetic - Genie TMZ-50/30 - Small numerical list with quantities and descriptions. 62699 Cosmetic - Genie TMZ-17/10 - Small Part No. Description...
Page 37 Operator's Manual Second Edition • Second Printing 800-610-4101 ActionRental.com DECALS * Not on DC Models ** Not on Gas and Diesel (All decals appear on Bi-Fuel Models) *** Not on units with english decals Part No. 114255 Genie TMZ-50/30...
Page 38: Specifications
Maximum sound level at normal operating workstations 165 cm (A-weighted) Length, stowed 22 ft 6 in Continuous improvement of our products is a Genie 6.9 m policy. Product specifications are subject to change without notice or obligation. Turntable rotation 358 degrees...
Page 39: Reporting Safety Defects
However, NHTSA cannot become involved in any individual problems between you, your dealer or Genie Industries. To contact NHTSA you may either call the Auto Safety Hotline toll-free at 1-800-424-9393 (366-...
