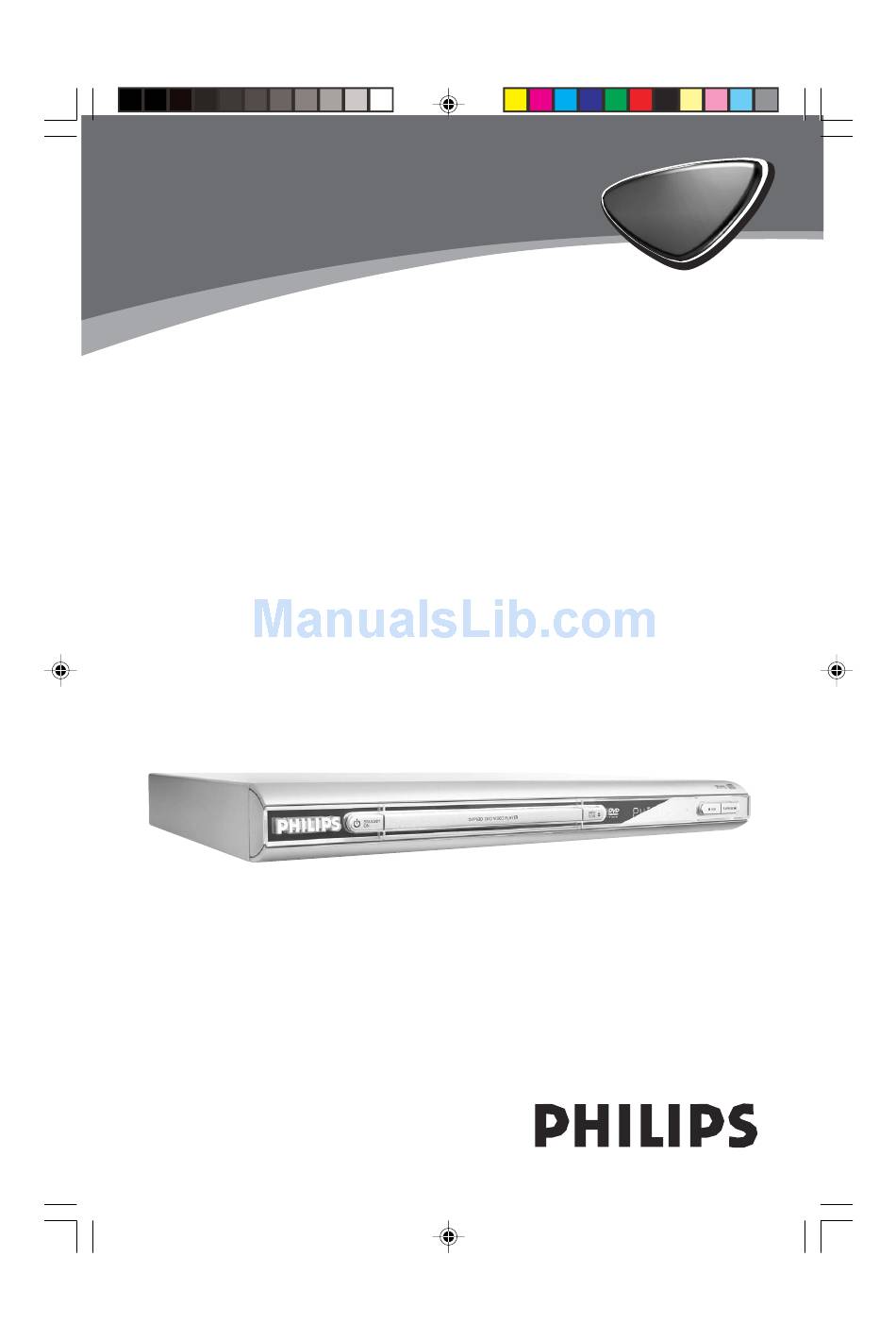

  • Page 1 DVD VIDEO PLAYER 8239 300 30441 01-32 DVP530_78 17/03/2004, 3:47 PM...
  • Page 2: Aviso Importante

    LEA CUIDADOSAMENTE ESTE INSTRUCTIVO ANTES DE USAR SU APARATO. AVISO IMPORTANTE Philips Mexicana, S.A. de C.V. no se hace responsable por daños o desperfectos causados por: – Maltrato, descuido o mal uso, presencia de insectos o roedores (cucarachas, ratones etc.).
  • Page 3 Manufactured under license from Dolby Laboratories. “Dolby”, “Pro Logic” and the double-D symbol are trademarks of Dolby Laboratories. This product incorporates copyright protection technology that is protected by method claims of certain U.S. patents and other intellectual property rights owned by Macrovision Corporation and other rights owners.
  • Page 4: General Information

    Due to the numerous versions of new CD-Audio copy protection or enhanced CD-Audio protection recently available on certain discs, Philips is unable to guarantee that this DVD Player is fully compatible with such new discs. Should you have difficulty playing any such CD-Audio discs, kindly refer them to your CD- Audio disc retailer.
  • Page 5 Index English --------------------------------------- 6 Español ------------------------------------ 33 Português --------------------------------- 63 8239 300 30441 01-32 DVP530_78 17/03/2004, 3:48 PM...
  • Page 6: Table Of Contents

    Contents Introduction Supplied accessories ... 7 Care and safety information ... 7 Connections Connecting TV ... 8-9 Using Component Video jacks (Y Pb Pr) .. 8 Using Composite Video jack (CVBS) ... 8 Using S-Video jack ... 9 Using an accessory RF modulator ... 9 Connecting the power cord ...
  • Page 7: Introduction

    Leave the player in the warm environment until the moisture evaporates. Do not block the vents – Do not operate the DVD Player in an enclosed cabinet, allow about 10 cm (4 inches) of free space all around the player for adequate ventilation.
  • Page 8: Connections

    Component video input jacks (or labeled as Y Pb Pr or YUV) on the TV (cable not supplied). To hear the sound of this DVD Player through your TV, use the audio cables (white/red) to connect AUDIO OUT (L/ R) jacks of the DVD Player to the corresponding AUDIO IN jacks on the TV (cable supplied).
  • Page 9: Using S-video Jack

    RF In,) you will need an RF modulator in order to view the DVD playback on the TV. See your electronics retailer or contact Philips for details on RF modulator availability and operations. Using an accessory RF modulator Use the composite video cable (yellow) to connect the DVD Player’s CVBS (VIDEO...
  • Page 10: Connecting The Power Cord

    AC power cord to the power outlet. Never make or change any connections with the power switched on. When no disc is loaded, press STANDBY ON on the DVD Player front panel, “NO DISC” may appear on the display panel. NO DISC...
  • Page 11: Optional: Connecting To An Audio System

    Connect the COAXIAL jack of the DVD Player to the corresponding Digital Audio In jack on your Receiver (cable not supplied). Set the DVD Player’s Digital Output to PCM-ONLY or ALL depending on the capabilities of your Receiver (see page 23 “Digital Output”).
  • Page 12: Functional Overview

    Functional Overview Front and Rear Panels STANDBY-ON B – To switch the DVD Player to Standby mode or ON Disc tray OPEN/CLOSE / – Open/Close the disc tray STANDBY-ON Mains (AC Power Cord) – Connect to a standard AC outlet S-Video Out –...
  • Page 13: Remote Control

    MUTE – Disables or enables sound output 01-32 DVP530_78 Functional Overview POWER B – To switch the DVD player to standby mode or ON 0-9 numerical key pad – Selects numbered items in a menu DISPLAY – Displays information on TV...
  • Page 14: Getting Started

    8-9 “Connecting TV”). Turn on the TV and set to the correct video-in channel. You should see the blue Philips DVD background screen on the Usually these channels are between the lowest and highest channels and may be called FRONT, A/V IN, or VIDEO. See your TV manual for more details.
  • Page 15: Selecting The Colour System That

    This DVD Player is compatible with both NTSC and PAL. In order for a DVD disc to play on this Player, the color system of the Disc, the TV and the DVD Player should match. - - Video Setup Page - -...
  • Page 16: Step 3: Setting Language Preference

    Getting Started Step 3: Setting language preference You can select your own preferred language settings.This DVD system will automatically switch to the selected language whenever you load a disc. If the language selected is not available on the disc, the disc’s default language will be used instead.
  • Page 17: Disc Operations

    “Setting up the TV”). Press STANDBY-ON on the DVD Player front panel. You should see the blue Philips DVD background screen on the TV. Press OPEN•CLOSE 0 button to open the disc tray and load in a disc, then press the same button again to close the disc tray.
  • Page 18: Using The Disc Menu

    Disc Operations Using the Disc Menu Depending on the disc, a menu may appear on the TV screen once you load the disc. To select a playback feature or item Use the 1 2 3 4 or numeric keypad (0-9) on the Remote Control, then press PLAY B to start playback.
  • Page 19: Repeat

    Repeat (DVD/SVCD/VCD/CD) Press REPEAT continuously to choose a Repeat mode during playback. REPEAT CHAPTER (DVD) – to repeat playback of the current chapter. REPEAT TRACK/TITLE (CD/SVCD/VCD/ DVD) – to repeat playback of the current track (CD/SVCD/VCD)/title (DVD). REPEAT ALL – to repeat playback of all the disc and all the programmed tracks.
  • Page 20: Special Dvd Features

    Disc Operations Special disc features Playing a Title (DVD) Press DISC MENU. The disc title menu appears on the TV screen. Use 341 2 keys or numeric keypad (0-9) to select a play option. Press OK key to confirm. Camera Angle (DVD) Press ANGLE repeatedly to select different desired angle.
  • Page 21: Playback Selection

    Playback selection During playback, you can; S / T Press to select another file in the current folder. on the remote to rotate/flip 1 2 3 4 the picture files. Press repeatedly to pause/resume playback. Repeat Press REPEAT continuously to access different ‘Play Mode’.
  • Page 22: System Menu Options

    Press OK to start playback. Helpful Hint: – Program can be activated only when a disc is in the DVD player. Screen Saver This function is used to turn the screen saver on or off. - - General Setup Page - -...
  • Page 23: Audio Setup Page

    If DIGITAL OUTPUT is set to ‘All’, all audio settings except MUTE are invalid. LPCM Output If you connect the DVD Player to a PCM compatible receiver via the digital terminals, such as coaxial or optical etc, you may need to adjust ‘LPCM Output’.
  • Page 24: Dolby Digital Setup

    The levels for dynamic selection: Full, 3/4, 1/2, 1/4 and Off. Helpful Hint: – DTS surround audio output are not available in this DVD player. 01-32 DVP530_78 Equalizer The option included in Equalizer is: ‘Sound Mode’. Press 34 to highlight ‘Sound Mode’.
  • Page 25: 3d Processing

    Go To Video Setup Page 01-32 DVP530_78 System Menu Options TV Display Set the aspect ratio of the DVD Player according to the TV you have connected. Press 34 to highlight ‘TV Display’. Enter its submenu by pressing 2. Move the cursor by pressing 34 to highlight the selected item.
  • Page 26: Closed Captions

    Off: Disable the current angle setting display. 01-32 DVP530_78 Progressive This feature is only applicable if you have connected this DVD Player to a Progressive Scan TV through the Y Pb Pr jacks. Press 34 to highlight ‘Progressive’. Enter its submenu by pressing 2.
  • Page 27: Smart Picture

    Smart Picture In this menu, you can choose a picture setting from a fixed set of predefined picture settings. Press 34 to highlight ‘Smart Picture’. Enter its submenu by pressing 2. Move the cursor by pressing 34 to highlight the selected item. Standard: select the standard picture setting.
  • Page 28: Password

    System Menu Options Parental - cont’d Helpful Hint: – Some DVDs are not encoded with a rating though the movie rating may be printed on the Disc cover. The rating level feature does not work for such Discs. Rating explanations 1 KID SAFE –...
  • Page 29: Specifications

    TV STANDARD (PAL/50Hz) (NTSC/60Hz) Number of lines Playback Multistandard (PAL/NTSC) VIDEO PERFORMANCE DA Converter 12 bit, 54mHz Component video Y: 1 Vpp into 75 ohm output (480i/p) PbPr: 0.7 Vpp into 75 ohm Video Output 1Vpp — 75 ohm S-Video Output Y: 1Vpp —...
  • Page 30: Troubleshooting

    – Connect DVD Player directly to the TV. – Make sure the disc is compatible with the DVD Player. – Ensure that the DVD Player’s TV Type is set to match that of the Disc and your TV. – Adjust the volume.
  • Page 31 – Operations may not be permitted by the disc. Refer to the instructions of the disc jacket. – Use a commonly available cleaning CD/DVD to clean the lens before sending the DVD Player for repair. – Press STOP twice before selecting System Menu.
  • Page 32: Glossary

    Glossary Analog: Sound that has not been turned into numbers. Analog sound varies, while digital sound has specific numerical values. These jacks send audio through two channels, the left and right. Aspect ratio: The ratio of vertical and horizontal sizes of a displayed image. The horizontal vs.
