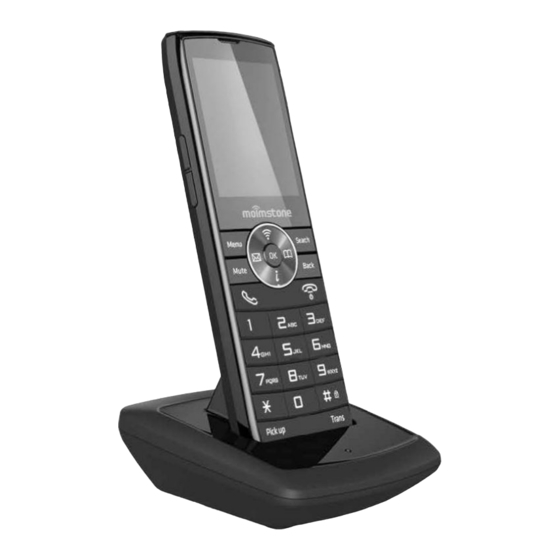

Moimstone Wi-Fi Phone
MWP1100A
Admin Manual
Version: 1.4
Date: 24. 12, 2013

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the MWP1100 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Moimstone MWP1100

Summary of Contents for Moimstone MWP1100

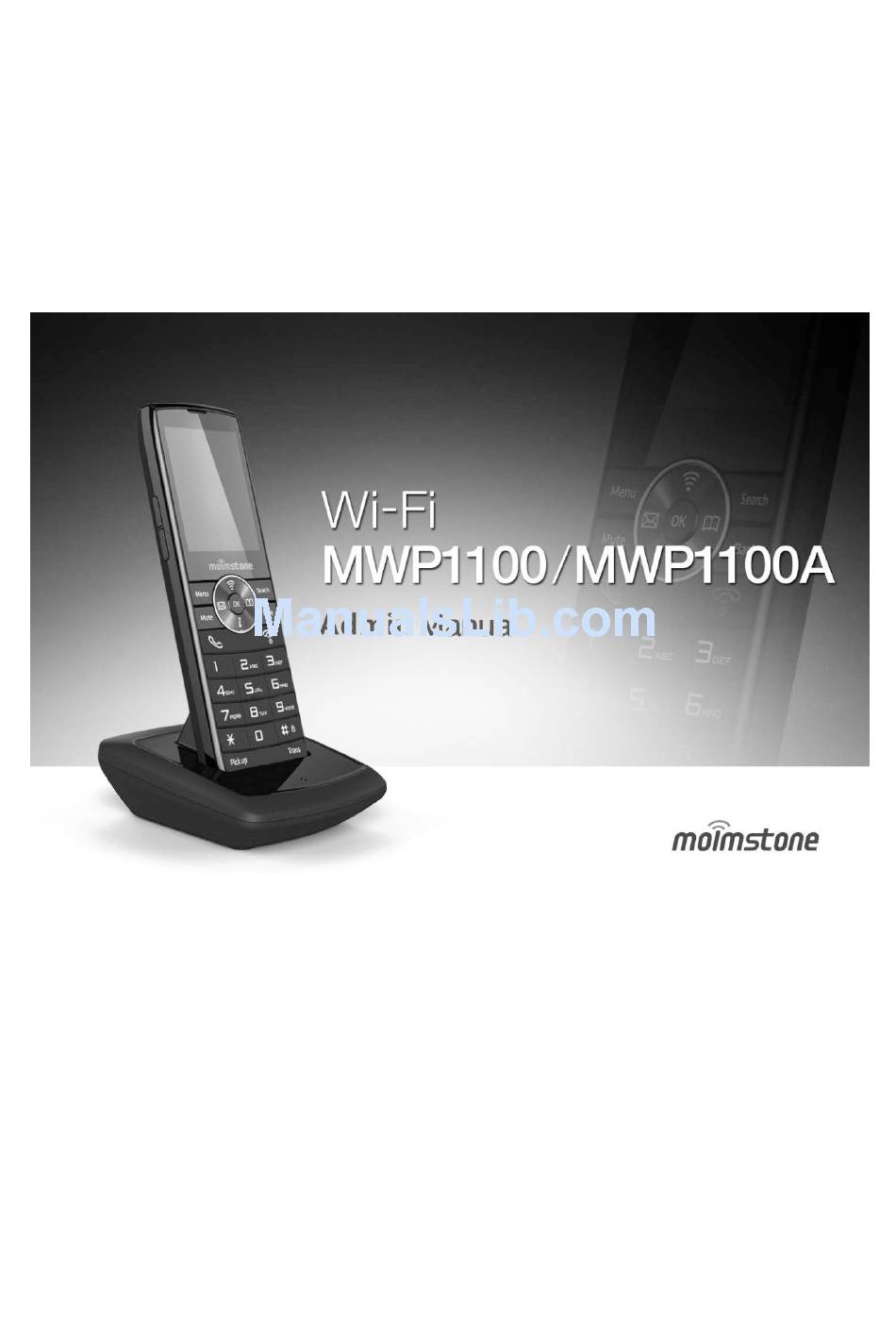

  • Page 1 Moimstone Wi-Fi Phone MWP1100A Admin Manual Version: 1.4 Date: 24. 12, 2013...
  • Page 2 Admin Manual MWP1100A This manual is to let the user of Moimstone Wi-Fi Phone MWP1100A know how to configure the settings of the product. Before using the product, the user should read this manual carefully and configure the settings accordingly. Please keep the manual safely for the next person who will take over the job of maintaining the product.

  • Page 3: Table Of Contents

    Admin Manual MWP1100A Table of Contents ▣ Introduction ............................5 1. Causion ..............................5 2. Components ............................8 3. Buttons ..............................8 4. Icons ..............................9 5. Connecting the battery ........................10 6. Charing Cradle ........................... 11 7. Registration ............................12 ▣...
  • Page 4 Admin Manual MWP1100A ▣ Appendix ............................54...

  • Page 5: Introduction

    Admin Manual MWP1100A ▣ Introduction 1. Caution Please read the instruction carefully to protect yourself and others from personal injury or damage to property. Departure Wi-Fi phone coverage cannot be used. Discontinued the use of the Internet because of a power outage, such as when the phone call is impossible.
  • Page 6 Admin Manual MWP1100A · Please do not place the product with magnetic objects such as magnet, TV, monitor or speaker. · Please backup your valuable data. · Phone and battery get a little heat up when doing long calls. · Do not modify, disassemble or upgrade by other company's firmware the Product. Contact Manufacturer if there is a problem in the Product.

  • Page 7: Fcc Sar Compliance Statement

    Admin Manual MWP1100A FCC SAR Compliance Statement Your wireless phone is a radio transmitter and receiver. It is designed and manufactured not to exceed the emission limits for exposure to radio frequency (RF) energy set by the Federal Communications Commission of the U.S. Government.

  • Page 8: Components

    Admin Manual MWP1100A 2. Components 3. Buttons...

  • Page 9: Icons

    Admin Manual MWP1100A 4. Icons ※Tip - The battery life varies depending on the service type of the network provider, the environment under which the battery is used and how long it has been in use. - The battery is consumed even when the product is not in use and the standby time is shortened when various features of the phone are used.

  • Page 10: Connecting The Battery

    Admin Manual MWP1100A 5. Connecting the battery ※Cautions - Use only the battery provided together with the phone. Unauthorized batterys can cause explosion. - Do not use it under high-temperature conditions such as in direct sunlight or inside sauna rooms. - Inserting the batter in the wrong direction can cause a heat-up, fire, explosion and inury.

  • Page 11: Charing Cradle

    Admin Manual MWP1100A 6. Charging Cradle ※Cautions - Make sure to use the adaptor provided together with this product. (Do not use other adaptors of 5V / 2A). - Since the battery is an expendable item, its lifespan can be shorted by overcharge and discharge. If the battery life reaches its end, the body of the batter would get swollen and could emit gas, exposing it to the danger of a burn.

  • Page 12: Registration

    Admin Manual MWP1100A 7. Registration...

  • Page 13: Basic Feature

    Admin Manual MWP1100A Basic Feature ▣ 1. Making and ending a call 2. Answer a call Setting answer type is [Menu] > 2.Call Manage > 2. Answer type. 1. Answer call directly - If Answer type is set Press button : Press the any button to receive except button, Back, Volume button.

  • Page 14: Call Transfer

    Admin Manual MWP1100A 4. Call Transfer 5. Call pickup The function allows you to answer another ringing phone in the same network. You may need to contact network manager. Coz this function requires pickup code and group. 6. Volume Control * Adjust the volume on call - You can adjust the voice volume on the phone call as press [Volume] button.

  • Page 15: Menu

    Admin Manual MWP1100A Menu ▣ Menu Tree 02. Call 08. System 09. Service 04. Useful 01. Contacts 03. Message 05. Sound 06. Display 07. Settings Manage info Numbers Functions 1. Find 1. Compose 1. Ring 1. Wall 1. Wi-Fi 1. Wi-Fi 1.

  • Page 16: Contacts

    Admin Manual MWP1100A 1. Contacts Can search contacts, add contacts, manage groups, synchronize contacts and delete all contacts. ◁ Find contacts □ Setting procedures [Menu] ▶ 1. Contacts ▶ 1. Search ▶ Select number ▶ OK button ① Show all: shows all the registered contact numbers. Move with the up/down button, select a contact number, and push OK to see details.
  • Page 17 Admin Manual MWP1100A ◁ Manage groups □ Setting procedures [Menu] ▶ 1. Contacts ▶ 3. Manage group - Can add/delete group by pressing the [Menu] button (the default groups cannot be edited or deleted) - Up to 30 Korean/English (capital/lower-case) letters/numbers/symbols can be entered.

  • Page 18: Delete All

    Admin Manual MWP1100A ◁ Delete all □ Setting procedures [Menu] ▶ 1. Contacts ▶ 5. Delete all - Deletes all saved phone numbers. - Sellect Yes/No, and press [OK].

  • Page 19: Call Manage

    Admin Manual MWP1100A 2. Call Manage Can configure settings on call logs, area codes, reception method, call-bocking, limited receiption, etc. ◁ Logs □ Setting procedures [Menu] ▶ 2. Call Manage ▶ 1. Logs ▶ Select ① All calls : upto 100 logs of incoming/outgoing/missed/rejected calls can be saved and searched ②...

  • Page 20: Do Not Disturb

    Admin Manual MWP1100A ◁ Call lock □ Setting procedures [Menu] ▶ 2. Call Manage ▶ 3. Call lock ▶ Select ① International : Blocks international calls. ② Toll call : Block pay calls. ◁ Auto reject list □ Setting procedures [Menu] ▶...

  • Page 21: Call Forwarding

    Admin Manual MWP1100A ◁ Call forwarding □ Setting procedures [Menu] ▶ 2. Call Manage ▶ 6. Call forwarding * If you select the Call forwarding option in the Call FWD setting, allow to set the options as No answer, Always, Busy. ◁...
  • Page 22 Admin Manual MWP1100A ◁ Alarm on signal □ Setting procedures [Menu] ▶ 2. Call Manage ▶ 9. Alarm on signal - Can set the warning alarm and interval when the phone is the out of Communication range so signal is weak.

  • Page 23: Message

    Admin Manual MWP1100A 3. Message This service is only available when you have applied for a service which offers SMS service. ◁ Send Message □ Setting procedures [Menu] ▶ 3. Message ▶ 1. Send Message - Compose message  [OK]  Enter the contact number (each number can be sent as long as 32) ...

  • Page 24: Useful Functions

    Admin Manual MWP1100A 4. Useful Functions Set or use Out of office, Morning call, Alarm, Calculator, World time features. ◁ Out of office □ Setting procedures [Menu] ▶ 4. Accessories ▶ 1. Out of office ① Setting auto attendant: can enable/disable an automatic answer when going outside.

  • Page 25: World Time

    Admin Manual MWP1100A ◁ Calculator □ Setting procedures [Menu] ▶ 4. Accessories ▶ 4. Calculator -Buttons such as direction buttons and OK button serve as operators. ◁ World time □ Setting procedures [Menu] ▶ 4. Accessories ▶ 5. World time - Time is displayed after the region is selected with left/left buttons.

  • Page 26: Sound

    Admin Manual MWP1100A 5. Sound Can set ring sound, effect sound, volume control, and set ring sound for each group. ◁ Ring setting □ Setting procedures [Menu] ▶ 5. Sound ▶ 1. Ring setting - Find wanted ring sound and change the setting. - Select among 10 ring sounds and 10 MIDI ring sounds.
  • Page 27 Admin Manual MWP1100A ◁ Service alarm □ Setting procedures [Menu] ▶ 5. Sound ▶ 4. Service alarm - Can enable/disable service limit warning sound and out-of-range alarm sound.

  • Page 28: Display

    Admin Manual MWP1100A 6. Display Can set the wall paper, screen banner, brightness, backlight, menu style, time/calendar, power ON/OFF, and time adjustment. ◁ Wall paper □ Setting procedures [Menu] ▶ 6. Display ▶ 1. Wall paper - Can select a wall paper image. ◁...

  • Page 29: Menu Style

    Admin Manual MWP1100A ◁ Backlight □ Setting procedures [Menu] ▶ 6. Display ▶ 4. Backlight - Set the backlight-on time after operating the phone. (10 seconds/20 seconds/30 seconds/1 minute/3 minute/always) ◁ Menu style □ Setting procedures [Menu] ▶ 6. Display ▶ 5. Menu style - Can select Rotate Menu or Grid Menu.

  • Page 30: Settings

    Admin Manual MWP1100A 7. Settings Can set Wi-Fi, phone lock, manual upgrade, and initialization of the set values. ◁ Wi-Fi setting □ Setting procedures [Menu] ▶ 7. Setting ▶ 1. Wi-Fi setting ① Profile: add profiles by pressing [Menu] over a Wi-Fi AP - If necessary, can add the profile information by pressing [Menu].

  • Page 31: Phone Lock

    Admin Manual MWP1100A * Account setting for each Profile Can add max 2 Accounts. Follow the setup instruction below. ① On Web UI, go to [Call Setup] / [Account Config], set up [Account config1]/[Account config2] separately. (For setting up Account config, refer to the page 36 of this manual) ②...
  • Page 32 Admin Manual MWP1100A ◁ User default □ Setting procedures [Menu] ▶ 7. Settings ▶ 3. User default - Clear all the user set-up value. - After set default, the phone will reboot. - User default password is ‘0000’.

  • Page 33: System Info

    Admin Manual MWP1100A 8. System info Can check Wi-Fi information, phone information, and network connection information. ◁ Wi-Fi info □ Setting procedures [Menu] ▶ 8. System info ▶ 1. Wi-Fi info Wi-Fi info: check network name, AP MAC address, authentication, data security, Signal strength and channel information.

  • Page 34: Web Setting

    MWP1100(A) uses a Web-configured security system to manage accounts, so it blocks access by people other than the phone administrator. On the address box of the Web browser, enter the IP address as below. Then, you...

  • Page 35: Home

    Admin Manual MWP1100A 1. HOME You can check the phone information with this menu. Check the IP address, Mac address, the currently used OS version information of the phone and server registration information. Phone information ▣ - MAC Address : The physical address of the phone. - OS File : The location and information of the current OS file.

  • Page 36: Call Setup

    Admin Manual MWP1100A - Information about the current IP configuration, connection of LAN and PC port, speed, etc. Phone ▣ - Realtime status of server registration and communication. 2. Call Setup Account ▣ Account Config 1, 2 If only Account Config 1 has the account information, then only Account 1 will be applied for using the phone. But if only Account Config 2 has the account information, the phone will not work with the account information.
  • Page 37 Admin Manual MWP1100A ♦ Password : The password for the User ID assigned when registering the service. ♦ Auth Name : needed in authentication with the server. By default, the user ID is used for the authentication name but the auth name is used when required. ♦...
  • Page 38 Admin Manual MWP1100A ▣ SIP Server ♦ Registrar: is the service IP address or domain that stores the location information of the user and keeps track of the localtion of the called group. ♦ Proxy : is the server that handles call requests from the phone, initializes connection, answers a call and manages all such things for the sender until the call is connected.
  • Page 39 Hold Type : Servers operating in connection with the phone can be set with different hold types depending on the vendor and specification. The Moimstone phone has high compatibility with servers by enabling configuration of the hold type by the user according to the vendor and specification. The hold type can be...
  • Page 40 Admin Manual MWP1100A - RFC 2327: Sends signal according to the RFC 2327 specification. The RTP point of SDP is set as 0.0.0.0. - RFC 3264: The hold type according to the RFC3264 specification. The SDP attribute is set as Secondary. - Xener-Enblock: The hold type of Xener SSW.
  • Page 41 Admin Manual MWP1100A default. A reboot is needed after the setting is changed. ♦ DTMF via RTP : Generates DTMF tones on the user’s phone. Selection of RFC2833 generates a tone with data and In-Auto transfers the tone generated by the phone. ♦...
  • Page 42 Admin Manual MWP1100A Advanced ▣ Advanced ♦ Local SIP port : Normally UDP 5060 port is used for SIP standard. If this SIP port is different from a normal port, you should put the SIP port number in accordance to applied server or service. ♦...
  • Page 43 Admin Manual MWP1100A And then, MWP1100A re-register the user information in accordance to the saved interval time. ♦ Ping interval : In order to continue the session with server, client keeps sending invite packet to server regularly (Normally, it is not used). ♦...

  • Page 44: Phone Setup

    Admin Manual MWP1100A 3. Phone Setup Phone Password It is possible to change the password for connecting MWP1100A menu. Input old password and new password. And then input new password once again to confirm. After save setting, use new password on log-on window.
  • Page 45 Admin Manual MWP1100A Network ▣ Web Config ♦ Port : When connecting via Web, set the number following the IP address of the phone. http://192.168.15.173:8000 ▣ Roamming Setting (using supplicant roaming) ♦ Use Roamming : If an AP with an RSSI less than “minimum sensitivity” – “Delta rssi” and greater than the “minimum sensivity of the roaming AP”...
  • Page 46 Admin Manual MWP1100A authentication is fetched at time 180*50/100, where this value (the re-authentication period calculated from life time and reauth_threshold) should be set to be longer than the SIP register period (the re- authentication period calculated from register’s expiration and register threshold). The setting of VLAN/QoS is related to general network QoS and changing the setting can cause problems in using the phone.
  • Page 47 Admin Manual MWP1100A Time The most accurate time for the phone can be obtained from the network. It can be set as below. ▣ Time Zone - Time can be set for each country and region. Daylight saving time is used when summer time is applied. ▣...

  • Page 48: Function Setup

    Admin Manual MWP1100A 4. Function Setup Functions ▣ Phone Functions ♦ Auto answer : Enable/Disable Auto answer. ♦ Auto call receive numbers : enter the number to receive thru Auto answer. ♦ Call Wait : can hold on the incoming call when the user is in call with another party. When the call is on hold, wait sound is heard through the receiver.
  • Page 49 Admin Manual MWP1100A WiFi Scan Channel Selecting the WiFi scan channel enables the scanning of the specified channel. ▣ WiFi Scan Channel ♦ 2.4G Scan Channel : Select the channel to scan in the 2.4G band. ♦ 5G Scan Channel: Select the channel to scan in the 5G band. ※Caution - Press the save button after all the setting.

  • Page 50: Maintenance

    Admin Manual MWP1100A 5. Maintenance Reboot ▣ IP Phone Reboot - Can restart the phone by pressing the reboot button via the Web. Factory Default ▣ Factory Default - Be careful when using it because contact information and call logs can disappear. - If the administrator is selected and the phone is initialized, it recovers the state when the phone was just released from the factory.
  • Page 51 Admin Manual MWP1100A Auto Provision It is a feature that enables remote configuration of important settings through cfg files instead of WEB or phone buttons. To use the auto setting, a TFTP and HTTP sever must be in operation so that the configuration file can be downloaded.
  • Page 52 Admin Manual MWP1100A SNMP The network management setting is a feature for checking the status of the network and chaing the setting. Phonebook Backup/Restore Can download/upload phone book.
  • Page 53 Admin Manual MWP1100A S/W Upgrade Upgrade the OS of the phone ▣ S/W Upgrade ♦ When upgrade is done via the Web browser - File name : Select PC. - Folder path and file name : Set the path to the OS on PC. - Reboot after upgrading : Decide whether to do rebooting after the OS upgrade.
  • Page 54 Admin Manual MWP1100A ▣ Appendix Troble Shooting Solution for simple issues Symptoms How to solve 1. The phone does not work. The battery must be charged enough. Please charge the phone on the cradle to make sure positioned correctly. Enough battery charge after the power button is pressed, the phone do not work, remove the battery and then insert it again.
  • Page 55 Admin Manual MWP1100A Treatment before Disposal Warranty Damage Compensation...
  • Page 56 Admin Manual MWP1100A Specification Section Description RF Protocol IEEE 802.11 a/b/g/n (CSMA/CA) RF Channel/Frequency 2.400~2.4835GHz / 13 Channel 5.15~5.25, 5.25~5.35, 5.47~5.65, 5.725~5.825GHz/ 19 Channel Battery Talk Time : 3 Hour Standby Time : 60 Hour Charging Time : Below 6 Hour Input AC 100~200V, 50~60Hz, 0.5A Output...
