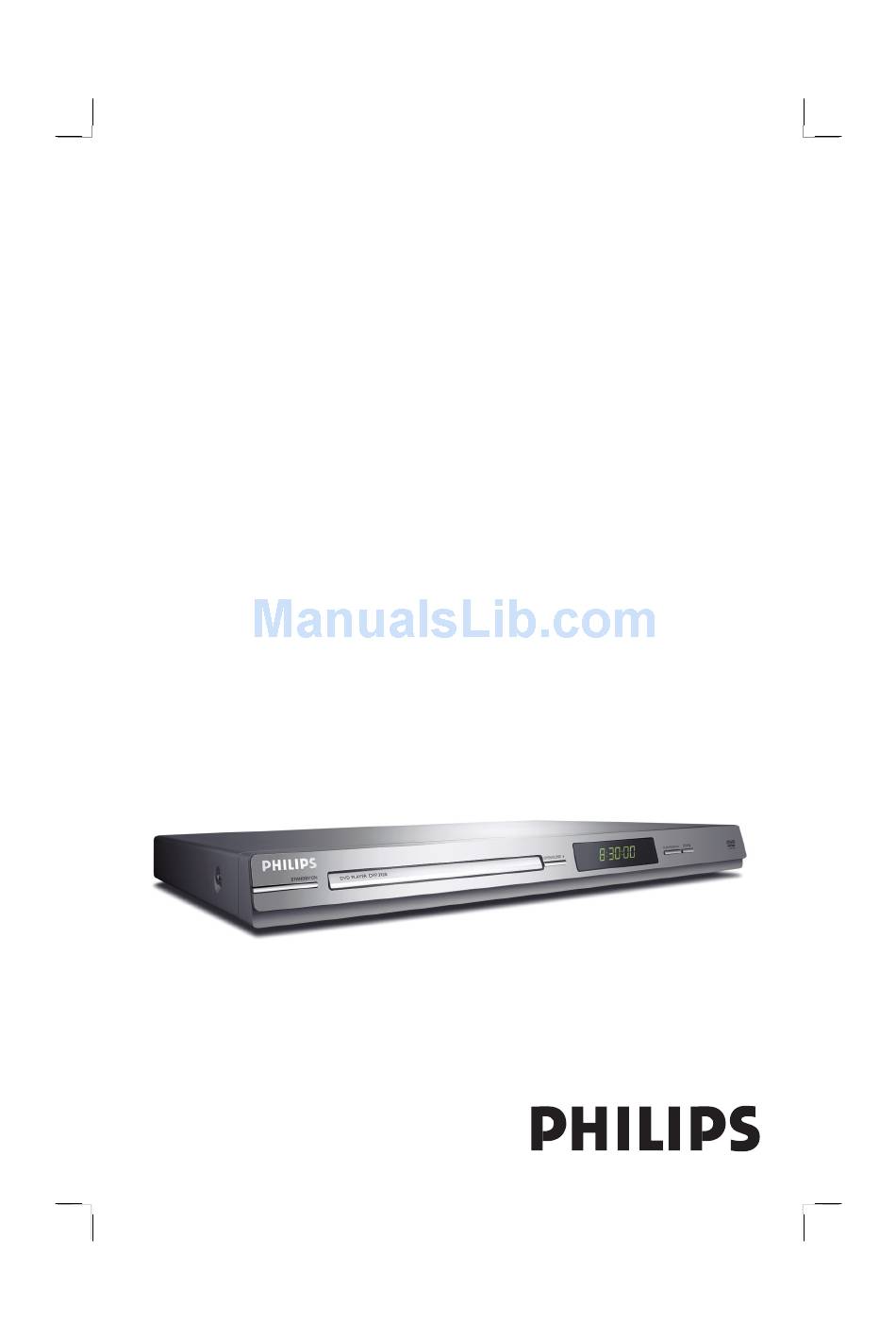

DVD VIDEO PLAYER
DVD VIDEO PLAYER
Thank you for choosing Philips.
Need help fast?
Read your User's Manual first for quick tips that make using
your Philips product more enjoyable.
If you have read your instructions and still need assistance,
you may access our online help at www.philips.com/support
01-45_dvp3120_94_eng1.indd 1
01-45_dvp3120_94_eng1.indd 1
DVP3120
2007-01-29 4:40:57 PM
2007-01-29 4:40:57 PM

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the DVP3120/94 and is the answer not in the manual?

Questions and answers

Related Manuals for Philips DVP3120/94

Summary of Contents for Philips DVP3120/94

  • Page 1 Need help fast? Read your User’s Manual first for quick tips that make using your Philips product more enjoyable. If you have read your instructions and still need assistance, you may access our online help at www.philips.com/support 01-45_dvp3120_94_eng1.indd 1 01-45_dvp3120_94_eng1.indd 1 DVP3120...
  • Page 2 01-45_dvp3120_94_eng1.indd 2 01-45_dvp3120_94_eng1.indd 2 This product incorporates copyright protection technology that is protected by method claims of certain U.S. patents and other intellectual property rights owned by Macrovision Corporation and other rights owners. Use of this copyright protection technology must be authorized by Macrovision Corporation, and is intended for home and other limited viewing uses only unless otherwise authorized by Macrovision Corporation.
  • Page 3 01-45_dvp3120_94_eng1.indd 3 01-45_dvp3120_94_eng1.indd 3 Index English ------------------------------------------6 2007-01-29 4:44:27 PM 2007-01-29 4:44:27 PM...

  • Page 4: Environmental Information

    BACKPLATE OF THE SET NEVER MAKE OR CHANGE CONNECTIONS WITH THE POWER SWITCHED ON. Specifi cations are subject to change without notice. Trademarks are the property of Koninklijke Philips Electronics N.V. or their respective owners. LASER Type Semiconductor laser InGaAlP (DVD)

  • Page 5: Language Code

    01-45_dvp3120_94_eng1.indd 5 01-45_dvp3120_94_eng1.indd 5 Language Code 2007-01-29 4:41:05 PM 2007-01-29 4:41:05 PM...

  • Page 6: Table Of Contents

    Contents Care and Safety Information Setup ...8 Cleaning discs ...8 General Information Accessories supplied ...9 Region codes ...9 Connections Connecting to television ... 10~11 Using Composite Video jacks (CVBS) ... 10 Using Component Video jacks (YPbPr) ... 10 Using an accessory RF modulator ...11 Connecting the power cord ...12 Optional connections Connecting to a stereo system ...13...
  • Page 7 Viewing the disc playback information ...24~25 Using the OSD menu ... 24 Title/Chapter/Track selection ... 24 Time Search ... 24 Audio/Subtitle... 24 Angle ... 24 Time Display ...24-25 Preview ... 25 Viewing Audio CD playback information ... 25 Disc Go To / Track Go To / Track Selection ... 25 Special DVD Features ...

  • Page 8: Care And Safety Information

    Care and Safety Information DANGER! High voltage! Do not open the device. You run the risk of getting an electric shock. The machine does not contain any user-serviceable parts. Please leave all maintenance work to qualifi ed personnel. Setup Finding a suitable location –...

  • Page 9: General Information

    Accessories supplied Composite video cable (yellow) and Audio cables (white, red) DISC DISPLAY MENU Remote control and two AAA RETURN batteries TITLE SETUP NEXT PREV PLAY/PAUSE STOP MUTE SUBTITLE AUDIO ZOOM 01-45_dvp3120_94_eng1.indd 9 01-45_dvp3120_94_eng1.indd 9 General Information Region codes This DVD player is designed to support the Region Management System.

  • Page 10: Connections

    Connections Connecting to television COMPONENT VIDEO IN S-VIDEO V (Pr/Cr) AUDIO U (Pb/Cb) VIDEO IN COMPONENT VIDEO IN S-VIDEO V (Pr/Cr) AUDIO U (Pb/Cb) VIDEO IN IMPORTANT! – You only need to make one video connection from the following options, depending on the capabilities of your television.

  • Page 11: Using An Accessory Rf Modulator

    RF In,) you will need an RF modulator in order to view the DVD playback on the television. See your electronics retailer or contact Philips for details on RF modulator availability and operations. Using an accessory RF modulator Use the composite video cable (yellow) to connect the DVD player’s TV OUT...

  • Page 12: Connecting The Power Cord

    Connections (continued) Connecting the power cord After everything is connected properly, plug in the AC power cord to the power outlet. Never make or change any connections with the power switched on. When no disc is loaded, press STANDBY ON on the DVD player front panel.

  • Page 13: Optional Connections

    Connecting to a stereo system Stereo system has right/ left Audio In jacks Select one of the video connections (CVBS VIDEO IN or COMPONENT VIDEO IN) depending on the options available on your television. Use the audio cables (white/red) to connect AUDIO OUT (L/R) jacks of the DVD Player to the corresponding AUDIO IN jacks on the stereo system...

  • Page 14: Product Overview

    Product Overview Front and Rear Panels STANDBY ON – Turns on the player or switches to standby mode Disc Tray ç OPEN/CLOSE – Opens or closes the disc tray. Display panel – Shows information about the current status of the DVD player. Mains ~ (AC Power Cord) –...

  • Page 15: Remote Control

    Remote Control DISC MENU – Enters or exits the disc contents menu – Switches on or off the playback control mode (for VCD 2.0 only) – Confi rms an entry or selection RETURN/TITLE – To go back to previous menu/ show title menu PREV í...

  • Page 16: Getting Started

    Getting Started Step 1 : Inserting Batteries Open the battery compartment. Insert two batteries type R03 or AAA, following the indications (+ –) inside the compartment. Close the cover. CAUTION! – Remove batteries if they are exhausted or if the remote is not to be used for a long time.

  • Page 17: Step 3 : Setting Up Progressive Scan Feature

    Step 3 : Setting up Progressive Scan feature (for Progressive Scan TV only) The progressive scan displays twice the number of frames per seconds than interlaced scanning (ordinary normal TV system). With nearly double the number of lines, progressive scan offers higher picture resolution and quality.

  • Page 18: Step 4 : Selecting The Matching Color System

    Getting Started Step 4 : Selecting the matching color system The color system of the DVD player, disc and TV should match in order for the disc to play. Before changing the TV system, determine the color system of your TV. - - Video Setup Page - - TV Type TV Display...

  • Page 19: Step 5 : Setting The Language

    Step 5 : Setting the language The language options are different depending on your country or region. It may not correspond to the illustrations shown on the user manual. On-screen display (OSD) language Select this to change the language of this DVD player screen display menu.

  • Page 20: Playback From Disc

    Playback from Disc IMPORTANT! – If the inhibit icon appears on the TV screen when a button is pressed, it means the function is not available on the current disc or at the current time. – DVD discs and players are designed with regional restrictions.

  • Page 21: Playback Features

    Starting disc playback Turn on the TV to the correct program number for the DVD player (e.g. ‘EXT’, ‘0’, ‘AV’). Press STANDBY-ON 2 to turn on the DVD player. Press OPEN/CLOSE ç on the front of the DVD player. You can also hold down the STOP button on the remote control to open and close the disc tray.

  • Page 22: Operations For Video Playback

    Playback Features Operations for video playback Using the Disc Menu Depending on the disc, a menu may appear on the TV screen once you load in the disc. To select a playback feature or item keys or numeric keypad (0-9) on the remote, then press OK to start playback.

  • Page 23: Selecting Various Repeat Functions

    Selecting various repeat functions Repeat play mode The repeat play options vary depending on the disc type. While playing a disc, press REPEAT/ REPEAT A-B once to access repeat mode, then press to choose between repeat options. For DVD – Chapter (currently playing chapter) –...

  • Page 24: Viewing The Disc Playback Information

    Playback Features Viewing the disc playback information Using the OSD menu OSD menu shows the disc playback information (for example, title or chapter number, elapsed playing time, audio/ subtitle language), a number of operations can be done without interrupting disc playback.

  • Page 25: Preview

    For VCD/SVCD – Total Elapsed (elapsed playing time of current Disc) – Total Remain (remaining playing time of current Disc) – Single Elapsed (elapsed playing time of current Track) – Single Remain (remaining playing time of current Track) Preview The preview function allows you to reduce the picture of 6 tracks enough to display in a full screen.

  • Page 26: Special Dvd Features

    Playback Features Special DVD Features Playing a Title Press DISC MENU. The disc title menu appears on the TV screen. keys or alphanumeric to select a play option. keypad 0-9 Press OK key to confi rm. Changing the Audio Language For DVD Press AUDIO repeatedly to select different audio languages.

  • Page 27: Playing Mp3/Wma/Jpeg Picture Cd

    Playing MP3/WMA/JPEG Picture CD This DVD player can playback MP3, WMA, JPEG and picture CD fi les on a personally recorded CD-R/RW disc or commercial CD. IMPORTANT! You have to turn on your TV and set to the correct Video In channel. (See page 16 ‘Finding your viewing channel’).

  • Page 28: Playback With Multi-Angles (Jpeg)

    Playback Features Playback with multi-angles (JPEG) During playback, press rotate the picture on the TV screen. : fl ip the picture vertically by 180º : fl ip the picture horizontally by 180º : rotate the picture anti-clockwise by 90º : rotate the picture clockwise by 90º Tips: –...

  • Page 29: Dvd Menu Options

    This DVD Player setup is carried out via the TV, enabling you to customize the DVD player to suit your particular requirement. Using the General setup menu Press SETUP on the remote control. The system setup menu appears. - - General Setup Page - - Disc Lock OSD Language Sleep...

  • Page 30: Sleep

    DVD Menu Options Sleep Sleep function allows you to turn off the DVD player automatically after a preset time. In ‘General Setup Page’, press select { Sleep }, then press { 15 Mins } Turn off the DVD player after 15 minutes.

  • Page 31: Using The Audio Setup Menu

    Using the Audio setup menu Press SETUP on the remote control. The system setup menu appears. - - Audio Setup Page - - Analog Output Digital Audio Setup Sound Mode Night Mode Go to Audio Setup Page Press to select { Audio Setup Page }.

  • Page 32: Sound Mode

    DVD Menu Options Digital Output Set the Digital Output according to your optional audio equipment connection. { All } Select this if the connected device has a built-in multichannel decoder that supports one of the multichannel audio format (Dolby Digital, MPEG-2). { PCM Only } Select this if the connected device is not capable of decoding multichannel audio.

  • Page 33: Night Mode - Turning On/Off

    Night Mode - turning on/off This mode optimizes playback of sound at low volume. High volume outputs will be softened and low volume outputs are brought upward to an audible level. In ‘Audio Setup Page’, press select { Night Mode }, then press { On } Select this to set low volume output.

  • Page 34: Tv Type

    DVD Menu Options TV Type This menu contains the options for selecting the color system that matches the connected TV. For details, see page Setting the TV Display The picture shape can be adjusted to fi t your TV and the format must be available on the playback disc.

  • Page 35: Picture Setting

    Picture Setting This DVD player provides four predefi ned sets of picture color settings. In ‘Video Setup Page’, press select { Picture Setting }, then press { Standard } Select this for a preset standard picture setting. { Vivid } Select this to make the picture brighter.

  • Page 36: Using The Preference Setup Menu

    DVD Menu Options Using the Preference setup menu Press STOP Ç twice to stop playback, (if any), then press SETUP on the remote control. The system setup menu appears. - - Preference Page - - Audio Subtitle Disc Menu Parental Mp3/Jpeg Nav Password Go To Preference Page...

  • Page 37: Parental

    Rating Explanations { 1.Kid Safe } Childsafe; acceptable for viewers of all ages. { 2. G } General Audience; recommended as acceptable for viewers of all ages. { 3. PG } Parental Guidance suggested. { 4. PG – 13 } Unsuitable for children under age 13.

  • Page 38: Changing The Password

    DVD Menu Options Changing the Password You need to enter your six-digit password to play a prohibited disc or if prompted for a password. The same default password is used for both Parental and Disc Lock. In ‘Preference Page’, press { Password }, then press { Change }.

  • Page 39: Software Upgrade

    Software upgrade Periodically Philips will issue software upgrade to enhance your user experience. IMPORTANT! – Power supply must not be interrupted during upgrade! To check the current software version of this DVD player; Press OPEN/CLOSE ç on the DVD player to open the disc tray.

  • Page 40: Troubleshooting

    No sound. Disc does not play. The aspect ratio of the screen cannot be changed. Need Help? Visit us at www.philips.com/support 01-45_dvp3120_94_eng1.indd 40 01-45_dvp3120_94_eng1.indd 40 Solution – Press STANDBY-ON button on the front of the DVD player to turn on the system.

  • Page 41: Troubleshooting

    The DVD player does not start playback. Picture freezes momentarily during playback. Unable to select Progressive Scan on/ off. Need Help? Visit us at www.philips.com/support 01-45_dvp3120_94_eng1.indd 41 01-45_dvp3120_94_eng1.indd 41 Troubleshooting Solution – Press STOP button twice before selecting the setup/system menu.

  • Page 42: Specifi Cations

    Specifi cations TV STANDARD (PAL/50Hz) (NTSC/60Hz) Number of lines Playback Multistandard (PAL/NTSC) VIDEO PERFORMANCE Video DAC 12 bit, 108 MHz YPbPr 0.7 Vpp ~ 75 ohm Video Output 1Vpp ~ 75 ohm VIDEO FORMAT Digital MPEG 2 for DVD,SVCD Compression MPEG 1 for VCD 50Hz 60Hz...

  • Page 43: Glossary

    Analog: Sound that has not been turned into numbers. Analog sound varies, while digital sound has specifi c numerical values. These jacks send audio through two channels, the left and right. Aspect ratio: The ratio of vertical and horizontal sizes of a displayed image. The horizontal vs.
  • Page 44 01-45_dvp3120_94_eng1.indd 44 01-45_dvp3120_94_eng1.indd 44 2007-01-29 4:41:13 PM 2007-01-29 4:41:13 PM...

  • Page 45: Class 1 Laser Product

    01-45_dvp3120_94_eng1.indd 45 01-45_dvp3120_94_eng1.indd 45 Meet Philips at the Internet http://www.philips.com/support DVP 3120 CLASS 1 LASER PRODUCT SgpSL-0705/94-2 2007-01-29 4:41:14 PM 2007-01-29 4:41:14 PM...
