Philips DVP3020/94 User Manual

Philips dvd video player user manual.
Hide thumbs

Advertisement

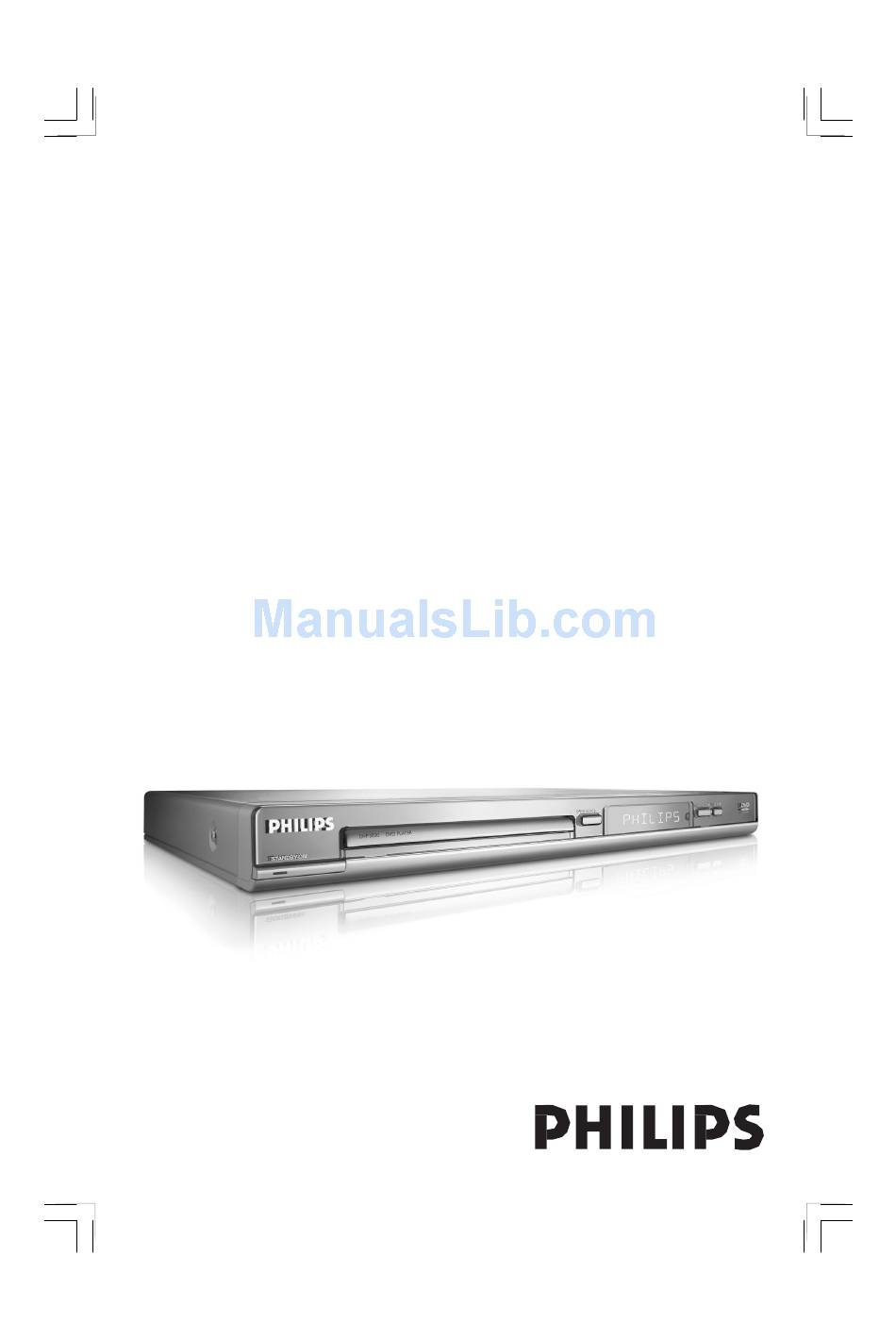

DVD VIDEO PLAYER
DVP3020

User manual

Thank you for choosing Philips.
Need help fast?
Read your User's Manual first for quick tips that make using
your Philips product more enjoyable.
If you have read your instructions and still need assistance,
you may access our online help at www.philips.com/support
01-37_DVP3020_94_Eng_RC2
1
27/06/06, 1:28 PM

Advertisement

Table of Contents

   Related Manuals for Philips DVP3020/94

   Summary of Contents for Philips DVP3020/94

  • Page 1: User Manual

    Need help fast? Read your User’s Manual first for quick tips that make using your Philips product more enjoyable. If you have read your instructions and still need assistance, you may access our online help at www.philips.com/support 01-37_DVP3020_94_Eng_RC2 27/06/06, 1:28 PM...
  • Page 2: General Information

    Due to the numerous versions of new CD-Audio copy protection or enhanced CD-Audio protection recently available on certain discs, Philips is unable to guarantee that this DVD Player is fully compatible with such new discs. Should you have difficulty playing any such CD-Audio discs, kindly refer them to your CD- Audio disc retailer.
  • Page 3: English

    "DTS" and "DTS Digital common and will be easy to complete. Surround" are registered trademarks Go to www.philips.com/support for software upgrade. of Digital Theater Systems, Inc . All Right Reserved. 02(A)_8239 300 34302...
  • Page 4 Serial No. Retain this information for future reference. Model No. DVP 3020 Serial No. _______________ 01-37_DVP3020_94_Eng_RC2 Specifications are subject to change without notice. Trademarks are the property of Koninklijke Philips Electronics N.V. or their respective owners. LASER Type Semiconductor laser GaAlAs Wave length...
  • Page 5: Language Code

    Abkhazian 6566 Afar 6565 Afrikaans 6570 Amharic 6577 Arabic 6582 Armenian 7289 Assamese 6583 Avestan 6569 Aymara 6589 Azerhaijani 6590 Bahasa Melayu 7783 Bashkir 6665 Belarusian 6669 Bengali 6678 Bihari 6672 Bislama 6673 Bokmål, Norwegian 7866 Bosanski 6683 Brezhoneg 6682 Bulgarian 6671 Burmese...
  • Page 6: Table Of Contents

    Contents Language Code ... 5 Introduction Supplied accessories ... 8 Cleaning discs ... 8 Setup ... 8 Connections Connecting TV ... 9-10 Using Composite Video jacks (CVBS) ... Using Component Video jacks (Pr Pb Y) ... Using an accessory RF modulator ... Connecting the power cord ...
  • Page 7 DVD Menu Options General Setup menu ... 25 Sleep ... Volume ... Dimming system’s display screen ... OSD Language ... Audio Setup Menu ... 26 Setting the Downmix ... Digital Audio Setup ... Video Setup Menu ... 27-28 TV Type ... Setting the TV Display ...
  • Page 8: Introduction

    Introduction Supplied accessories Composite video cable (yellow) Audio cable (white, red) Remote Control two AAA batteries Cleaning discs To clean a disc, use a micro fibre cleaning cloth and wipe the disc from the center to the edge in a straight line. CAUTION! Do not use solvents such as benzene, thinner, commercially available cleaners, or...
  • Page 9: Connections

    (or labeled as A/V In, Video In, Composite or Baseband) on the TV (cable supplied). To hear the sound of this DVD Player through your TV, use the audio cables (white/red) to connect AUDIO OUT (L/...
  • Page 10: Using An Accessory Rf Modulator

    RF In,) you will need an RF modulator in order to view the DVD playback on the TV. See your electronics retailer or contact Philips for details on RF modulator availability and operations. Using an accessory RF modulator Use the composite video cable (yellow) to connect the DVD Player’s CVBS jack to...
  • Page 11: Optional: Connecting To A Stereo System

    Connect the COAXIAL jack of the DVD Player to the corresponding Digital Audio In jack on your Receiver (cable not supplied). Set the DVD Player’s Digital Output to PCM-ONLY or ALL depending on the capabilities of your Receiver (see page 26 “Digital Output”).
  • Page 12: Functional Overview

    OPEN/CLOSE / – Opens or closes the disc tray Display – Shows information about the current status of the DVD Player Mains (AC Power Cord) – Connect to a standard AC outlet CVBS (VIDEO Out) – Connect to CVBS Video input of a TV YPbPr (Component Video Out) –...
  • Page 13: Remote Control

    Remote Control DISC MENU – Enters or exits the disc contents menu – Switches on or off the playback control mode (for VCD version 2.0 only) RETURN / TITLE – To go back to previous menu / show title menu PREV ( ¡...
  • Page 14: Getting Started

    RF modulator. If you are using external equipment, (eg. audio system or receiver), turn it on and select the appropriate input source for the DVD player output. Refer to the equipment owner’s manual for detail. 27/06/06, 1:28 PM...
  • Page 15: Setting Up Progressive Scan Feature (for Progressive Scan Tv Only)

    1) Your TV can accept progressive signals, a progressive scan TV is required. 2) You have connected the DVD player to your TV using Y Pb Pr (see page 9.) Turn on your TV. Turn off your TV progressive scan mode or turn on interlaced mode (refer to your TV user manual.)
  • Page 16: Selecting The Colour System That Corresponds To Your Tv

    TV This DVD Player is compatible with both NTSC and PAL. In order for a DVD disc to play on this Player, the colour system of the Disc, the TV and the DVD Player should match. General Audio...
  • Page 17: Step 3: Setting Language Preference

    Step 3: Setting language preference The language options are different depending on your country or region. It may not correspond to the illustrations shown on the user manual. Setting the OSD Language The On-screen language for the system menu will remain as you set it, regardless of various disc languages.
  • Page 18: Disc Operations

    The operating features described here might not be possible for certain discs. Always refer to the instructions supplied with the discs. 01-37_DVP3020_94_Eng_RC2 Region Codes This DVD player is designed to support the Region Management System. Check the regional code number on the disc package. If the number does not match the player’s region number (see table...
  • Page 19: Playing Discs

    ➜ The DVD background screen appears on the TV. Press OPEN/CLOSE 0 on the front of the DVD player. You can also hold down the STOP Ç button on the remote control to open and close the disc tray. Place a disc into the disc tray with the lable facing up, then press OPEN/CLOSE ➜...
  • Page 20: Selecting Various Repeat/shuffle Functions

    Disc Operations Selecting various repeat/shuffle functions Repeat play mode The repeat play options vary depending on the disc type. While playing a disc, press REPEAT continuously to choose a repeat options. For DVD – Chapter (currently playing chapter) – Title (currently playing title) –...
  • Page 21: Operations For Video Playback (dvd/vcd/svcd)

    Operations for video playback (DVD/VCD/SVCD) Using the Disc Menu Depending on the disc, a menu may appear on the TV screen once you load in the disc. To select a playback feature or item Use 1 2 3 4 keys or numeric keypad (0-9) on the remote, then press OK to start playback.
  • Page 22: Osd (on-screen Display)

    Disc Operations OSD (On-Screen Display) This function displays disc information on the TV screen during playback. During playback, press DISPLAY repeatedly. ➜ A list of available disc information appears on the TV screen. Use 1 2 keys to select an option. Enter hours, minutes and seconds from left to right in the time edit box using remote control numerical key pad.
  • Page 23: Special Dvd Features

    Special DVD Features Playing a Title Press DISC MENU. ➜ The disc title menu appears on the TV screen. Use 3 4 1 2 keys or numeric keypad (0-9) to select a play option. Press OK key to confirm. Changing the Audio Language For DVD Press AUDIO repeatedly to select different audio languages.
  • Page 24: Playing Mp3/jpeg (kodak) Picture Cd

    Disc Operations Playing MP3/JPEG (Kodak) Picture CD IMPORTANT! You have to turn on your TV and set to the correct Video In channel. (See page 14 “Setting up the TV”). Load a Picture disc (Kodak Picture CD, JPEG). ➜ For Kodak disc, the slide show will begin.
  • Page 25: Dvd Menu Options

    This DVD Player setup is carried out via the TV, enabling you to customise the DVD Player to suit your particular requirements. General Setup menu In disc mode, press SETUP. Press 1 2 to select ‘General Setup’ icon. Press OK to confirm.
  • Page 26: Audio Setup Menu

    If DIGITAL OUTPUT is set to ‘All’, all audio settings except MUTE are invalid. LPCM Output If you connect the DVD Player to a PCM compatible receiver via the digital terminals, such as coaxial or optical etc, you may need to adjust ‘LPCM’.
  • Page 27: Video Setup Menu

    01-37_DVP3020_94_Eng_RC2 DVD Setup Menu Options Setting the TV Display Set the aspect ratio of the DVD Player according to the TV you have connected. The format you select must be available on the disc. If it is not, the setting for TV display will not affect the picture during playback.
  • Page 28: Progressive - Turning On/off

    In the progressive scan mode, you can enjoy the high quality picture with less flickers. It only works when you have connected the DVD player’s Y Pb Pr jacks to your TV that supports the progressive video input. Otherwise, a distorted picture will appear on the TV.
  • Page 29: Preference Page

    Preference Page Press Ç twice to stop playback (if any), then press SETUP. Press 1 2 to select the ‘Preference Page’ icon. Press OK to confirm. General Audio Video - - Preference Page - - Audio Subtitle Disc Menu Parental Password Default Audio, Subtitle, Disc Menu...
  • Page 30 DVD Setup Menu Options Restricting playback by Parental Control Press 3 4 to highlight a rating level for the disc inserted and press OK. ➜ To disable Parental controls and have all Discs play, select {8 ADULT}. Use the numeric keypad (0-9) to enter the six-digit password (see page 31 “Changing the password”).
  • Page 31: Changing The Password

    Changing the Password The same password is used for both Parental Control and Disc Lock. Enter your six-digit password when prompted on the screen. The default password is 136900. In ‘PREFERENCE PAGE’, press 3 4 to highlight {PASSWORD}, then press 2 to select {CHANGE}.
  • Page 32: Troubleshooting

    Completely distorted picture or black/white picture with DVD No sound or distorted sound No audio at digital output Visit us at www.philips.com/support for service support 01-37_DVP3020_94_Eng_RC2 Solution – Check if the AC power cord is properly connected. – Press the STANDBY ON on the front of the DVD system to turn on the power.
  • Page 33 Player does not respond to some operating commands during playback. DVD Player cannot read CDs/DVDs Menu items cannot be selected Visit us at www.philips.com/support for service support 01-37_DVP3020_94_Eng_RC2 Troubleshooting Solution – The DVD+R/CD-R must be finalised. – Ensure the disc label is facing up.
  • Page 34: Specifications

    Specifications TV STANDARD (PAL/50Hz) (NTSC/60Hz) Number of lines Playback Multistandard (PAL/NTSC) VIDEO PERFORMANCE Video DAC 12 bit, 108mHz YPbPr 0.7 Vpp — 75 ohm Video Output 1Vpp — 75 ohm VIDEO FORMAT Digital Compression MPEG 2 for DVD,SVCD MPEG 1 for VCD 50Hz 60Hz Horiz.
  • Page 35: Glossary

    Analog: Sound that has not been turned into numbers. Analog sound varies, while digital sound has specific numerical values. These jacks send audio through two channels, the left and right. Aspect ratio: The ratio of vertical and horizontal sizes of a displayed image. The horizontal vs. vertical ratio of conventional TVs.
  • Page 36 01-37_DVP3020_94_Eng_RC2 27/06/06, 1:29 PM...
  • Page 37 Meet Philips at the Internet http://www.philips.com/support DVP 3020 CLASS 1 LASER PRODUCT sgpSL-0626/94-2_RC2 01-37_DVP3020_94_Eng_RC2 27/06/06, 1:29 PM...
