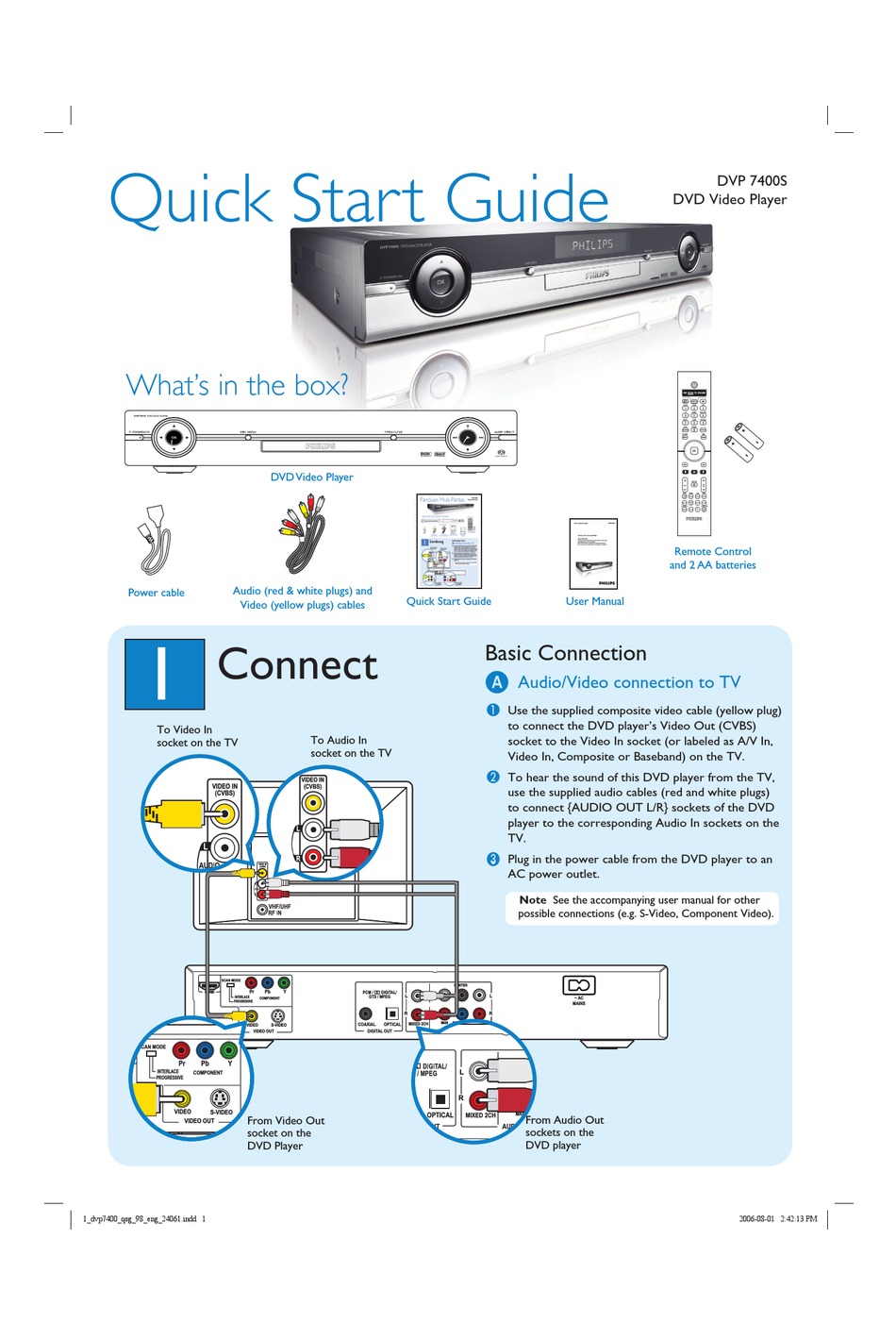

Quick Start Guide

What's in the box?
Audio (red & white plugs) and
Power cable
Video (yellow plugs) cables
1 Connect
To Video In
socket on the TV
VIDEO IN
(CVBS)
SCAN MODE
Pr
HDMI
INTERLACE
PROGRESSIVE
VIDEO
VIDEO OUT
SCAN MODE
Pr Pb Y
INTERLACE
COMPONENT
PROGRESSIVE
VIDEO S-VIDEO
VIDEO OUT From Video Out
socket on the
DVD Player
1_dvp7400_qsg_98_eng_24061.indd 1 1_dvp7400_qsg_98_eng_24061.indd 1
DVD Video Player
Quick Start Guide
To Audio In
socket on the TV
VIDEO IN
(CVBS)
VIDEO IN
(CVBS)
Pb Y
PCM / DIGITAL/
L
DTS / MPEG
COMPONENT
R
COAXIAL OPTICAL MIXED 2CH
S-VIDEO
DIGITAL OUT
OPTICAL
User Manual

Basic Connection

A Audio/Video connection to TV
A
Use the supplied composite video cable (yellow plug)
to connect the DVD player's Video Out (CVBS)
socket to the Video In socket (or labeled as A/V In,
Video In, Composite or Baseband) on the TV.
B
To hear the sound of this DVD player from the TV,
use the supplied audio cables (red and white plugs)
to connect {AUDIO OUT L/R} sockets of the DVD
player to the corresponding Audio In sockets on the
TV.
C
Plug in the power cable from the DVD player to an
AC power outlet.
Note See the accompanying user manual for other
possible connections (e.g. S-Video, Component Video).
CENTER
L L
~ AC
MAINS
R R
SUB WOOFER
MAIN SURROUND
6CH DISCRETE
AUDIO OUT
L L
R R
MAIN
MIXED 2CH
From Audio Out
sockets on the
DVD player
DVP 7400S
DVD Video Player
Remote Control
and 2 AA batteries
