Philips DVDR3355/02B Quick Start Manual

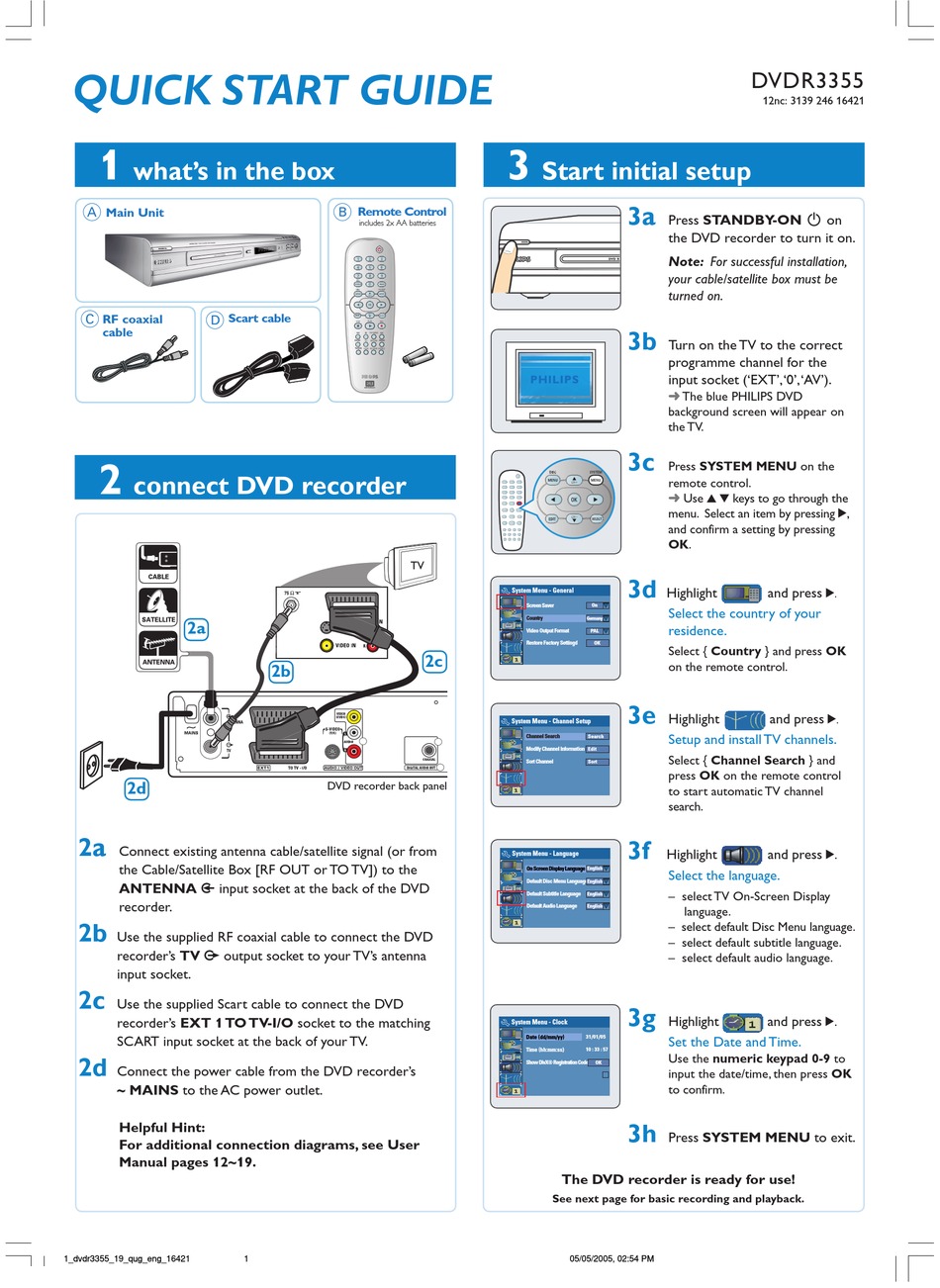

QUICK START GUIDE

1
what's in the box
A
Main Unit
C
D
Scart cable
RF coaxial
cable
2
connect DVD recorder
2a
2d
2a
Connect existing antenna cable/satellite signal (or from
the Cable/Satellite Box [RF OUT or TO TV]) to the
ANTENNA input socket at the back of the DVD
recorder.
2b
Use the supplied RF coaxial cable to connect the DVD
recorder's TV output socket to your TV's antenna
input socket.
2c
Use the supplied Scart cable to connect the DVD
recorder's EXT 1 TO TV-I/O socket to the matching
SCART input socket at the back of your TV.
2d
Connect the power cable from the DVD recorder's
~ MAINS to the AC power outlet.
Helpful Hint:
For additional connection diagrams, see User
Manual pages 12~19.
1_dvdr3355_19_qug_eng_16421
B
Remote Control
includes 2x AA batteries
EDIT
AUDIO ANGLE
TV/DVD
2b
DVD recorder back panel
1
3
Start initial setup
System Menu - General
Screen Saver On
Country Germany
Video Output Format PAL
Restore Factory Settingd OK
2c
System Menu - Channel Setup
Channel Search Search
Modify Channel Information Edit
Sort Channel Sort
System Menu - Language
On Screen Display Language English
Default Disc Menu Language English
Default Subtitle Language English
Default Audio Language English
System Menu - Clock
Date (dd/mm/yy) 31/01/05
Time (hh:mm:ss}
10 : 33 : 57
Show DivX® Registration Code OK
The DVD recorder is ready for use!
See next page for basic recording and playback.
05/05/2005, 02:54 PM
DVDR3355
12nc: 3139 246 16421
3a
Press STANDBY-ON 2 on
the DVD recorder to turn it on.
Note: For successful installation,
your cable/satellite box must be
turned on.
3b
Turn on the TV to the correct
programme channel for the
input socket ('EXT', '0', 'AV').
➜
The blue PHILIPS DVD
background screen will appear on
the TV.
3c
Press SYSTEM MENU on the
remote control.
➜
Use 3 4 keys to go through the
menu. Select an item by pressing 2,
and confirm a setting by pressing
OK.
3d
Highlight and press
Select the country of your
residence.
Select { Country } and press OK
on the remote control.
3e
Highlight and press
Setup and install TV channels.
Select { Channel Search } and
press OK on the remote control
to start automatic TV channel
search.
3f
Highlight and press
Select the language.
– select TV On-Screen Display
language.
– select default Disc Menu language.
– select default subtitle language.
– select default audio language.
3g
Highlight and press
Set the Date and Time.
Use the numeric keypad 0-9 to
input the date/time, then press OK
to confirm.
3h
Press SYSTEM MENU to exit.
2.
2.
2.
2.
