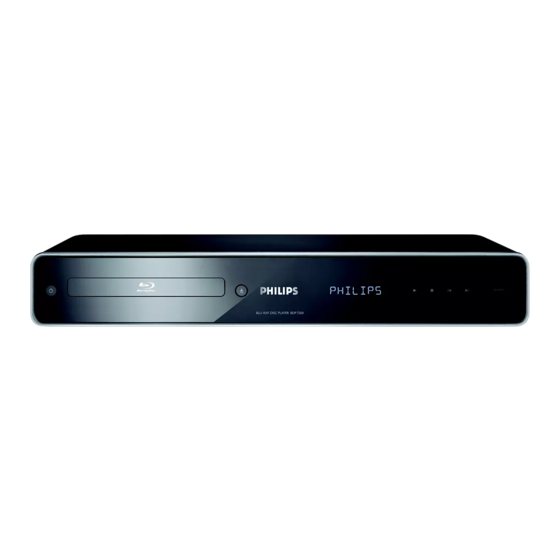

Philips BDP7200 User Manual

Philips blu-ray disc player brochure
Hide thumbs

Advertisement

Quick Links

Register your product and get support at
www.philips.com/welcome
EN
BLU-RAY DISC PLAYER
E5E10UD_EN.indb 1
E5E10UD_EN.indb 1
BDP7200
12/28/2007 9:25:11 AM
12/28/2007 9:25:11 AM

Advertisement

loading

  Related Manuals for Philips BDP7200

  Summary of Contents for Philips BDP7200

  • Page 1 Register your product and get support at www.philips.com/welcome BLU-RAY DISC PLAYER E5E10UD_EN.indb 1 E5E10UD_EN.indb 1 BDP7200 12/28/2007 9:25:11 AM 12/28/2007 9:25:11 AM...
  • Page 2: Precautions

    Registering your model with PHILIPS makes you eligible for all of the valuable benefits listed below, so don't miss out. Complete and return your Product Registration Card at once, or register online at www.philips.com/welcome to ensure:...
  • Page 3: Important Safety Instructions

    IMPORTANT SAFETY INSTRUCTIONS Read before operating equipment 1. Read these instructions. 2. Keep these instructions. 3. Heed all warnings. 4. Follow all instructions. 5. Do not use this apparatus near water. 6. Clean only with a dry cloth. 7. Do not block any of the ventilation openings. Install in accordance with the manufacturers instructions.
  • Page 4 Declaration of Conformity Model Number: BDP7200/37 Trade Name: Philips Responsible Party: PHILIPS CONSUMER ELECTRONICS A Division of Philips Electronics North America Corp P.O. Box 671539 Marietta, GA 30006-0026 1-888-PHILIPS (744-5477) Copyright 2008 Philips. All rights reserved. Product that have earned ENERGY STAR through superior energy efficiency.
  • Page 5 Our representatives will be happy to assist you. For online reference, please visit our web site at http://www.philips.com/welcome Cleaning the cabinet • Wipe the front panel and other exterior surfaces of the unit with a soft, slightly damp cloth.
  • Page 6: Table Of Contents

    Introduction PRECAUTIONS ........2 FEATURES ........7 Features .
  • Page 7: Features

    Watch movies in the highest picture quality available for your HDTV. The BDP7200 Blu-ray Disc player offers full high-definition video playback up to 1080p resolution for an amazing viewing experience. A highly detailed picture and increased sharpness delivers a more true-to-life picture.
  • Page 8: Functional Overview

    FUNCTIONAL OVERVIEW Front Panel The unit can also be turned on by pressing these buttons. 1. y (STANDBY-ON) button • Press to turn the unit on and off. 2. Disc tray • Place a disc when opening the disc tray. 3.
  • Page 9: Rear Panel

    FUNCTIONAL OVERVIEW Rear Panel COMPONENT VIDEO OUT HDMI OUT VIDEO 1. COMPONENT VIDEO OUT jacks • Use to connect a TV monitor with component video inputs with a component video cable. 2. HDMI OUT jack • Use an HDMI cable to connect to a display with a HDMI compatible port.
  • Page 10: Remote Control

    When playback is in pause, press to slow forward the playback. 22. TV CH buttons • Press to change the channel up and down (only applicable to the PHILIPS brand TV). 23. STOP C button • Press to stop playback. 24. NEXT T button •...
  • Page 11 FUNCTIONAL OVERVIEW Installing the Batteries in the Remote Control Install the batteries (AAx2) matching the polarity indicated inside battery compartment of the remote control. 1) Open the cover. 2) Insert batteries. Make sure to match + and - on the batteries to the marks indicated in the battery compartment.
  • Page 12: Front Panel Display

    FUNCTIONAL OVERVIEW Front Panel Display Brightness of the display can be adjusted. Refer to “Front Panel Brightness” in “LIST OF SETTINGS” on page 33. 1. Displays playback status icon. Refer to the table below. 2. Displays various kinds of information such as title number, elapsed playing time, repeat type, menu type, etc. Playback Status Icon Loading a disc...
  • Page 13: Guide To On-Screen Display

    FUNCTIONAL OVERVIEW Guide to On-Screen Display Home Menu When you turn on the unit, home menu will appear automatically. Otherwise, press [HOME]. Blu-ray Disc Player Disc Tray Settings Product Info “Disc Tray” : To access the track/file list or media filter screen “Settings”...
  • Page 14: Connections

    RCA video cable x 1 Please purchase the rest of the necessary cables at your local store. Note for HDMI connection (Philips recommends HDMI category 2 cable, also known as High Speed HDMI cable, for optimal audio / video output.) •...
  • Page 15 HDMI Mode and Actual Output Signals Press [OUTPUT] on the front panel to change the resolution of the video signal being output from the HDMI OUT. The video resolution changes as follows every time [OUTPUT] is pressed. Or change the setting in the “HDMI Video Resolution”...
  • Page 16: Connection To An Audio System

    Connection to an Audio System • When you change the connections, all devices should be turned off. • Refer to the manual accompanying external devices for more information. 2 Channel Analog Audio Connection stereo system analog audio input jacks RCA audio cable COMPONENT AUDIO DIGITAL OUT...
  • Page 17: Before You Start

    “AV”, or “SELECT”. Refer to your TV’s user manual for details. • If a certain amount of time has past since you turned on the unit, you may see the home menu instead of the PHILIPS splash screen. Home menu: Blu-ray Disc Player Disc Tray Settings...
  • Page 18: How To Insert A Disc

    How to Insert a Disc 1) Press [OPEN/CLOSE A] to open the disc tray. 2) Place the disc on the disc tray with its label side facing up. Align the disc to the disc tray guide. Make sure the disc is compatible with this unit. (Refer to page 19 for the list of compatible discs.) 3) Press [OPEN/CLOSE A] to close the disc tray.
  • Page 19: Playback

    INFORMATION ON PLAYBACK Before you start playing back a disc, read the following information. Playable Discs and Files This unit is compatible to play back the following discs. To play back a disc, make sure that it meets the requirements for region codes and color systems as described below.
  • Page 20: Guide To File List

    INFORMATION ON PLAYBACK Hint for Disc Playback The contents of disc are generally divided into sections or folders (groups of titles/files) as shown below. BD-video, DVD-video title 1 chapter 1 chapter 2 chapter 1 chapter 2 chapter 3 Audio CD track 1 track 2 track 3...
  • Page 21 INFORMATION ON PLAYBACK Video/Music Mode File List e.g., MP3 mode BD-Player Disc Tray Music MP3 File MP3_1.mp3 MP3_2.mp3 MP3_3.mp3 MP3_4.mp3 0:00:13 MP3_5.mp3 MP3_3.mp3 MP3_6.mp3 MP3_7.mp3 Media Filter Page Up 1) Number of contents in the current group(folder) 2) Repeat status (Music mode only) 3) Image 4) Elapsed playing time of the current track 5) Current file name...
  • Page 22: Basic Playback

    BASIC PLAYBACK Playing Back a BD or a DVD E5E10UD_EN.indb 22 E5E10UD_EN.indb 22 Insert a disc (refer to page 18 on how to insert a disc). Playback may start automatically. If not, press [PLAY B]. Some discs may show a title or a disc menu. In such case, refer to “Using the Title / Disc Menu”...
  • Page 23: Playing Back An Audio Cd Or A Disc With Divx®/Mp3/Windows Media™ Audio/Jpeg Files

    Playing Back an Audio CD or a Disc with DivX®/MP3/Windows Media™ Audio/JPEG Files How to Navigate through the Track/File List Use [K / L] to move the highlight up and down in the • list. • To access the files in a group(folder), highlight the desired group(folder), then press [OK].
  • Page 24: About Divx® And Divx® Vod

    Select the type of the file you want to play back in the media filter screen. Then press [OK] to display the file list. “Video“ : if you want to play back video files such as DivX® video files, select “Video”.
  • Page 25: Playing Back A Divx® With Divx® External Subtitle

    Playing Back a DivX® with DivX® External Subtitle Subtitles created by the user can be displayed during DivX® playback. 1) Follow steps 1 to 3 in “Playing Back an Audio CD or a Disc with DivX®/MP3 /Windows Media™ Audio/ JPEG Files” on page 23. 2) Highlight a file you want to play back, then press [Green].
  • Page 26: Special Playback

    SPECIAL PLAYBACK Fast Forward / Fast Reverse 1) During playback, press [FFW D] repeatedly for fast forward. During playback, press [REW E] repeatedly for fast reverse. Every time you press [FFW D] or [REW E], the playback speed will change. 2) Press [PLAY B] to return to the normal playback.
  • Page 27: Repeat Playback

    Repeat Playback Available repeat function vary depending the discs. 1) During playback, press [REPEAT] repeatedly to select the desired repeat function. REPEAT MODE AVAILABLE MEDIA Chapter Repeat BD-video/DVD-video The current chapter will be played back repeatedly. Title Repeat BD-video/DVD-video The current title will be played back repeatedly.
  • Page 28: Search

    Title/Chapter Search Using [PREV S] / [NEXT T] 1) During playback, press [NEXT S] to skip the current title or chapter and move to the next. The title or chapter will move forward by one at a time. • If there is no chapter in one title, the current title may be skipped.
  • Page 29: Selecting The Format Of Audio And Video

    SELECTING THE FORMAT OF AUDIO AND VIDEO You can select the format of audio and video as you prefer depending on the contents of the disc you are playing back. Switching Subtitles Some video materials may have subtitles in one or more languages.
  • Page 30: List Of Settings

    LIST OF SETTINGS In the settings menu, you can customize the various kinds of settings as you prefer. Refer to the following instruction to navigate through the settings menus. 1) Press [HOME] to access the home menu. 2) Use [K / L] to highlight the “Settings”, then press [OK]. 3) Use [K / L] to highlight the “Advanced Setup”, then press [OK].
  • Page 31 Category Menus Video HDMI 1080p/fps Output • This feature is available only when the display device is connected by an HDMI cable. HDMI Video Resolution* • This feature is available only when the display device is connected by an HDMI cable. •...
  • Page 32 LISTA DE CONFIGURACIONES Categoría Menús Salida de Reducción de ruido video • No está disponible para BD-vídeo. Audio Modo nocturno Sub Muestreo Virtual Surround Audio disco Blu-ray Audio HDMI • Esta función sólo está disponible cuando el dispositivo de visualización está conectado a través de un cable HDMI.
  • Page 33 Category Menus Audio Analog Audio • When HDMI cable is connected, make sure “HDMI Audio” setting is set to “Off” to change the “Analog Audio” setting. Parental Rating Level • Refer to page 38 for more information. New PIN Others Auto Standby Front Panel Brightness...
  • Page 34 Options/Sub-Menus Description Set whether to utilize the EasyLink (HDMI CEC) function. EasyLink (HDMI CEC) function allows your PHILIPS brand EasyLink TV to act in conjunction with this unit. This feature is available only when the TV monitor is connected by an HDMI cable, and when it supports EasyLink (HDMI CEC) feature.
  • Page 35: Setups

    TV Shape HOME “Settings” “Advanced Setup” “Video Output” Use this feature to adjust the aspect ratio of the video source which is different from your TV’s ratio to fit your TV monitor without distorting the picture. Descriptions of each setting are as follows: Video Your Option...
  • Page 36: Hdmi Audio

    HDMI Audio HOME “Settings” “Advanced Setup” Refer to the table below to see which setting you should choose. “HDMI Audio” setting “Blu-ray Disc Audio” setting Media Audio Source Dolby Digital Dolby Digital Plus Dolby TrueHD BD-video DTS-HD LPCM Dolby Digital DVD-video LPCM Dolby Digital...
  • Page 37: Digital Out

    Digital Out HOME “Settings” “Advanced Setup” Refer to the table below to see which setting you should choose. “Digital Out” setting “Blu-ray Disc Audio” setting Media Dolby Digital Dolby Digital Plus Dolby TrueHD BD-video DTS-HD LPCM Dolby Digital DVD-video LPCM Dolby Digital DivX®...
  • Page 38: Speaker Setup

    Speaker Setup “Advanced HOME “Settings” “Audio” Setup” Set the speaker configuration to suite the size/number of your speakers. 1) Highlight the speaker you want to set in the illustration on the right. Speaker Setup Speaker Distance Speaker Level • If you press [Red], each speaker outputs the test tone for 2 seconds in rotation.
  • Page 39: Easylink (Hdmi Cec)

    HOME “Settings” “Advanced Setup” EasyLink (HDMI CEC) function allows your TV (limited to PHILIPS brand EasyLink TV) to act in conjunction with this unit. When “EasyLink (HDMI CEC)” setting is set to “On”, functions listed below will be available. One Touch Play...
  • Page 40: Troubleshooting

    TROUBLESHOOTING Problem No reaction to the remote control. No video signal on the display device. No audio / video signal on the display device via HDMI cable. No high-definition video signal on the TV. No audio signal from the loudspeakers of the TV. No audio signal from the loudspeakers of the audio system.
  • Page 41: Glossary

    Analog Audio An electrical signal that directly represents sound. Compare this to digital audio which can be an electrical signal, but is an indirect representation of sound. See also “Digital Audio”. Aspect Ratio The width of a TV screen relative to its height. Conventional TVs are 4:3 (in other words, the TV screen is almost square);...
  • Page 42: Specifications

    SPECIFICATIONS General System Power requirements Power consumption Dimensions (width x height x depth) Weight Operating temperature Operating humidity Terminals Audio output (Analog) RCA jack x 2 RCA jack x 6 Video output RCA jack x 1 Component video output RCA jack x 3 Audio output (Digital) RCA jack x 1 Optical jack x 1...
  • Page 43: Limited Warranty

    Philips is not liable for any damage to or loss of any programs, data, or other information stored on any media contained within the product, or any non-Philips product or part not covered by this warranty.
  • Page 44 A Division of Philips Electronics North America Corp E5E10UD_EN.indb 44 E5E10UD_EN.indb 44 PHILIPS CONSUMER ELECTRONICS P.O. Box 671539 Marietta, GA 30006-0026 Meet Philips at the Internet http://www.philips.com/welcome BDP7200/37 CLASS 1 LASER PRODUCT Printed in China JpnCN-0752/37-3 1VMN24453 ***** E5E10UD 12/28/2007 9:25:58 AM...
