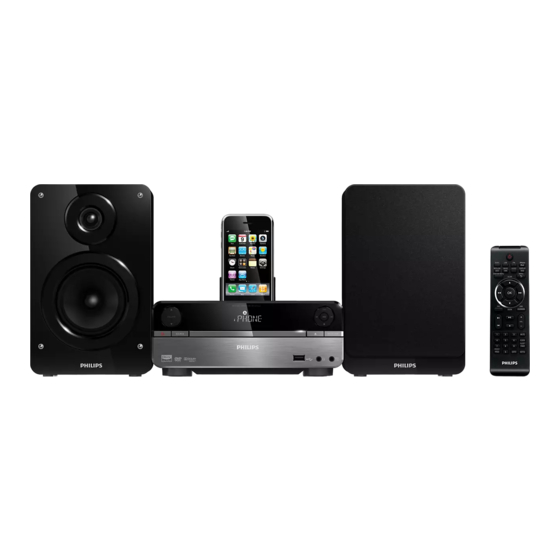

Philips DCD322 User Manual
Philips DCD322 User Manual

Philips DCD322 User Manual

Philips component dvd micro system user manual
Hide thumbs Also See for DCD322:


Register your product and get support at
EN User manual
FR Mode d'emploi
ES Manual del usuario
DE Benutzerhandbuch
NL Gebruiksaanwijzing
Manuale utente
SV Användarhandbok
DA Brugervejledning


Table of Contents

Summary of Contents for Philips DCD322

  • Page 1 Register your product and get support at EN User manual FR Mode d’emploi ES Manual del usuario DE Benutzerhandbuch NL Gebruiksaanwijzing Manuale utente SV Användarhandbok DA Brugervejledning DCD322...
  • Page 2 Italia DICHIARAZIONE DI CONFORMITA’ Si dichiara che l’apparecchio DCD322 Philips risponde alle prescrizioni dell’art. 2 comma 1 del D.M. 28 Agosto 1995 n. 548. Fatto a Eindhoven Philips Consumer Electronics Philips, Glaslaan 2 5616 JB Eindhoven, The Netherlands Advarsel: Usynlig laserstråling ved åbning når sikkerhedsafbrydere er...
  • Page 3: Table Of Contents

    Contents 1 Important Safety Notice 2 Your DVD Micro Theater Introduction What’s in the box Overview of the main unit Overview of the remote control 3 Connect Place the unit Connect speakers Connect FM antenna Connect audio cables Connect video cables Connect an external audio device (optional) Connect power...
  • Page 4: Important

    1 Important Safety Know these safety symbols This ‘bolt of lightning’ indicates uninsulated material within your unit may cause an electrical shock. For the safety of everyone in your household, please do not remove product covering. The ‘exclamation point’ calls attention to features for which you should read the enclosed literature closely to prevent operating and maintenance problems.
  • Page 5: Notice

    Notice Any changes or modiÀ cations made to this device that are not expressly approved by Philips Consumer Lifestyle may void the user’s authority to operate the equipment. This product complies with the radio interference requirements of the European Community.
  • Page 6: Trademark Notice

    When this crossed-out wheeled bin symbol is attached to a product it means that the product is covered by the European Directive 2002/96/EC. Please inform yourself about the local separate collection system for electrical and electronic products. Please act according to your local rules and do not dispose of your old products with your normal household waste.
  • Page 7: Your Dvd Micro Theater

    2 Your DVD Micro Theater Congratulations on your purchase, and welcome to Philips! To fully beneÀ t from the support that Philips offers, register your product at Introduction With this apparatus, you can: • Watch video from DVD/VCD/SVCD, iPhone/iPod, or USB storage devices •...
  • Page 8: Overview Of The Main Unit

    Overview of the main unit a Dock for iPod/iPhone b DBB / LOUDNESS • Turn on or off dynamic bass enhancement. • Turn on or off automatic loudness control. • Skip to the previous/next track, title, or chapter. • Select a preset radio station. •...
  • Page 9: Overview Of The Remote Control

    Overview of the remote control • Turn on the apparatus or switch to the standby mode. b Source selection keys • Select a source. c DISPLAY/RDS • Display play information on a connected TV. • For selected FM radio stations: display RDS information.
  • Page 10: Connect

    • Set the sleep timer. • Set the alarm timer. p SUBTITLE • Select a subtitle language. q GOTO • During disc play, specify a position to start play. r ANGLE/PROG • Select a DVD camera angle. • Program tracks. •...
  • Page 11: Connect Fm Antenna

    Insert the speaker plugs to SPEAKER OUT ( L and R ) sockets. • The red plug to • The white plug to Connect FM antenna • For optimal reception, fully extend and adjust the position of the antenna. • For better FM stereo reception, connect an outdoor FM antenna to the FM AERIAL jack.
  • Page 12: Connect Video Cables

    Option 2: Connect through analog audio cables L LINE IN R Connect an audio cable (red/white ends) • AUDIO OUT ( L and R ) sockets on this unit. • the audio input sockets on the audio device. Connect video cables You can select the best video connection that your TV supports.
  • Page 13: Connect An External Audio Device (Optional)

    Option 3: Connect through component video cables Note • The progressive scan video quality is only available when a progressive scan TV is connected. • If your TV does not support progressive scan, you cannot view the picture. • For how to activate progressive scan on your TV, refer to the TV user manual.
  • Page 14: Connect Power

    Always follow the instructions in this chapter in sequence. If you contact Philips, you will be asked for the model and serial number of this apparatus. The model number and serial number are on the back of the apparatus. Write the numbers here: Model No.
  • Page 15: Turn On

    Insert one lithium CR2025 battery with correct polarity (+/-) as indicated. Close the battery compartment. Note • Before you press any function button on the remote control, À rst select the correct source with the remote control instead of the main unit.
  • Page 16: Select The Correct Tv System

    • Go to the lowest channel on your TV, then press the Channel Down button until you see the blue screen. • Press the source button repeatedly on the remote control of your TV. • The video-in channel is between the lowest and highest channels and may be called FRONT, A/V IN, VIDEO etc.
  • Page 17: Play

    5 Play Caution • Risk of damage to the unit! During play, never move the unit. Play a disc Caution • Never look at the laser beam inside the unit. • Risk of product damage! Never play discs with accessories such as disc stabilizer rings or disc treatment sheets.
  • Page 18: Play Control

    Select a source. • For a USB storage device, press • For a disc, press DISC . Insert the USB storage device or disc. » The play starts automatically. To select a speciÀ ed À le for play, Press to stop play. Press / to select a folder, and then press OK to conÀ...
  • Page 19: Play Options

    Play options Program tracks This function is only available for audio CDs and WMA/MP3/DivX (Ultra) À les. For an audio CD, During play, press twice. The list of all tracks is displayed. Press / to select a track. Press ANGLE/PROG . »...
  • Page 20: Picture View Options

    Change the audio channel Note • This feature is only available for VCDs and DivX (Ultra) videos. During play, press AUDIO repeatedly to select an audio channel available on the disc: • Mono Left • Mono Right • Stereo Picture view options Select a slide show play mode You can view pictures as slide show in different play modes.
  • Page 21: Load The Iphone/Ipod

    Load the iPhone/iPod Lift up the iPhone/iPod dock on top panel until you hear a click. Place the iPhone/iPod in the dock. Listen to the iPhone/iPod Press iPhone/iPod to select iPhone/iPod source. Load your iPhone/iPod onto this apparatus. Play the desired À le on your iPhone/iPod. •...
  • Page 22: Listen To Radio

    7 Listen to radio The unit can automatically search and store radio stations (see “Get started” > “Store radio stations automatically”). You can also search and store radio stations manually. Tune to a radio station Press FM . Press and hold for more than 2 seconds.
  • Page 23: Adjust Sound

    Note • There are deÀ nitions of RDS program types (see “Product information” > “RDS program types”). Synchronize clock with RDS station You can synchronize the clock time on the unit with an RDS station. Tune to an RDS radio station that transmits time signals.
  • Page 24: Adjust Settings

    9 Adjust settings Press SYSTEM MENU . Select a setup page. Select an option and then press Select a setting and then press OK . • To return to the previous menu, press • To exit the menu, press MENU . General setup On the [General Setup] page, you can set the following options:...
  • Page 25: Preferences

    • [4:3 Letter Box] – For 4:3 screen TV: wide-screen display with black bars on the top and bottom of the screen. • [Wide Screen] – For wide-screen TV: display ratio 16:9. [Picture Setting] Customize picture color settings. [Component Video] Set the video output according to the video connection.
  • Page 26: Other Features

    If iPod/iPhone playlist is selected as alarm source, you need create a playlist called “PHILIPS” in your iPod/iPhone. • If no playlist called “PHILIPS” is created in the iPod/iPhone or no track is stored in the playlist, the unit switches to iPod/iPhone alarm source.
  • Page 27: Product Information

    11 Product information Note • Product information is subject to change without prior notice. SpeciÀ cations AmpliÀ er Rated Output 2 X 30 W RMS Power Frequency 40 Hz - 20000 Hz, ±3 Response Signal to Noise > 65 dB Ratio Aux Input 1 V RMS 20k ohm...
  • Page 28: Supported Disc Formats

    Supported disc formats • Digital Video Discs (DVDs) • Video CDs (VCDs) • Super Video CDs (SVCDs) • Digital Video Discs + Rewritable (DVD+RW) • Compact Discs (CDs) • Picture (Kodak, JPEG) À les on CDR(W) • DivX(R) disc on CD-R(W): •...
  • Page 29: Rds Program Types

    If you encounter problems when using this apparatus, check the following points before requesting service. If the problem remains unsolved, go to the Philips web site (www. When you contact Philips, ensure that your apparatus is nearby and the model number and serial number are available.
  • Page 30 • A distorted picture may appear during progressive scan setup. The aspect ratio of the TV screen cannot be changed even though you have set the TV display format. • The aspect ratio is À xed on the loaded DVD disc. •...
  • Page 31 © 2011 Koninklijke Philips Electronics N.V. All rights reserved. DCD322_12_UM_Book 1_V4.0...

This manual is also suitable for:
