Qotom Q1900G4 Manual

Manual for Q1900G4 Nano Motherboard
Catalogue
Product Description .................................................................... 2
I、
Brief Introduction .............................................................. 2
1.
Version Specification ............................................................ 2
2.
Characteristics & Performances .................................................... 2
3.
II、 Product Overview ..................................................................... 3

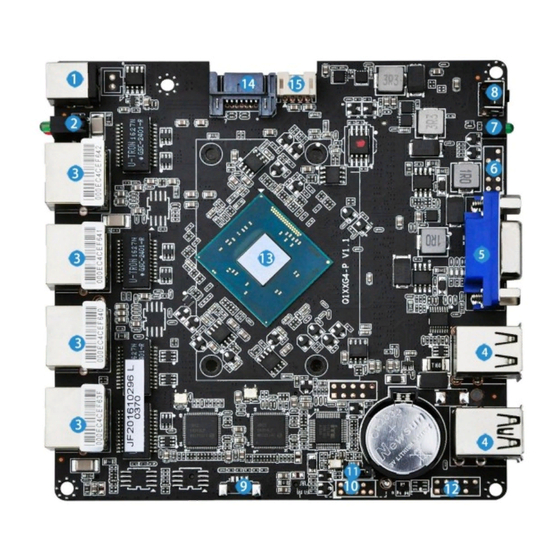

Front View .................................................................... 3
1.
Back View .................................................................... 4
2.
Connectors and Headers ......................................................... 5
3.
III、 Detailed Description of Connection Ports ................................................... 5
Power Input Port ............................................................... 5
1.
HDD led & Power led ........................................................... 5
2.
1000M LAN Port ............................................................... 5
3.
USB Ports .................................................................... 6
4.
VGA Connector ................................................................ 6
5.
Extended Pin for External Panel ................................................... 6
6.
Power led ..................................................................... 6
7.
Power Switch .................................................................. 6
8.
CPU Fan Header ............................................................... 6
9.
Serial port header ............................................................... 6
10.
Automatically boot jumper ....................................................... 7
11.
Extended USB Pin .............................................................. 7
12.
Intel Baytrail Processor .......................................................... 7
13.
SATA 3.0 Port ................................................................. 7
14.
SATA Power Connector ......................................................... 8
15.
PCI Express Full-Mini Card Slot (For MSATA SSD) .................................. 8
16.
SIM card slot .................................................................. 8
17.
PCI Express Half-Mini Card Slot .................................................. 8
18.
Memory Slot .................................................................. 8
19.
---------------------------------------------------
QOTOM TECHNOLOGY LIMITED
Manual for Q1900G4 MINI Motherboard
1 / 8
v1.1
WWW.QOTOM.NET
