Summary of Contents for Philips SPZ5000

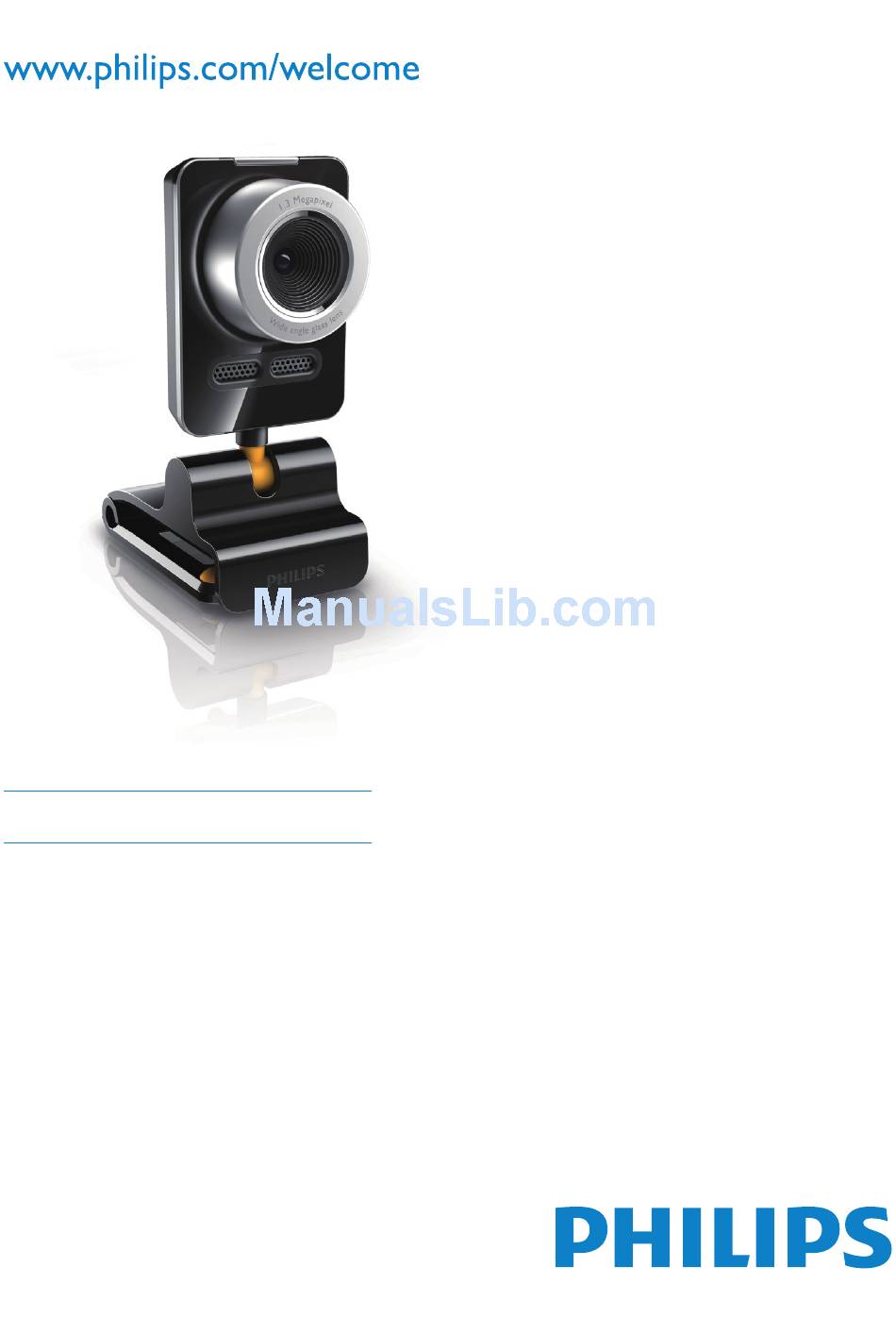

- Page 1 SPZ5000 Register your product and get support at User manual...
-
Page 2: Table Of Contents
Using my Philips SPZ5000 webcam makes my PC/notebook run slow. What should I No image is available on the screen. What should I do? How can I restore my Philips webcam to the default factory settings? 10 Service and support Need help? -
Page 3: Your Webcam
1 Your Webcam Congratulations on your purchase, and welcome to Philips! To fully beneÀ t from the support that Philips offers, register your product at www.philips.com/welcome . • www.philips.com/welcome , select your language and choose Register my product . Then follow the on-screen instructions for registration. -
Page 4: Functional Overview
Functional overview a Snapshot button • With Philips applications installed, take photos directly b Power LED • Lights up when the webcam is in use c Focus ring • Adjust the focus of the image manually d Built-in microphone •... -
Page 5: Get Started
(Optional) Install the webcam software and driver Note • To use the special features provided by Webcam Driver SPZ5000, Philips CamSuite, and Philips Intelligent Agent, install the software in the provided CD-ROM. • Before the installation of Philips CamSuite, disconnect the webcam from the PC/notebook. -
Page 6: Connect The Webcam To Your Pc/Notebook
Connect the webcam to your PC/notebook Turn on the PC/notebook. For the À rst time you use the webcam with Philips CamSuite, install the software in the provided CD-ROM. » After the software installation is complete, the Philips CamSuite icon is displayed at the lower right corner of the screen. -
Page 7: Use The Webcam For Video Chatting
3 Use the webcam for video chatting Philips SPZ5000 webcam works with Skype, Windows® Live Messenger,Yahoo! Messenger, AOL Instant Messenger, QQ and other instant messegings and VoIP (Voice over Internet Protocol) services. After you install one of the above applications, you can plug the webcam into the PC/ notebook and use it for video chatting. -
Page 8: Philips Camsuite
4 Philips CamSuite Philips CamSuite provides a quick access to a number of the most used features and settings. To enjoy the special features and settings provided by Philips CamSuite, install it before using it with Philips SPZ5000 webcam. After you install Philips CamSuite, you can... -
Page 9: Philips Camsuite Capture
• Before you play a video, ensure that you have a multimedia player installed on the PC/notebook. Screen mode Via Philips CamSuite Capture, you can view a photo or play a video in different modes: • Normal screen mode •... -
Page 10: Image Resolution
2560 x 2048 (for photo only) Note • For video recording, the maximum resolution is up to 640 x 480 (VGA). In the Philips CamSuite Capture window, click the drop-down arrow. » The provided resolution options are listed. Select a preferred resolution option. -
Page 11: Send Photo(S)/Video(S) Via Email
Upload a video to YouTube Note • To enjoy Instant YouTube upload feature with this webcam, you need to install Philips CamSuite in the provided CD-ROM. • Before you upload a video to YouTube, you need to have a YouTube account and Internet access. - Page 12 In the [Publishing information] pane, select [Video category:] in the drop- down list when applicable. Username • Change information in the [Description:] , and [Tags:] boxes whenever applicable. • To make your video on YouTube as private, check the [Make my video private] box.
-
Page 13: Features Provided By Webcam Driver Spz5000
6 Features provided by Webcam Driver SPZ5000 If both Webam Driver SPZ5000 and Philips CamSuite are installed on the PC/notebook, Philips CamSuite provides a quick access to the following features provided by Webcam Driver SPZ5000: Fun settings • Fun frame •... -
Page 14: Properties
Properties In the Philips CamSuite control panel, click Click the [Webcam settings] button. » [Properties] window is displayed. In the [Properties] window, click one of the following four tabs to go on with settings adjustment: • General • Video •... -
Page 15: Video Tab
[Full automatic control] This full automatic control mode provides a very easy way to get the best out of your Philips SPZ5000 webcam. Or you can choose to have maximum manual control over the webcam settings by switching the full automatic control mode off. -
Page 16: Audio Tab
[Mirror] When you enable this function, the image Á ips horizontally. You can use this feature when you want to use the Philips SPZ5000 and monitor as a mirror, or to take pictures of mirrored images. Audio tab... - Page 17 [Digital Zoom] With this function, you can get a closer view of an object. Use the slider to dynamically zoom in and out. • Digital zoom magniÀ es the pixels but not the actual image. [Add Logo] ( [Fun logo] ) With this function, you can add fun logos to the images.
-
Page 18: Upgrade Software
Philips Intelligent Agent has its own HTTP download manager for retrieving software from the Philips server. If an update is available for Philips SPZ5000 webcam, Philips Intelligent Agent provides a download button for the appropriate update. After clicking the download... -
Page 19: Technical Specià Cations
Photo resolution 5.0 MP (Software (Max.) enhanced, with Philips CamSuite installed); 8.0 MP (Software enhanced, with Philips CamSuite and Webcam Driver SPZ5000 installed) Frames per second 60 fps Max. @VGA Lens F-number F2.6 Lens angle of 80 degrees (wide-angle view... -
Page 20: Frequently Asked Questions (Faq)
Control panel . Click Sounds and Audio Devices . Click the Voice tab in the displayed window. Set the Philips SPZ5000 webcam or the connected headset as default device for Voice recording . Click OK to save your settings. For Windows Vista : On the PC/notebook, click Start >... -
Page 21: Using My Philips Spz5000 Webcam Makes My Pc/Notebook Run Slow. What Should I Do
What should I do? Note • Ensure that both Webcam Driver SPZ5000 and Philips CamSuite are installed on the PC/ notebook. Close software applications that do not necessarily need to run. Double-click the Philips CamSuite icon on the Windows toolbar (at the lower right of your screen) to open the Philips CamSuite control panel. -
Page 22: No Image Is Available On The Screen. What Should I Do
Philips CamSuite are installed on the PC/ notebook. Double-click the Philips CamSuite icon on the Windows toolbar (at the lower right of your screen) to open the Philips CamSuite control panel. Click on the Philips CamSuite control panel, to open the [Properties] page. -
Page 23: Service And Support
10 Service and support Need help? First of all, read this user manual carefully. The model number of your product is SPZ5000. When you need further support about registration, setup, usage, features, software upgrade, speciÀ cation, and warranty, etc. of the product, see www.philips.com/support . -
Page 24: Fcc Compliance
Philips is committed to develop, produce and market products that cause no adverse health effects. Philips conÀ rms that if its products are handled properly for their intended use, they are safe to use according to scientiÀ c evidence available today. -
Page 25: Disclaimer Of Warranty
potentially negative consequences on the environment and human health. All redundant packing material has been omitted. We have done our utmost to make the packaging easily separable into mono materials. Please observe the local regulations regarding the disposal of packing materials. Warning •... - Page 26 © 2010 Koninklijke Philips Electronics N.V. All rights reserved. UM_V1.2...
