CFD-S01

Ver. 1.1

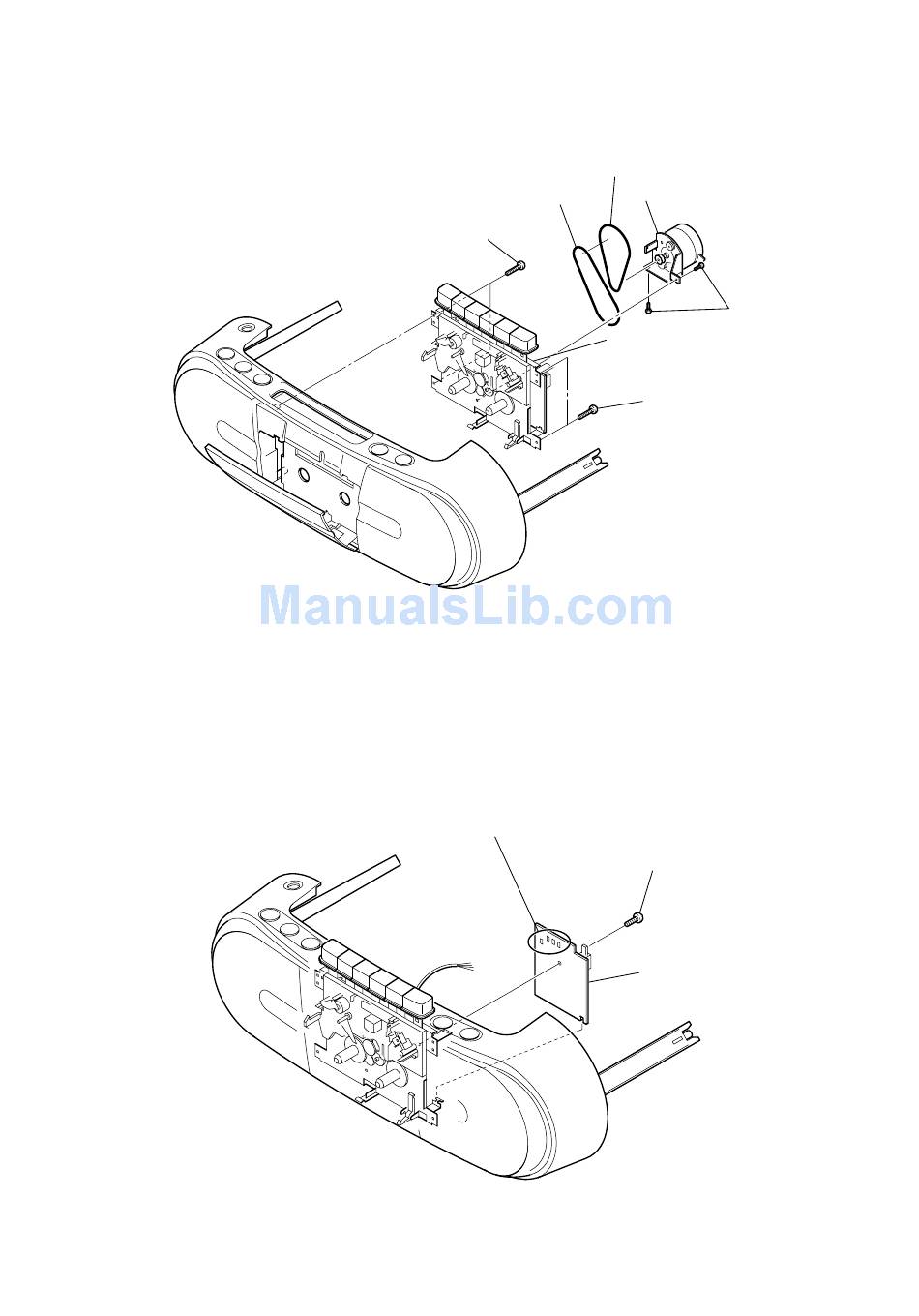

3-9. TAPE MECHANISM BLOCK, BELT (1), BELT (2)

6 belt (1)

5 motor bracket

7 belt (2)

1 two screws

(+BV tapping (B2.6))

4 two screws

3 tape mechanism block

2 two screws

(+BV tapping (B2.6))

3-10. TC BOARD

2 Remove the four solders.

1 screw

(+P tapping (B2.6))

3 TC board

11
