Service Manual
G-Shot G511
Version1.0

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the G-Shot G511 and is the answer not in the manual?

Questions and answers

Related Manuals for Genius G-Shot G511

Summary of Contents for Genius G-Shot G511

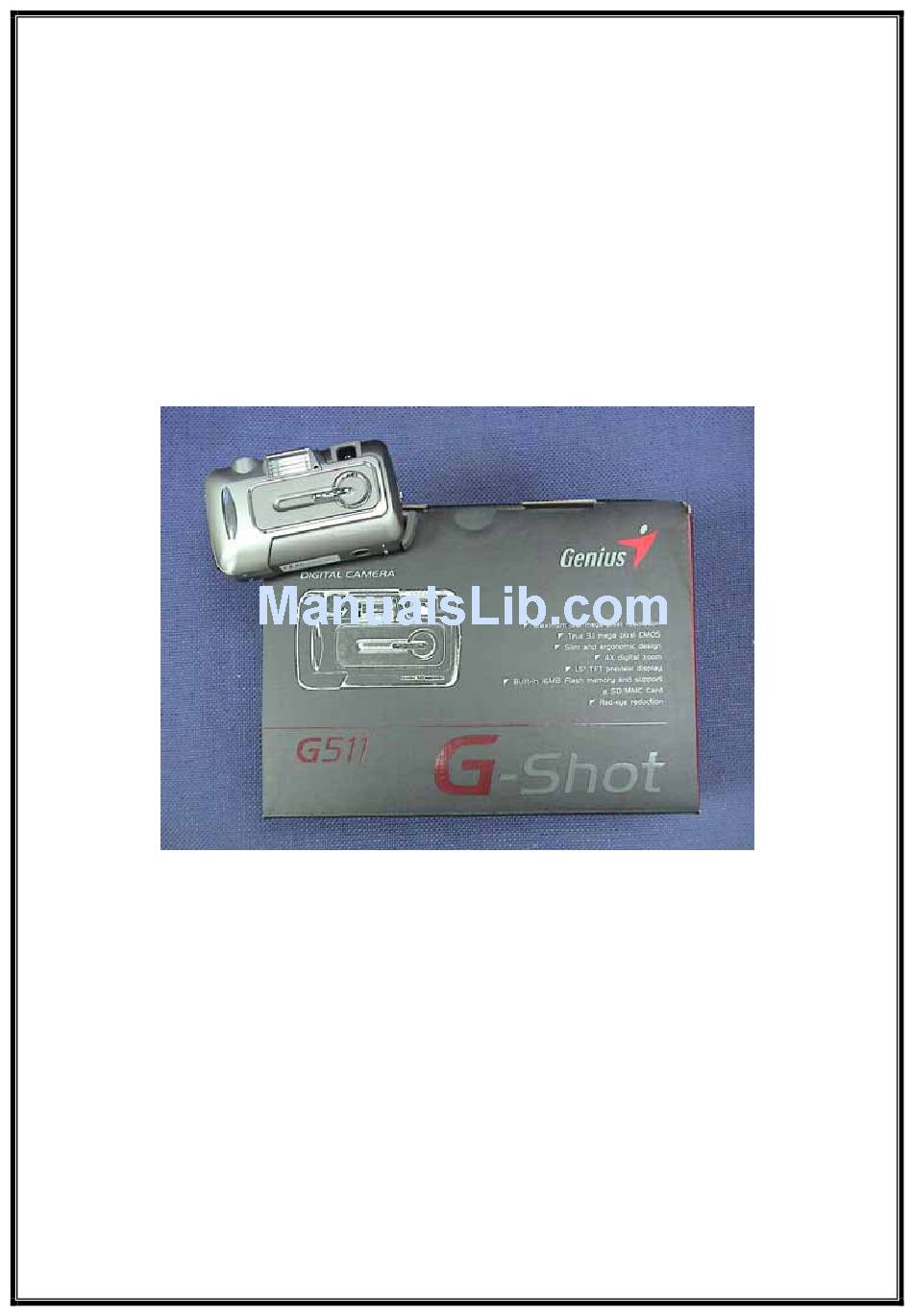

  • Page 1 Service Manual G-Shot G511 Version1.0...

  • Page 2: Table Of Contents

    Service Manual G-Shot G511 Table of Contents 1.Disassembly and Assembly …………………………………………………….2 2.No Power Testing Procedure ……….……………..……………..……………….3 A. Check the battery……………………………………………………………………...4 B. Check USB Cable……………………..………………………………………………..5 C. Check Q3,U1,TP between L5 and D4,U4,J2………………………………………………..6 3.Image Is Blur or Can Not Capture Image Testing Procedure ………11...

  • Page 3: Disassembly And Assembly

    Service Manual G-Shot G511 1. Disassembly and Assembly See the video DVD. Version 1.0 Page 2...

  • Page 4: No Power Testing Procedure

    Service Manual G-Shot G511 2. No Power Testing Procedure A. Please check voltage of battery with multimeter. If the voltage is different, please replace battery. B. Please check USB cable with multimeter or with a new one. If the USB is broken, please replace a new one.

  • Page 5: Check The Battery

    Service Manual G-Shot G511 A. Check if voltage of battery with multimeter is shown as below. If not, please replace a new battery. Version 1.0 Page 4...

  • Page 6: Check Usb Cable

    Service Manual G-Shot G511 B.Check if USB cable is broken or short with multimeter or a new USB cable. If USB cable is broken or short, please replace a new one. Version 1.0 Page 5...

  • Page 7: Check Q3,U1,Tp Between L5 And D4,U4,J2

    Service Manual G-Shot G511 C.Check if voltage of pin 3 on Q3 with oscilloscope is shown as below. If not,please replace the Q3. Version 1.0 Page 6...
  • Page 8 Service Manual G-Shot G511 C-1.Check if voltage of pin 3 on U1 with oscilloscope is shown as below. If not,please replace the U1. Version 1.0 Page 7...
  • Page 9 Service Manual G-Shot G511 C-2. Check if voltage of testing point between L5 and D4 with oscilloscope is shown as below. If not,please replace L5. Version 1.0 Page 8...
  • Page 10 Service Manual G-Shot G511 C-3. Check if voltage of pin 6 on U4 with oscilloscope is shown as below. If not,please replace the U4. Version 1.0 Page 9...
  • Page 11 Service Manual G-Shot G511 C-4. Check if voltage of pin 1 on J2 with oscilloscope is shown as below. If not,please replace the J2. Version 1.0 Page 10...

  • Page 12: Image Is Blur Or Can Not Capture Image Testing Procedure

    Service Manual G-Shot G511 3. Image Is Blur or Can Not Capture Image Testing Procedure A.Please check the wave of pins on U11(CMOS Sensor) with oscilloscope by power supply . If the wave is different, please replace U11. B. Please check the wave of pins on U13(SDRAM) with oscilloscope by power supply.
  • Page 13 Service Manual G-Shot G511 Test Ok Version 1.0 Page 12...

  • Page 14: Check The U11(Cmos Sensor)

    Service Manual G-Shot G511 A.Check the wave of pin46 on U11(CMOS Sensor) with oscilloscope is shown as below by power supply. If the wave is different, please replace U11. Version 1.0 Page 13...
  • Page 15 Service Manual G-Shot G511 A-1. Check the wave of pin45 on U11(CMOS Sensor) with oscilloscope is shown as below by power supply. If the wave is different, please replace U11. Version 1.0 Page 14...
  • Page 16 Service Manual G-Shot G511 A-2. Check the wave of pin31 on U11(CMOS Sensor) with oscilloscope is shown as below by power supply. If the wave is different, please replace U11. Version 1.0 Page 15...
  • Page 17 Service Manual G-Shot G511 A-3. Check the wave of pin41 on U11(CMOS Sensor) with oscilloscope is shown as below by power supply. If the wave is different, please replace U11. Version 1.0 Page 16...
  • Page 18 Service Manual G-Shot G511 A-4. Check the wave of pin40 on U11(CMOS Sensor) with oscilloscope is shown as below by power supply. If the wave is different, please replace U11. Version 1.0 Page 17...
  • Page 19 Service Manual G-Shot G511 A-5. Check the wave of pin29 on U11(CMOS Sensor) with oscilloscope is shown as below by power supply. If the wave is different, please replace U11. Version 1.0 Page 18...
  • Page 20 Service Manual G-Shot G511 A-6. Check the wave of pin24~pin28,pin32~36 on U11(CMOS Sensor) with oscilloscope is shown as below by power supply. If the wave is different, please replace U11. Version 1.0 Page 19...

  • Page 21: Check The U13(Sdram)

    Service Manual G-Shot G511 B.Check the wave of pin38 on U13(SDRAM) with oscilloscope is shown as below by power supply. If the wave is different, please replace U13. ‘ Version 1.0 Page 20...
  • Page 22 Service Manual G-Shot G511 B-1. Check the wave of pin37 on U13(SDRAM) with oscilloscope is shown as below by power supply. If the wave is different, please replace U13. Version 1.0 Page 21...
  • Page 23 Service Manual G-Shot G511 B-2. Check the wave of pin16 on U13(SDRAM) with oscilloscope is shown as below by power supply. If the wave is different, please replace U13. Version 1.0 Page 22...
  • Page 24 Service Manual G-Shot G511 B-3. Check the wave of pin17 on U13(SDRAM) with oscilloscope is shown as below by power supply. If the wave is different, please replace U13. Version 1.0 Page 23...
  • Page 25 Service Manual G-Shot G511 B-4. Check the wave of pin18 on U13(SDRAM) with oscilloscope is shown as below by power supply. If the wave is different, please replace U13. Version 1.0 Page 24...
  • Page 26 Service Manual G-Shot G511 B-5. Check the wave of pin15 on U13(SDRAM) with oscilloscope is shown as below by power supply. If the wave is different, please replace U13. Version 1.0 Page 25...
  • Page 27 Service Manual G-Shot G511 B-6. Check the wave of pin39 on U13(SDRAM) with oscilloscope is shown as below by power supply. If the wave is different, please replace U13. Version 1.0 Page 26...
  • Page 28 Service Manual G-Shot G511 B-7. Check the wave of pin2,4,5,7,8,10,11,13,42,44,45,47,48,50,51,53 on U13(SDRAM) with oscilloscope is shown as below by power supply. If the wave is different, please replace U13. Version 1.0 Page 27...
  • Page 29 Service Manual G-Shot G511 B-8. Check the wave of pin21~26,pin29~35 on U13(SDRAM) with oscilloscope is shown as below by power supply. If the wave is different, please replace U13. Version 1.0 Page 28...

  • Page 30: Check The U14(Flash Memory)

    Service Manual G-Shot G511 C.Check the wave of pin7 on U14(Flash Memory) with oscilloscope is shown as below by power supply. If the wave is different, please replace U14. Version 1.0 Page 29...
  • Page 31 Service Manual G-Shot G511 C-1. Check the wave of pin8 on U14(Flash Memory) with oscilloscope is shown as below by power supply. If the wave is different, please replace U14. Version 1.0 Page 30...
  • Page 32 Service Manual G-Shot G511 C-2. Check the wave of pin9 on U14(Flash Memory) with oscilloscope is shown as below by power supply. If the wave is different, please replace U14. Version 1.0 Page 31...
  • Page 33 Service Manual G-Shot G511 C-3. Check the wave of pin19 on U14(Flash Memory) with oscilloscope is shown as below by power supply. If the wave is different, please replace U14. Version 1.0 Page 32...
  • Page 34 Service Manual G-Shot G511 C-4. Check the wave of pin18 on U14(Flash Memory) with oscilloscope is shown as below by power supply. If the wave is different, please replace U14. Version 1.0 Page 33...
  • Page 35 Service Manual G-Shot G511 C-5. Check the wave of pin29~32,pin41~44 on U14(Flash Memory) with oscilloscope is shown as below by power supply. If the wave is different, please replace U14. Version 1.0 Page 34...

  • Page 36: Replace Pcba

    Service Manual G-Shot G511 D.Try to replace PCBA after replace U11,U13,U14 if the image is still blur. Version 1.0 Page 35...

  • Page 37: Can Not Store Image Testing Procedure

    Service Manual G-Shot G511 4.Can Not Store Image Testing Procedure A.Please check wave of U13(SDRAM) with oscilloscop by power supply. If wave is different, please replace U13. B.Please check wave of U14(Flash Memory) with oscilloscop by power supply. If wave is different, please replace U14.

  • Page 38: A.check U13

    Service Manual G-Shot G511 A.Check the wave of pin38 on U13(SDRAM) with oscilloscope is shown as below by power supply. If the wave is different, please replace U13. ‘ Version 1.0 Page 37...
  • Page 39 Service Manual G-Shot G511 A-1.Check the wave of pin2,4,5,7,8,10,11,13,42,44,45,47,48,50,51,53 on U13(SDRAM) with oscilloscope is shown as below by power supply. If the wave is different, please replace U13. Version 1.0 Page 38...
  • Page 40 Service Manual G-Shot G511 A-2.Check the wave of pin20~26,pin29~35 on U13(SDRAM) with oscilloscope is shown as below by power supply. If the wave is different, please replace U13. Version 1.0 Page 39...

  • Page 41: B.check U14

    Service Manual G-Shot G511 B.Check the wave of pin7 on U14(Flash Memory) with oscilloscope is shown as below by power supply. If the wave is different, please replace U14. Version 1.0 Page 40...
  • Page 42 Service Manual G-Shot G511 B-1.Check the wave of pin8 on U14(Flash Memory) with oscilloscope is shown as below by power supply. If the wave is different, please replace U14. Version 1.0 Page 41...
  • Page 43 Service Manual G-Shot G511 B-2.Check the wave of pin9 on U14(Flash Memory) with oscilloscope is shown as below by power supply. If the wave is different, please replace U14. Version 1.0 Page 42...
  • Page 44 Service Manual G-Shot G511 B-3.Check the wave of pin19 on U14(Flash Memory) with oscilloscope is shown as below by power supply. If the wave is different, please replace U14. Version 1.0 Page 43...
  • Page 45 Service Manual G-Shot G511 B-4.Check the wave of pin18 on U14(Flash Memory) with oscilloscope is shown as below by power supply. If the wave is different, please replace U14. Version 1.0 Page 44...
  • Page 46 Service Manual G-Shot G511 B-5.Check the wave of pin29~32,pin41~44 on U14(Flash Memory) with oscilloscope is shown as below by power supply. If the wave is different, please replace U14. Version 1.0 Page 45...

  • Page 47: Tft Lcd Can Not Display Testing Procedure

    Service Manual G-Shot G511 5.TFT LCD Can Not Display Testing Procedure A.Please check if the TFT LCD is broken,scratched or spot on screen. If yes, please replace a new TFT LCD. B.Please check the waves of J16 with oscilloscope by power supply.
  • Page 48 Service Manual G-Shot G511 A.Check if the TFT LCD is broken ,scratched or spot on screen . If yes, please replace a new TFT LCD . Check the LCD Check if there is spot on screen Version 1.0 Page 47...

  • Page 49: Check J16

    Service Manual G-Shot G511 B.Check if the wave of pin20 on J16 with oscilloscope is shown as below by power supply. If the wave is different, please replace J16. Version 1.0 Page 48...
  • Page 50 Service Manual G-Shot G511 B-1.Check if the wave of pin2 on J16 with oscilloscope is shown as below by power supply. If the wave is different, please replace J16. Version 1.0 Page 49...
  • Page 51 Service Manual G-Shot G511 B-2.Check if the wave of pin3 on J16 with oscilloscope is shown as below by power supply. If the wave is different, please replace J16. Version 1.0 Page 50...
  • Page 52 Service Manual G-Shot G511 B-3.Check if the wave of pin4 on J16 with oscilloscope is shown as below by power supply. If the wave is different, please replace J16. Version 1.0 Page 51...
  • Page 53 Service Manual G-Shot G511 B-4.Check if the wave of pin5 on J16 with oscilloscope is shown as below by power supply. If the wave is different, please replace J16. Version 1.0 Page 52...
  • Page 54 Service Manual G-Shot G511 B-5.Check if the wave of pin6 on J16 with oscilloscope is shown as below by power supply. If the wave is different, please replace J16. Version 1.0 Page 53...
  • Page 55 Service Manual G-Shot G511 B-6.Check if the wave of pin7 on J16 with oscilloscope is shown as below by power supply. If the wave is different, please replace J16. Version 1.0 Page 54...
  • Page 56 Service Manual G-Shot G511 B-7.Check if the wave of pin9 on J16 with oscilloscope is shown as below by power supply. If the wave is different, please replace J16. Version 1.0 Page 55...
  • Page 57 Service Manual G-Shot G511 B-8.Check if the wave of pin10 on J16 with oscilloscope is shown as below by power supply. If the wave is different, please replace J16. Version 1.0 Page 56...
  • Page 58 Service Manual G-Shot G511 B-9.Check if the wave of pin19 on J16 with oscilloscope is shown as below by power supply. If the wave is different, please replace J16. Version 1.0 Page 57...
  • Page 59 Service Manual G-Shot G511 B-10.Check if the wave of pin18 on J16 with oscilloscope is shown as below by power supply. If the wave is different, please replace J16. Version 1.0 Page 58...
  • Page 60 Service Manual G-Shot G511 B-11.Check if the wave of pin21~26 on J16 with oscilloscope is shown as below by power supply. If the wave is different, please replace J16. Version 1.0 Page 59...
  • Page 61 Service Manual G-Shot G511 C.After replace J16 the TFT LCD still can not display,please try to replace a new TFT LCD. Version 1.0 Page 60...

  • Page 62: Can Not Connect Computer Testing Procedure

    Service Manual G-Shot G511 6.Can Not Connect Computer Testing Procedure A.Please check if USB cable is broken or short with multimeter. If yes, please replace USB cable. B.Please check the wave of U12 with oscilloscope by power supply. If the wave is different, please replace U12.

  • Page 63: Check The Usb Cable

    Service Manual G-Shot G511 A.Check if the USB cable is broken or short with multimeter. If yes,please replace a new USB cable. Version 1.0 Page 62...

  • Page 64: Check The U12(Rom Flash)

    Service Manual G-Shot G511 B.Check if the wave of pin32 on U12(ROM Flash) with oscilloscope is shown as below by power supply. If the wave is different, please replace U12. Version 1.0 Page 63...
  • Page 65 Service Manual G-Shot G511 B-1.Check if the wave of pin25~29,pin21~23 on U12(ROM Flash) with oscilloscope is shown as below by power supply. If the wave is different, please replace U12. Version 1.0 Page 64...
  • Page 66 Service Manual G-Shot G511 B-2.Check if the wave of pin1~6,pin9~10,pin31 on U12(ROM Flash) with oscilloscope is shown as below by power supply. If the wave is different, please replace U12. Version 1.0 Page 65...

  • Page 67: Check The Y1

    Service Manual G-Shot G511 C.Check if the wave of Y1 with oscilloscope is shown as below by power supply. If the wave is different, please replace Y1. Version 1.0 Page 66...

  • Page 68: No Flash Testing Procedure

    Service Manual G-Shot G511 7.No Flash Testing Procedure A.If no flash you can replace Flash Module. Test Ok Version 1.0 Page 67...

  • Page 69: Replace Flash Module

    Service Manual G-Shot G511 A.If no flash please replace Flash Module shown as below. Version 1.0 Page 68...

  • Page 70: Part List

    Service Manual G-Shot G511 8.Part List Item Part Number Description Position 11730054000 TRANSISTOR FDN338P SOT 10310043000 Regulator,SP6641B,DC/DC,500 11600077000 10UH,C4-K1,8L,SMD 11310044000 Regulator,SPG2S1,500MA,LINE 10110229000 MINI USB,49PIN,SMD 11300481000 OV2610 48LCC 2M SEN 11300483000 IC 128M SDRAM 11300388000 K9F2808U0B TSOP PIN48 10190130000 TFT LCD 1.5” MODULE 10 10110232000 Conn.

  • Page 71: Tooling

    Service Manual G-Shot G511 9.Tooling Item Description Remark Oscilloscope (Tektronix TDS 3032) or higher Power Supply Screwdriver and Electrical Screwdriver Soldering Iron 1. Oscilloscope 2. Power Supply Version 1.0 Page 70...
  • Page 72 Service Manual G-Shot G511 3.Soldering Iron ,Screwdriver and Electrical Screwdriver Version 1.0 Page 71...
