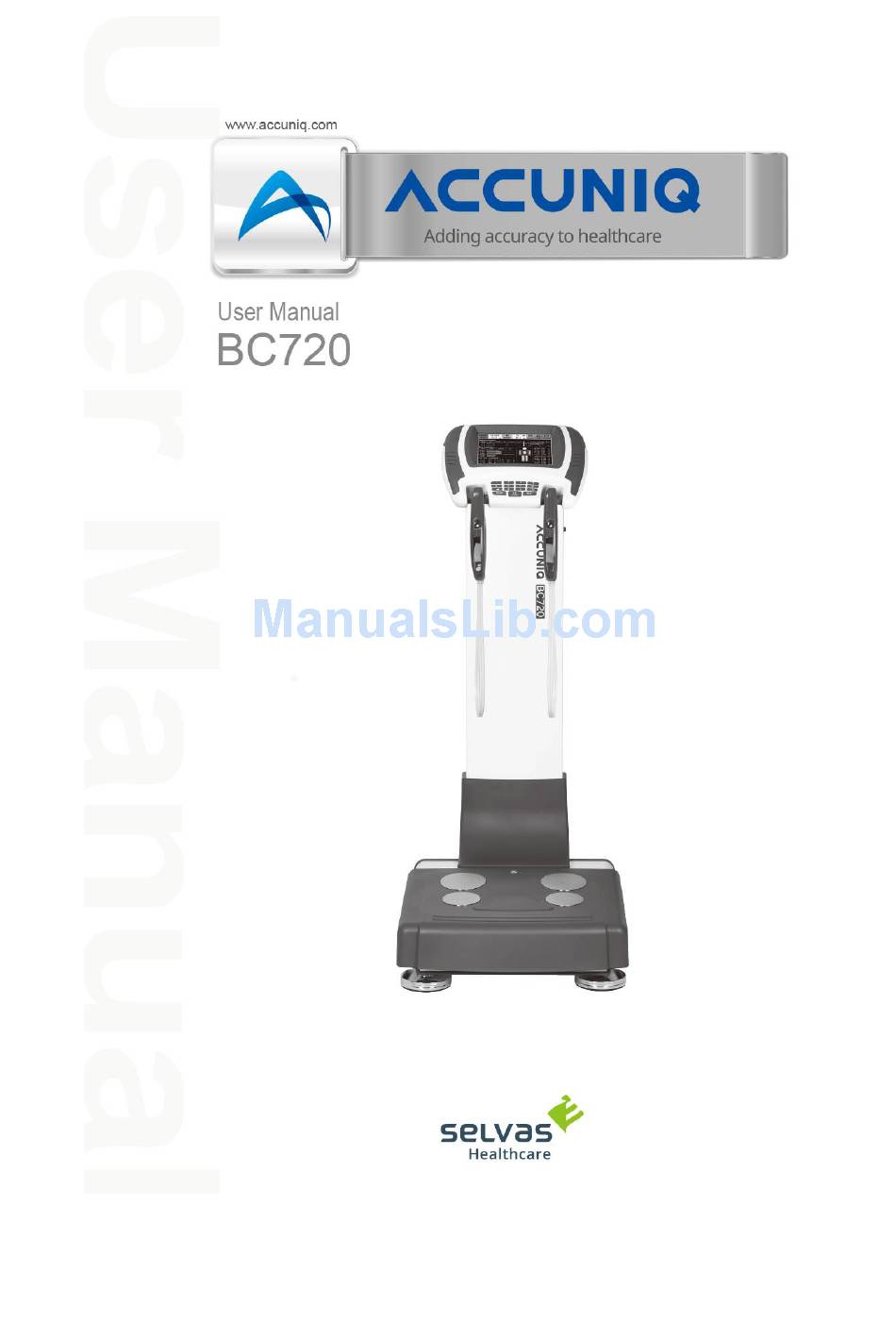

Accuniq BC720 User Manual

Body composition analyzer
Hide thumbs
Table of Contents

Advertisement

Quick Links

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the BC720 and is the answer not in the manual?

Questions and answers

Summary of Contents for Accuniq BC720

  • Page 2 The device bears the CE label in accordance with the provisions of Medical Device Directive 93/42/EEC. THE PERSONS RESPONSIBLE FOR PLACING DEVICES ON THE EC MARKET UNDER MDD 93/42/EEC SELVAS Healthcare, Inc. 29, Gongdan-4-ro, Jillyang-eup, Gyeongsan-si, Gyeongsangbuk-do, 38470 Republic of Korea TEL: 82-53-856-0993, FAX: 82-53-856-0995 VITAKO Sp.

  • Page 3: Table Of Contents

    CONTENTS INTRODUCTION ..........................5 1. INTENDED USE ........................5 2. WORD DEFINITIONS........................ 5 3. CLASSIFICATION AND COMPLIANCE..................6 4. SAFETY PRECAUTIONS......................6 5. SAFETY SYMBOLS AND INFORMATION................11 6. Guidance for Electromagnetic compatibility(EMC) ..............13 ABOUT BODY COMPOSITION ······················································································18 TERM AND FUNCTION OF EACH PART ·········································································20 1.
  • Page 4 2) Procedure using Height Meter ············································································· 50 3) Procedure using Blood Pressure Monitor ······························································ 51 STORAGE OF DATA USING USB MEMORY ··································································· 52 PRINTING ················································································································ 54 RESULT INTERPRETATION ························································································ 55 STORAGE & MAINTENANCE ······················································································ 61 ERROR & REPAIR ···································································································· 62 1.

  • Page 5: Introduction

    INTRODUCTION We highly appreciate that you chose our company’s product. You are kindly requested to be familiar with these directions before using this product and always keep it together with the product. In case you are not sure about any directions or problems arising while using the product, please contact our service center.

  • Page 6: Safety Precautions

    1) This device is classified as; - Class 1 type-BF against electric shock - Ordinary equipment without protection against ingress of water - Equipment not suitable for use in presence of a flammable anesthetic mixture by standard of EN 60601-1: 2006(Basic safety and essential performance of Medical Electrical Equipment) 2) This device is complied with Class A for Noise-Emission, Level B for Noise-immunity, by standard of IEC 60601-1-2:2007(Electromagnetic Compatibility Requirements).
  • Page 7 and contact our company or its authorized dealer for assistance. If you plan to connect any device from other manufacturers electrically or Caution mechanically to the unit, contact our company or its authorized dealer for instructions before doing so. When you connect computer or other system to the unit (RS-232C), the attached systems should be those certified by IEC 950 or equivalent standards for data processing equipment.
  • Page 8 Measurements may be impaired if this device is used near televisions, Caution microwave ovens, X-ray equipment or other devices with strong electrical fields. To prevent such interference, use the meter at a sufficient distance from such devices or turn them off. Do not disassemble or alter the device under any circumstances, as this Prohibition could result in electric shock or injury as well as adversely affect the...
  • Page 9 particular installation. If this equipment does cause harmful interference to other devices, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: - Reorient or relocate the receiving device.
  • Page 10 be shipped off from you to our company. Shipping and insurance costs for return of defective unit must be prepaid by the users. Measurements may be impaired if this device is used near televisions, Caution microwave ovens, X-ray equipment or other devices with strong electrical fields.

  • Page 11: Safety Symbols And Information

    5. SAFETY SYMBOLS AND INFORMATION The International Electro-technical Commission (IEC) has established a set of symbols for medical electrical equipment which classify a connection or warning of any potential hazard. The classifications and symbols are shown below. Save these instructions for your safety. Degree of protection against electric shock: TYPE BF Please observe operating instructions General warning sign...
  • Page 12 This symbol is used inside system. Identifies the point where the safety ground of the system is fastened to the chassis. Do not open. This is for factory only. Alternating current Direct current Date of manufacture Manufacturer Non-ionizing radiation CE mark Serial No.

  • Page 13: Guidance For Electromagnetic Compatibility(Emc)

    1) Guidance and manufacturer’s declaration – electromagnetic emissions The ACCUNIQ BC720 is intended for use in the electromagnetic environment specified below. The customer or the user of the ACCUNIQ BC720 should assure that it is used in such an environment.
  • Page 14 2) Guidance and manufacturer’s declaration – electromagnetic immunity The ACCUNIQ BC720 is intended for use in the electromagnetic environment specified below. The customer or the user of the ACCUNIQ BC720 should assure that it is used in such an environment.
  • Page 15 3) Guidance and manufacturer’s declaration – electromagnetic immunity 2 The ACCUNIQ BC720 is intended for use in the electromagnetic environment specified below. The customer or the user of the ACCUNIQ BC720 should assure that it is used in such an environment.
  • Page 16 RF transmitters, an electromagnetic site survey should be considered. If the measured field strength in the location in which the ACCUNIQ BC720 is used exceeds the applicable RF compliance level above, the ACCUNIQ BC720 should be observed to verify normal operation.
  • Page 17 The ACCUNIQ BC720 is intended for use in an electromagnetic environment in which radiated RF disturbances are controlled. The customer or the user of the ACCUNIQ BC720 can help prevent electromagnetic interference by maintaining a minimum distance between portable and...

  • Page 18: About Body Composition

    ABOUT BODY COMPOSITION 1. Body Composition Human body consists of body fat and lean body. Lean body means non-fat constituents of human body like body water, muscles, mineral, etc. Body water is divided into intra- and extra-cellular water and the ratio between them is controlled and maintained within a certain range.
  • Page 19 hypertension, and cardiovascular disease. Visceral fat generally occupies 10 ~ 20 % of body fat and visceral obesity is assessed based on the indicators below. - the cross sectional fat area between L4 ~ L5 is 100 cm and over - the visceral fat to subcutaneous fat ratio is 0.4 and over - the waist to hip ratio (W.H.R.) is over 0.9 (male) / 0.85 (female) - the circumference of waist is over 102 cm/45 inches (male) _ 88 cm / 35 inches (female)
  • Page 20 TERMS OF EACH PART AND FUNCTION 1. Main Parts The main system of ACCUNIQ BC720 consists of as follows. ① Main body ② User manual ③ Adapter ④ USB Cable ⑤ Data management program ⑥ Bolts ⑦ 5mm L-wrench ⑧ Body Cover ⑨...

  • Page 21: Options

    2. Options 1) Ankle electrodes AE-202 Convenience: can measure with one's socks or stockings on. ① Selectivity: can choose either plate electrodes or ankle electrodes. ② Hygienic: protects from mold or bacteria ③ High accuracy: analyzes more accurately for the person whose sole is corneous 2) Professional health counseling support software This program helps managing body composition easily and...
  • Page 22 5) Ultrasonic Height Meter SM103 It is an instrument to measure users' Height more accurately and quickly. It employs standoff determination method using ultrasonic sensor. It combines the technology of artificial intelligence and reflected characteristics of ultrasonic height meter. <Good point of using SM103 as an option> ①...

  • Page 23: Appearance Of The Device

    3. Appearance of the device The front and back of ACCUNIQ BC720 looks as below. It consists of ① Display / Operation Part, ② Body Part, ③ Base Part [Front Part] [Rear Part] Display ・ Operation Part Body Part Base Part...

  • Page 24: Term Of Each Parts And Its Function

    It also shows measuring process in messages and graphic display. ② Key pad There is a keypad in ACCUNIQ BC720. The function of each button is same as the touch screen. ③ Touch panel LCD (Liquid Crystal Display) panel as touch screen It is easy to input data.
  • Page 25 3) Base Part ① Scale: Measure weight. ④ ② Plate electrodes: The user should step them in ③ bare feet. ③ Horizontal level: A level to regulate horizontality of the analyzer. ④ Body cover: It covers the joint between the base and body parts.
  • Page 26 4) Rear Part ① ② ③ ④ ⑤ ⑥ ⑦ ① COMPUTER: A port to connect computer with USB Cable. ② EXTERNAL: Connecting the peripheral devices (Bluetooth, etc.). ③ PRINTER: A port to connect printer ④ BLOOD PRESSURE: A port to connect blood pressure monitor manufactured by SELVAS Healthcare, Inc.

  • Page 27: Installation

    INSTALLATION 1. Power Supply Connect the power cable to the 'ADAPTER INPUT' placed on the lower back panel of the device. Connect the cable. Turn on the power switch placed next to Power input, then after moment initial screen animation is displayed automatically. 1.

  • Page 28: Peripheral Device Installation

    2. Peripheral Device Installation 1) Connecting computer Connect the “COMPUTER” port placed on the rear panel of this device to the computer with USB cable. Or it can be connected through Bluetooth. Note 1. If use USB port, the cable should be connected to the computer port. 2.

  • Page 29: Connecting Blood Pressure Monitor

    1. In order to save, search and retrieve the users’ data, the user should Note connect the analyzer to the computer installed data management software offered free. Printing is done through computer in this case. 2. The professional consulting software optionally provides various printouts. In case of using the software, the pre-printed result sheet is not used.
  • Page 30 4) Ultrasonic Height meter SM103 For assembly, push the lower board of the ultrasonic height meter into the bottom back of ACCUNIQ BC720. Fix the left and right parts firmly using hinge and screw. Connect RS 232 cable to the 'HEIGHT ' port placed on the rear...

  • Page 31: System Setup

    SYSTEM SET UP ‘SYSTEM SETUP' allows the users to change the setting of operational parameters. Note For the purpose of improvement, the contents in SYSTEM SETUP can be changed. 1. Entering ‘SYSTEM SETUP’ On the initial display, press ‘ ’ button on LCD for 3~5 second to enter System Set up. 2.

  • Page 32: How To Move Into 'System Setup

    4. How to escape from ‘SYSTEM SETUP’ Press 「CLOSE」button on 'SYSTEM SETUP' phase, then back to initial view of the analyzer. 5. How to move into ‘SYSTEM SETUP’ Press「CLOSE」button on the menu view, then program is returned to 'SYSTEM SETUP' phase.

  • Page 33: Setup

    6. Set Up < DATE / TIME > It sets date and time (year, month, day, hour, and minute). - Select (DATE / TIME) on SYSTEM SETUP screen and press SET button on touch pad. - Pre-set: The date of the device released from the manufacturer's factory.
  • Page 34 < PRINT > It selects the printing mode of the A4 printer. - Select (PRINT) on SYSTEM SETUP screen and press ‘SET’ button on touch pad. - Pre-set: AUTO - Choose one button on touch pad. - Press ‘SET’ button on touch pad to save it. - Return to SYSTEM SETUP screen by pressing ‘CLOSE’...
  • Page 35 < CLOTHES > It is to subtract the weight of clothes worn by the subjects from measured weight. Calculated value from this setting is used in body composition analysis as subject’s weight. - Select (CLOTHES) on SYSTEM SETUP screen and press ‘SET’ on touch pad. - Pre-set: 0.0 kg - Range: 0.0 ~ - 9.9 kg - Set the value by pressing ‘▼, ▲’...
  • Page 36 < DATE TYPE > This is to set the format of the date. - Select (DATE TYPE) on SYSTEM SETUP screen and press ‘SET’ button on touch pad. - Pre-set: YY-MM-DD - Choose the format on touch pad. - Press ‘SET’ button on touch pad to save it. - Return to SYSTEM SETUP screen by pressing ‘CLOSE’...
  • Page 37 < ID usage > ID USAGE can be turned off or on. - Select (ID usage) on SYSTEM SETUP screen and press ‘SET’ on touch pad. - Preset: NO, FLASH MEMORY - ID USAGE: Choose ID USAGE on touch pad. Choose YES or NO on touch pad.
  • Page 38 <CHILD/ADULT/AUTO> It selects the print format of result sheet. Choose ‘ ’ and on the initial screen of ‘SYSTEM SETUP’ to enter the menu. - Pre-set: AUTO - Select a print format with the touch pad. - Press ‘SET’ button on touch pad to save it. - Return to SYSTEM SETUP screen by pressing ‘CLOSE’...
  • Page 39 <SEGMENTAL RESULT SHEET> Segmental result sheet (option) can be selected. - Pre-set: YES - Select ‘ ’ to enter the menu. - Select ‘YES’ or ‘NO’. - Press ‘SET’ to save the setting and press ‘CLOSE’ to return to main ‘SYSTEM SETUP’ screen. - In case of choosing ‘YES’, two result sheets for Body composition analysis and Segmental analysis are printed together and in case of choosing ‘NO’, only...

  • Page 40: Initial Screen Setting

    INITIAL SCREEN SETTING Once turning on the device, you can see the screen same as right picture. 1. ID search Press ‘ ’ button on the initial screen. Enter a 20-digit ID with alphabets and numbers mixed and press ‘ ’...

  • Page 41: Precautions For Measurement

    MEASURING AND ANALYZING 1. Precaution for measurement The reliability of the results can be assessed by its accuracy. The "Accuracy" of the device is determined by comparing the actual body composition and the results from Body Composition Analyzer. The "Reproducibility" is determined when the device gives the identical results under the same conditions.
  • Page 42 In order to keep one's health and the balance of body composition, check the changes of body composition through continuous analysis and compare the results. Make sure that the body composition should are measured under the same physical and environmental conditions. If the condition before the measurement such as volume of a meal, meal time, and activities (exercise, sauna, drinking lots of beverage, urination, etc.) are kept same, the reproducibility of a device is obtained.
  • Page 43 - Grip handle electrodes with fingers and palms. - 4 electrodes should be touched impartially. - Stretch both arms and spread them 30° from the body. (O) correct grip (x) grip with only palm (x) imbalanced touch Note If 8 electrodes are not perfectly touched during the measurement, the result is not reliable or the device quits the measurement.

  • Page 44: Correct Posture

    2) Measurement Posture - Step on the scale with bare feet. Stretch both arms and spread them 30° from the body. - Press start buttons with thumbs for 2 ~ 3 seconds to start the measurement. Once it starts, release the start button and hold the same posture until the measurement is over. - Do not speak or move the body until the measurement is completed.
  • Page 45 3. Measurements Procedure When the power is turned on, the measurement starts. 1) Basic Procedure There are two ways to measure impedance; Plate electrode or Ankle electrode. Either one can be selected at the SYSTEM SETTING. ① Measure weight - When the power is on, the initial screen appears as shown in the picture.
  • Page 46 ③ Input Height - The following message and voice guidance appears as follows. "Input your Height" - The user enters height on the touch panel. - ' • ' button on touch panel for decimal point numbers. If want to re-input height, the first written value is first removed. Note ex) when 154 is input, 154 cm appears on LCD.
  • Page 47 ⑥ Start measurement After inputting the subject’s personal data, the screen changes as shown in the picture. - Fit feet on plate electrodes accurately. When an ankle electrode is used, Note - Check whether the ankle electrode is selected in the SYSTEM SETUP mode.
  • Page 48 ⑨ Finish measurement and Result As the measurement completed, the message and voice guidance informs the user. ⑩ Scanning QR code - Press the ‘QR code’ on the device screen to enlarge the icon and scan the ‘QR code’ with a mobile device to save the data in the server.

  • Page 49: Measuring Procedure

    2) Using Ultrasonic Height Meter An Ultrasonic Height Meter is an optional part. When height meter is connected to ACCUNIQ BC720, it measures the user’s height in accurate way. [Measuring procedure] ① Connect ACCUNIQ BC720 to ultrasonic Height Meter. ② Turn on the device and height meter. After the voice guidance, “To start measuring weight”, step on the scale.

  • Page 50: Procedure Using Blood Pressure Monitor

    3) Procedure using Blood Pressure Monitor When ACCUNIQ BC720 is connected to Blood Pressure Monitor. both blood pressure and body composition can be measured. Blood Pressure Monitor should be selected from one of the models from SELVAS Healthcare, Inc. In this way, the blood pressure can be monitored together with weight control. It helps to manage the body fat while checking the blood pressure simultaneously.

  • Page 51: Storage Of Data Using Usb Memory

    STORAGE OF DATA USING USB MEMORY 1. Storage of data 1) On selecting FLASH MEMORY ① Insert USB memory stick into USB(A) jack placed on the back side of the device. ② The following message appears. ‘Do you want to write data to USB memory stick?’ on initial screen. Press ‘YES’ to send data to USB memory.
  • Page 52 1. USB memory should be inserted only at the initial screen. Note 2. When there’s no data saved in FLASH MEMORY, the message “No saved data.” will appear. Please insert USB memory after measuring body composition. 3. When the saving format is changed from USB MEMORY to FLASH MEMORY, the data saved in USB MEMORY should be transferred to PC.

  • Page 53: Printing

    Beside the results displayed in LCD, more information can be printed out in the A4 result sheet. The printing procedure using A4 printer is as followings. ① Connect ACCUNIQ BC720 to A4 printer. ② Connect X-SCAN PLUS 970 to a computer in which the basic management program is installed.

  • Page 54: Result Interpretation

    RESULT INTERPRETATION ACCUNIQ BC720 indicates the synthetic analysis including edema assessment, prediction of abdominal fatness, segmental analysis, etc. Explanation of each item is as follows. 1. Personal Data The subject's ID / name, date, height, weight, age and gender are indicated on the result sheet.
  • Page 55 ① Weight: Subject’s body weight Std. wt. (Standard weight): height (m) X 22(BMI) ② L.B.M. (Lean Body Mass): It is calculated by subtracting mass of body fat from body weight. Lean body mass consists of fat free mass of body such as muscle, organs, blood and water. ③...
  • Page 56 Body Status Body Status is displayed in a bar graph as shown in the picture. It is very convenient in recognizing what to do; Increase muscle, Decrease fat, Keep current status, etc. 1) Percent of Body Fat [%]: for Adults low fat normal overweight...
  • Page 57 1) W.H.R. (Waist to Hip Ratio) W.H.R. is calculated by dividing waist girth by hip girth. When W.H.R. is below 0.9 (male) / 0.85 (female), the risk of visceral obesity is low. 2) Visceral Fat Level: The degree of visceral obesity is displayed in a level. ▪...
  • Page 58 Body Type Body type is determined by B.M.I and P.B.F. Body type is classified into Low fat / Low fat Muscular / Over Weight Muscular / Athletic / Thin / Ⅰ Ⅱ Standard / Over Weight / Borderline / Low Muscular / Over-fat / Thin Fat / Obese / Obese / Ⅲ...
  • Page 59 Study Impedance It indicates the segmental impedance of five body parts (left and right arms, left and right legs, and trunk) corresponding to each frequency (1~ 1000 kHz). Blood Pressure When the blood pressure monitor supplied from SELVAS Healthcare, Inc. is connected to the device, blood pressure can be measured and the result can be printed out.

  • Page 60: Storage & Maintenance

    STORAGE & MAINTENANCE 1) Pay attention to the allowable value of electric current. 2) Avoid direct sunlight, humidity, dust, thick oil and salty environment or extreme changes in temperature. 3) Do not install or store the device in a place where any chemicals or gas are stored. 4) Do not use the device in any unstable, vibrating, or impact-giving area.

  • Page 61: Error & Repair

    ERROR & REPAIR ERROR & REPAIR 1. Kinds of error & repair Error Cause Repair • Clean the measuring parts (the electrodes, When the subject’s body palms, and soles) and try again. impedance deviates from the limit • Measure again with correct posture. Out of range - Insufficient touch to electrodes •...
  • Page 62 When the subject’s height is Can’t input • Input height correctly. If the subject’s height deviated from the limit the height is out of range, height can't be entered. - Incorrect input of height • Measure the weight again. Don't move or speak during measurement.

  • Page 63: Error Occurrence & Repair

    Error occurrence & Repair Error Cause Repair • Measuring method. • Measure again in stable physique. Measuring is done under • If there is movement or speaking during unstable hydration state measurement, the weight and impedance are such just after not correct.

  • Page 64: After Service

    AFTER SERVICE 1. AFTER SERVICE If there is any problem with the unit, please follow the steps below; ※ Contact our company’s Overseas Service Department immediately. After gathering the model name, Serial Number, date of purchase and description of the problem, contact our company with information shown below.

  • Page 65: Specification

    SPECIFICATION Model ACCUNIQ BC720 Measuring method BIA via tetra-polar electrode method using 8~12 touch electrodes Range of frequency 1, 5, 50, 250, 550,1000 kHz Measuring site Whole body and segmental measurement(arms, legs and trunk) [Result for Body Composition Analysis] Result contents...
  • Page 66 Measuring time Totally within 1 minute Applicable height 50 ~ 220 cm / 1ft 7.7in ~ 7ft 2.6in Measuring weight 10 ~ 270 kg / 22lb ~ 594lb Applicable age 1 ~ 99 years old Operation ambient Ambient temperature range +5 to +40 °C Relative humidity range 15 to 93 % (non condensing) Storage ambient Ambient temperature range -25 to +70 °C...

  • Page 67: Warranty

    WARRANTY Name of product Body composition analyzer Name of model ACCUNIQ BC720 Serial number Period of warranty / Date of purchase Within 1 year from the date of purchase Customer Name Dealer (market) Name Note - When you receive this warranty, make sure that the name of the dealer and the month, day and year of purchase are all completed.

  • Page 68: Instructions For Assembly

    INSTRUCTIONS FOR ASSEMBLY 1. How to install a device To ensure the operator's security, please work in team of minimum two people during installation, packing and transport. (1) Components 5mm 6angles wrench M8 bolt Body cover Main unit Adapter and Power cable (2) Unpacking ①...
  • Page 69 ③ After opening the Carton Box, f old the box cover outwardly not give contact to the air pack for protecting products. Take out the protection air pack and check its components inside. Air pack (3) Installation ① More than two workers hold the device, and lift it up. Take the device out of t he Carton Box.
  • Page 70 ③ While one person is holding the column, remove the plastic package from the Body and scale. ④ After connecting the scale harness and the scale PCB, stand the body up. One person screws 2pcs of M8 bolts in the left and right side of the body using 5mm L wrench while the other holds the body as shown in the picture.
  • Page 71 (4) Assembling the body cover ① Push the body cover in the arrow direction shown in the picture below and adhere to the scales packing. How to adhere Body cover Completely adhered Scale packing...
  • Page 72 (5) Adjust the level & Turn on the power Check the level of the device. If it is not at level, adjust the level using the four wheels. After adjusting the level, connect the provided adapter and power cable and turn on the device.

  • Page 73: Assembling An Bluetooth (Option)

    2. Assembling an Bluetooth (option) Connect the provided Bluetooth to the BLUETOOTH port on the back side of the device. Users can check and manage the result data on the exclusive mobile device app via Bluetooth connection. ① Components for Bluetooth Bracket Bluetooth Union of bracket...
  • Page 74 ③ Connect the antenna to the Bluetooth. Connect the main body connecting cable to the reverse side of the antenna and fix the cable by screwing the bolts in with a (-) driver. ④ Connect the unconnected side of the cable to ‘ EXTERNAL PORT’...
  • Page 75 ⑤ Fix the Bluetooth to the back side of the main body with the provided bracket using a (+) driver. The installation is completed by turning on the device. Joint of bracket...

  • Page 76: Assembling A Height Meter (Option)

    3. Assembling an ultrasonic height meter (option) When installing, packing and transporting, please work in teams of minimum 2 people to ensure safe operation. Components for installing an ultrasonic height meter 6angles wrench Lower board Top harness of UHM Lower-body Upper-body wrench 4ea of M6X12...
  • Page 77 ② A person grasps the lower body not to be shaken and the other unscrews two fixing bolts from the back cover on the upper body using a (+) driver and separate it. ③ A person grasps the lower body not to be shaken and the other lifts up the back cover on the upper body and separate it.
  • Page 78 ④ Fix the M6X12 wrench bolt to the groove on the bottom side of the lower body of the height 6angles wrench. using the 5mm TOP VIEW Lower body Adjust bolt Adjust bolt ⑤ While a person takes the top harness of UHM out to the inside of the lower board, the other puts a upper body supporter into two halls on the top of lower body as shown in the picture.
  • Page 79 ⑥ Connect one side of the connector of the RS0232C cable which is separately packed apart from the harness of UHM to the port attached to the inside of the lower board of the height meter. (The connector on the other side of the RS-232C cable will be connected with the BCA.) ⑦...
  • Page 80 ⑧ Set the level of the horizontal meter by spinning 4pcs of horizontal adjusting bolts. (Two horizontal adjusting bolts are attached in the bottom of the lower board of UHM and the other two are attached in the reinforcing board of UHM.) Horizontal bolt Water Drop Normal...
  • Page 81 ⑩ Connect the RS-232C Cable to “HEIGHT” port on the backside of the device as shown in the picture and then connect the adapter. After connecting cables, turn on the main body and UHM. BACK COVER ⑪ If a height is less than 120cm, measure the height after putting a reflector down on the LCD of UHM as shown in the picture.
  • Page 82 (3) Connecting Height meter + Bluetooth ① Unscrew the fixing bolts on the upper cover of the backside of the height meter and lift up the lower cover to the arrow direction using a (+) driver and separate the cover. Connect the Bluetooth which connected with a cable to the ‘EXTERNAL' port on the back side of the device and switch on the Bluetooth.
  • Page 83 ③ Check the location of the bracket hole and stick to the Bluetooth and fix it on the backside of the height meter as shown in the picture. Joint of bracket...

  • Page 84: Assembling An Ankle Electrode (Option)

    4. Assembling an ankle electrode (option) When installing, packing and transporting, please work in teams of minimum 2 people to ensure safe operation. (1) Components for installing an ankle electrode M4 bolt M12 bolt 10mm 6angles wrench Flat Washer Flat Washer Ankle electrode Top cover...
  • Page 85 ② Detach the top cover from the scale by using a (-) driver. ③ Check the RS-232C port of the weight scale and ankle electrode. Ankle electrode RS-232C port ④ Connect the RS-232C port of the ankle electrode to the weight scale as shown in the picture.
  • Page 86 ⑤ Grip the ankle electrode with one hand and fix it on the scale firmly by using M12 bolt- 10mm 6 angle wrench and M4 bolt-3mm 6 angle wrench. M12 bolt M4 bolt ⑥ After that, try shaking the ankle electrode to check if the fixation is good or not. (X) Bad (O) Good...
  • Page 87 ⑦ Remove the protective vinyl and double-faced sticker inside of the top cover. ⑧ Attached the top cover on the ankle electrode to the arrow direction in the picture.
  • Page 88 ⑨ Power on After finishing the installation, connect the adapter and power cable and turn on the device. If you press the power saving button on the right side of the column as shown in the picture, it turns to power saving mode. Power saving button Power on...
  • Page 89 Screen display upon Pass/Fail power-on 2 Display No abnormality and Pass/Fail flickering 3 Printing printing possible Pass/Fail 4 Measurement Proper measurement Pass/Fail General Judgment Pass/Fail Model ACCUNIQ BC720 Serial No. Installation place Date of purchase Check date Checked by Approved by...
  • Page 90 2 Display Pass/Fail flickering 3 Printing Waveform printing possible Pass/Fail 4 Measurement Proper measurement Pass/Fail Other 1 Clock Present date/time Pass/Fail General Judgment Pass/Fail Model ACCUNIQ BC720 Serial No. Installation place Date of purchase Check date Checked by Approved by...
  • Page 91 EUROPEAN REPRESENTATIVE VITAKO Sp. z o.o. ul. Stanisława Żaryna 7c 02-593 Warszawa, POLAND TEL: +48 22 400 8000 BC720E-20161124 Rev1.1...
