• This set can be disassembled in the order shown below.

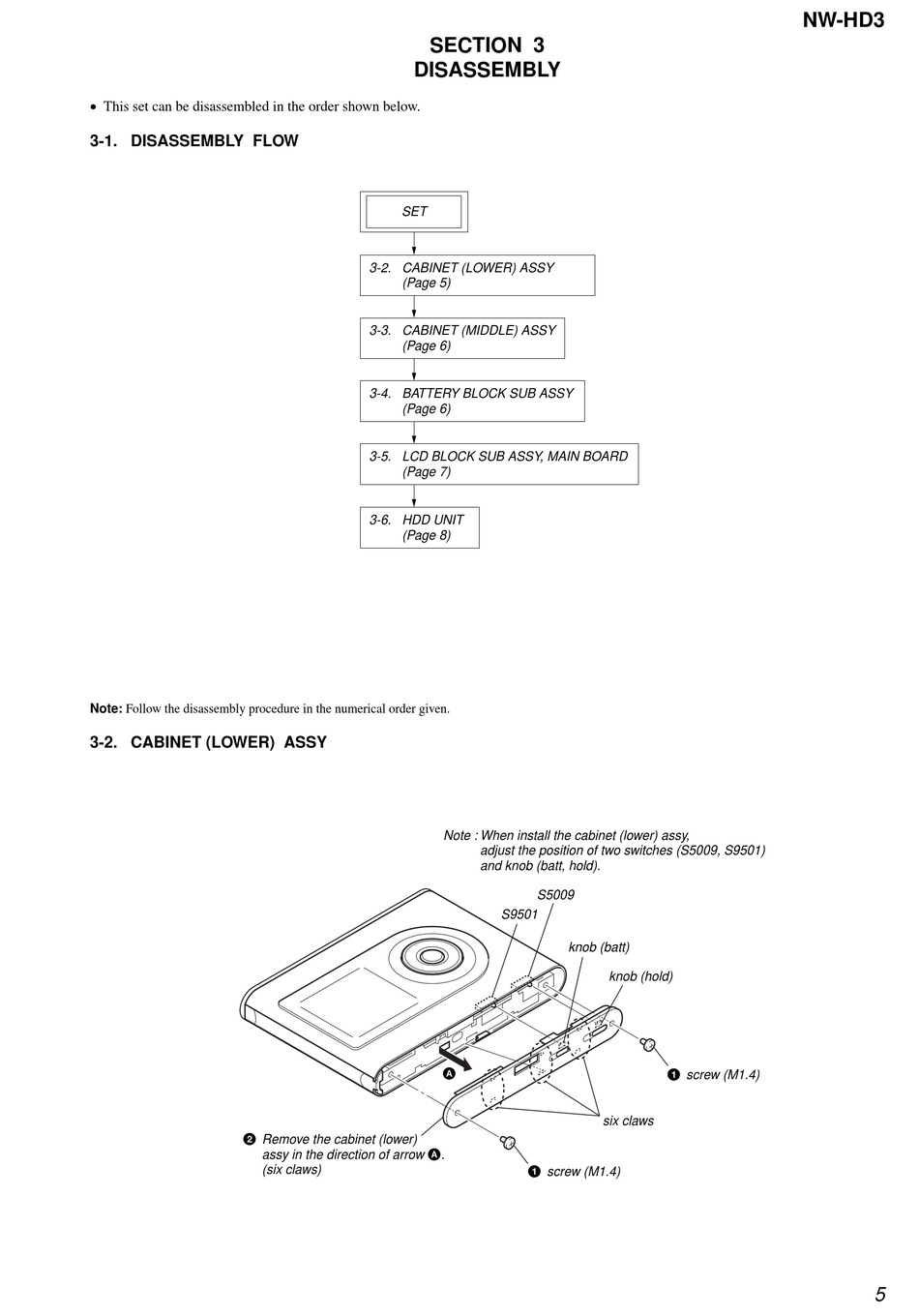

3-1. DISASSEMBLY FLOW

Note: Follow the disassembly procedure in the numerical order given.

3-2. CABINET (LOWER) ASSY

2 Remove the cabinet (lower)
assy in the direction of arrow A .
(six claws)
SECTION 3

DISASSEMBLY

SET
3-2. CABINET (LOWER) ASSY
(Page 5)
3-3. CABINET (MIDDLE) ASSY
(Page 6)
3-4. BATTERY BLOCK SUB ASSY
(Page 6)
3-5. LCD BLOCK SUB ASSY, MAIN BOARD
(Page 7)
3-6. HDD UNIT
(Page 8)
Note : When install the cabinet (lower) assy,
adjust the position of two switches (S5009, S9501)
and knob (batt, hold).
S5009
S9501
A
1 screw (M1.4)
knob (batt)
knob (hold)
1 screw (M1.4)
six claws
NW-HD3
5
