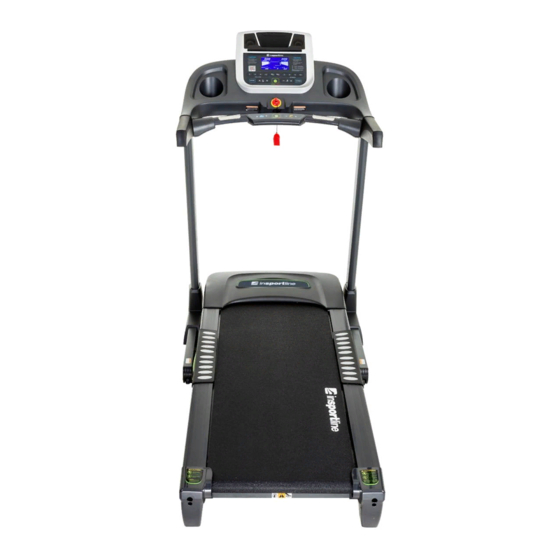

IN 13146 Motorized treadmill inSPORTline inCondiT50i

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the inCondiT50i and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Insportline inCondiT50i

Summary of Contents for Insportline inCondiT50i

  • Page 1 USER MANUAL – EN IN 13146 Motorized treadmill inSPORTline inCondiT50i...

  • Page 2: Table Of Contents

    CONTENTS SAFETY INFORMATION ........................3 IMPORTANT OPERATION INSTRUCTIONS ..................4 EXPLODED DRAWING ........................... 5 PARTS LIST ............................6 ASSEMBLY ............................10 CARTON CONTENTS ........................10 HARDWARE PACKAGE ........................10 ASSEMBLY INSTRUCTION ......................11 FOLDING INSTRUCTIONS ........................14 HOW TO MOVE THE MACHINE ......................15 IMPORTANT ELECTRIC INFORMATION ....................

  • Page 3: Safety Information

    Special tips: 1. Before installation and operation, please read this operation manual carefully. 2. Please save this manual for future reference. 3. Product may vary slightly from the item pictured due to model upgrades. SAFETY INFORMATION We thank you for choosing our product. To ensure your safety and health, please use this equipment correctly.

  • Page 4: Important Operation Instructions

    IMPORTANT OPERATION INSTRUCTIONS 1. Insert the power plug into the socket directly. 2. The constant running time for this machine is less than 2 hours. Be sure to read the manual entirely before operating the equipment. 3. Changes in speed do not occur immediately. Set your desired speed using the adjustment key on the computer console.

  • Page 5: Exploded Drawing

    EXPLODED DRAWING...

  • Page 6: Parts List

    PARTS LIST Description Specification Base frame Main frame Incline bracket Console bracket Left upright tube Right upright tube Motor bracket Front roller Back roller Air pressure cylinder Hand pulse sheet iron 1 Hand pulse sheet iron 2 Transport wheel cover Spring sheet Left speaker net Right speaker net...
  • Page 7 Running belt Air cushion Side rail anti-slip pad Black cushion Blue cushion Blue cushion Transport wheel Oval inner plug Motor belt Cone-shape cushion Flat foot pad Adjustable wheel Wire protector Plastic pad Safety key bracket Safety key Transport wheel plug Motor top cover acrylic Handle bar decoration ring Handle bar left cover...
  • Page 8 Power socket Magnetic ring Magnetic core Power wire Safety key wire 45 0mm Grounding wire 350 mm AC single wire 350 mm AC single wire 350 mm Single wire 500 mm Single wire 1 350 mm Single wire 2 350 mm Filter Inductor Amplifier wire...
  • Page 9 Bolt M5*16 Bolt M5*8 Screw ST4.2*30 Screw ST4.2*30 Screw ST4.2*12 Screw ST4.2*15 Screw ST4.2*12 Washer Washer Washer Washer Flat washer C φ10*φ26*2.0 Flat washer C Screw ST2.9*8 Screw ST3.5*10 Bolt M5*12 Screw ST2.9*4 Button board Lubricant Oil...

  • Page 10: Assembly

    ASSEMBLY CARTON CONTENTS HARDWARE PACKAGE Description Specification Main Frame Console base Allen wrench 5 mm Wrench with Screw Driver S=13, 14, 15 Safety key Left upright tube cover Right upright tube cover Bolt M8*50 Bolt M8*15 Lock washer Power wire MP3 connecting wire Lubricant oil ASSEMBLY TOOLS...

  • Page 11: Assembly Instruction

    ASSEMBLY INSTRUCTION STEP 1: Open the carton and remove all contents. Place the main frame (A02) on level ground and ensure that you have a clean and adequate work space. NOTE: For safety reasons, do NOT cut the packing belt (F) until you’ve completed the assembly. STEP 2: Lift up the left upright tubes (A05) upwards.
  • Page 12 STEP 3: Insert the left upright tube cover (C08) into the bottom of the left upright tube (A05). Push down to fasten the left upright tube cover (C08) to the base frame (A01). Repeat the step above to attach the right upright tube cover (C09) to the base frame (A01). STEP 4 (*PLEASE SEEK ASSISTANCE FOR THIS STEP): Connect the top signal wire (D04) to the middle signal wire (D05).
  • Page 13 STEP 5: Cut the packing belt (F). STEP 6: Insert the safety key (C31) into the magnet area of the console (E). The assembly is now complete.

  • Page 14: Folding Instructions

    FOLDING INSTRUCTIONS FOLDING THE TREADMILL Place your hand at the end of the running deck (position A) and lift up the main frame (A02) until the air pressure cylinder (B03) locks (position B). NOTE: You will hear a click when the air pressure cylinder (B03) is successfully locked in.

  • Page 15: How To Move The Machine

    HOW TO MOVE THE MACHINE Before attempting to move the treadmill, please make sure the treadmill has been properly folded and the power cord has been removed from the outlet. Start by placing one hand at position A to support the top end of the treadmill. Next, place one foot at position B to hold steady the bottom end of the treadmill.

  • Page 16: Operating The Console

    CAUTION Improper connection of the equipment can result in risk of electric shock. Check with a qualified electrician or serviceman if you are unsure whether the product has been properly grounded. Do not modify the plug provided with this product. If it will not fit the outlet, have a proper outlet installed by a qualified electrician.

  • Page 17: Function Keys

    The heart rate frequency monitoring system isn’t always accurate. Overexertion of organism during training can lead to a serious injury or death. If you start to feel faint, stop the exercise immediately! DISTANCE: Displays the distance from 0.0 - 99.99 km. When the count reaches 99.99, it will reset and begin counting again from 0.0.
  • Page 18 : A quick press of this button will return to the previous song (*Available only through USB connection). Press and hold this button to reduce the volume of music (*Available for both MP3 and USB connection). : A quick press of this button will skip to the next song (*Available only through USB connection). Press and hold this button to increase the volume of music (*Available for both MP3 and USB connection).

  • Page 19: Programs

    PROGRAMS QUICK START 1. Insert the magnet end of the safety key into the computer console. 2. Press the START button, a buzzer will sound and the system will automatically display a 3 second countdown. When the countdown reaches zero, the running belt will start. The initial speed will be 1.0 km/h (the default running speed).
  • Page 20 BUILT-IN PROGRAMS Press the PROGRAM button, and the distance window will display P1 - P24, which are preset programs. Select the desired program, and the time window should display the setting time at 10:00 mins. Press the +/– buttons to set the desired exercise time. Press the START button to start the program.
  • Page 21 INCLINE SPEED INCLINE SPEED INCLINE SPEED INCLINE SPEED INCLINE SPEED INCLINE SPEED INCLINE SPEED INCLINE HEART RATE CONTROL PROGRAM (THIS FUNCTION IS OPTIONAL) HRC PARAMETER FORM (ONLY FOR REFERENCE) DEFAULT DEFAULT DEFAULT...
  • Page 22 * L-H: Min to Max heart rate available adjustment range. 1. Press the HRC button under standby mode. You can choose heart rate control from HP1 to HP2. HP1: The max speed will be 10.0 km/h and the default heart rate is 120 bpm. HP2: The max speed will be 12.0 km/h and the default heart rate is 130 bpm.
  • Page 23 PROGRAMMED WROKOUTS (U1 – U3) Each program will divide into 10 sections of exercise time. Each time section will adjust speed accordingly depending on the speed determined within the program. USER SETTINGS Press the PROGRAM button to cycle through the programs until you reach U1-U2-U3. User settings programs (U1 - U3) are programs that allow you to manually preset each of the 10 exercise sections in order to tailor your personal workout regime.

  • Page 24: Exercise Instructions

    44 – 330 lbs. Weight ≤ 19 Underweight = (20 - 25) Normal Weight = (26 - 29) Overweight ≥ 30 Obesity EXERCISE INSTRUCTIONS GETTING STARTED Before starting any exercise program, you should consult your physician to determine if you have any medical or physical conditions that could put your health and safety at risk, or prevent you from using the equipment properly.

  • Page 25: Adjusting The Running Belt

    ADJUSTING THE RUNNING BELT Place the treadmill on level ground and set it at 3.5 – 5 km/h to check and see if the running belt (20) drifts from the center. If the running belt (20) drifts to the right, turn the adjusting bolt on the right side ¼...

  • Page 26: Trouleshooting

    NOTE:  To better maintain the treadmill and prolong its life, it is suggested that the machine be powered off for 10 minutes every 2 hours and fully powered off whenever not in use.  A loose running belt will result in the runner sliding off when in use while too tight of a running belt will result in decrease to the motors performance and also create more friction between the roller and running belts.
  • Page 27 Check that the sensor wire is properly connected and replace Speed sensor signal cannot be the wire if damaged. Check to E03: No speed sensor signal received by the control board. see if the magnetic sensor is damaged replace necessary. The incline motor is damaged OR Reconnect or replace the wire the wire for the incline motor is...

  • Page 28: Terms And Conditions Of Warranty, Warranty Claims

    TERMS AND CONDITIONS OF WARRANTY, WARRANTY CLAIMS General Conditions of Warranty and Definition of Terms All Warranty Conditions stated hereunder determine Warranty Coverage and Warranty Claim Procedure. Conditions of Warranty and Warranty Claims are governed by Act No. 40/1964 Coll. Civil Code, Act No.
  • Page 29 VAT ID: CZ26847264 Phone: +420 556 300 970 E-mail: eshop@insportline.cz reklamace@insportline.cz servis@insportline.cz Web: www.insportline.cz INSPORTLINE s.r.o. Headquarters, Warranty & Service centre: Elektricna 6471, 911 01 Trencin, Slovakia CRN: 36311723 VAT ID: SK2020177082 Phone: +421(0)326 526 701 E-mail: objednavky@insportline.sk reklamacie@insportline.sk servis@insportline.sk Web: www.insportline.sk...
