MPE SC2000 Instruction Manual

Station controller
Hide thumbs Also See for SC2000:
Table of Contents

Advertisement

Quick Links

INSTRUCTION MANUAL
INSTRUCTION MANUAL
INSTRUCTION MANUAL
INSTRUCTION MANUAL
M M M M
P P P P
OTOR
OTOR
OTOR
OTOR
2464 Vulcan Road
Apopka, Florida 32703
Operating Program Revision: 11
Order from:
C A Briggs
Phone: 267-673-8117 - 800-352-6265 - Fax: 267-673-8118; E-Mail:
SC2000
SC2000
SC2000
SC2000
ROTECTION
ROTECTION
ROTECTION
ROTECTION
Company;
622 Mary Street; Suite 101 - Warminster, PA 18974
E E E E
LECTRONICS, INC.
LECTRONICS, INC.
LECTRONICS, INC.
LECTRONICS, INC.
Phone:
(407) 299-3825
Website:
www.mpelectronics.com
Revision Date: 4-17-14
Sales@cabriggs.com
-
www.cabriggs.com

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the SC2000 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for MPE SC2000

Summary of Contents for MPE SC2000

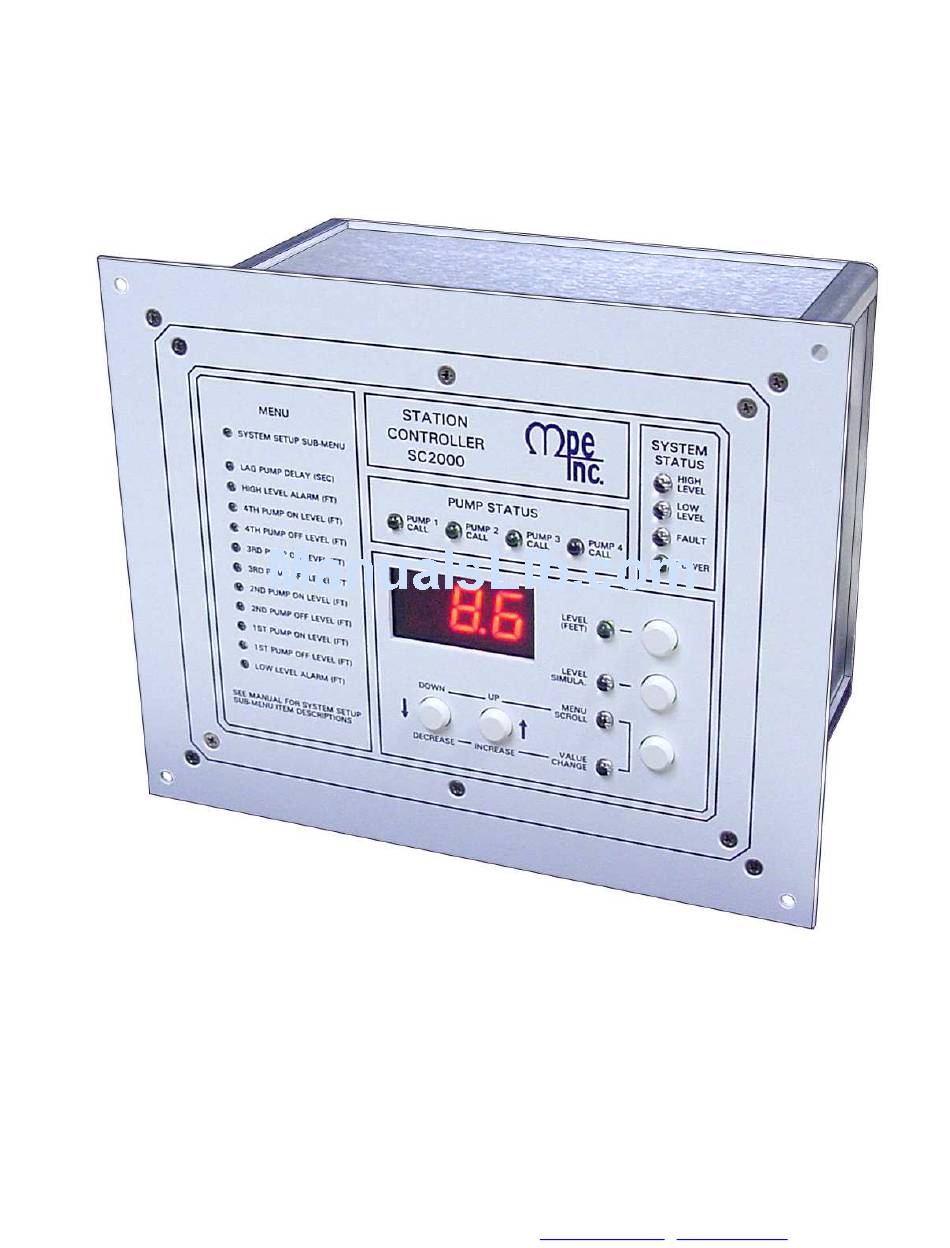

  • Page 1 SC2000 SC2000 SC2000 SC2000 INSTRUCTION MANUAL INSTRUCTION MANUAL INSTRUCTION MANUAL INSTRUCTION MANUAL M M M M P P P P E E E E OTOR OTOR OTOR OTOR ROTECTION ROTECTION ROTECTION ROTECTION LECTRONICS, INC. LECTRONICS, INC. LECTRONICS, INC. LECTRONICS, INC.

  • Page 2: Specifications

    - Limit number of pumps called while on emergency power - Alternation by External Time Clock Part Number: SC2000 - X X X X - Freeze wet well level during a bubbler tube purge - Call pump last - Float switch backup...
  • Page 3 OPERATOR INTERFACE FUNCTIONS On when Display Shows the Wet Well Level Press to Display Wet Well Level On when in Level Simulation Mode Press to Enter the Level Simulation Mode On when in Menu Scroll Mode Press to Change Function of the Up/Down Push-Buttons On when in Value Change Mode Press to Scroll Up the Menu, or to...

  • Page 4: Menu - System Setup

    MENU - SYSTEM SETUP All Level Settings Have the Decimal Point Artificially Inserted Based on Parameter P.36. Default Current Parameter Value Value Setting Definitions Low Level Alarm Range: 0.1 - 99.9 feet SCADA Register 40021 2.0 feet Note: To Disable Alarm see Parameter P.50. 3.0 feet 1st Pump Off Level Range: 0.2 - 99.9 feet...
  • Page 5 MENU - SYSTEM SETUP All Level Settings Have the Decimal Point Artificially Inserted Based on Parameter P.36. Default Current Parameter Value Value Setting Definitions Level Input Calibration - Span Range: 0.9 - 99.9 feet See Page 20. Notes: 1. 20mA is Typically Applied to the Analog Input while Setting the Span. P.24 11.5 feet 2.
  • Page 6 MENU - SYSTEM SETUP All Level Settings Have the Decimal Point Artificially Inserted Based on Parameter P.36. Default Current Parameter Value Value Setting Definitions Discrete Input 1 F.01 Function Function of Input: Connect To: 0 = No Function Discrete Input 2 F.02 1 = Pump 1 Disable …….………...…………...….
  • Page 7 MENU - SYSTEM SETUP Default Current Parameter Value Value Setting Definitions F.23 Analog Output 1 Function 1 = Pump 1 Speed (Active When Pump 1 is Called) 2 = Pump 2 Speed (Active When Pump 2 is Called) F.24 Analog Output 2 Function 3 = Pump 3 Speed (Active When Pump 3 is Called) 4 = Pump 4 Speed (Active When Pump 4 is Called) F.25...
  • Page 8 MENU - DATA DISPLAY Parameter Data Description L.01 Electrode 1 Status Value L.02 Electrode 2 Status Value Level Probe Electrode Status Values Normal Range when Un-Covered: 240 - 255 L.03 Electrode 3 Status Value Normal Range when Covered by Typical Sewage: 55 - 70 L.04 Electrode 4 Status Value...
  • Page 9 MENU - DATA DISPLAY Parameter Data Description n.01 Discrete Input 1 Status n.02 Discrete Input 2 Status n.03 Discrete Input 3 Status n.04 Discrete Input 4 Status Discrete Input Status n.05 Discrete Input 5 Status 0 = Input Open n.06 Discrete Input 6 Status 1 = Input Closed n.07...
  • Page 10 PUMP CALL SEQUENCE - Setup Parameters The following is a description of each of the Setup Parameters used to establish the Pump Call Sequence: Note: Discrete Inputs programmed with Functions 1-4, 6-7, 9-12, and 13-16 are also available to establish or modify the Pump Call Sequence.
  • Page 11 PUMP CALL SEQUENCE - Setup Parameters Pump Stop Mode - Parameter P.17 This Parameter establishes which pump is the next one to be stopped, when there are two or more pumps on. The Controller has a corresponding “Pump Off Level” setting for each of the “Pump On Level” settings. For the “Pump Stop Mode”...
  • Page 12 ALTERNATION SEQUENCE MODE STANDARD ALTERNATION Parameter P.16 = 1 Notes: 1. Unless there is some special circumstance that requires a more complicated Movement of Lead Pump Upon Alternation pump call sequence, this is the sequence that should be used. 2. Parameter P.17 must be used to select either First On Last Off or First On First Off.
  • Page 13 ALTERNATION SEQUENCE MODE PUMP 1 ALWAYS LEAD Turns Off With Other Pumps On Parameter P.16 = 3 Notes: 1. This sequence is used when it is required that pump 1 always be lead, and when it must be turned off when another pump(s) comes on. When a pump Movement of Lead Pump Upon Alternation from the second group is required, pump 1 is first turned off, then after the Lag Pump Delay, the other pump is turned on.
  • Page 14 ALTERNATION SEQUENCE MODE FIXED ALTERNATION Parameter P.16 = 5 Notes: 1. This sequence is used when no alternation is required and when pump 1 should normally be lead pump. Other pumps may be made lead by setting Parameter P.39. 2. Discrete Inputs programmed as Pump 1-4 Disable inputs may be used to disable pumps.
  • Page 15 DISCRETE INPUT FUNCTIONS The following is a description of the Functions that may be assigned to the Discrete Inputs using Parameters F.01 - F.18: Notes: 1. All Discrete Inputs are originally programmed with default Functions, but they may be changed at any time using Parameters F.01 - F.18.
  • Page 16 DISCRETE INPUT FUNCTIONS Call Pump 1 (2, 3, 4) Last - Functions When a Discrete Input programmed for “Call Pump 1 (2, 3, 4) Last” is closed, it assigns the respective pump to standby status, where it will always be called to run last. If more than one but not all of the pumps are assigned to standby status, they will all be available to run if needed, but in a fixed order, and always after the pumps not assigned standby status.
  • Page 17 DISCRETE INPUT FUNCTIONS Float Backup - Off Level - Function 33 When a Discrete Input programmed for “Float Backup - Off Level“ closes, the Float Backup logic will be armed and made ready to latch in one pump call for each of the “Float Backup - 1st , 2nd, 3rd, 4th On Level“ inputs that close.

  • Page 18: System Status

    SYSTEM STATUS High Level Alarm • Upon a High Level Alarm, the indicator will come on and the relay contacts will close. • A High Level Alarm is delayed for ten seconds after power is applied. • The High Level Alarm relay contacts will be closed when there is no power on the controller. •...

  • Page 19: Fault Code Table

    FAULT CODE TABLE Fault Code Description of Condition Normal Communication Fault - Overrun Error reading incoming message. Communication Fault - Time out error reading incoming message. Communication Fault - Time out error responding to message. Communication Fault - Incoming message failed Checksum Test. Communication Fault - Invalid Modbus Function Code.
  • Page 20 FAULT CODE TABLE Fault Code Description of Condition Communication Fault - Write Attempt to Register Not Marked for “Write” using Function Code No. 05. Communication Fault - Write Attempt to Register Not Marked for “Write” using Function Code No. 06. Communication Fault - Write Attempt to Register Not Marked for “Write”...

  • Page 21: Calibration Procedure

    ANALOG LEVEL INPUT – CALIBRATION PROCEDURE (4-20mA Input) The following calibration is for the 4-20mA Analog Level Input (Parameter F.19 = 1) and does not apply when a 10 Electrode Level Probe is used (Parameter F.19 = 2 or 3). Parameters P.24 and P.25 show the Wet Well Level, while allowing the Up &...
  • Page 22 VARIABLE FREQUENCY DRIVE SPEED CONTROL OPTION SETUP Pump Down Application - Example VFD SPEED CONTROL - Setup Parameters Default Current Parameter Value Value Setting Definitions P.20 Minimum Speed (Percent of Full Speed) Range: 0% - 95% P.21 3.5 feet Level at Minimum Speed Range: 0.1 - 99.9 feet P.22 6.0 feet...

  • Page 23: Flush Cycle

    FLUSH CYCLE The Flush Cycle feature is provided to periodically maximize the lift station’s discharge flow rate, to flush the sludge build up from the bottom of the wet well and from the discharge pipe. Flush Cycle Steps: 1. The “LEVEL” indicator begins to flash to indicate that the Flush Cycle has started. 2.
  • Page 24 FLOW CALCULATOR Latest Inflow Rate - The Most Recently Determined Flow Rate into the Lift Station The Flow Calculator determines the “Latest Inflow Rate” of liquid flowing into the lift station by observing how long it takes for the wet well level to rise a “known distance”, while all pumps are off. Knowing the sur- face area of the wet well (Parameter P.46), the volume of liquid per minute flowing into the wet well is calcu- lated.
  • Page 25 Gallons = 7.48052 x Cubic Feet FLOW CALCULATOR - Surface Area Calculation Rectangular Wet Well Circular Wet Well Area = Length x Width Where Length & Width Measurements are in: Feet Where Diameter is in: Feet Display Range: 0 - 65,535 FLOW CALCULATOR - Display Parameters Latest Inflow Rate SCADA Register: 40080...
  • Page 26 COMMUNICATION WITH A SCADA SYSTEM A SCADA system may communicate with the controller through either the RS232 Serial Port or through the Optional Ethernet Port. The controller operates as a MODBUS slave, where all communication is initiated by the MODBUS master. MODBUS Functions Supported Function Code...

  • Page 27: Rs232 Serial Port

    RS232 SERIAL PORT The RS232 serial port allows a SCADA system to communicate with the Controller using the Modbus RTU protocol. Setup of RS232 Serial Port The controller’s RS232 serial port must be setup to communicate with the device it is connected to. The Baud Rate, Parity Mode and Stop Bits Parameter values of the two devices must be set to match.

  • Page 28: Ethernet Port - Option

    ETHERNET PORT - Option Features The Ethernet Port has the following features: • Protocols Supported: Modbus TCP or Modbus RTU • IEEE 802.3 Compliant • 100 Mbps communication speed • Full-Duplex operation • Link, and Active status LED indicators RJ45 Connector LED Indicator LINK (Green) Not Linked...
  • Page 29 SCADA REGISTERS Description of Register Contents (Where a Coil is represented by a Bit in a Register) Coil √ 40001 Coil √ √ 40002 √ 40003 Pump 1 Elapsed Time Meter (hours and 1/10 hours) Range: 0.0 - 6553.5 hours √...
  • Page 30 160 159 158 157 156 155 154 153 152 151 150 149 148 147 146 145 Coil √ √ 40010 √ 40011 Wet Well Level (As shown on display with no decimal point) √ √ 40012 Setup Parameter - 1st Pump On Level √...
  • Page 31 √ 40038 Pump 1 VFD Speed Reference, (Percent of Full Speed, 0-100%) (Same as Parameter d.03) √ 40039 Pump 2 VFD Speed Reference, (Percent of Full Speed, 0-100%) (Same as Parameter d.04) √ 40040 Pump 3 VFD Speed Reference, (Percent of Full Speed, 0-100%) (Same as Parameter d.05) √...
  • Page 32 SCADA FEATURES Level Level Monitoring The Level may be monitored by reading SCADA Register 40011. The value will be just what is displayed on the front of the controller but with no decimal point. If an operator has the Controller in the Level Simulation Mode, Register 40011 will show the simulated level.
  • Page 33 SCADA FEATURES Forcing a Pump On To Force a Pump On set Coil 17, 18, 19, or 20 in Register 40002. To return the pump to normal operation, clear the respective Coil. Upon a loss of serial communication, the Force Pump On Logic will be automatically reset, and any pump that had been remotely forced on will be turned off after the delay set on Parameter P.38.
  • Page 34 SCADA FEATURES High Level Telemetry The High Level Alarm is generated from a comparison of the displayed Level with the High Level alarm setting. This alarm works when Parameter F.19 is set on either 1, 2 or 3. The status of this alarm may be read from Coil 129 in Reg- ister 40009.
  • Page 35 SCADA TROUBLESHOOTING Communication Activity Indicator The Communication Activity Indicator (Parameter d.07) may be used to help troubleshoot communication issues. It typically pulses from “0” to “1” momentarily to indicate that the master is sending a message. It may stay “1” if there is very little time between messages.
  • Page 36 CONNECTION DIAGRAM - STANDARD FEATURES...
  • Page 37 CONNECTION DIAGRAM - OPTIONAL ANALOG I/O...
  • Page 38 CONNECTION DIAGRAM - LEAD PUMP SELECTOR SWITCH...
  • Page 39 CONNECTION DIAGRAM - ANALOG LEVEL INPUT (4-20mA Input)
  • Page 40 CONNECTION DIAGRAM - LEVEL PROBE...
  • Page 41 LEVEL PROBE - PLACEMENT and SETUP...
  • Page 42 CONTROL SCHEMATIC EXAMPLE - Duplex with 24V Float Backup...
  • Page 43 FLOAT BACKUP EXAMPLE - Pump Down Notes: 1. Pump Down Applications (Parameter P.19 = 1) Two Float Backup - A simple two float backup system can be made using an Off float and a High float. High Level Input - Closure of the Float Backup High Level input will cause all pumps to be called to run, provided the Off float input is closed.

  • Page 44: Operator Interface

    OPERATOR INTERFACE...
  • Page 45 ENCLOSURE MECHANICAL LAYOUT Left Side Right Side Rear View Top View...

  • Page 46: Panel Cutout

    PANEL CUTOUT Not Printed to Scale. Do Not Use as a Template.
