Summary of Contents for Philips 21PT5221

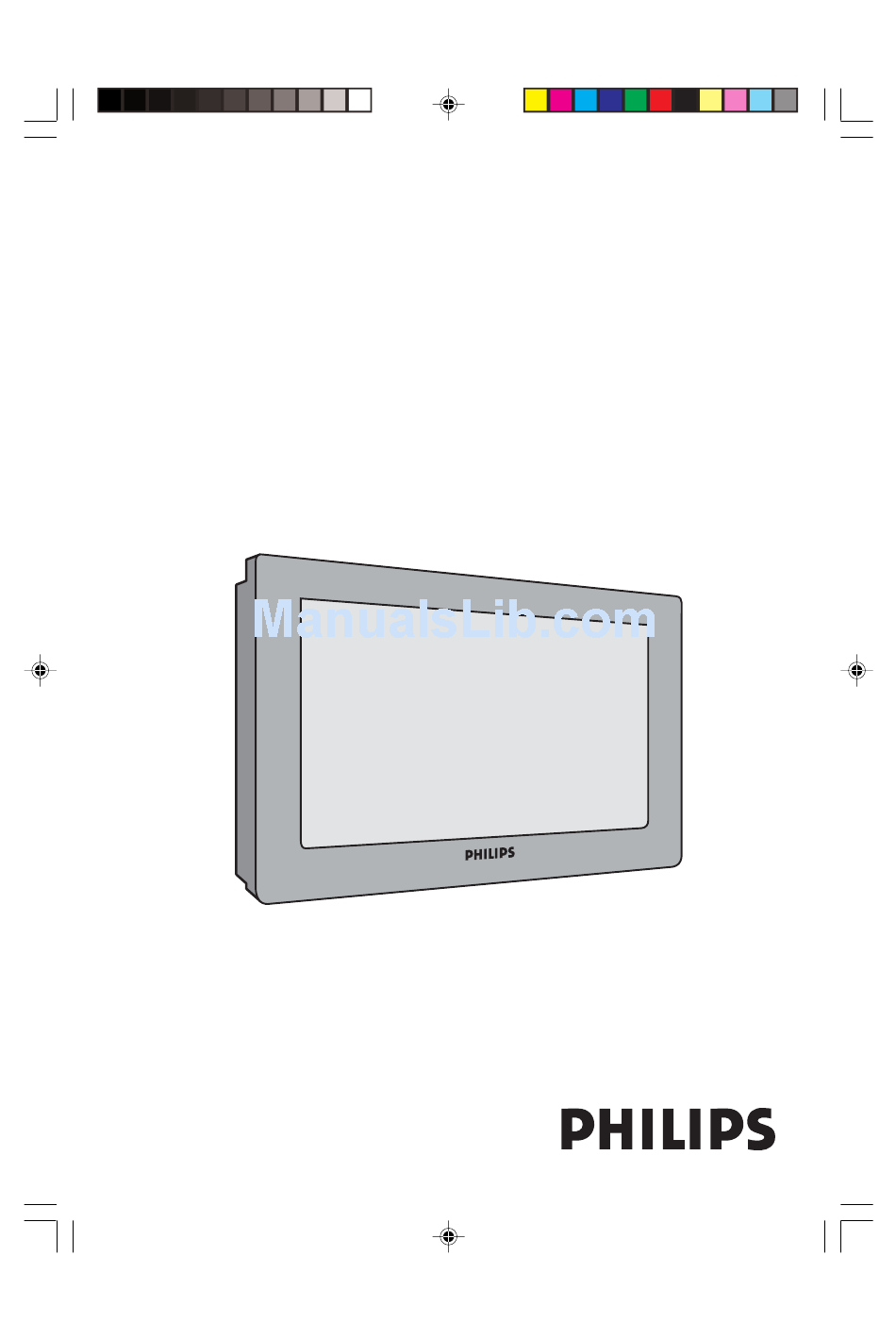

- Page 1 Color Television 21PT5221 User manual...
-
Page 2: Table Of Contents
ABLE Introduction Safety Information/Useful Tips ... 3 Before Calling Service ... 4 Basic Installation/Functions Hooking Up Your TV (Basic Connection) ... 5 Use/Care of remote Control ... 5 Connecting the Audio/Video Sockets (Playback) ... 6 Connecting the Audio/Video Sockets (Recording) ... 7 Functions of Remote Control ... -
Page 3: Safety Information/Useful Tips
AFETY NFORMATION AND Safety Information • Disconnect mains plug when : – the red light below the TV screen is flashing continuously. – a bright white line is displayed across the screen. – cleaning the TV screen. Never use abrasive cleaning agents. Use a slight damp chamois leather or soft cloth. -
Page 4: Before Calling Service
EFORE Below is a list of frequently occurred symptoms. Before you call for service, make these simple checks. Some of these symptoms can easily be rectified if you know what to do. Symptom What you should do Colour patch • Switch off the TV by the mains power button. Wait for 20 (uneveness) minutes before switching on again. -
Page 5: Hooking Up Your Tv (Basic Connection)
TV (B OOKING UP Antenna Connection • Connect the aerial plug to the antenna socket ¬ ¬ ¬ ¬ ¬ on the backcover. • Insert the mains plug into the wall socket. Mains Connection • For correct mains voltage, refer to type sticker at the rear of theTV set •... -
Page 6: Connecting The Audio/Video Sockets (Playback)
ONNECTING THE ONNECTING THE Monitor VIDEO AUDIO Back of VCR ANTENNA VIDEO AUDIO You can view the playback of VCR tapes (Video Disc players, camcorders, etc.) by using the AUDIO and VIDEO INPUT sockets on the rear of the TV. –... -
Page 7: Connecting The Audio/Video Sockets (Recording)
ONNECTING THE UDIO Connection for recording from the TV channel Back of VCR – Connect the corresponding INPUT sockets of the VCR to the MONITOR OUTPUT sockets on the rear of the TV. – To enhance the sound of your TV, connect the AUDIO L and R sockets to an external audio system instead of the VCR. -
Page 8: Functions Of Remote Control
UNCTIONS OF & Power button – Switch set off temporarily to standby mode. (The red light indicator lights up when the set is on standby mode). – To switch on set from standby mode, press Channel +/– , Digit (0 -9) or Power button. é... - Page 9 UNCTIONS OF EMOTE 3 Main Index Button In teletext mode, press button to return to the main index page. 4 Frownie button Allows to delete stored personal preference channels in your Personal Preference list. For detailed description of functions, refer to section on “Personal Zapping ”.
-
Page 10: Functions Of Tv Controls
UNCTIONS OF Mains Power button Standby Light indicator Remote Sensor Volume - button Volume + button Programme button Programme button • You can enter the main menu by pressing both • Press the Programme • Press the Volume TV C ONTROLS Switch mains power on or off. -
Page 11: Selecting The Menu Language
ELECTING THE Operating instructions generally explains the operation of the TV set using the buttons on the remote control unless otherwise stated. Please read the following instructions carefully and follow the steps as shown to familiarise yourself with the installations and all features available in your set. -
Page 12: Automatic Tuning Of Channels
UTOMATIC Automatic tuning of channels allows you to store each programme automatically. Step Press button Enter main menu. MENU Press button repeatedly until ¸ Install is selected. ˙ Enter install menu. Select Auto Store. ¸ Start automatic tuning of ˙ channels. -
Page 13: Manual Tuning Of Channels
ANUAL Manual tuning of channels allows you to select your preferred channel number for every available programme. Step Press button Enter main menu. MENU Press button repeatedly until ¸ Install is selected. ˙ Enter install menu. Press button repeatedly until ¸... -
Page 14: Selecting The Colour/Sound System
ANUAL Step Press button Start manual searching. Searching ˙ stops once a transmitting signal is found. ¸ Select Channel. Key in the channel number. Press button repeatedly until ¸ Store is selected. Store tuned channel. ˙ Note : If you want to continue searching for another transmitting channel, repeat steps... - Page 15 ELECTING THE This feature allows you to select your desired Colour and Sound system. If Auto is selected, the respective colour and sound system will be automatically selected according to the transmission system. Note : Select your desired colour and sound system manually if reception is poor at Auto mode.
-
Page 16: Fine Tuning Of Channels
This feature allows you to adjust picture reception in areas of weak reception. Step Press button Enter main menu. MENU ¸ Press button repeatedly until Install is selected. ˙ Enter install menu. Press button repeatedly until ¸ Manual Store is selected. ˙... -
Page 17: Editing Of Channels
DITING OF This feature allows you to skip or edit channels which have bad or weak TV signal or channels that you do not watch often. Note : Once a channel is skipped, you cannot have access to it by the CH (Channel) + or –... -
Page 18: Adjusting The Tv Picture
DJUSTING THE The picture menu allows you to make adjustments to the picture. Step Press button Display the main menu on screen. MENU ˙ Enter Picture menu. Select item. ˚ ¸ Adjust level or select desired ˝ setting. ˙ Exit menu from screen. Picture menu items Brightness Colour... -
Page 19: Adjusting The Tv Sound
DJUSTING THE The sound menu allows you to make adjustments to the sound. Step Press button Display the main menu on screen. MENU Select Sound menu. ¸ ˙ Enter Sound menu. Select item. ˚ ¸ ˝ Adjust level or select desired setting. -
Page 20: Using The Screen Format
SING THE You can have a choice of two formats for your viewing pleasure, namely : - 4:3 mode and the EXPAND 4:3 mode through the FORMAT menu. Step Press button Display the main menu on screen. MENU Press button repeatedly until ¸... -
Page 21: Activating The Signal Strength
CTIVATING THE The Signal Strength feature allows to view the signal strength level when the On option is selected. The signal strength level will be indicated at the bottom of the screen whenever you switch channel. Step Press button Display the main menu on screen. MENU Press button repeatedly until ¸... -
Page 22: Using The Active Control
SING THE This feature automatically adjust settings for optimal picture quality continuously under any signal conditions. To activate the Active Control feature, select the “ON” option in the Active Control menu. Step Press button Display the main menu on screen. MENU ¸... -
Page 23: Smart Picture Control
MART Whether you are watching a movie or video game, your TV has automatic video control settings matched to your current program source or content. The Smart Picture feature quickly resets your TV’s video controls of program for a number of different types of programs and viewing conditions you may have in your home. -
Page 24: Smart Sound Control
MART Whether you are watching a movie or video game, your TV has automatic sound control settings matched to your current program source or content. The Smart Sound feature quickly resets your TV’s sound controls of program for a number of different types of programs and viewing conditions you may have in your home. -
Page 25: Personal Zapping
ERSONAL A list or series of favourite TV programs can be selected and stored in the 4 coloured buttons with the Personal Zapping feature. With this feature you can easily viewed up to a total of 10 preferred channels for each coloured button. Adding Channels to the Favourite list Step Press button... -
Page 26: Teletext
SING If a TV channel broadcast contains teletext information, each channel that broadcasts teletext transmits a page (index page) with information on how to use the teletext system, usually on page 100. The system transmitted is indicated in the option line at the bottom of the screen. - Page 27 SING Press button § Interrupt § ç è è Enlarge ! Hold ç Reveal/ ELETEXT Result on screen Press the button to change to TV mode. Press the button again to return to teletext mode and to the teletext page. Press the button once to enlarge and view the top half of the page.
-
Page 28: Specifications
Net Weight of Set (approximate) Note For Operating Voltage, Frequency, Power Consumption and Version Number, refer to the type number at the rear of the set. PECIFICATIONS 21PT5221 550 mm 510 mm 2 x 5 W PAL B/G PAL D/K... - Page 29 Specifications are subject to change withoutnotice. Trademarks are the property of Koninklijke Philips Electronics N.V. or their respective owners. 2004 © Koninklijke Philips Electronics N.V. All rights reserved. www.philips.com 3139 125 36651 Specifications are subject to change withoutnotice. Trademarks are the property of Koninklijke Philips Electronics N.V. or their respective owners.
