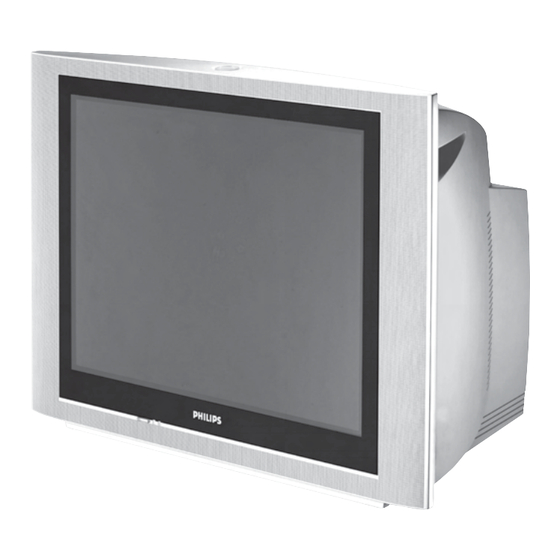

- Page 1 Colour television Operating Instructions 21PT3323 21PT3323 21PT3323 21PT4223 21PT4223 21PT4223...
-
Page 2: Table Of Contents
Features Adjusting the TV Picture ... 19 Adjusting the TV Sound (for 21PT4223)... 20 Adjusting the TV Sound (for 21PT3323)... 21 Using the Screen Format ... 22 Activating the Signal Strength ... 23 Using the Active Control (for 21PT4223)... 24 Smart Picture Control ...25... -
Page 3: Safety Information/Useful Tips
AFETY Safety Information • Disconnect mains plug when : – the red light below the TV screen is flashing continuously. – a bright white line is displayed across the screen. – cleaning the TV screen. Never use abrasive cleaning agents. Use a slight damp chamois leather or soft cloth. -
Page 4: Before Calling Service
Below is a list of frequently occurred symptoms. Before you call for service, make these simple checks. Some of these symptoms can easily be rectified if you know what to do. Symptom Colour patch (uneveness) No power No picture Good picture but no sound Good sound but poor colour or no picture... -
Page 5: Hooking Up Your Tv (Basic Connection)
OOKING UP ARE OF TV (B ASIC ONNECTION Antenna Connection • Connect the aerial plug to the antenna socket ¬ on the backcover. • Insert the mains plug into the wall socket. Mains Connection • For correct mains voltage, refer to type sticker at the rear of the TV set •... -
Page 6: Connecting The Audio/Video Sockets (Playback)
ONNECTING THE You can view the playback of VCR tapes (Video Disc players, camcorders, etc.) by using the AUDIO and VIDEO INPUT sockets on the rear of the TV. – Connect the VIDEO and AUDIO IN sockets on the rear of the TV to the AUDIO and VIDEO OUT sockets on the VCR. - Page 7 ONNECTING THE You can view the playback of DVD discs by using the COMPONENT VIDEO INPUT sockets on the rear of the TV. – Connect the “Y”, “Pb” and the “Pr” INPUT sockets on the TV to the “Y”, “Pb” and “Pr”...
-
Page 8: Connecting The Audio/Video Sockets (Recording)
ONNECTING THE Connection for recording from the TV channel – Connect the corresponding INPUT sockets of the VCR to the MONITOR OUTPUT sockets on the rear of the TV. – To enhance the sound of your TV, connect the AUDIO L and R sockets to an external audio system instead of the VCR. -
Page 9: Functions Of Remote Control
UNCTIONS OF & Power button – Switch set off temporarily to standby mode. (The red light indicator lights up when the set is on standby mode). – To switch on set from standby mode, press Channel +/– , Digit (0 -9) or Power button. é... - Page 10 UNCTIONS OF EMOTE 3 Main Index Button (for certain models only) In teletext mode, press button to return to the main index page. 4 Frownie button Allows to delete stored personal preference channels in your Personal Preference list. For detailed description of functions, refer to section on “Personal Zapping ”.
-
Page 11: Functions Of Tv Controls
UNCTIONS OF Mains Power button Standby Light indicator Remote Sensor Volume button Volume button Programme button Programme button TV C ONTROLS Switch mains power on or off. Indicate red light when standby mode is activated. Acts as a sensor for activating the controls of the TV when remote control handset is aimed at it. -
Page 12: Selecting The Menu Language
ELECTING THE Operating instructions generally explains the operation of the TV set using the buttons on the remote control unless otherwise stated. Please read the following instructions carefully and follow the steps as shown to familiarise yourself with the installations and all features available in your set. -
Page 13: Automatic Tuning Of Channels
UTOMATIC Automatic tuning of channels allows you to store each programme automatically. Step Press button Enter main menu. MENU Press button repeatedly until ¸ Install is selected. ˙ Enter install menu. Select Auto Store. ¸ Start automatic tuning of ˙ channels. -
Page 14: Manual Tuning Of Channels
ANUAL Manual tuning of channels allows you to select your preferred channel number for every available programme. Step Press button Enter main menu. MENU Press button repeatedly until ¸ Install is selected. ˙ Enter install menu. Press button repeatedly until ¸... - Page 15 ANUAL Step Press button Start manual searching. Searching ˙ stops once a transmitting signal is found. ¸ Select Channel. Key in the channel number. Press button repeatedly until ¸ Store is selected. Store tuned channel. ˙ Note : If you want to continue searching for another transmitting channel, repeat steps...
-
Page 16: Selecting The Colour/Sound System
ELECTING THE This feature allows you to select your desired Colour and Sound system. If Auto is selected, the respective colour and sound system will be automatically selected according to the transmission system. Note : Select your desired colour and sound system manually if reception is poor at Auto mode. -
Page 17: Fine Tuning Of Channels
This feature allows you to adjust picture reception in areas of weak reception. Step Press button Enter main menu. MENU ¸ Press button repeatedly until Install is selected. ˙ Enter install menu. Press button repeatedly until ¸ Manual Store is selected. ˙... -
Page 18: Editing Of Channels
This feature allows you to skip or edit channels which have bad or weak TV signal or channels that you do not watch often. Note : Once a channel is skipped, you cannot have access to it by the CH (Channel) + or – button. You can only have access to the channel by the Digit (0 -9) buttons. -
Page 19: Adjusting The Tv Picture
DJUSTING THE The picture menu allows you to make adjustments to the picture. Step Press button Display the main menu on screen. MENU ˙ Enter Picture menu. Select item. ˚ ¸ Adjust level or select desired ˝ setting. ˙ Exit menu from screen. Picture menu items Brightness Colour... -
Page 20: Adjusting The Tv Sound (For 21Pt4223)
DJUSTING THE The sound menu allows you to make adjustments to the sound. Step Press button Display the main menu on screen. MENU Select Sound menu. ¸ ˙ Enter Sound menu. Select item. ˚ ¸ ˝ Adjust level or select desired setting. -
Page 21: Adjusting The Tv Sound (For 21Pt3323)
Switch on or off low frequency level. Select On to enable volume to remain at a pre- determined level should there be a sudden change in volume during commercial breaks or channel switching. 21PT3323) Result on screen Main ✔ Picture π... -
Page 22: Features
(4:3 or Expand 4:3) or and select your desired format. Exit menu from screen. Note: Active Control will not be displayed on 21PT3323. When to use the Screen Formats 4:3 format Select the 4:3 format if you want to display the 4:3 picture using the full surface of the screen. -
Page 23: Activating The Signal Strength
CTIVATING THE The Signal Strength feature displays the signal strength level when the On option is selected. The signal strength level will be indicated at the bottom of the screen whenever you switch channel. Step Press button Display the main menu on screen. MENU Press button repeatedly until ¸... -
Page 24: Using The Active Control (For 21Pt4223)
SING THE This feature automatically adjust settings for optimal picture quality continuously under any signal conditions. To activate the Active Control feature, select the “ON” option in the Active Control menu. Step Press button Display the main menu on screen. MENU ¸... -
Page 25: Smart Picture Control
Whether you are watching a movie or video game, your TV has automatic video control settings matched to your current program source or content. The Smart Picture feature quickly resets your TV’s video controls of program for a number of different types of programs and viewing conditions you may have in your home. -
Page 26: Smart Sound Control
Whether you are watching a movie or video game, your TV has automatic sound control settings matched to your current program source or content. The Smart Sound feature quickly resets your TV’s sound controls of program for a number of different types of programs and viewing conditions you may have in your home. -
Page 27: Personal Zapping
A list or series of favourite TV programs can be selected and stored in the 4 coloured buttons with the Personal Zapping feature. With this feature you can easily viewed up to a total of 10 preferred channels for each coloured button. Adding Channels to the Favourite list Step Press button... -
Page 28: Teletext (For Certain Models Only)
SING If a TV channel broadcast contains teletext information, each channel that broadcasts teletext transmits a page (index page) with information on how to use the teletext system, usually on page 100. The system transmitted is indicated in the option line at the bottom of the screen. - Page 29 SING § ç è ELETEXT ( FOR CERTAIN MODELS ONLY Press button § Interrupt è Enlarge ! Hold ç Reveal/ Conceal Result on screen Press the button to change to TV mode. Press the button again to return to teletext mode and to the teletext page.
-
Page 30: Specifications
