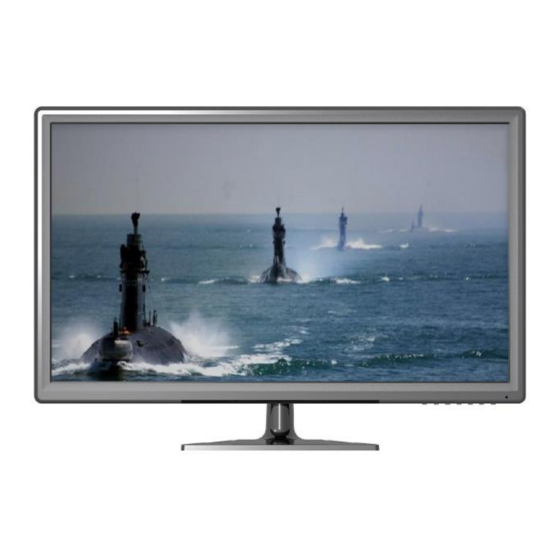

- Page 1 MONOPRICE MP 27" Zero-G 1440p 144Hz LED Gaming Monitor P/N 16384 User's Manual...
-
Page 2: Table Of Contents
CONTENTS SAFETY WARNINGS AND GUIDELINES ............................4 INTRODUCTION ........................................ 5 FEATURES ..........................................5 CUSTOMER SERVICE ....................................5 PACKAGE CONTENTS ....................................6 CONNECTIONS........................................6 CONTROLS ..........................................7 USING THE INCLUDED STAND ................................8 USING A WALL OR DESK MOUNT ..............................9 INSTALLATION ........................................ - Page 3 INPUT SELECTION MENU ..................................19 DISPLAY MODE MENU .................................... 19 SPECIFICATIONS ......................................20 REGULATORY COMPLIANCE ................................21 Notice for FCC ......................................21 Notice for Industry Canada ................................22...
-
Page 4: Safety Warnings And Guidelines
SAFETY WARNINGS AND GUIDELINES Please read this entire manual before using this device, paying extra attention to these safety warnings and guidelines. Please keep this manual in a safe place for future reference. Do not place the monitor on an unstable surface where it could fall and cause either personal injury or damage to the monitor and/or other equipment. -
Page 5: Introduction
If you have any problem with your order, please give us an opportunity to make it right. You can contact a Monoprice Customer Service representative through the Live Chat link on our website www.monoprice.com during normal business hours (Mon-Fri: 5am-7pm PT, Sat-Sun: 9am-... -
Page 6: Package Contents
PACKAGE CONTENTS Please take an inventory of the package contents to ensure you have all the items listed below. If anything is missing or damaged, please contact Monoprice Customer Service for a replacement. 1x 27" Zero-G LED monitor 1x Stand base... -
Page 7: Controls
CONTROLS 1. -: If the Main OSD, Display Mode, or Input Selection menu is displayed, pressing the - button moves the yellow highlight to the left. If no menu is being displayed, pressing the - button opens the Volume Control. If the Main OSD menu is displayed and an entry has been opened for editing or if the Volume or Brightness Control is displayed, pressing the - button decreases the selected value. -
Page 8: Using The Included Stand
menu. If a Main OSD menu page or entry has been selected, pressing the MENU button backs out one step. : Press the button to the monitor on or off. USING THE INCLUDED STAND If you intend to use the included stand, perform the following steps to install the stand base. -
Page 9: Using A Wall Or Desk Mount
USING A WALL OR DESK MOUNT If you wish to use a wall or desk mount, you can do so with or without the included stand installed. If you wish a cleaner appearance with the stand removed, perform the following steps. -
Page 10: Audio Splitting
3. (Optional) Using a 3.5mm TRS audio cable (available separately), plug one end into the Line In jack on the monitor, then plug the other end into your audio source device, such as the headphone/speaker output on your computer. 4. (Optional) Plug a pair of headsets or powered speakers (available separately) into the Ear Phone jack. -
Page 11: Volume Control
VOLUME CONTROL You can control the volume level of the audio output from the Ear Phone jack in two ways. Main OSD Menu 1. Ensure that no menu or control is displayed, then press the MENU button to display the Main OSD menu. 2. -
Page 12: Brightness Control
BRIGHTNESS CONTROL You can adjust the brightness level of the display in two ways. Main OSD Menu 1. Ensure that no menu or control is displayed, then press the MENU button to display the Main OSD menu. The yellow highlight will already be on the Picture tab. 2. -
Page 13: Main Osd Menu
MAIN OSD MENU Picture Menu Brightness: Adjusts the image brightness. The adjustment range is 0 to 100. Contrast: Adjusts the image contrast. The adjustment range is 0 to 100. Sharpness: Adjusts the image sharpness. The adjustment range is 0 to 4. Aspect Ratio: Sets the image aspect ratio. -
Page 14: Color Menu
Color Menu Color Effect: Allows selection of one of five preset color settings for use with different types of applications. The available presets are: Standard: The default color setting for everyday application use. Game: A preset designed for use with gaming. Movie: A preset designed for watching movies. -
Page 15: Pip Menu
PIP Menu Mode: Allows selection of the number and arrangement of images for the different inputs. The available options are 1P (single input), 2P LR (two inputs arranged horizontally), 2P TB (two inputs arranged vertically), 2P PIP (two inputs in traditional picture-in- picture format), and 4P (four inputs, one in each corner). -
Page 16: Advanced Menu
Advanced Menu Note that the Advanced tab is misspelled as "Advance" in the OSD. Volume: Allows adjustment of the audio volume level. The adjustment range is 0 to 100. Audio Source: Allows selection of the audio source. The options include Line In, DP, HDMI® 1, and HDMI 2. -
Page 17: Osd Menu
OSD Menu Language: Selects the language used in the OSD system. The available options are English, Francais, Deutsch, Italiano, España, and pycckИЙ (Cyrillic). Menu Time: Determines the length of time the OSD will remain on screen with no input. The adjustment range is 10 to 60 seconds, in 1 second increments. OSD H Position: Determines the horizontal position of the OSD menu. -
Page 18: Information Menu
Information Menu This screen shows the connection type, screen resolution with vertical scan frequency, horizontal frequency, and pixel clock values. -
Page 19: Input Selection Menu
INPUT SELECTION MENU Rather than using the Main OSD menu to change the selected input, you can access the Input Selection menu directly by pressing the UP button when no other menu screens are visible. To change the selected input, use the + and - buttons to move the yellow highlight, then press the Select button. -
Page 20: Specifications
SPECIFICATIONS Model 16384 Display Type TN panel with LED backlight Screen Size 27" (686mm) Maximum Resolution 2560 x 1440 @ 144Hz (QHD) Dot Pitch 0.16 x 0.16 mm Brightness 350 cd/m Viewing Angles 170° horizontal, 160° vertical 1x Dual Link DVI-D, 1x DisplayPort 1.1/1.2, Video Inputs 1x HDMI®... -
Page 21: Regulatory Compliance
Modifying the equipment without Monoprice’s authorization may result in the equipment no longer complying with FCC requirements for Class B digital devices. In that event, your right to use the equipment may be limited by FCC regulations, and you may be required to correct any interference to radio or television communications at your own expense. -
Page 22: Notice For Industry Canada
Notice for Industry Canada This Class B digital apparatus complies with Canadian ICES-003. Cet appareil numérique de la classe B est conforme à la norme NMB-003 du Canada. HDMI, the HDMI Logo, and High-Definition Multimedia Interface are trademarks or registered trademarks of HDMI Licensing LLC in the United States and other countries. MHL is a trademark of MHL, LLC in the United States and/or other countries.
