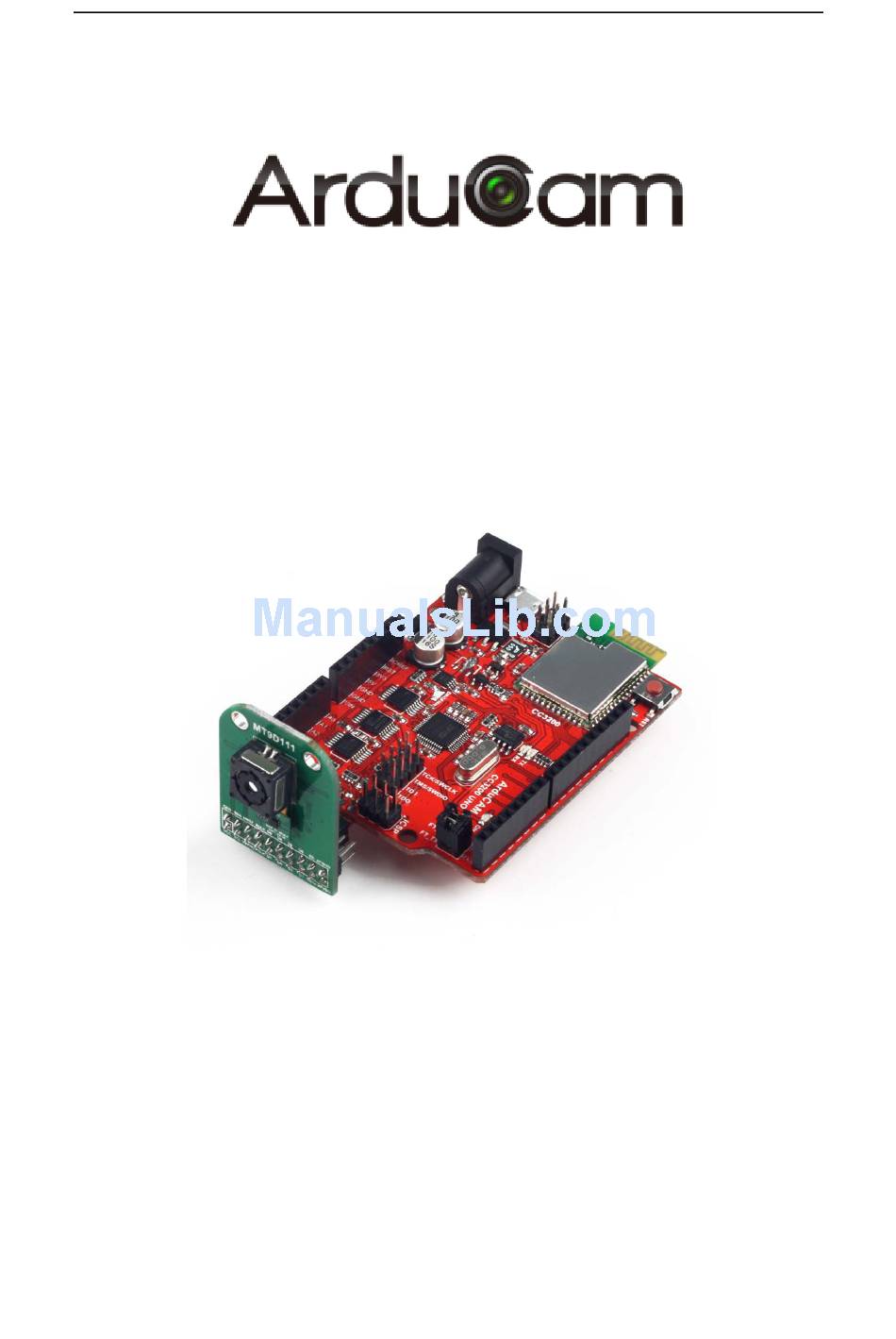

- Page 1 ArduCAM CC3200 UNO board User Guide Rev 1.1, July 2016...
-
Page 2: Table Of Contents
ArduCAM CC3200 UNO Board User Guide Table of Contents Introduction ..........................2 Features ............................ 3 Pin Definition ........................... 4 Getting Started CC3200 with Energia ................... 5 Out of the Box Test ......................5 Using Energia ........................6 www.ArduCAM.com... -
Page 3: Introduction
CC3200CAMBOOST pack from TI while keeping exactly the same size as Arduino UNO and pin out. It is based on TI simplelink series CC3200 chip, which gives you an ARM Cortex M4 processor with a built-in WiFi stack and radio. It supports things like web servers and SSL out of the box. -
Page 4: Features
ArduCAM CC3200 UNO Board User Guide 2 Features TI CC3200 ARM Cortex M4 Processor with WIFI support Arduino UNO Size and Pin Out Support ArduCAM Standard Camera Interface and MT9D111 Camera Module Onboard JTAG/SWD Debugger Support Energia and Code Composer Studio Development Environment Applications Microcontroller Subsystem: ... -
Page 5: Pin Definition
ArduCAM CC3200 UNO Board User Guide Easy to use SDK with full APIs with lots of examples for Energia, GCC,IAR System and Ti Code Composer Studio (CCS) 3 Pin Definition Figure 2 ArduCAM CC3200 UNO Pin Out www.ArduCAM.com... -
Page 6: Getting Started Cc3200 With Energia
Figure 2 Jumper Connection for Energia Out of the Box Test Power on the ArduCAM UNO CC3200 board by using a micro USB cable and connect it to a host PC or an USB power source/battery. Both the on-board power indicator LED (ON) and the I/O indicator - LED (L) should be on. -
Page 7: Using Energia
AP's IP address, which is "192.168.1.1", into the web browser address bar and go. It will show the welcome message "ArduCAM UNO CC3200 WiFi Test" and two buttons to allow you to turn on or off the on-board yellow I/O indicator - LED (L). - Page 8 5) Open the Energia IDE. Click on the "File > Examples > 1.Basics > Blink" to open the blink sketch. 6) Click on the "Tools > Board" on the menu bar. The ArduCAM UNO CC3200 board has been added to the IDE. Select the board you are using.
- Page 9 ArduCAM CC3200 UNO Board User Guide 8) Click on the right arrow button on the tool bar to compile and upload the shetch to your WiFi board. 9) After uploading the sketch, push the on-board reset button to run. You will see the on-board I/O indicator - LED (L) toggling in every second interval.
