Summary of Contents for Star D7 Mini

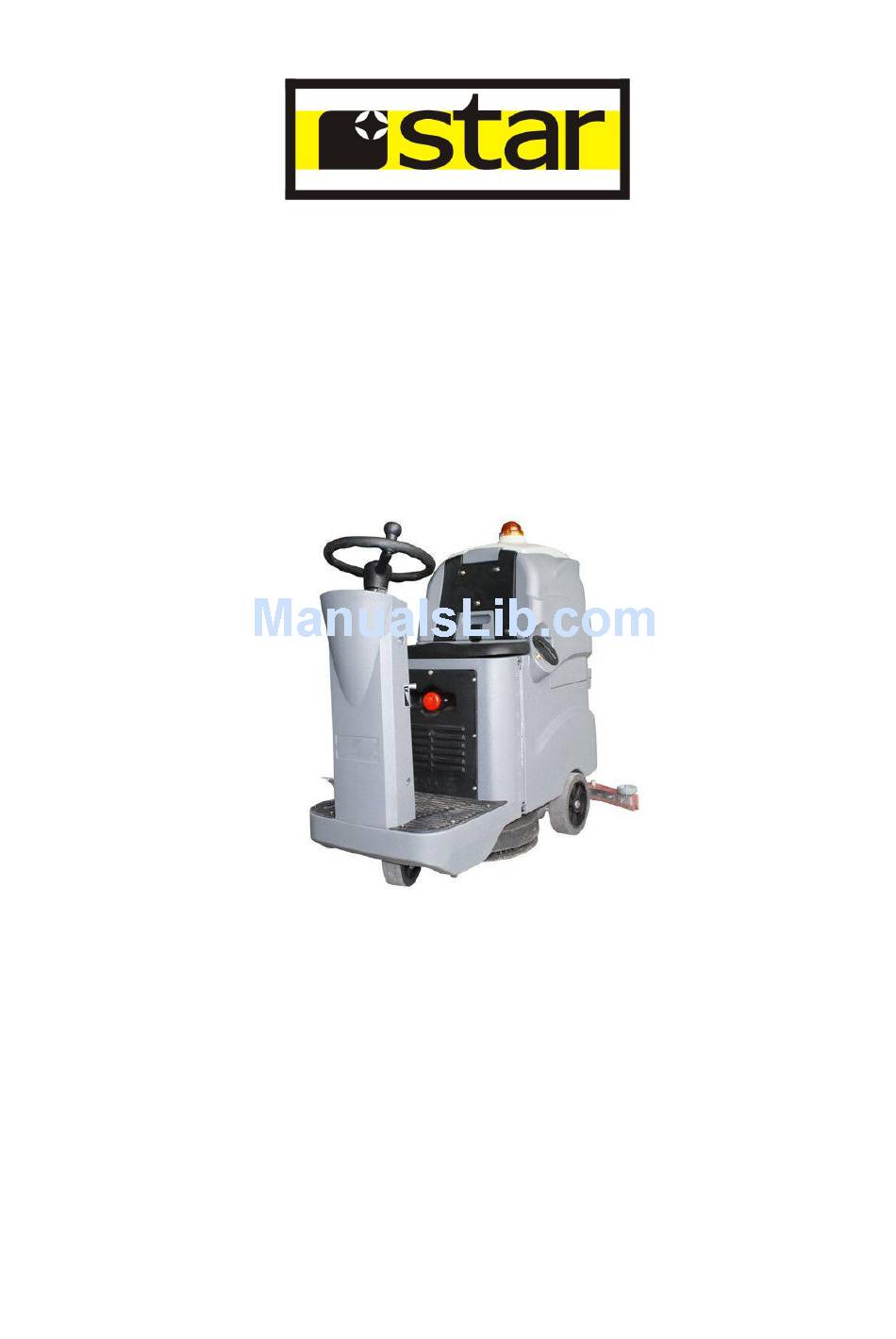

- Page 1 D7 Star Ride on Mini Operator manual Please read this operator manual carefully before use...
- Page 2 contents 1.0 summary ............3 2.0 summary of security matters .
- Page 3 Widely used in a large area of the airport, commercial complex, sports stadiums, municipal, inter-city train, factory production workshop, purifying workshop, food processing, electrical and top five-star hotel of semi open square, underground parking, building channel site, regular circulation of the rapid mechanical floor cleaning, cleaning operations more efficient.
- Page 4 before starting any operation, check the machine and its parts in general and in the state of operation. if the machine doesn't work properly, you can't use. the operator must be applied to the appropriate application areas when they operate the machine.
- Page 5 Suction width 830mm Work efficiency 3000 ㎡/h brush 510mm Brush speed 175rpm Brush motor 550W Brush pressure 20kg Suction motor 500W vacuum degree 160mbar Walking motor 500W Speed 0-6km/h Maximum gradability 10°（without water） Turning radius 900mm Solution tank Recovery tank Noise grade 68dB Battery group...
- Page 6 4.0 Machine loading and unloading Special packing fit for forklift loading and unloading. Can not stack. The net weight is 190kg(without packing). Packing dimension: Length: 1400mm Width: 750mm Height: 1360mm 5.0 machine disassembly Take the bag-packed machine in a wide area to remove the outer packing.
- Page 7 ⑤release lever handle (upward pull water volume increase) ⑥loudspeaker button ⑦squeegee lifting handle(when the power lock open, put down this handle, the suction motor will work automatically, at this moment the machine can not backward, the handle must be raised if backward ) ⑧brush lifting handle(power lock open, put down this handle and step⑨accelerator pedal,brush will work)
- Page 8 automatically stop the brake, using human power to push.
- Page 9 ○ 15 drain out pipe ○ 16 water tank cover support frame ○ 17 float bowl ○ 18 charger power plug ○ 19 charger To start charging, the machine will automatically cut off the operation, until the end of charge...
- Page 10 Brush installation diagram: 1.put ⑧ handle up。 2.the brush on the ground, from the side to push it into the brush under the lid, Visual Basic is the brush cover round center. 3.put ⑧ handle down, the brush cover down automatically on the brush plate 4.stepping on⑨...
- Page 11 1.daily maintenance 1)take down pad holder/brush, and clean specific cleaning agent. 2)drain out the water both in solution tank and recovery tank, and clean by clean water.Check if there are debris left, if yes, please remove immediately. 3)raise the squeegee assembly off the floor and wipe the rubber with a wet towel 4) remove the vacuum suction filter device rinse with water 5) wipe the machine clean with a specific cleaner 6)charge the battery...
- Page 12 8.0 common faults and solutions fault reason solution Not open power switch Open power switch Battery low power Charging Machine not working Battery damage Replace battery Battery connection line loosen tighten connection line Fuse damage Replace fuse Power key switch damage Contact supplier Brush not contact with floor Put down brush...
- Page 13 reliably with the squeegee pipe assembly Suction pipe blockage Clear blockage Water absorption pipe damage Replace the lid of the recovery tank is not Cover up covered. recovery tank cover sealing strip Replace sealing Suction pump damage Contact supplier Battery low Charging Battery damaged Replace battery...
- Page 20 Star Temizlik Makinaları ve Ekipmanları San. Tic. Ltd. Şti. Ferhatpaşa Mah. 34 Sok. No. 30A 34888 Ataşehir İstanbul TÜRKİYE Tel. +90 216 471 23 47 Dah./Ext.121 Faks. +90 216 471 22 02 star@starmakina.com.tr www.staff.com.tr...
