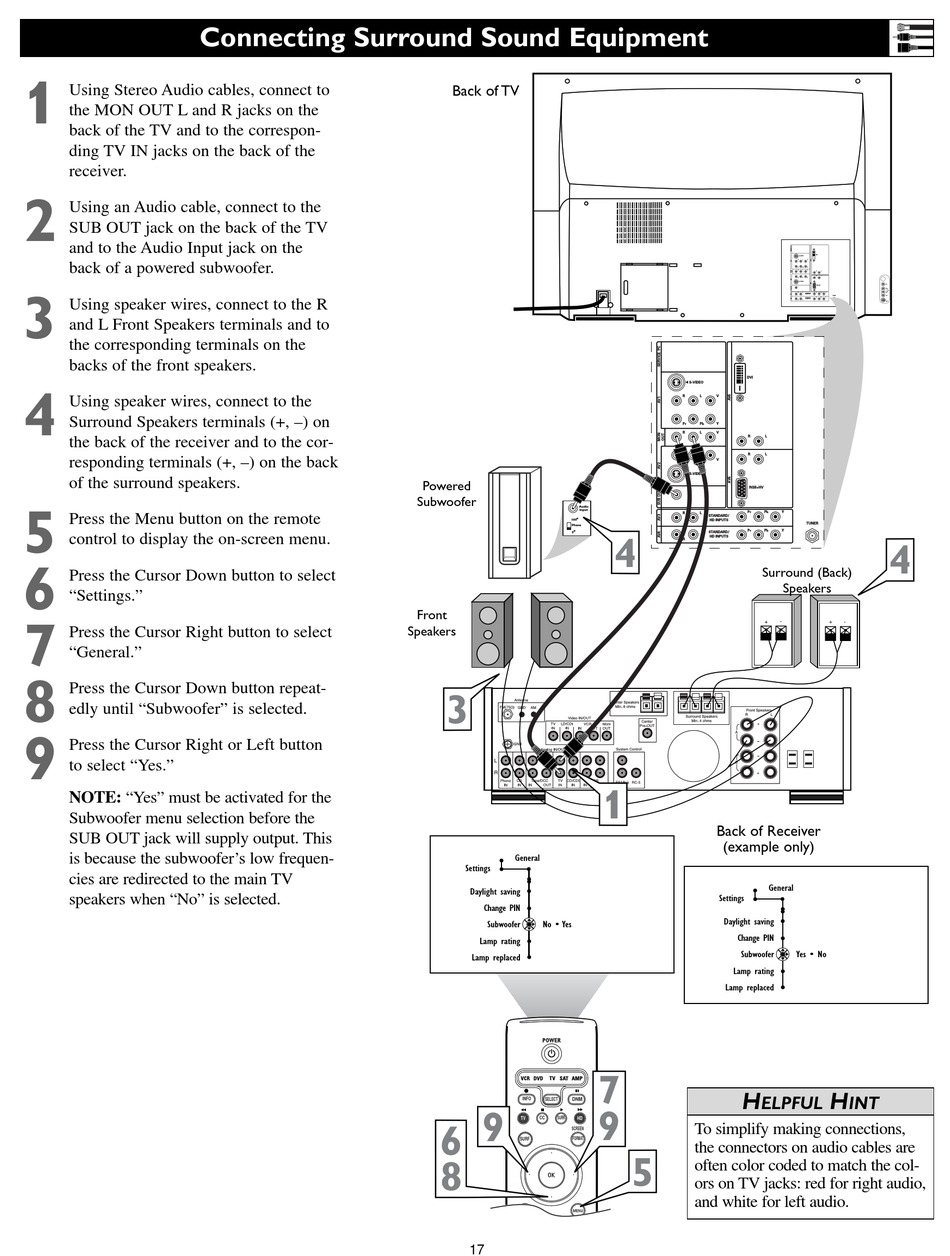

Connecting Surround Sound Equipment

1
Using Stereo Audio cables, connect to
the MON OUT L and R jacks on the
back of the TV and to the correspon-
ding TV IN jacks on the back of the
receiver.
2
Using an Audio cable, connect to the
SUB OUT jack on the back of the TV
and to the Audio Input jack on the
back of a powered subwoofer.
3
Using speaker wires, connect to the R
and L Front Speakers terminals and to
the corresponding terminals on the
backs of the front speakers.
4
Using speaker wires, connect to the
Surround Speakers terminals (+, –) on
the back of the receiver and to the cor-
responding terminals (+, –) on the back
of the surround speakers.
5
Press the Menu button on the remote
control to display the on-screen menu.
6
Press the Cursor Down button to select
"Settings."
7
Press the Cursor Right button to select
"General."
8
Press the Cursor Down button repeat-
edly until "Subwoofer" is selected.
9
Press the Cursor Right or Left button
to select "Yes."
NOTE: "Yes" must be activated for the
Subwoofer menu selection before the
SUB OUT jack will supply output. This
is because the subwoofer's low frequen-
cies are redirected to the main TV
speakers when "No" is selected.
Back of TV
Powered
Subwoofer
Audio
Input
180
Phase
0
Front
Speakers
3
General
Settings
Daylight saving
Change PIN
Subwoofer No • Yes
Lamp rating
Lamp replaced
INFO SELECT DNM
9
TV CC SURR HD
6
SCREEN
SURF FORMAT
®
8
® ®
®
PIP
17
DVI
G S-VIDEO
R L V
Pr Pb Y
R L V
R L
R L
R L V
G S-VIDEO
RGB+HV
R L Pr Pb
STANDARD/
HD INPUTS
Pr Pb
STANDARD/
HD INPUTS
4 R L
Surround (Back)
+
1
Back of Receiver
(example only)
General
Settings
Daylight saving
Change PIN
Subwoofer
Lamp rating
Lamp replaced
7
H
ELPFUL
9
To simplify making connections,
the connectors on audio cables are
5
often color coded to match the col-
ors on TV jacks: red for right audio,
and white for left audio.
DVI
G S-VIDEO
R L V
Pr Pb Y
R L V
R L
R L
R L V
G S-VIDEO
RGB+HV
Pr Pb Y
R L
STANDARD/ HD INPUTS
TUNER
STANDARD/ Pr Pb Y
HD INPUTS
R L
Y
TUNER
Y
4
Speakers
- + -
Yes • No
