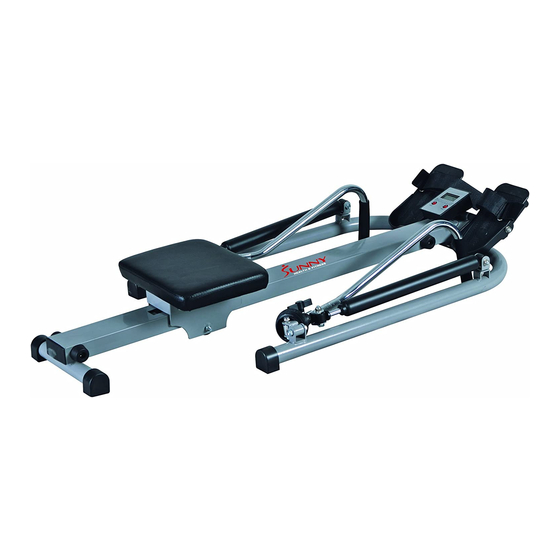

Sunny SF-RW1005 Owner's Manual
  1. Manuals
  2. Brands
  3. Sunny Manuals
  4. Home Gym
  5. SF-RW1005
  6. Owner's manual

Sunny SF-RW1005 Owner's Manual

Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual

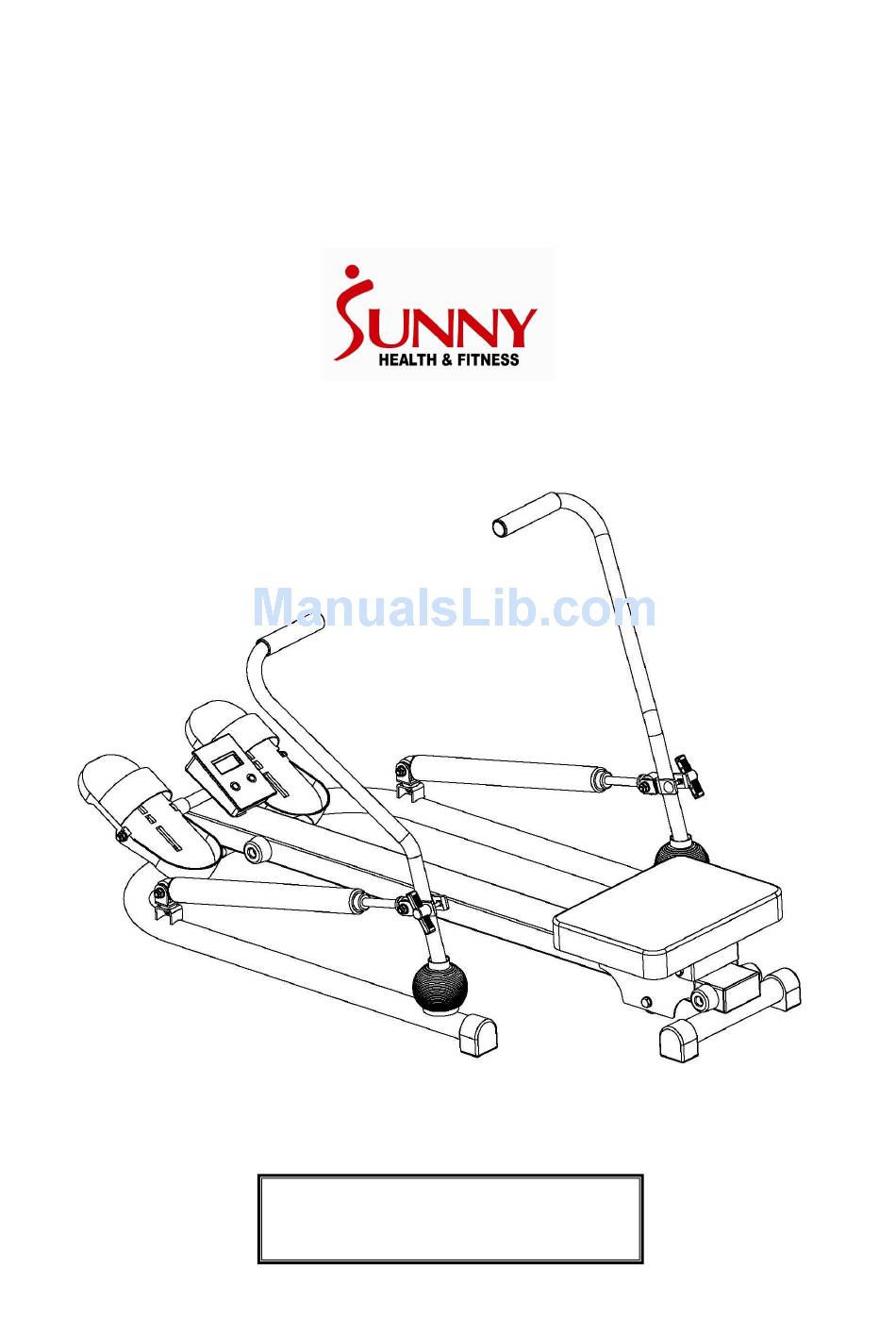

ROWING MACHINE
SF-RW1005
OWNER'S MANUAL
The specifications of this product may
vary from this photo and are subject to
change without notice.
- 1 -

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the SF-RW1005 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Sunny SF-RW1005

Summary of Contents for Sunny SF-RW1005

  • Page 1 ROWING MACHINE SF-RW1005 OWNER’S MANUAL The specifications of this product may vary from this photo and are subject to change without notice. - 1 -...

  • Page 2: Important Safety Notice

    14. Do not grasp the seat to move the Rowing Machine. The seat will move and it may hurt your hand and fingers. 15. Sunny SF-RW1005 should be used by only one person at a time, and it is designed for consumer use only.

  • Page 3: Parts List

    Parts list Item Item Description Description Seat rail Meter Seat support Hydraulic cylinders Left hand side frame Bolt Right hand side frame Left rowing handlebar Rubber feet Right rowing handlebar Bolt M8×55 Foam grip Globate cover Flat washer Quadrate end cap Seat End cap Screw...

  • Page 4: Assembly Instructions

    HAREWARE PACKING LIST WRENCH（13、14、 15、Ф5） WRENCH S6 ASSEMBLY INSTRUCTIONS Before beginning assembly, be sure to observe our recommendations and safety instructions. Step 1: Main frame assembly 1. Insert the Left hand side frame (3) and Right hand side frame (4) onto the Seat rail (1); tighten with 4 pcs of Bolt (6), 4 pcs of Flat washer (8) and 4 pcs of Nut (7).
  • Page 5 Step 2: Foot rests and computer assembly 1. Insert the Foot rest shaft (16) through the holes on the pedal (18) and Spacer sleeve (17) then through the hole of the Seat rail (1). Use the Flat washer (19) and Nylon nuts (15) to tighten it.
  • Page 6 Step 4: Hydraulic cylinders assembly 1. Attach the fixed ends of the hydraulic cylinder to the U-brackets (35) on the left and right hand side frames (3+4) using Bolts (23), Flat washers (8) and Nylon nuts (15).Screw on the nut (15)until the self-locking part of the nut engages on the thread of the screw (23) and the hydraulic cylinder is not blocked.
  • Page 7 STORAGE AND MAINTENANCE 1. Keep SF-RW1005 in a clean dry place. 2. Grasp the frame to move the SF-RW1005. Do not use the seat to move it. The seat will move and it may hurt your hand and fingers. 3. Please remove the battery before storing the machine for a long time.
