Philips ISYSTEM LPC2138 User Manual

Target board.
Hide thumbs

Advertisement

_
User's Guide
© iSYSTEM, December 2005
Philips LPC2138 Target Board
Ordering code
Dimensions

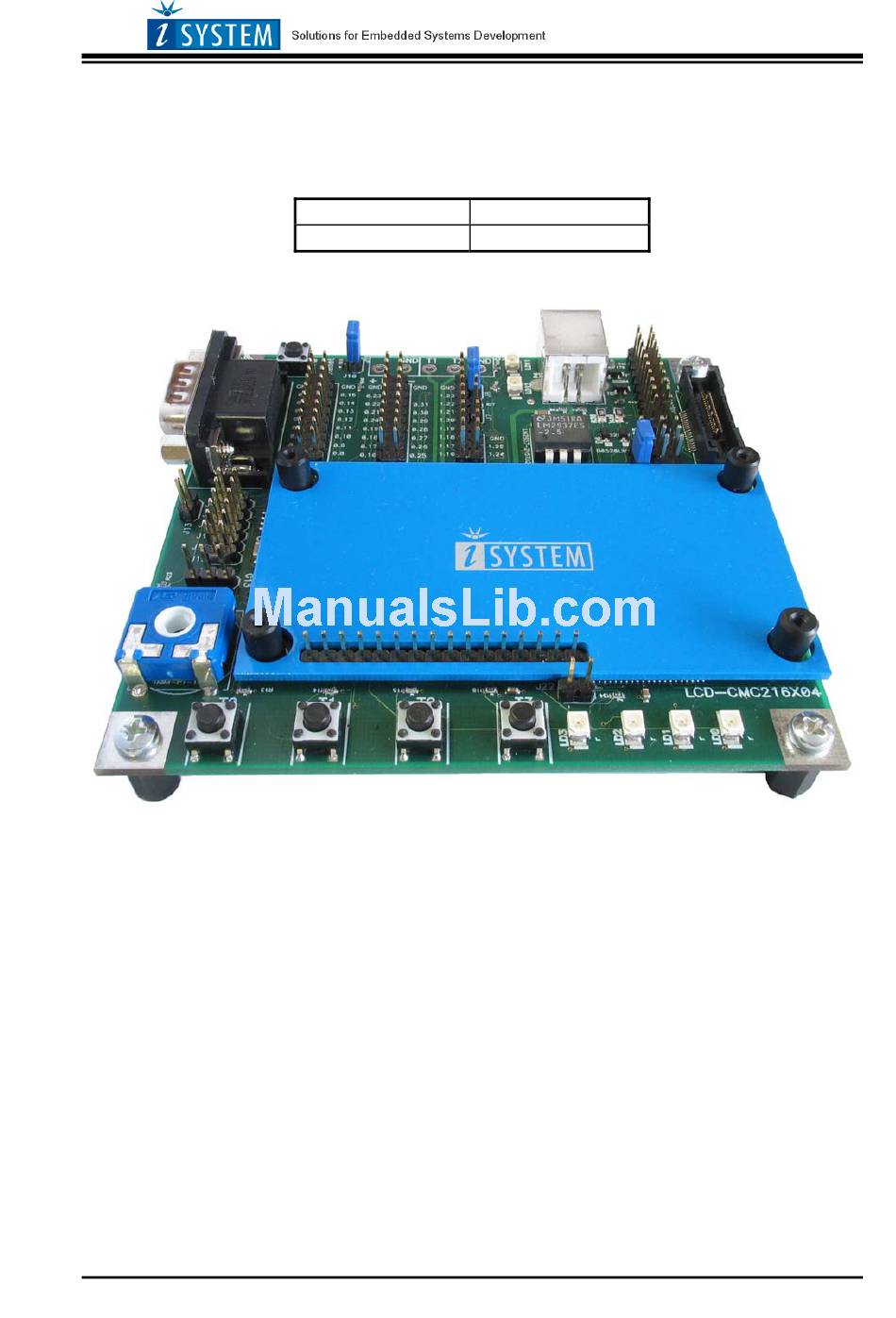

Figure 1: ITLPC2138 Target Board
ITLPC2138
100 x 96 mm
V1.4
1/16

Advertisement

   Related Manuals for Philips ISYSTEM LPC2138

   Summary of Contents for Philips ISYSTEM LPC2138

  • Page 1

    User’s Guide Ordering code Dimensions © iSYSTEM, December 2005 Philips LPC2138 Target Board ITLPC2138 100 x 96 mm Figure 1: ITLPC2138 Target Board V1.4 1/16...

  • Page 2: Table Of Contents

    Contents Contents... 2 Introduction ... 3 Description ... 3 View of the ITLPC2138 ... 3 Block Diagram ... 4 Components List ... 5 Power Supply... 6 Jumper & Connector Descriptions... 6 Connectors... 7 Schematic ... 10 Licensing the on-board integrated debugger ... 11 Use of the on-board integrated debugger ...

  • Page 3: Introduction

    Introduction Philips LPC2138 Target Board is an evaluation and a development system for Philips ARM7TDMI-S based LPC2138 microcontroller. The ITLPC2138 package consists of a USB cable and a target board populated with Philips LPC2138 CPU, minimum peripherals, JTAG debug connector, ETM trace connector and an on-board integrated iSYSTEM debugger.

  • Page 4: Block Diagram

    Block Diagram Figure 3: ITLPC2138 Block diagram Notes 1. The board provides 16-pin connector for the optional LCD display (type CMC216x04), which is not included in the package. © iSYSTEM, December 2005 4/16...

  • Page 5: Components List

    Components List Name J7 - J10, J15 – J20, J22,J25 LD0 – LD3 LD11 LD12 T0 – T3 Reset TRIM-PT © iSYSTEM, December 2005 Description Connector for manufacturing purpose ETM Trace connector JTAG debug connector USB connector (integrated debugger) DB9 connector, serial port (UART1) Expansion connector GPIO pins P0.0 –...

  • Page 6: Power Supply

    Power Supply The target board is powered from the PC USB port, through which winIDEA (IDE) running on a PC, connects to the on-board integrated debugger. Connection is made using a standard USB cable. Battery power supply for RTC can be optionally connected to J11 (see J11 description for more details). Jumper &...

  • Page 7: Connectors

    Connectors DB9 male connector UART1 (P5) The serial port is configured as a standard 3-wire interface. Cross female to female cable is needed for connection with PC computer COM port. 3-pin serial connector UART0 (J14) The serial port is configured as a standard 3-wire interface. ©...

  • Page 8

    16-pin LCD connector (J21) Pin Assignment for Crystal Clear technology CMC216x04 LCD Pin No. 20-pin JTAG Debug Connector (P3) An external JTAG debug tool can be connected to a 20-pin P3 debug connector. Jumper J9 must be set to 2-3 position when using an external debugger.

  • Page 9

    38-pin Mictor JTAG Debug & ETM Trace Connector (P2) Not used Not used Not used CPU_RESET CPU_TDO CPU_TMS CPU_TDI CPU_TRST An external JTAG & ETM debug tool can be connected to a 38-pin Mictor P2 debug connector. Jumper J9 must be set to 2-3 position when using an external debugger.

  • Page 10: Schematic

    Schematic Note: On-board integrated debugger is not part of the schematic. © iSYSTEM, December 2005 10/16...

  • Page 11: Licensing The On-board Integrated Debugger

    Licensing the on-board integrated debugger A 30-days evaluation period starts after the debugger (winIDEA) connects to the ITLPC2138 for the first time. Within the evaluation period, the user should request a regular license from iSYSTEM. Run the request wizard to obtain the license INIT string by pressing the ‘Request INIT…’ button in the ‘Hardware/Hardware/License’ tab.

  • Page 12: Use Of The On-board Integrated Debugger

    Use of the on-board integrated debugger Follow below instructions, in order to get a sample application running with “out of the box” experience. All jumpers are set in the default position during the final tests in the manufacturing. If winIDEA 2006 CD is not part of the package, please obtain winIDEA 2006 setup from your local iSYSTEM office or from www.isystem.com.

  • Page 13: Use Of An External Debugger

    Use of an external debugger An external debugger can be: • a JTAG debugger, which connects to a 20-pin P3 connector • a development tool supporting JTAG debugging and ETM (on-chip trace), which connects to a 38-pin Mictor P2 connector Setting up a debug environment for the first time •...

  • Page 14: Troubleshooting

    There was a case, where the code was programmed in the flash, which disabled the JTAG debug port shortly after reset. Due to the Philips implementation, the debugger cannot take over control over the CPU immediately after reset, but a part of code is executed before the CPU can be stopped by the debugger. In this particular case, the application disabled JTAG port before the debugger took control over the CPU and the debugger could not connect to the CPU at all.

  • Page 15

    Notes: © iSYSTEM, December 2005 15/16...

  • Page 16

    Disclaimer: iSYSTEM assumes no responsibility for any errors which may appear in this document, reserves the right to change devices or specifications detailed herein at any time without notice, and does not make any commitment to update the information herein. ©...
