Thank you for using our product! Please read this manual in detail before using this device.
Notes:
1.
this product is a precision device, please do not drop it, break, splash with liquid, or disassemble without permission.
2.
if camera will overheat, smoke or peculiar smell during the process of charging, stop charging immediately and disconnect the camera.
3.
please avoid contact with the product for very young children in order to avoid eating or other hazards.
4.
use well known branded Micro SD cards, no-name brand cards will not guarantee the normal usage.
5.
if not using anymore this device, select a waste collection point to recycle this product or its batteries, do not discard in household garbage.

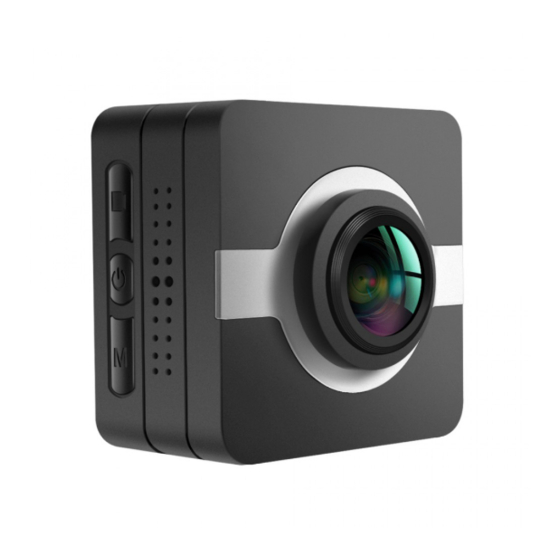

Product overview
The MateCam X1 is using latest technology available to offer features like video recording up to 4K-HI resolution, up to 60FPS for FullHD, gyro
stabilization, 16MP photo shooting, Wi-Fi and remote control and can be perfectly used in all kinds of outdoor sports video or driving recordings.
Chipset
NOVATEK NT96660
Image Sensor
16MP 1/2.3'' SONY IMX206 CMOS
Lens
7 Glass, F=2.0, 160° Wide Angle lens
Video Resolution
4K-HI 3840*2160p 24fps (HI = Horizontally Interpolated from 2880*2160p)
2.7K (2704*1520p 30fps)
2K (2560*1440p 30fps)
FullHD (1920*1080p 60fps)
HD (1280*720p) 120fps
VGA (640*480p) 240fps
Image Resolution
16MP/15MP/12MP/8MP/5MP - JPG
Video Format
MOV/MP4 - H.264 with AAC sound
Video FPS
10/15/20/24/25/30/48/50/60/120/240fps
FOV
Wide / Middle / Narrow
Extra features
Wi-Fi, Gyro Stabilization, Motion Detect, G-Sensor, Power Safe Mode, Remote control (optional)
Memory
External: Micro SD Card up to 128GB
Connections
USB2.0 / Wi-Fi / Micro HDMI (HDMI-D) / Remote control / TV Out
LED Indicator
9 LEDs mode
Battery
900mAh Li-Po rechargeable battery
Operating system
WinXP, Win7, Win10, Mac OS
MateCam X1 – User Manual
Advertisement
Table of Contents
Summary of Contents for MATECam MateCam X1
- Page 1 Product overview The MateCam X1 is using latest technology available to offer features like video recording up to 4K-HI resolution, up to 60FPS for FullHD, gyro stabilization, 16MP photo shooting, Wi-Fi and remote control and can be perfectly used in all kinds of outdoor sports video or driving recordings.
- Page 2 Preparing the camera before first use 1. Charging: the camera is containing a high-capacity rechargeable battery. In order to extend battery life, please charge it completely before using. Charging options: (1) connect to the computer USB interface (2) use the power adapter (5V 1-2A) (3) use the car charger BATTERY LED COLOR CHART: Battery LED colors and LED flashing for battery status...
- Page 3 2. TV Out mode: connect camera to TV or other monitor display by using the RCA cable, turn on the camera. Connect the AV cable between the MateCam Micro USB port and your TV or monitor AV In connectors. Recording: press Mode button to switch between 2K --》1080p --》720p --》VGA --》Photo --》Motion Detection --》4K --》2.7K.
- Page 4 Video Photo 6. Enter into the preview mode you can view photos, videos. You can download, edit, and share pictures and videos to Facebook, WeChat. etc. 7. More detailed functions for the APP can be found on the website, just download the APP online manual. Product specifications may be changed according to the product upgrading or improving, please look online for the actual product specifications.
- Page 5 感谢您选择我们的产品！ 在使用之前，请详细阅读使用说明书。 注意事项 本产品为精密仪器，请勿摔砸、碰撞，或私自拆卸本产品。 如在充电过程中出现产品过热、冒烟或产生异味，请立即拔出充电装置，停止充电。 请避免让幼儿接触本产品，以免发生误食或其它危险。 请选择正规品牌的 microSD 卡，非正规品牌的卡不能确保正常使用。 10. 请选择正式回收点回收本产品或其电池，切勿弃置于生活垃圾中。 产品概述 MateCam X1 相机主要功能包括高清数字视频拍摄和高清相片拍摄，可实现 wifi 无线遥控，可完美的应用于各种户外运动摄录或行车记录。 NOVATEK96660 芯片 1/2.3'' 16M Color Sensor SONY IMX206 图像传感器 7 Glass, F=2.0 160° Wide-angle lens 镜头 4K-HI 2880*2160 24fps 插值 视频解析度 2.7KP 2704*1520...
- Page 6 安装方式 …… 使用操作 一、首次使用前的准备工作 1、充电 本机内置大容量充电电池。为延长电池使用寿命，使用本机前，建议对电池进行完全充电。 充电方式：（1）连接电脑 USB 接口；（2）使用电源适配器（5v 1-2A）；（3）使用车载充电器。 充电时，电量指示灯为红色长亮，充满后熄灭。使用时，电量指示灯根据电量多少呈现不同颜色，绿色表示电量充足，蓝色表示电量剩余 50%，红色慢闪表 示电量即将耗尽、需尽快充电，红色快闪表示电量耗尽、将在自动保存文件后关机。 （注：充电时，本机录像功能可正常使用。为了保护电池，建议尽量在关机状态下充电。） 2、插入 Micro SD 卡。 Micro SD 卡的容量及传输速率直接影响本机的实际使用效果。请选择正品 Micro SD 卡（传输速率 class10 及以上，容量最高支持 128G）。 无卡及卡满时，当前模式的 LED 将快闪提示 3、开机 长按电源键 3-5 秒（开机状态下执行本操作将关闭本机），模式指示灯依次点亮后停留在“2k”上长亮，进入待机状态。 4、格式化 Micro SD 卡 待机状态下长按快门键 10 秒，本机将自动将 Micro SD 卡格式化为 FAT32 格式。 注：若本机在使用过程中出现异常情况，请用直径小于...
- Page 7 注：本机在录像或拍照模式下，可通过遥控器抓拍当前模式设置下分辨率值的照片。遥控器有效范围：10M。 四、WiFi 连接 Wi-Fi 连接： 1、安装 APP 软件 MateCam 到安卓或者苹果系统设备中，安卓 APP 可以在 Google Play 下载，苹果 APP 可以在 App store 下载，或者直接扫描说明书上的二 维码进行下载。 2、长按模式键 3 秒 WIFI ON/OFF ，对应 WIFI 蓝色灯亮， Wifi 名称：MateCam_x1,密码默认 88888888 3、Wi-Fi 连接成功后可以进入高级设置菜单进行 WIFI 密码及 WIFI 名称重新设置。 4、进入 APP 界面后上下滑动屏幕可以调节显示屏亮度。...
