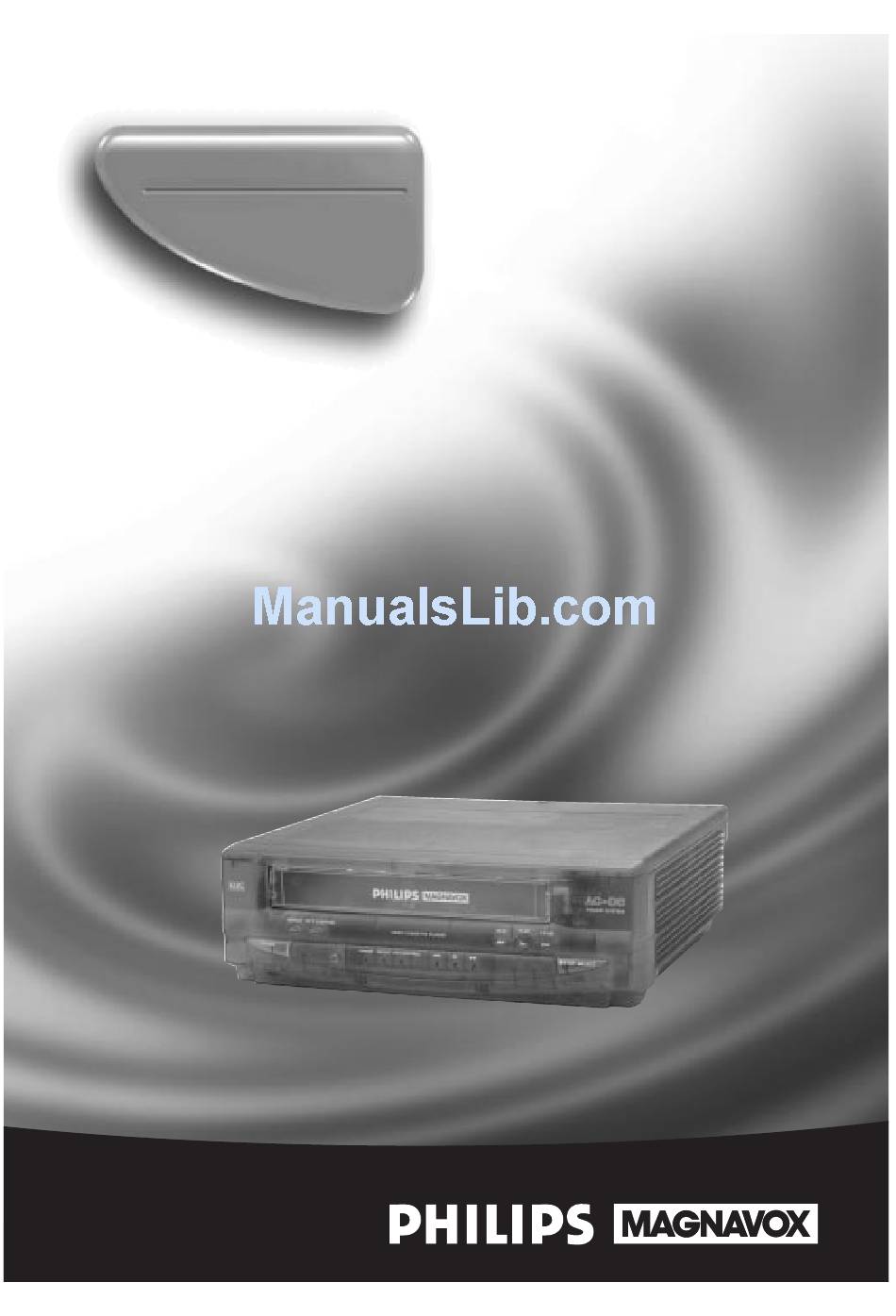

- Page 1 Video Cassette Player VPA115BL VPA115PR Owner’s Manual Important! Return your Warranty Registration Card within 10 days. See why inside.
- Page 2 Return your Warranty Registration card today to ensure you receive all the benefits you’re entitled to. Once your PHILIPS MAGNAVOX purchase is registered, you’re eligible to receive all the privileges of owning a PHILIPS MAGNAVOX product. So complete and return the Warranty Registration Card enclosed with your purchase at once.
-
Page 3: Introduction 3
This VCP, equipped with a High Quality (HQ) system, is compati- ble with existing Video Home System (VHS) equipment. Philips Consumer Electronics Company recommends that you use only video cassette tapes that are labeled with the use of other tapes may result in poor picture quality and excessive deposits on the video heads, which may not be covered by the warranty if damage occurs. -
Page 4: Table Of Contents
4 Table of Contents Setting Up Your VCP Introduction ............3 Table of Contents . -
Page 5: Before Using Your Vcp 5
Putting Batteries in the Remote Control Remove the battery compartment lid on the bottom of the remote control by sliding the lid in the direction of the arrow. Insert two AA batteries inside the battery compartment with their + and – ends aligned as indicated. Replace the battery compartment lid. -
Page 6: Hookups Without A Cable Box
6 Hookups Without a Cable Box The basic VCP/TV connection – antenna/cable to VCP to TV – is shown below. If you have a Cable Box, please refer to pages eight-nine. If you have a Stereo TV, please go to page 10. To use the VCP in an automobile, go to page 11. - Page 7 Connect the RF coaxial cable (supplied) to the ANT(enna) OUT jack on the back of the VCP and to the ANTENNA IN Jack on the TV. (You may use either a snap-on type or screw-on type of coaxial cable, whichever you prefer. A snap-on type is supplied.) Antenna or Cable...
-
Page 8: Hookups With A Cable Box
8 Hookups With a Cable Box This connection allows you to view any channel. You must select channels at the Cable Box. 1. Connect the Cable signal to the IN Jack on the Cable Box. 2. Use the RF coaxial cable (supplied) to connect the OUT Jack on the Cable Box to the ANT(enna) IN Jack on the VCP. - Page 9 This connection differs from the one shown on page eight. You may still view any channel (selecting channels at the Cable Box), but the instructions for playing a tape are different. 1. Connect a Cable signal to the VCP’s ANT(enna) IN Jack. AUDIO OUTPUT 13.2V...
-
Page 10: Hookups With A Stereo Tv
10 Hookups With a Stereo TV VIDEO (yellow) and AUDIO (white) OUTPUT Jacks Audio and Video cables are not supplied. Connect the antenna or cable to the ANT(enna) IN Jack on the back of the VCP. Connect a video cable to the yellow VIDEO OUTPUT Jack on the back of the VCP. -
Page 11: Mobile Connections 11
When passengers in your vehicle want to watch a video program, hook up the VCP by following the steps below. AC Power Cord Car Battery Cord (supplied) Make sure your vehicle has a 13.2-volt, negative ground electrical system. Unplug the AC power cords of the VCP and the TV. -
Page 12: Remote Control Buttons
12 Remote Control Buttons EJECT Button Press to eject the tape. POWER Button Press to turn the VCP on or off. EJECT POWER TRACKING (Up/Down) Buttons During tape playback, press to adjust the tracking manually. Details are on page 19. Press to remove vertical jitter in a Still picture. -
Page 13: Display Panel 13
POWER POWER REPEAT POWER Light This light indicates that the power is turned on. When moisture has accumu- lated in your VCP, this light will blink. REPEAT Light This light indicates that the Repeat Playback function is operating. Details are on page 17. -
Page 14: Front Panel
14 Front Panel STOP/EJECT Button Press once to stop the tape. When tape playback is stopped, press to eject the tape. F.FWD (Fast Forward) Button When tape playback is stopped, press to fast forward the tape at high speed. During tape playback, press to fast forward the tape while the picture stays on the screen. -
Page 15: Rear Panel 15
AC Power Cord Connect to a standard AC outlet to supply power to the VCP. Make sure the car battery cord is disconnected from the VCP. AUDIO OUTPUT Jack Use an audio cable (not supplied) to connect this jack to the Audio In jack of a TV, camcorder, VCR, or audio system. -
Page 16: Playing
16 Playing Before playing a tape, make sure the VCP and TV are connected (see pages six-11). Then, follow the steps below. Turn on the TV. Set it to the same channel as the CH3/CH4 switch on the back of the VCP. Insert a tape in the VCP. -
Page 17: Playback Options 17
Repeat Playback During tape playback, press the REPEAT button on the VCP. The REPEAT light will come on. When a tape has finished playing, the VCP will rewind it and start playback again and again. To cancel Repeat Playback, press the REPEAT button again. -
Page 18: Playback Options
18 Playback Options Forward and Reverse Searching (SP/LP/SLP) During tape playback, press and release the FF/SEARCH button or the REW(ind)/SEARCH button. A fast forward or reverse picture search will begin. (Noise bars will appear.) To stop searching, press the STOP button. To return to playback, press the PLAY button. -
Page 19: Automatic Operation Features 19
Direct Button Operation When a tape is in the VCP and the VCP power is off, press the PLAY, REW(ind), or F.FWD button on the VCP. The VCP will turn on automatically and playback, rewinding, or fast forwarding will start immediately. Automatic Playback When you put a tape in the VCP, the power will come on and playback will begin automatically. -
Page 20: Helpful Hints
20 Helpful Hints If you are having problems with your product, check this list of problems and possible solutions before requesting service. You may be able to solve the problem yourself. If you need to call a customer service representative, please know the model number and serial number of your product before you call. -
Page 21: Limited Warranty 21
Philips Consumer Electronics Company. In countries where Philips Consumer Electronics Company does not dis- Philips Service Solutions Group, P.O. Box 2976, Longview, Texas 75606 VIDEO CASSETTE PLAYER This product must be carried in for repair. -
Page 22: Specifications/Glossary
22 Specifications/Glossary Specifications Video Heads Two heads Video Signal EIA standards; NTSC color Antenna VHF/UHF – 75 ohm external anten- na/cable terminal VHF Output Signal Channel 3 or 4 (switchable) 75 ohms unbalanced Power Requirement AC 120V ± 10%, 60Hz ± 5%, DC 13.2V ±... -
Page 23: Index 23
ac power cord ......15 accessories ......24 ant(enna) in jack . -
Page 24: Accessories
The following additional items are not provided with your VCP, but they are designed for use with your new VCP. To order these optional accessories, contact us at: Philips Parts & Accessories Marketing Department 401 East Old Andrew Johnson Highway VHS Cassette Rewinder...
